Product Overview

Description

Product Description

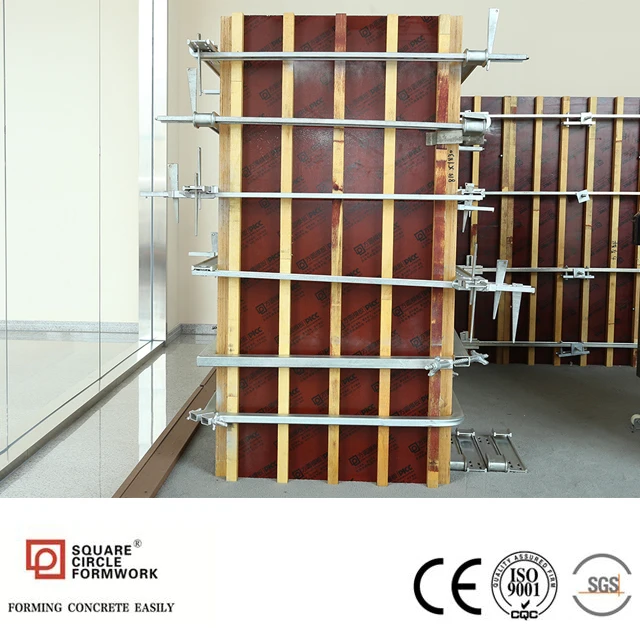

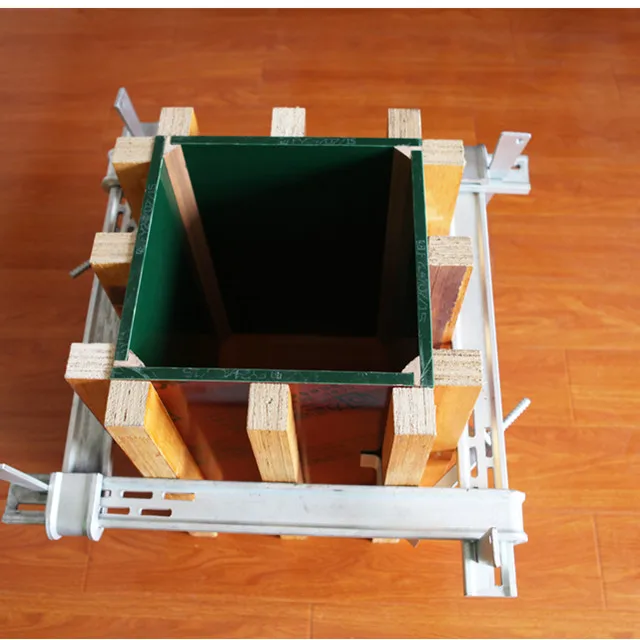

Column Formwork Clamp

1. Made by Q345B steel,galvanized
2. Lightweight
3.Easily handled
4. One set of clamps can be applied on different sized columns
5. No other complicated accessories required for fixing
6. Highly reusable

STANDARD SIZE
Size in millimeter
Width in millimeter
Weight per set
400-600
80
21.6kg
500-800
80
26.2kg
700-1000
100
51kg
900-1200
100
57.2kg
1100-1400
100
65kg
1300-1600
100
70.4kg
1500-1800
100
115.8kg
1900-2100
100
129.8kg
Detailed Information

Q345B steel,Four Single Bars

High strength, long life span of 15-20 years

One man operation,easy to handle,quick install and dismantle

 Thickness

12mm thick,Not the think steel ,which is very easy to cut into the forms

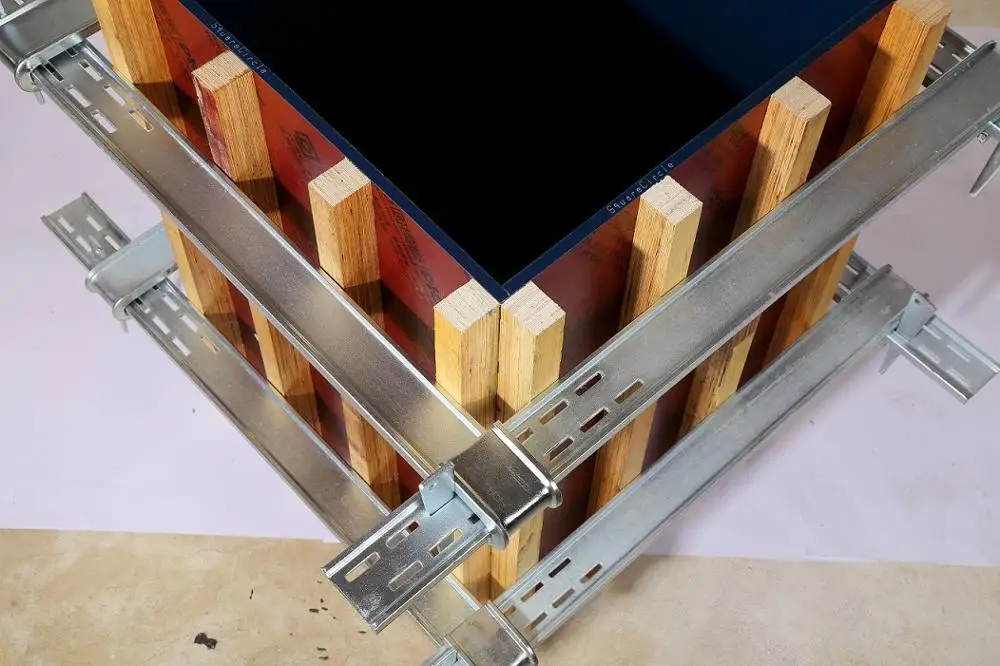

Adjustable

Sizes can be adjustable by slots

Adjustable

Use four wedge pins  to lock into the slots

Use Introduction

It's used in fixing column formwork in construction site.

Installation

First step

Join the 4 piece of panel by slots at edge of panel, fix the corner of column formwork by adjustable corner clamp and keep the clamp the same height.

Second step

put the column clamp on the corner clamp, the head of column clamp is fixed into the bent end of column clamp, make sure the column clamp is faced with beam tightly.

Finally

Put the wedge pin into column clamp, fix it by hammer, measure the distance between column clamp and keep the clamp the same height, install the resting panel and column clamp by the installation steps.

Dismantling.

Hit the end of wedge pin by hammer, remove the steel plate by hands.

Storage

Away from direct sunlight and water.

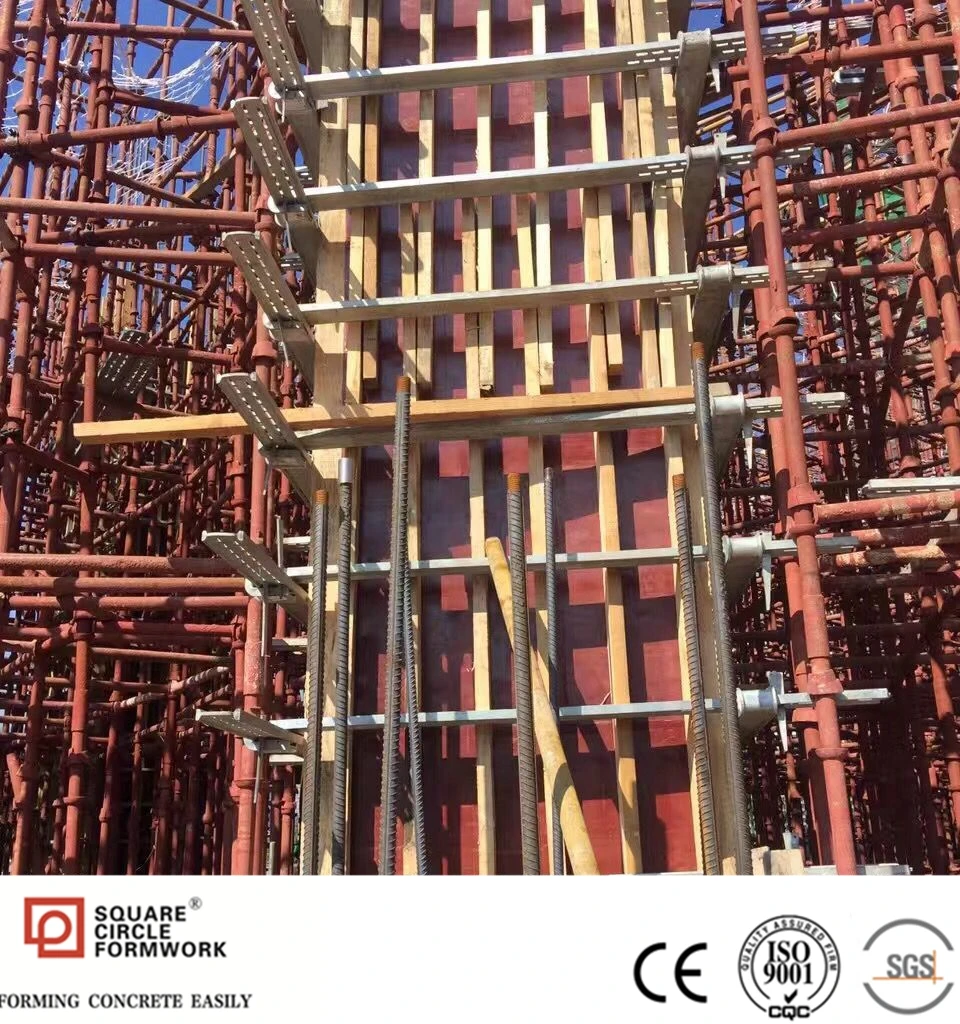

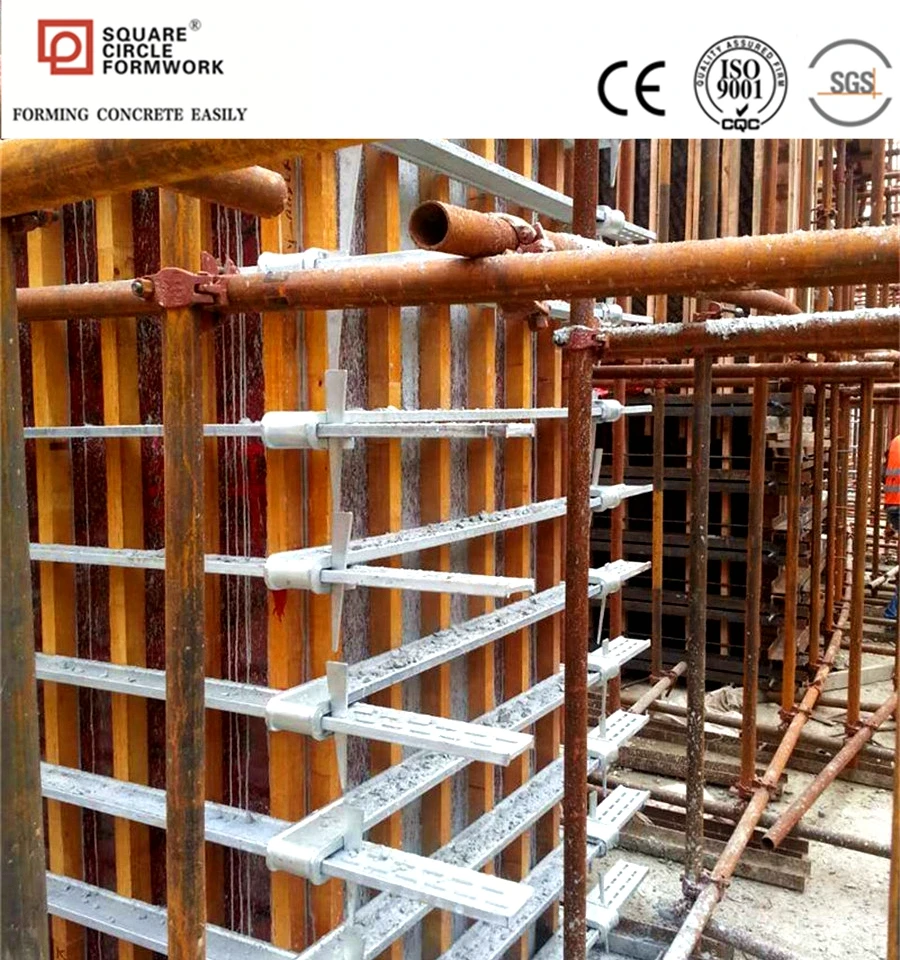

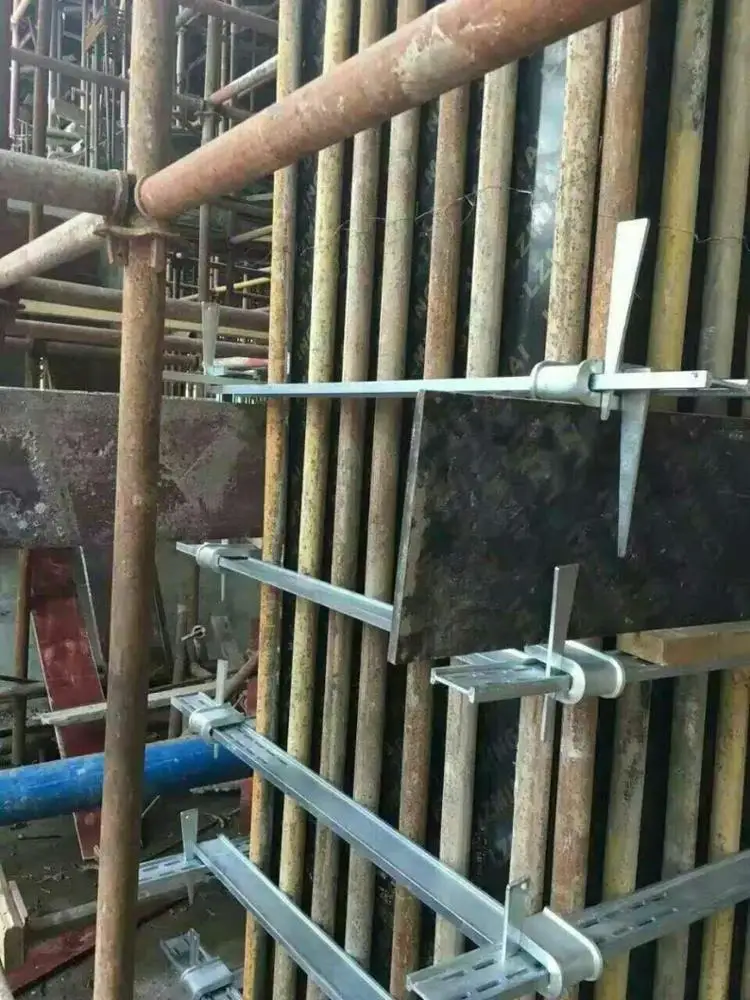

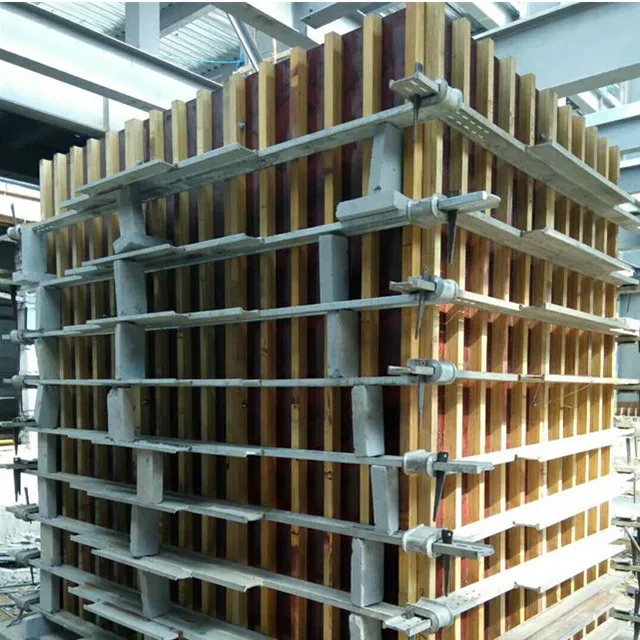

On construction site
Certifications


Our company has achieved ISO9001:2008 certification, CE certification. We strive to provide effective products to our clients and focus on keeping our products quality at the highest level, test reports by National research center testing techniques for building materials, SGS and in-house QC department are available.

Our Company

Square Circle Formwork

Square Circle Formwork is a famous brand made by Shandong Fangyuan Building Materials Co.,Ltd, a subsidiary of Shandong Pengcheng Group,which located in Linyi City, Shandong Province, the north of China. We have been specializing in developing and manufacturing innovative products for concrete forming, such as PP plastic HDO plywood, circular column formwork, column formwork, special formwork, and related accessories. ISO9001 certification, machines from Germany, strict raw materials sourcing, experienced management team, skilled workers, ensure the high quality of finished products.
