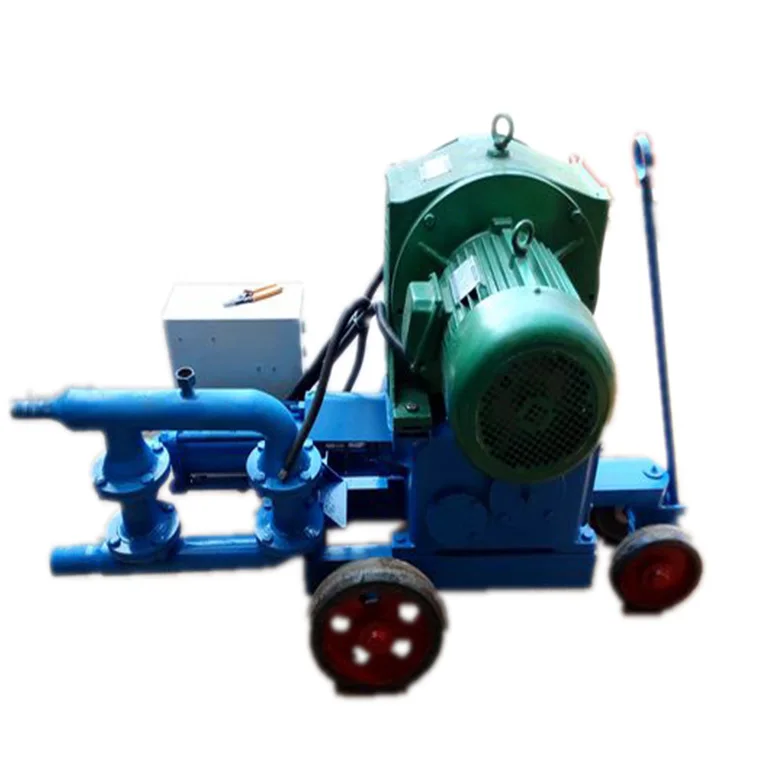

Cheap Electric Factory Hand Operate Cement Grouting Low Pressure Grout Rotor Stator Mortar Pump

Product Description
1. In the construction engineering, used in vertical and horizontal transportation mortar;
2. In metallurgical steel sectors, used for maintenance of blast furnace and other
equipment;
3. In defense engineering, civil air defence works and mining, tunnel construction
for grouting;
4. In the chemical branch of slurry used to transport of raw materials (paste, coating)
magnetic material and other medium;
5. In the farmland, water conservancy project, used for reinforcing the dam, the sand well
drilling for reinforcement, etc; wall
6. In railway construction, used for Bridges, tunnels of the grouting reinforcement;
7. Prestressed component used in engineering into mortar expansion;
8. In thermal power plant is used to transport fly ash mortar;
9. In the highway pavement maintenance, used for cement concrete road surface bottom
cavity pressure grouting.
Technical Data:
Output | 0-230L/min |
Max.pressure | 0-4.0MPa |
Piston stroke | 145mm |
mortar speed | 0-1440r/min |
Grouting mouse Hose ID | 51mm |
Midge population Hose ID | 50mm |
Max.Particle Dia. | 64mm |
Dimensions | 1500*800*1160(mm) |
Weight | 400kg |
chassis | Chassis is type, skid, rail-wheel are optional |

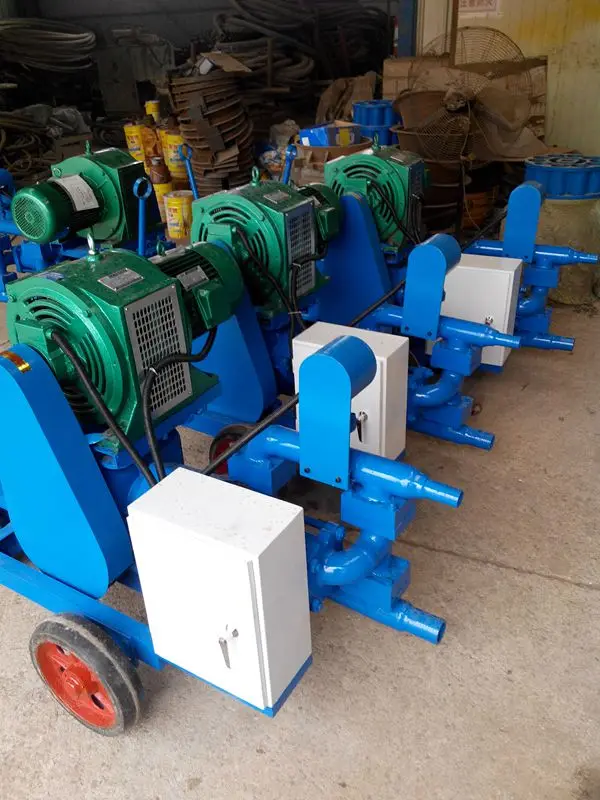

Details Image

Packaging & Shipping

Company Information
1. Zhengzhou Xuda Machinery Co., Ltd is a comprehensive manufacturing factory with 20 years experience in Zhengzhou city of China.Our main product are Dry-mix and Wet-mix shotcrete machine,Mortar plastering machine, Hydraulic concrete pump,Mortar/Cement grouting pump,Hydroseeder,Mixer,Drilling rig ,etc.
2. With a shotcrete machine manufacturing factory which cover about 1000 square meters,we employ 3 high quality talents and 10 specialized workers.Lots of them have 10-20 years experiences.
