Product Overview
Description

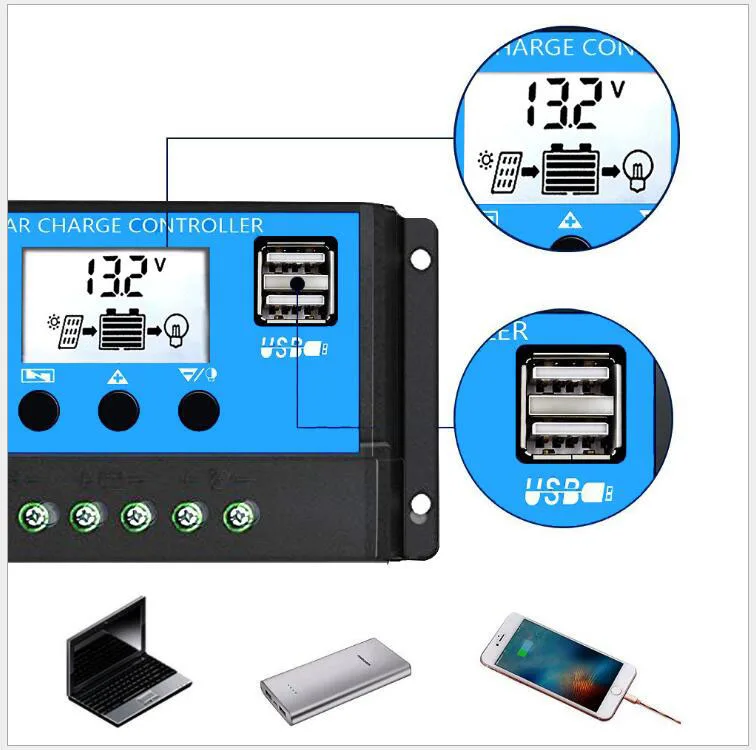

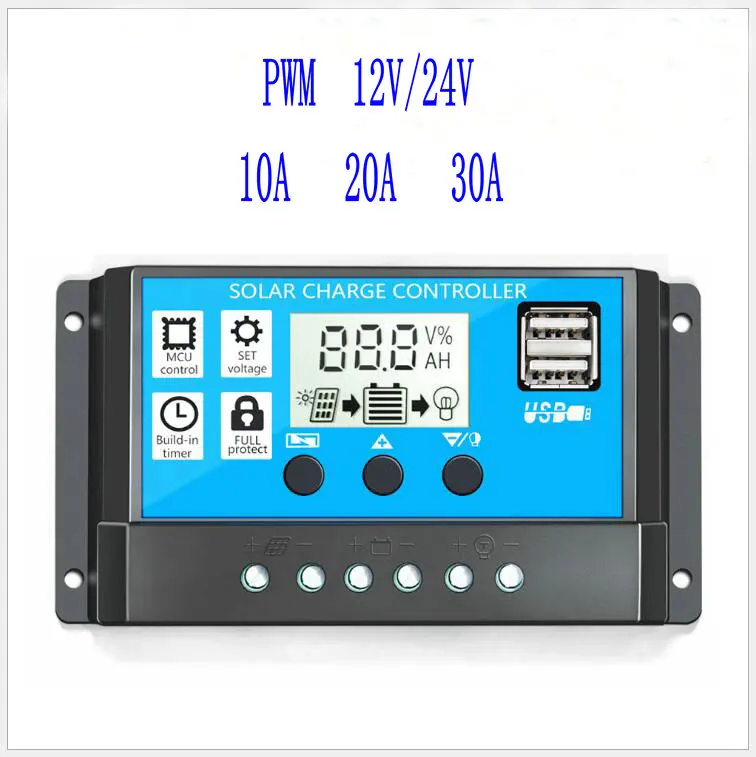

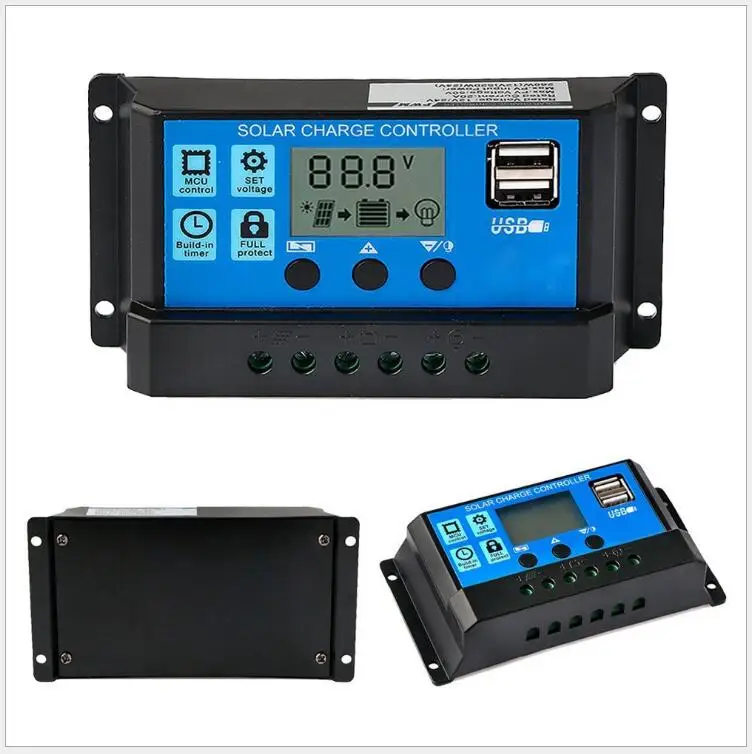

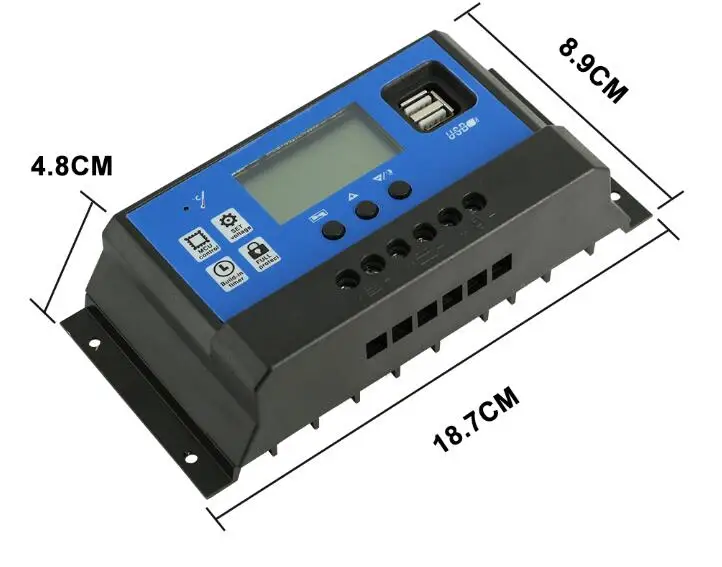

60A/50A/40A/30A/20A/10A 12V 24V Auto Solar Charge Controller PWM With LCD Dual USB 5V Output Solar Cell Panel Regulator PV Home
NEW ARRIVAL model, can auto recongize 12V and 24V Lead-acid battery, Gel battery, Sealed battery, Flooded battery, AGM battery

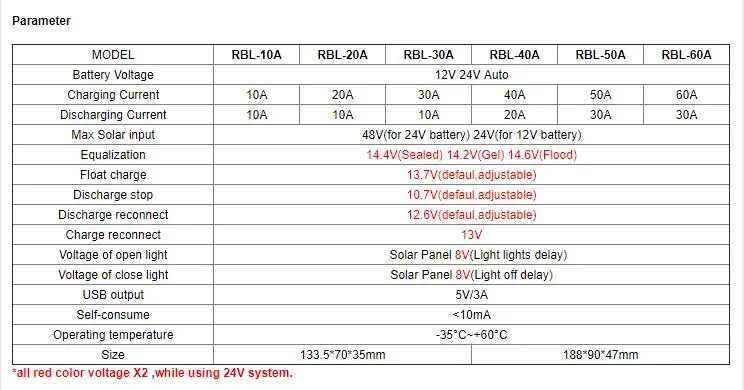

RBL-10A , Max Voc : 24V (12V), 48V (24V); Max Power: 120W (12V), 240W (24V)
RBL-20A , Max Voc : 24V (12V), 48V (24V); Max Power: 240W (12V), 480W (24V)
RBL-30A , Max Voc : 24V (12V), 48V (24V); Max Power: 360W (12V), 720W (24V)
RBL-40A , Max Voc : 24V (12V), 48V (24V); Max Power: 520W (12V), 1040W (24V)
RBL-50A , Max Voc : 24V (12V), 48V (24V); Max Power: 650W (12V), 1300W (24V)
RBL-60A , Max Voc : 24V (12V), 48V (24V); Max Power: 780W (12V), 1560W (24V)

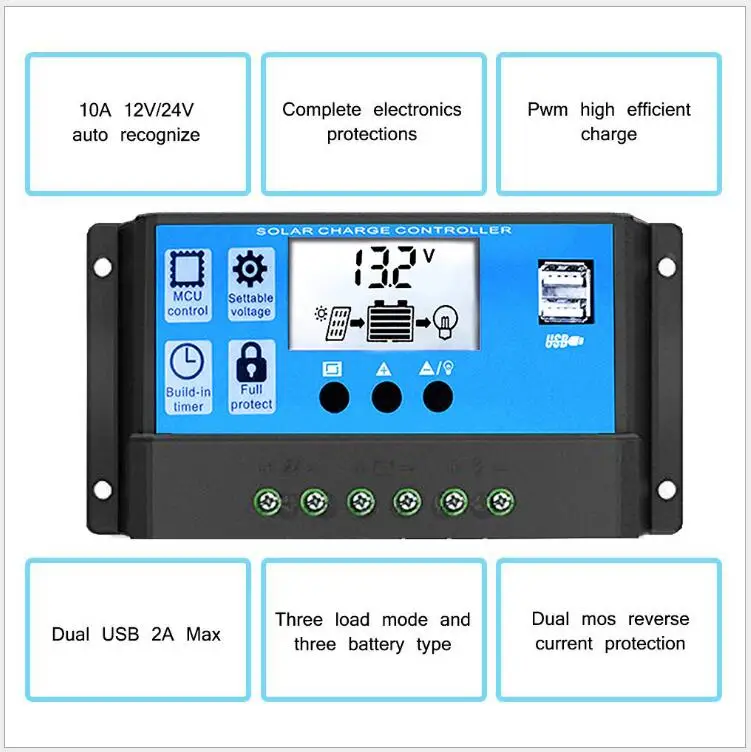

Features
1.Build-in industrial micro controller.

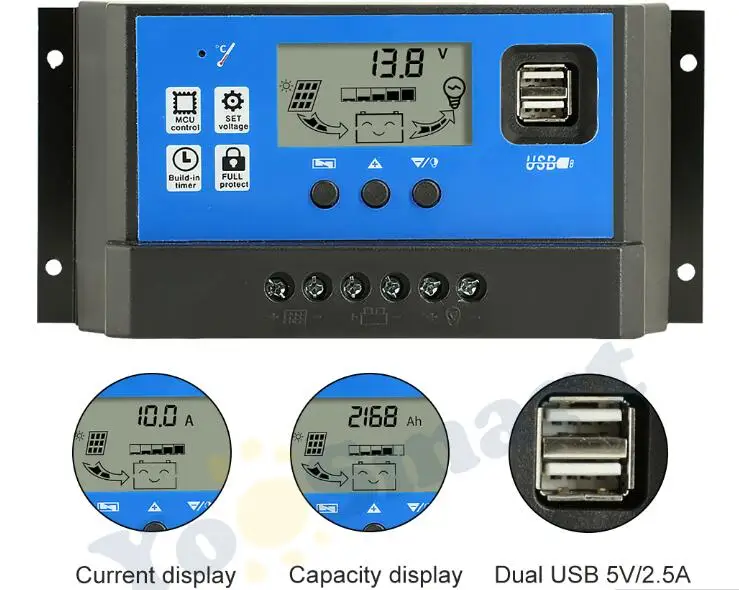

2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.

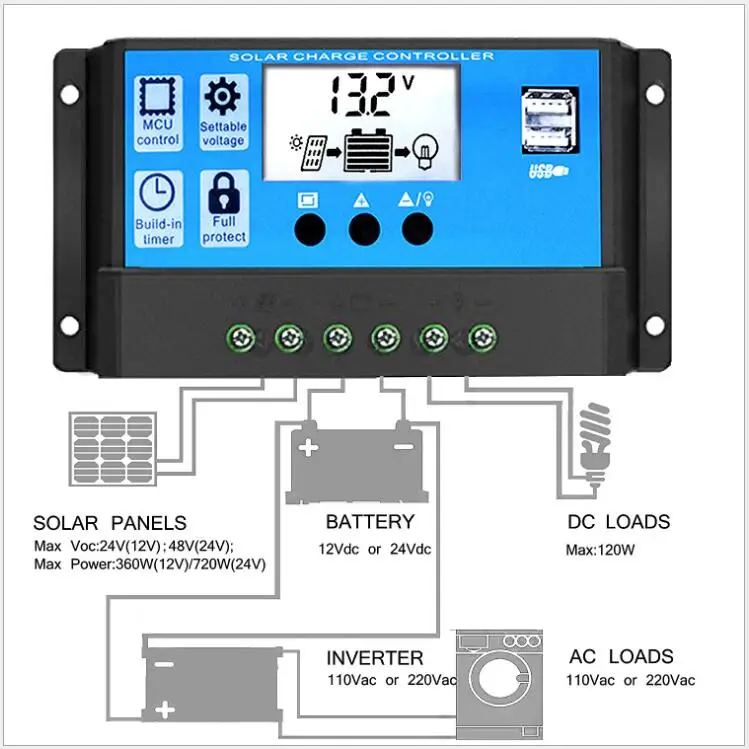

Connection
1.Connect the battery to the charge regulator - plus and minus.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!
