IEC 60947 4 1 3 Phase Electrical 380V AC Plug Contactor

Product Overview

Description

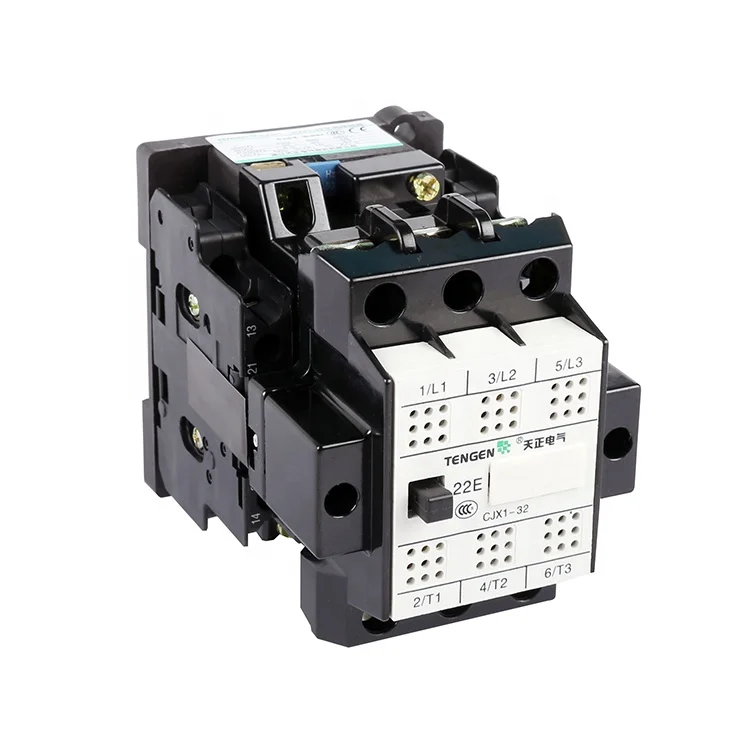

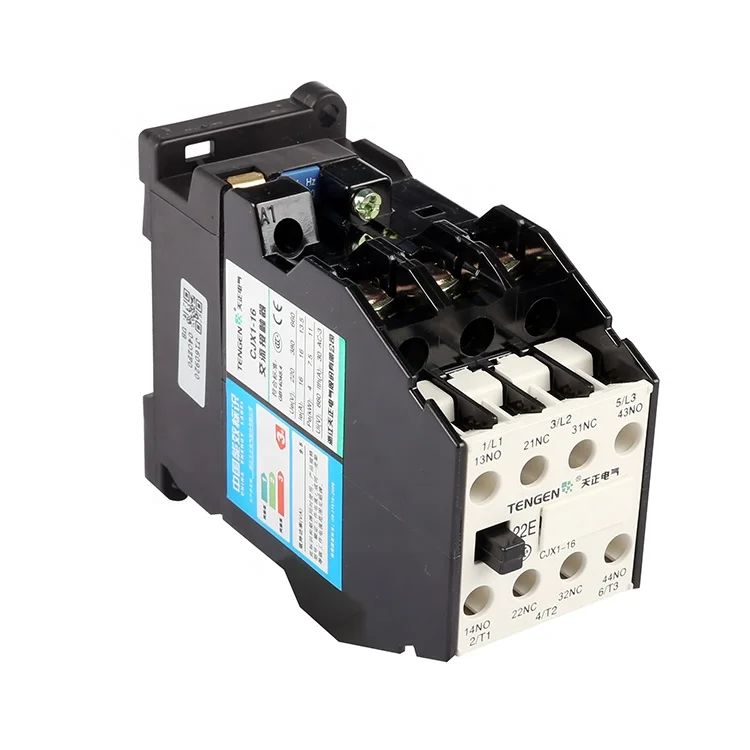

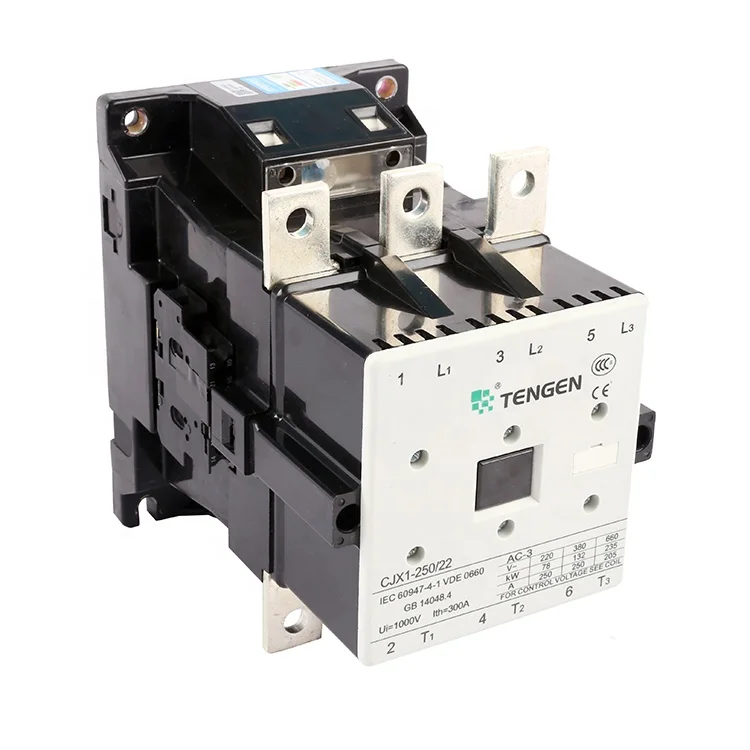

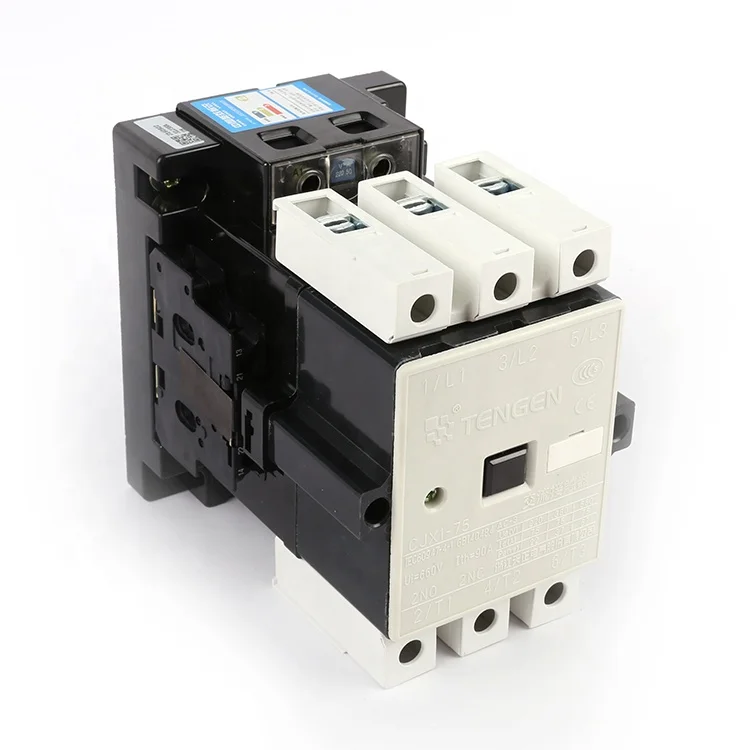

IEC 60947-4-1 3 Phase Electrical 380V AC Plug Contactor

ac plug contactor

Application

3TF series AC contactor are suitable for frequency 50/60Hz,rated insulation voltage up to
1000V,rated operation current 9-475A under AC-3 duty. It is mainly used for making/breaking
electric circuit at a long distance& for frequent starting/stopping &with thermal relay to
compose a magnetic motor starter. The product conforms to IEC60947-4-1 standard.



pe	Rated	Rated		Controllable power				Type of
	thermal	operation		of motor (KW)				auxiliary
	current	current  (A)		AC-3		AC-4		contact
	(A)	380V	660V	380V	660V	380V	660V	NO NC
3TF30	20	9	7	4	5.5	1.4	2.4
3TF31	20	12	8.5	5.5	7.5	1.9	3.3
3TF32	30	16	12.5	7.5	11	3.5	6
3TF33	30	22	16.5	10	15	4	6.6
3TF34	55	32	24	15	22	7.5	13
3TF35	55	38	30	18.5	22	9	15.5
3TF40	20	9	7	4	5.5	1.4	2.4
3TF41	20	12	8.5	5.5	7.5	1.9	3.3	1NO+1NC 2NO+2NC
3TF42	30	16	12.5	7.5	11	3.5	6
3TF43	30	22	16.5	10	15	4	6.6
3TF44	55	32	24	15	22	7.5	13
3TF45	55	38	30	18.5	22	9	15.5
3TF46	80	45	40	22	37	12	20.8	2NO+2NC 4NO+4NC
3TF47	80	63	60	30	55	14	24.3
3TF48	100	75	60	37	55	17	29.5
3TF49	100	85	80	45	75	21	36
3TF50	160	110	95	55	90	27	46.9
3TF51	160	140	120	75	110	35	60
3TF52	200	170	160	90	150	38	66
3TF53	200	205	165	110	160	50	86
3TF54	300	250	230	132	220	58	100
3TF55	300	300	260	160	250	66	114
3TF56	400	400	380	200	355	81	140
3TF58	630	630	600	335	560	160	278
