Гибочная машина письма канала HH NL130 акриловый световой угол Письмо гибочный станок для гибки труб инструмент для канал
- Category: Channel Letter Bending Machine >>>
- Supplier: WEIFANG NEW HH EBIZ TECH CORP
Share on (60840191637):
Product Overview
Description
Channel letter bending machine HH-NL130 Acrylic luminous Angle Letter Bending Machine Bender Tool for Channel Making
Characteristics:
HH-NA130 Channel Letter Bending Machine
1. Automatic Feeding,Automatic Slotting, Automatic Bending.

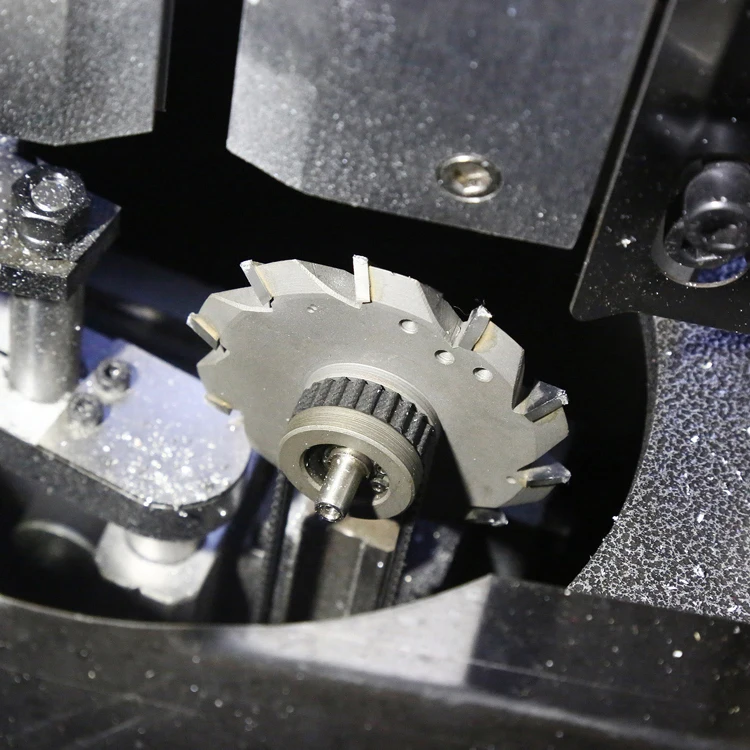

2.Five-axis coordinated control, designed for feeding, lifting, cutting, and bending, one- time forming to ensure accurate and stable cutting and bending .
3. With brushless DC cutting motor, adjustable speed, suitable for various materials.
4. Encoder self-test system, the whole deviation is less than 0.1mm comparing with the acrylic plate.
5. Imported side rails for stable cutting
6. Rebound coefficient of Arc Bender has intelligent compensation, to ensure the accuracy of various material forming.
7. One-button operation, very easy to use.
8. Cost-effective, stable cutting, low noises
9. Self-innovated Software, easy operation
10. Fast speed, can meet 6-8 persons to make lettes at the same time
Technical data:
HH-NA130 Channel Letter Bending Machine
| Working Principle | Auto Feeding, Auto Slotting, Auto Bending |
| Application Material | Aluminum profile, flat aluminum, Channelume |
| Slot Degree | 45°-135°(No limit for flat materials) |
| Material Width | ≤130mm |
| Bending Radius | ≥3.5mm |
| Material Thickness | 0.3-1.2mm |
| Total Power | 1000W |
| File Format | dxf,ai,plt |
| Machine Size | 2000mm*900mm*1550mm |
| Weight | 300KG |
| Voltage | 220V |
| Air Pressure | 0.3-0.8MPa |

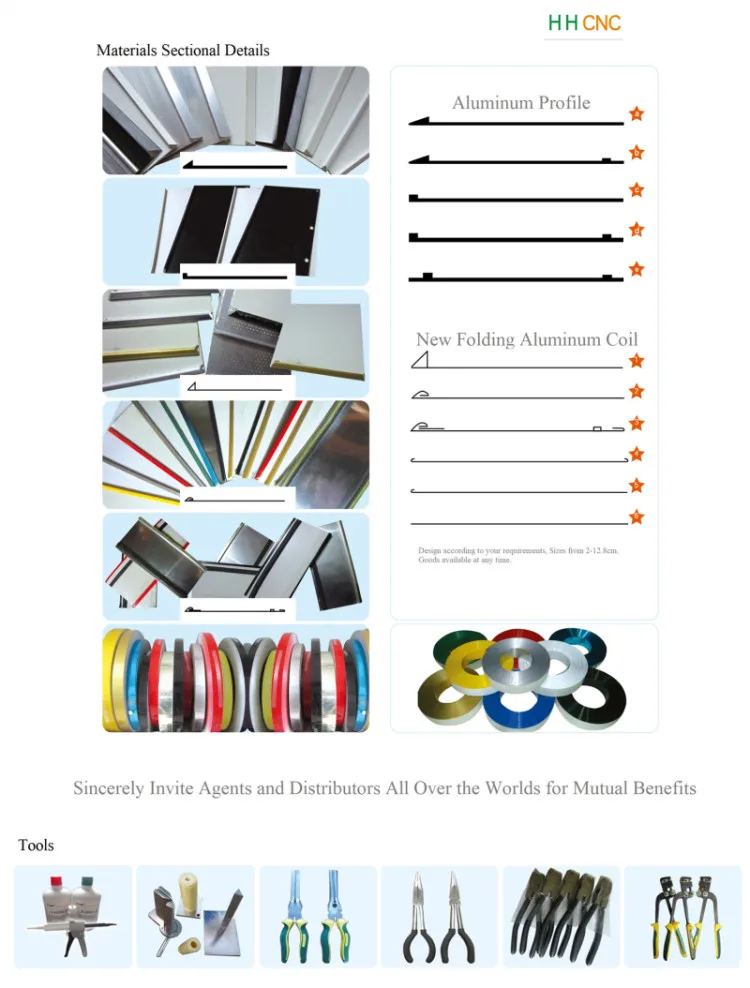

Available Materials
HH-NA130 Channel Letter Bending Machine
Aluminum Flat,Aluminum Profile,Aluminum Sheet,Aluminum Coils,Aluminum Plate,Alloy Aluminum,Aluminum Channel with Sponge,

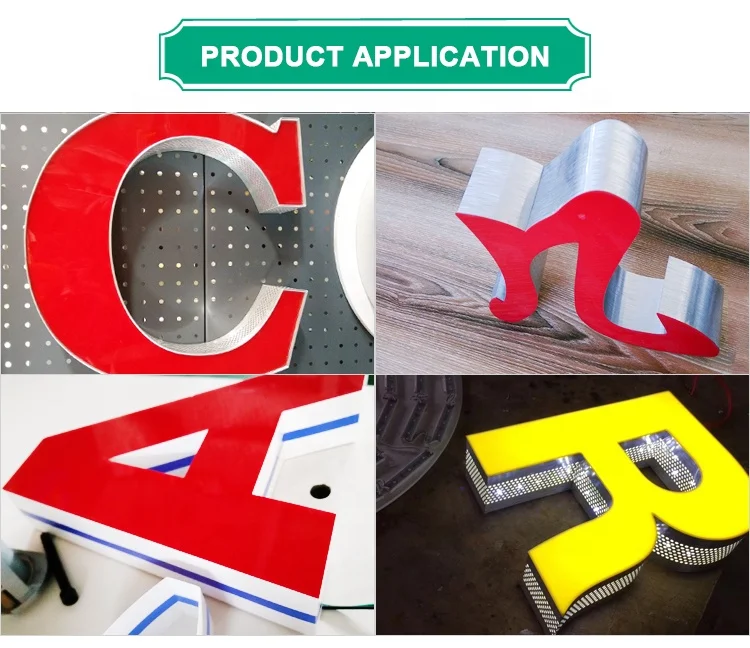

Application Industry
HH-NA130 Channel Letter Bending Machine
Advertising Letters Making,3D Metal Letters,Channel Letters,Signs,Neon Signs,Billboards,LED Logos,Light Boxes Production,Outdoor Advertising and Other Advertising production.
FAQ
1.What's the warranty?
12months for machines,except the vulnerable parts(blade,belt, etc)
2.How to install and run the machine?
we will send the installation video and user's manual with the machine, most customers can learn by themselves. we also provide romote machine or overseas training sevice.
3.Do you have the any materials for sale?
Yes,We Have Many Kinds of Materials for Aluminum Letter Making.
2.How to install and run the machine?
we will send the installation video and user's manual with the machine, most customers can learn by themselves. we also provide romote machine or overseas training sevice.
3.Do you have the any materials for sale?
Yes,We Have Many Kinds of Materials for Aluminum Letter Making.
4.MOQ ?
MOQ is 1 set machine.
5.Delivery
We could send machine to your country port or your factory directly,
There will be best shipping freight and machine price send to you.

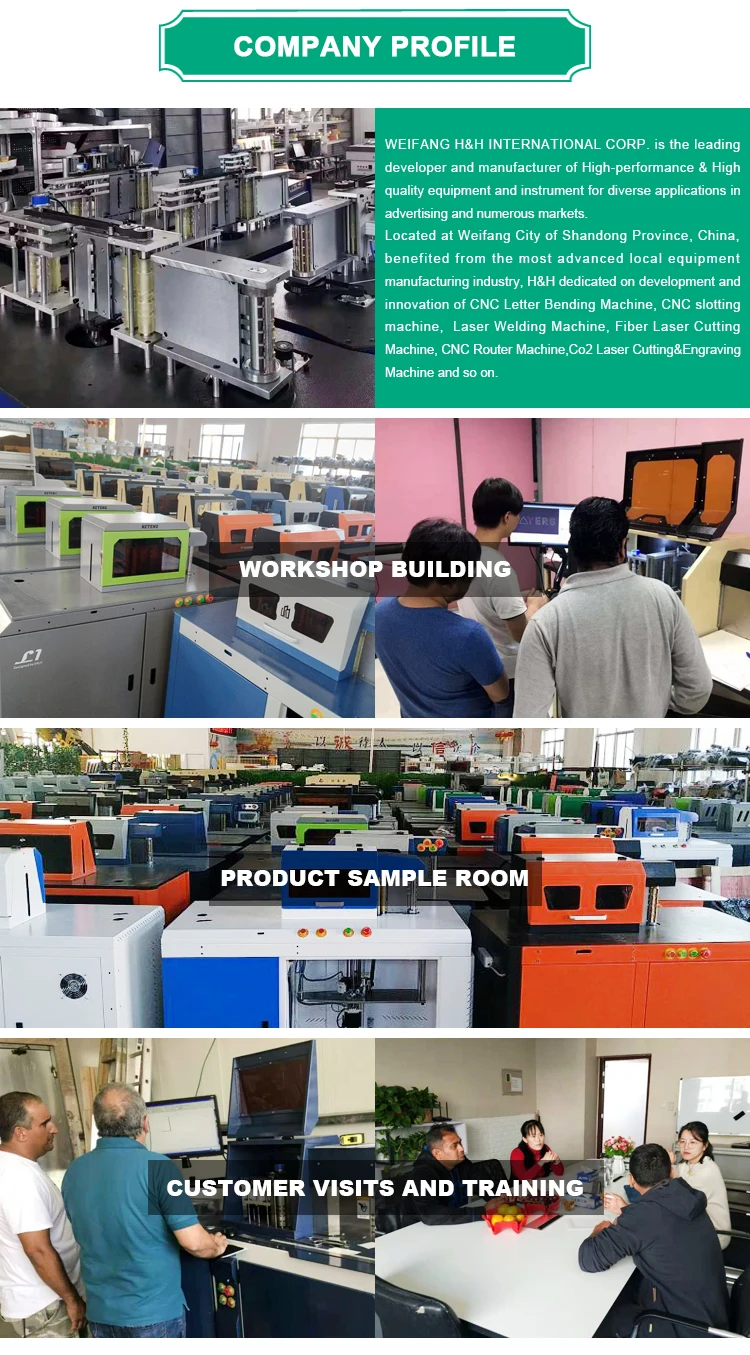

6.Exhibitions and Customers Visit
7.Contact Us

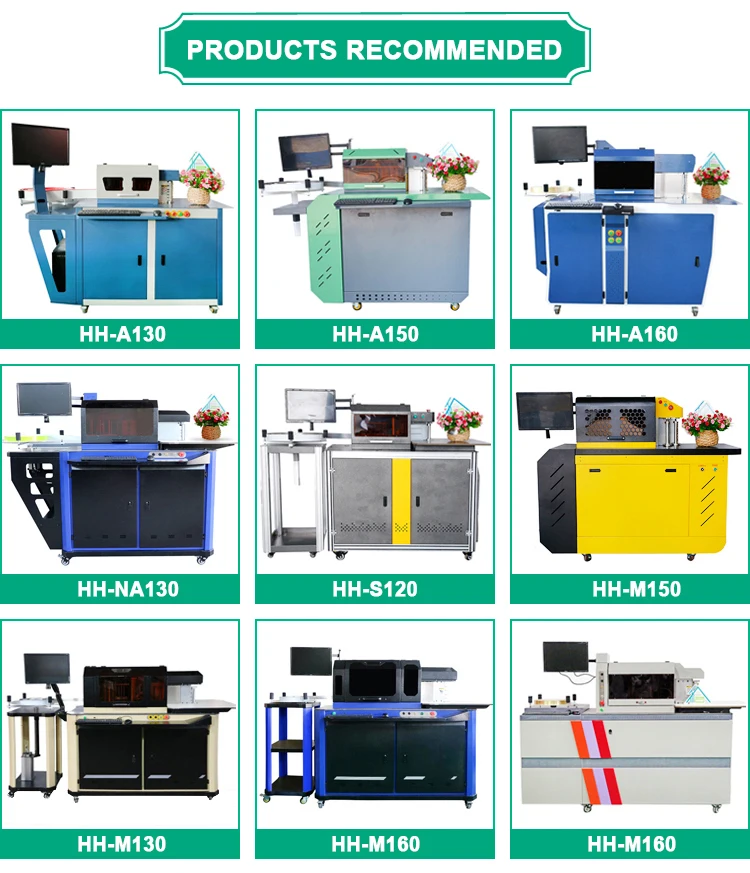

We Recommend
