CJX8 12 Elevator 3 Pole Mini Magnetic Ac 5a 380v Contactors

Product Overview

Description

CJX8-12 Elevator 3 Pole Mini Magnetic Ac 5a 380v Contactors

ac 5a 380v contactor

Application

CJX8 series AC contactor(hereinafter referred to as contactor)is mainly used in the electric power system of AC 50Hz or 60Hz, voltage up to 660v, current 9 475 A for long distance making and breaking circuit. It also can be used for frequently controlling AC motor and formed into electromagnetic starter with thermal relay or electronic protector for protecting the circuit from the problem overload.

Installation and Dimensions

*The contactor can installed with screw(added washer and spring washer)

*The The CJX8-9-30 contactor can use 35mm rail installation

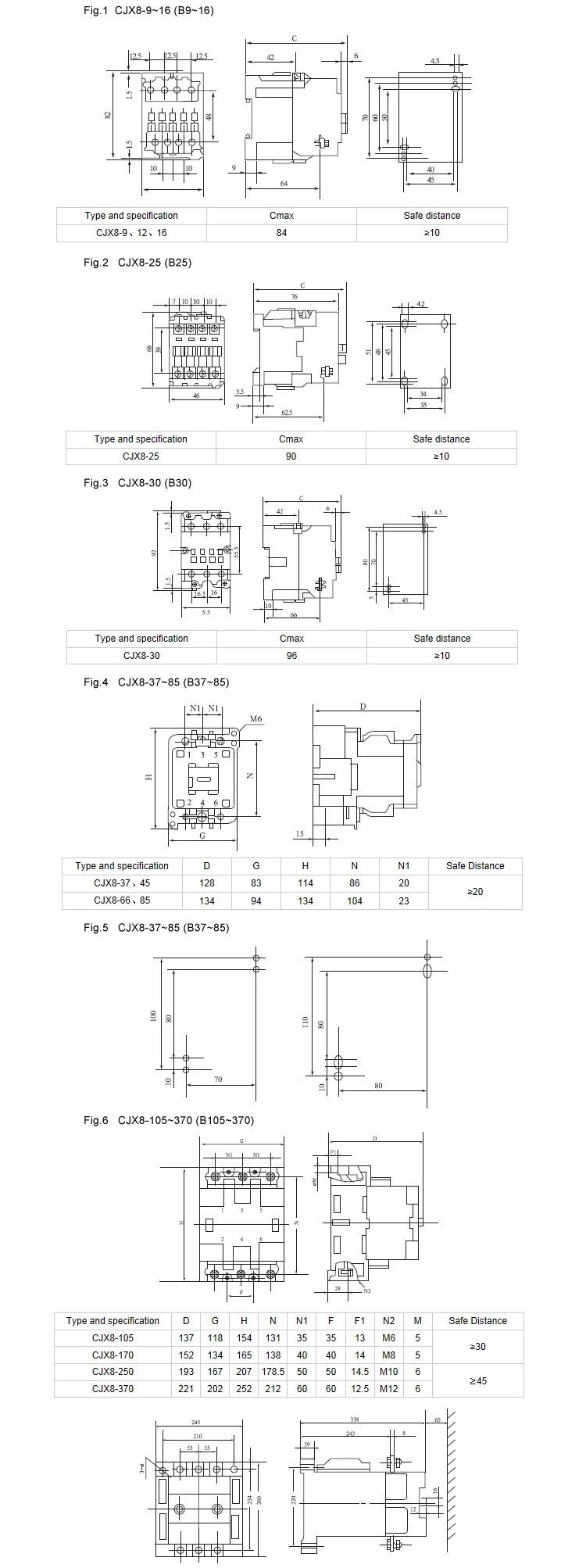

*The Table 4 for the installation and contour dimensions of CJX8

*35EN50022 the installation rail conforms to Europe standard











Tengen Group Co., Ltd. is one of the largest scale enterprises of industrial equipment. Our general headquarters lies in "China Electric Appliance Capital", Liushi, Wenzhou. We have successively won honorary titles such as national large-scale enterprise, national level enterprise, China's electric top 100 enterprise, China mechanical top 100 enterprise, and China's top 100 manufacturer.The product quality of Tengen Group has been strictly controlled in each working procedure, and many kinds of internationalization standard quality guaranteed systems can be highly effective under our company's strict monitoring.

Q:What’s the payment terms?
A:We accept T.T, Paypal, Western Union, LC at sight.



Q:What’s the delivery time?
A:Usually it will take about three weeks for production.



Q:What’s the standard of package?
A:Export standard package or special package according to custome



Q:What kind of product quality your factory offer?
A:We offer most competitive prices with best quality.



Q:Which market do you already sell?
A:We already ship to North America, Europe, Middle East, Southeas.
