Grouting Diesel Factory High-capacity Mining Slurry Automatic Piston Building Wall Sand Cement Mortar Spraying Pump
Grouting Diesel Factory High-capacity Mining Slurry Automatic Piston Building Wall Sand Cement Mortar Spraying Pump
Product Description

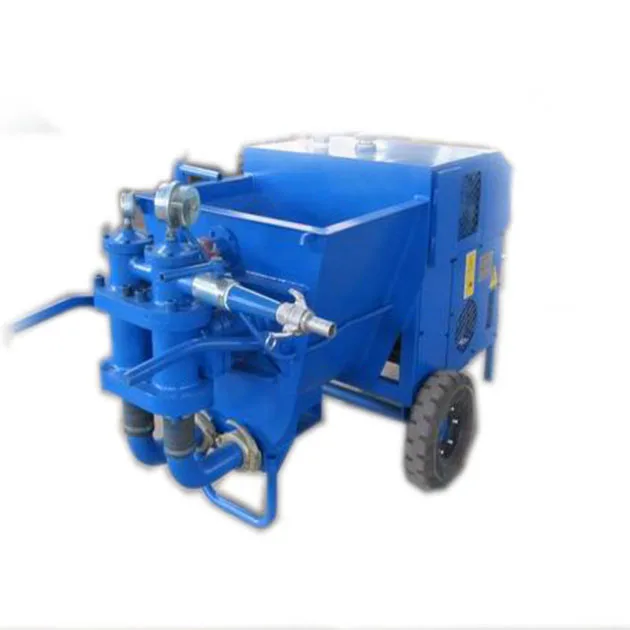

XuDa XZ60/55 Mortar pump is a full hydraulic double-cylinder single-acting piston pump, with the advantages of compact structure, reliable operation, low fault rate, convenient cleaning and maintenance, and high-pressure pump etc.
1.Grouting in tunnel, mining project, dam, foundation engineering of big bridge and high-rise building, and the different kinds of underground engineering etc.
2.Mortar spraying in construction engineering.
Technical Data:
Cylinder Dia | 90mm |
Output | 60L/min |
Max.pressure | 5.5MPa |
Piston stroke | 145mm |
Piston speed | 82/min |
Inlet diameter | 75mm |
Outlet diameter | 50mm |
Max.Particle Dia. | 5mm |
Transmission | Fluid Drive |
Dimensions | 1400×650×920(mm) |
Weight | 800kg |
Power unit | 7.5kw(Motor)/10hp(Diesel engine) |
chassis | Chassis is type, skid, rail-wheel are optional |

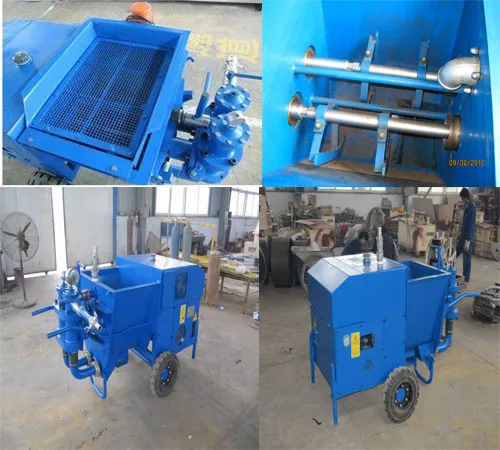

Details Image
Packaging & Shipping
Company Information
1. Zhengzhou Xuda Machinery Co., Ltd is a comprehensive manufacturing factory with 20 years experience in Zhengzhou city of China.Our main product are Dry-mix and Wet-mix shotcrete machine,Mortar plastering machine, Hydraulic concrete pump,Mortar/Cement grouting pump,Hydroseeder,Mixer,Drilling rig ,etc.
2. With a shotcrete machine manufacturing factory which cover about 1000 square meters,we employ 3 high quality talents and 10 specialized workers.Lots of them have 10-20 years experiences.
