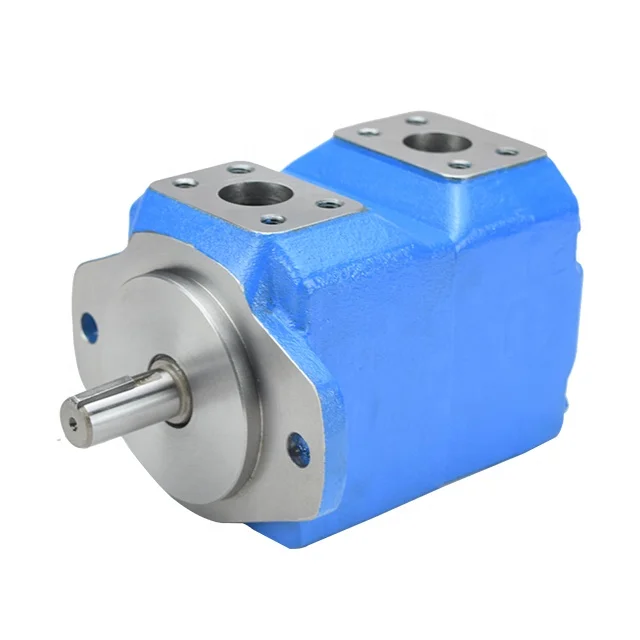

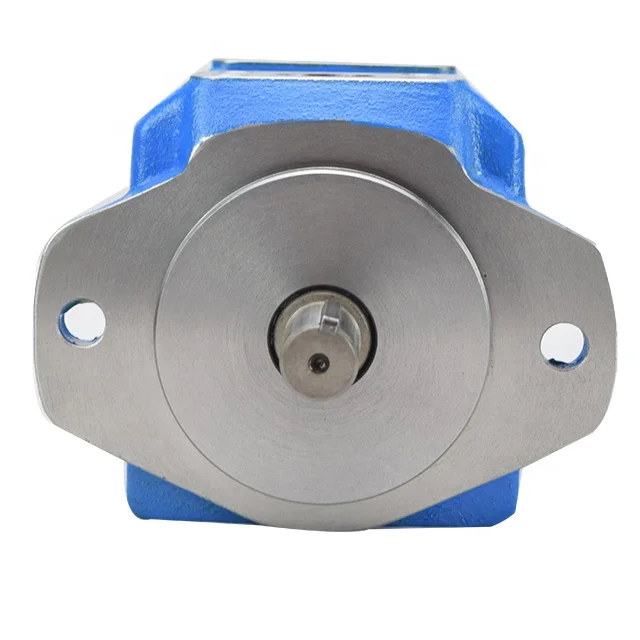

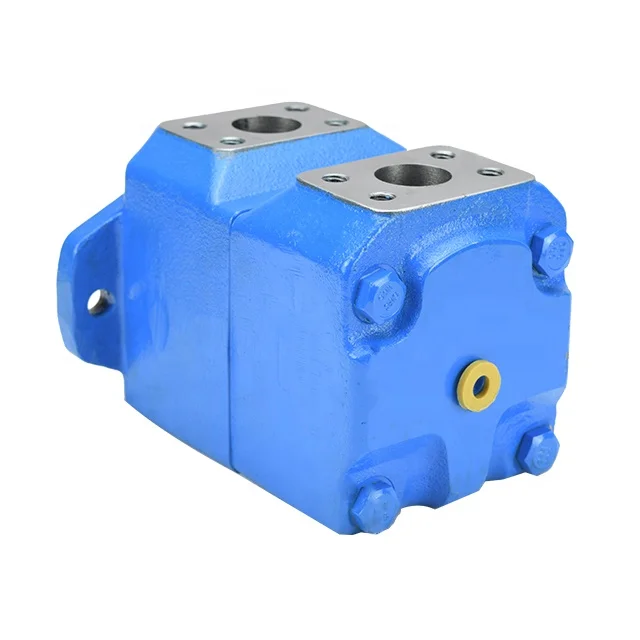

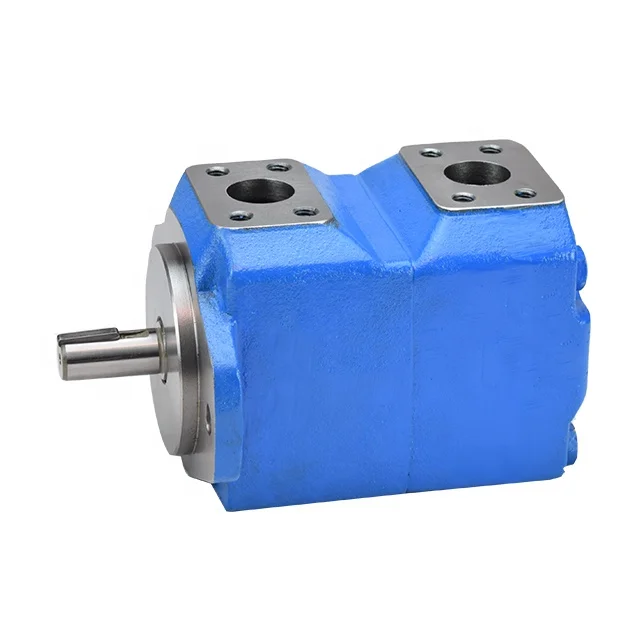

25M Vickers Hydraulic Vane Motor high speed

Product Overview

Description



25M Vickers Hydraulic Vane Motor high speed

High speed and high-pressure motors ranging from 43.9 to 193.2 cm3/r with 172 bar of maximum pressure and 9 torques rating choices. The internal inlet chambers are equally and diametrically opposed resulting in balanced in radial loads.
Thus, the motors are hydraulically balanced which reduced wear and heat from friction.
These motors provide 90% efficiency due to dual pressure plates, which produced low internal leakage. Motors are bi-rotational, simply reversed by reversing in flow direction.

FEATURES:

• Totally interchangeable to Vickers vane motors series M.
• Three basic frame sizes are available.
• These vane motors are suitable for Industrial and Mobile applications.
• Pressures up to 155 bar.
• All the spare parts such as cartridges, shafts and seal kits are 100% interchangeable to Vickers.

Model   Torque        Displacement   Flowinput/required Series   Nm/6,9 bar     cm3/r(in3/r)     @1200r/min             (lb in/ 100 psi)                          L/min(USgpm)	Maximum speed & pressure	Approx. weight Kg(lb)
25M            4,7 (42)                  43,9 (2.68)                 52,6 (13.9)                     6,2 (55)                  57,7 (3.52)                 69,3 (18.3)                     7,3 (65)                  68,7 (4.19)                 82,5 (21.8)	3600 r/min @ 34 bar (500 psi)         4000 r/min @ 34 bar (500 psi)	18 (40)
35M            9,0 (80)                  83,6 (5.10)                 100,3 (26.5)                     10,7 (95)                100,3 (6.12)              120,4 (31.8)                     13,0 (115)              121,9 (7.44)              146,1(38.6)		29 (64)
45M            14,7 (130)             138,0 (8.42)               165,4 (43.7)                     17,5 (155)             163,2 (9.96)               195,7 (51.7)                     20,9 (185)             193,2(11.79)              232,0 (61.3)	2600 r/min @ 155 bar (2250 psi) 3000 r/min @ 172 bar (2500 psi)	39 (85)
50M            24,9 (220)             231,2 (14.11)             277,5 (73.3)                     28,8 (255)             268,1 (16.36)            321,8 (85.0)                     33,9 (300)             317,1 (19.35)            380,4 (100.5)	2800 r/min @ 34 bar (500 psi) 3200 r/min @ 34 bar (500 psi) 2200 r/min @ 155 bar (2250 psi) 2400 r/min @ 172 bar (2500 psi)	73 (160)

Changzhou Hudson Machinery is specialized in design,manufacture,sales of GG series Internal gear pump,America Denison T6,T7 series pumps, Denison M4C series motors, America Vickers V,VQ,VQT,V10,V20,VTM42 series pumps, Vickers 25M,35M,45M,50M series vane motors, Japan Tokimec SQP series pumps,China YBE series pump 50T,150T series pumps, Japan Yuken PV2R series hydraulic vane pumps and so on.

Vane pump widely applied in cutting machinery, plastic machinery,forging machinery,heavy metallugy machinery,leather machinery,mining construction machinery, ship plywood machinery, machine-tools,light industry, agriculture and forestry machinery, mineral machinery, hydraulic station and other machinery in the hydraulic system.

The strategy of Hudson Machinery is " To pursuit of the perfect quality of products, To pursuit of the best price of the products, To make sure of the service is satisfactory to every customer." We would always ready to provide you with high quality products and best service.
