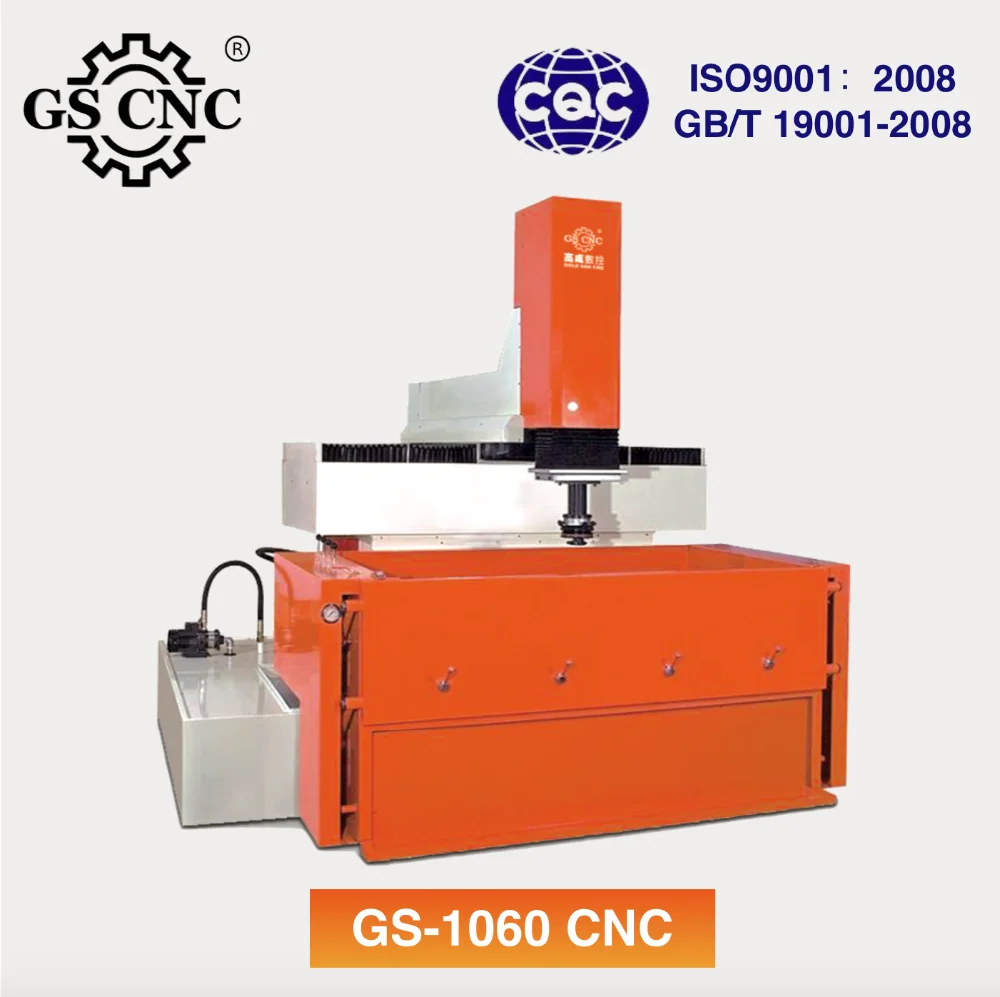

1000 x 600mm High Precision C Type CNC Die Sinking EDM

Die Sinking EDM, also called cavity type EDM or volume EDM, consists of an electrode and workpiece submerged in dielectric fluids. The electrode and workpiece are connected to a suitable power supply which generates an electrical potential between the two parts. As the electrode approaches the workpiece, dielectric breakdown occurs in the fluid, forming a plasma channel, and a small spark jumps.
These sparks usually strike one at a time, because it is very unlikely that different locations in the inter-electrode space have the identical local electrical characteristics which would enable a spark to occur simultaneously in all such locations. These sparks happen in huge numbers at seemingly random locations between the electrode and the workpiece. As the base metal is eroded, and the spark gap subsequently increased, the electrode is lowered automatically by the machine so that the process can continue uninterrupted.

SPECIFICATIONS FOR DIE SINKING EDM MACHINE
Z Axis Movement	CNC
Worktable Size	1250 x 800 mm
Travel of X, Y, Z Axis	1000 mm
Travel of Y Axis	600 mm
Travel of Z Axis	450 mm
Electrode Head to Worktable	500 - 1000 mm
Max. Electrode Load	300 Kg
Max Weight on Table	3000 Kg
Max. Working Current	100 A
Max. Working Speed	700 mm³ / min
Electrode Wear Ratio	≤0.3%
Best Surface Finishing	Ra≤0.3 μm
Input Rating	8KVA
Output Voltage	90 - 260 VDC
Work Tank Size	2000 x 1300 x 700 mm
Machine Weight	5500 Kg
Machine Size	2240 x 2340 x 2700 mm
Filter Capacity	2200 L

OTHER SPECIFICATION

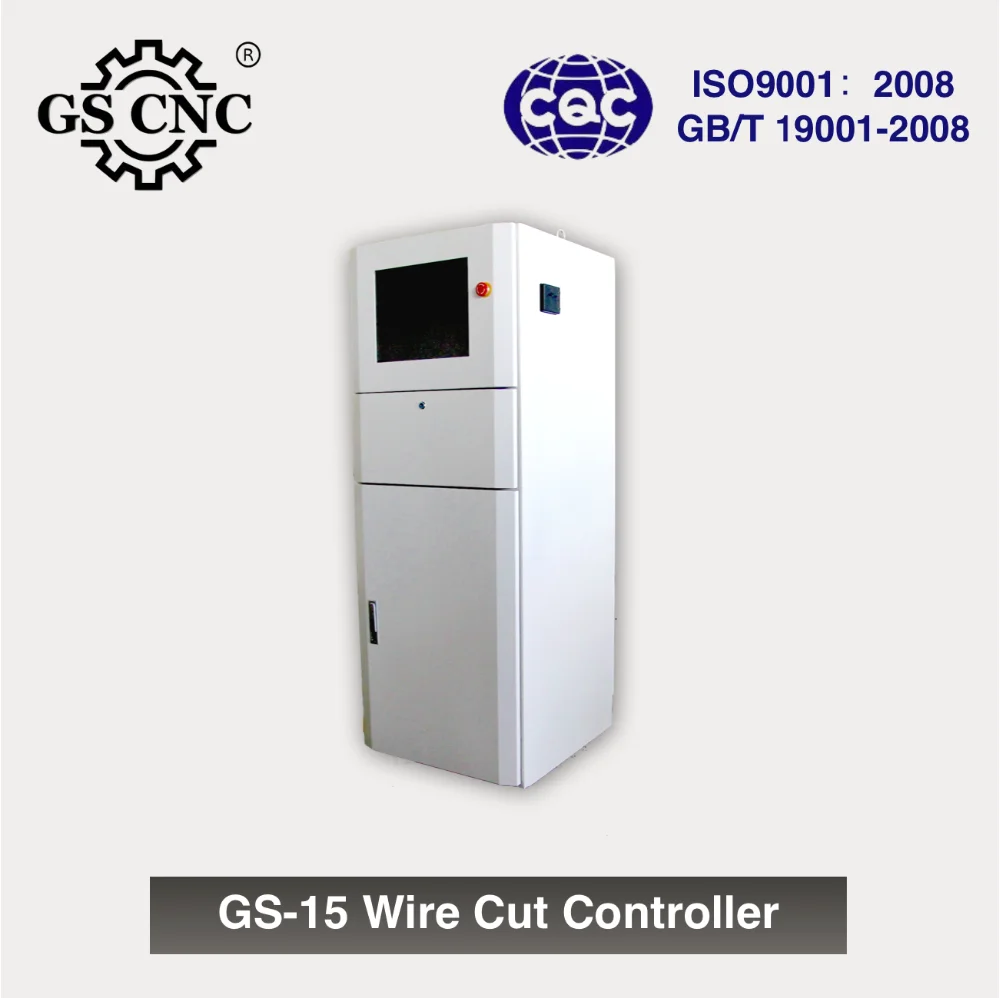

Controller

Industrial Computer with 17 inch LCD

Standard Accessories

Collect Chuck - 1 pc

Filter - 2 pcs

Clamping Tool - 1 set

Injection Tube - 4 pcs

Injection Tube Magnetic Block - 2 pcs

Allen Key - 1 set

Tool Box - 1 set

Nuts - 1 set

English User Manual Book in DVD - 1 set

Main Features of Die Sinking EDM

1) V-Shape adopted track-way with TURCITE-B wear resistant sheet.
2) High temperature treated work table.
3) Smooth ball-screw adopted X axis and Y axis.
4) Spindle made from advanced alloy steel withy great processing accuracy.

Main Feature of Electrical Control Box

1) Capable of micro-holes processing, tungsten steel and black lead processing.
2) Excellent deep-holes processing with 2-way feeding speed.
3) High sensitive sparkle infrared detecting system with auto power-off function.
4) Controlled by industrial DC, SERVO, DRIVER, protecting machine from over-electricity, over-speed, over-weight and short-circuit.
5) Equipped with 3 axises digital readout system.
6) 10 ways auto fine processing function assisting all kinds of mould-making process.
