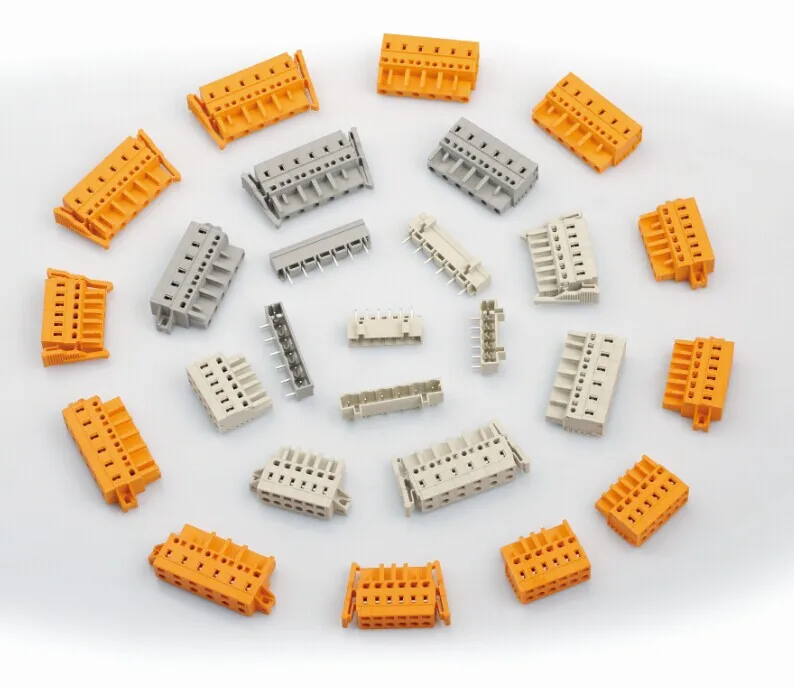

Коннектор клеммной колодки WJ0601/0701 02XX, 7,5 мм, 7,62 мм
- Category: >>>
- Supplier: Cixi Wanjie Electronic Co. Ltd.
Share on (60840276477):
Product Overview
Description
Product Description

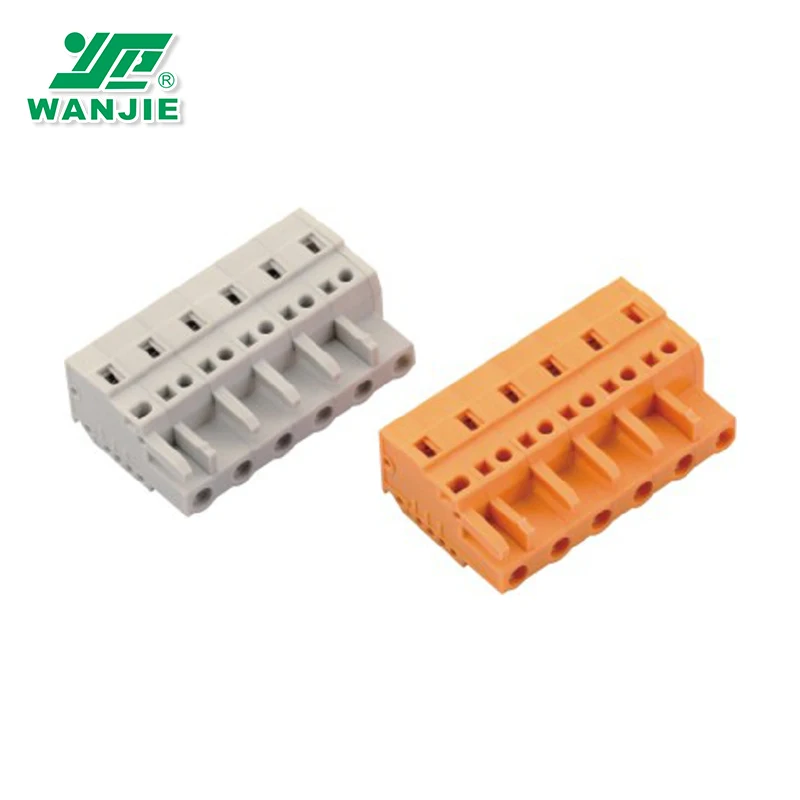

WJ0601/0701-02XX
UL/CUL Technical Data | ||||
Use Group | B | C | D | |
Rated Voltage [V] | 300 | - | 300 | |
Rated Current [A] | 15 | - | 10 | |
Wire Range | Solid [AWG] | 28-12 | ||
Stranded [AWG] | 28-12 | |||
Dielectric Voltage-Withstand | 1.6KV | |||
IEC Technical Data | ||||
Overvoltage Category | III | III | II | |
Contamination Class | 3 | 2 | 2 | |
Rated Voltage [V] | 320 | 320 | 630 | |
Rated Current [A] | 16 | 16 | 16 | |
Impulse withstand voltage [KV] | 6 | 6 | 6 | |
Conductor cross section | solid [mm²] | 0.25-2.5 | ||
flexible [mm²] | 0.25-2.5 | |||
Material | ||||
Insulation Material | PA66 | |||
Flame retardant rating | UL94V-0 | |||
Conductor Material | Copper alloy | |||
Plating of conductor surface | Sn plated | |||
Other Data | ||||
Pitch/Poles [mm]/[P] | 7.5/2-24 | |||
Stripping Length [mm] | 8-9 | |||
Operating temperature [℃] | -40~+105 | |||
Soldering temperature | / | |||
Pin dimensions [mm] | / | |||
PCB Hole Diameter [mm] | / | |||
If you can't find the exact product you need in the pictures, please don't go away.
Just contact us freely or send your sample and drawing to us.
We will reply you as soon as possible.
Company Information
Related products
Packaging & Shipping
Related Certificates
FAQ
Q1. Can I have a sample order for Terminal blocks?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 1-2 weeks for order quantity more than 100K pieces
Q3. Do you have any MOQ limit for terminal blocks?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Terminal block?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print number on the terminal block?
A: Yes. Please inform us formally before our production and confirm it firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes.
Q8: Is OEM and ODM available?
A:Yes, OEM and ODM cooperating mode is available.
