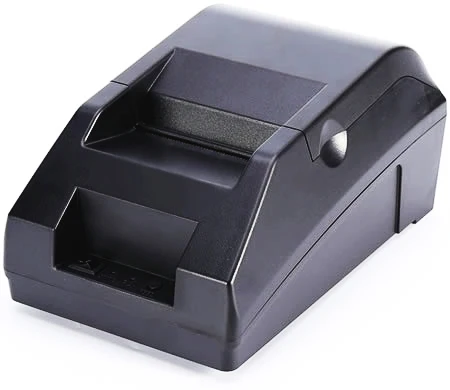

Portable 58mm USB ports thermal printer small

Item

Parameter

Printing parameter

Printing method

Thermal printing

Resolution

203DPI,8 dots/mm

Printing width

48mm(384 dots)

Printing speed

100mm/s

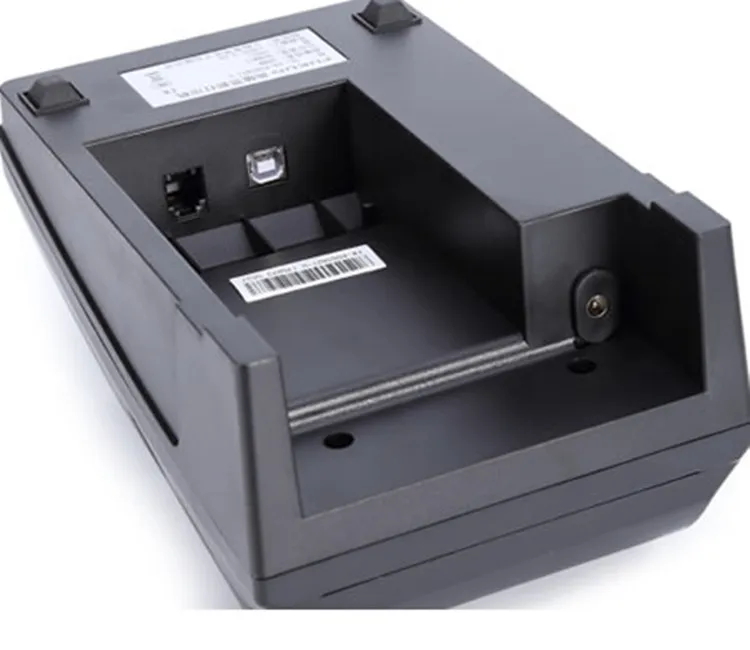

Interfaces and printer types

USB/Parallel

Power Supply

Input

100-240V AC,50-60HZ

Output

12V DC-3A

External Only

Power Adaptor

Command set

/

ESC/POS compatible commands

FLASH

FLASH

FLASH 8k bytes, NV bitmap 64K bytes

Character

Chinese

GB18030 24×24

Words, figures

ASCII 9×17,12×24

User-defined

Support

Optional:

Traditional/Simplified Chinese,Korean, Japanese, English

Code Page:

56 kinds of code page

Bar codes

1D

UPC-A,UPC-E,EAN-8,EAN13,CODE39,ITF,CODEBAR,CODE128,CODE93

2D

PDF417,QR Code

Detection function

Sensor

Paper out

LED indicator

Power indicator

Green

Paper out indicator

Red

Error indicator

Red

Paper Requirement

Type

Standard thermal receipt paper

Width

57.5±0.5mm

Thickness

0.056~0.1mm

Diameter

50mm(Max.)

Physical  characteristics

Paper loading

Easy paper loading

Paper cutting

automatically cut paper

Operating condition

-10℃ ~ 50℃,25% ~ 80%RH

Storage condition

~40℃ ~ 70℃,≤93%RH(40℃)

Outline dimension

180mm×130mm×120mm(W×L×H)

Weight

0.65Kg

Reliability

TPH life

50km

Motor life

360,000 hours

Software function

Driver procedure

Windows(WIN7/WIN8/Vista/XP/2000)

Ubuntu 12.04 32/64, Ubuntu 14.04 32/64
