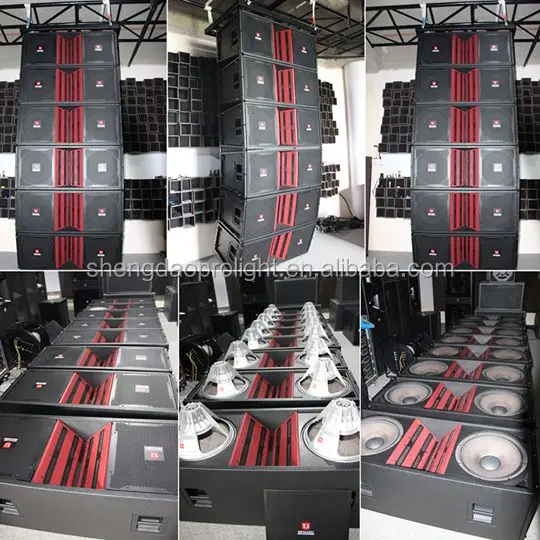

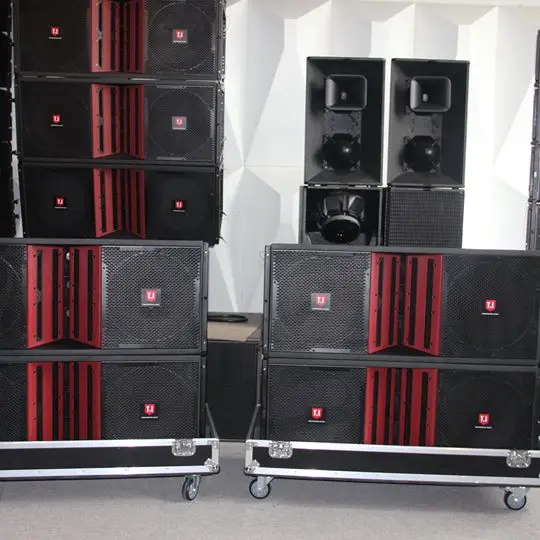

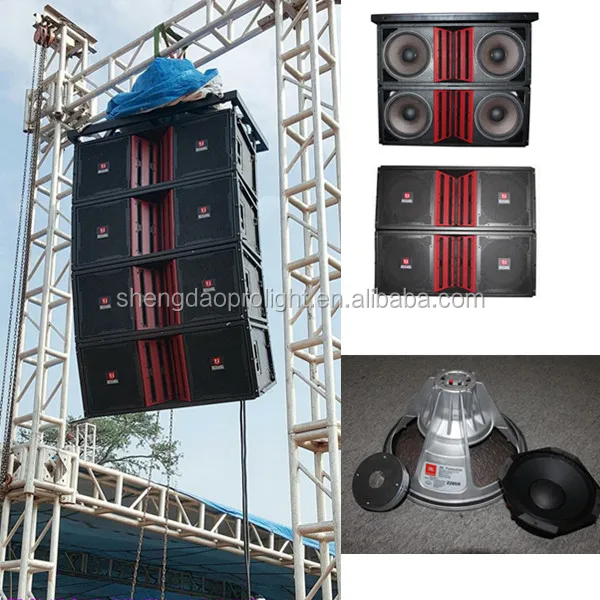

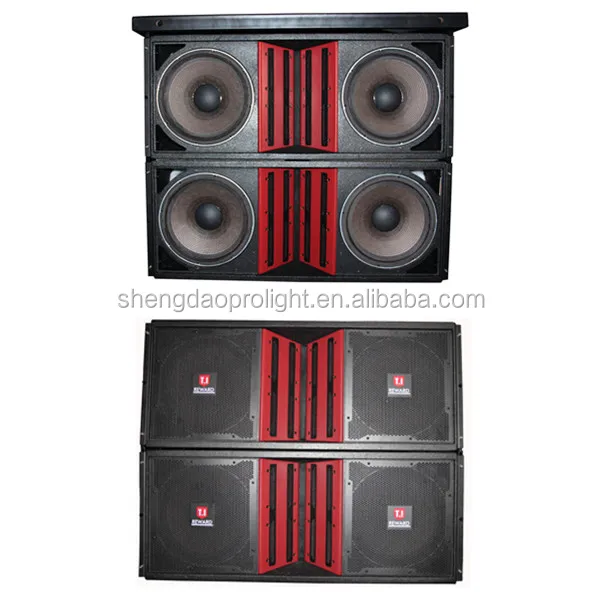

LA 215 dual 15 Pro outdoor line array speaker 2*15LF 4*8MF 3*3'HF

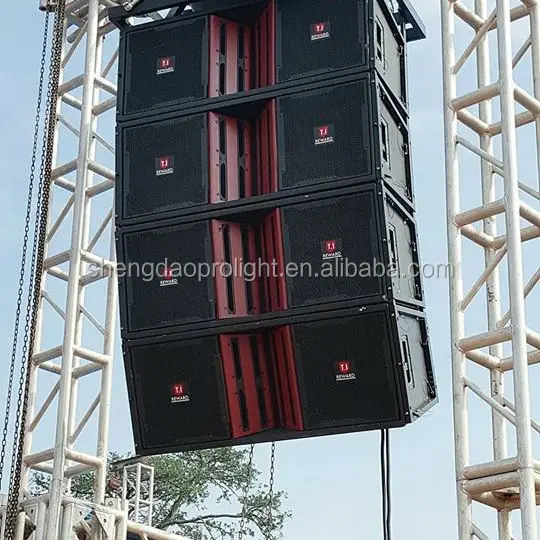

 The large format LA215 is with 2*15’’(dual 75mm coil) compression neodymium LF,4*8’’ special long distance neodymium MF,3*3’’ neodymium HF line array.,LA-215 with very powerful sound, high efficiency and long distance outdoor line array system for outdoor sound events, This externally powered, high efficiency line array module integrates low, mid and high frequency transducers in a single unit. Designed for use in large-scale events in stadiums and arenas, the LA215 offers a number of important improvements in terms of performance and weight reduction.

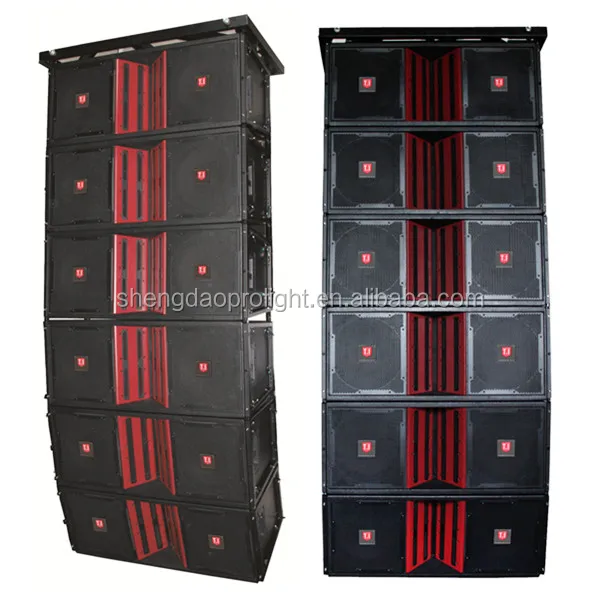

The rugged, trapezoidal enclosure is built using Birch plywood and covered with a durable paint finish. The captive rigging system splay angles range from 0o to 9.6o and can be adjusted in 0.8o increments from 0o to 3.2o and 1.6o increments from 3.2o to 9.6 o allowing a wide range of column curvatures to be accomplished.

Frequency Response :  45Hz-20kHz ± 3dB

Power handling           :  LF 2000W (RMS) 4000W (PEAK)

                                         MF 1400W (RMS) 2800W (PEAK)

                                         HF 300W (RMS) 600W (PEAK)

Sensitivity                   :   LF 99dB(1W@1M)

                                        MF 102dB(1W@1M)

                                        HF 116dB(1W@1M)

Max S.P.L.                  LF 135dB(PEAK/1M)

                                        MF 137dB(PEAK/1M)

                                        HF 137dB(PEAK/1M)

LF section 2×15"(380mm) 75mm neodymium woofer

Nominal impedance 8 ohm

MF section 4×8"(210mm) 65mm neodymium

MID Nominal impedance 8 ohm HF section 3×3"(75mm) neodymium driver

Nominal impedance 16 ohm

Dispersion 90°H

Paint black water paint

Speaker cables LF 1(+)2(-)3(+)4(-) MF5(+)6(-) HF 7(+)8(-)

Input connectors 2×Waterproof socket

Dimensions 1214×489×546mm(W×H×D)

Package dimensions 1270×550×699mm/0.5cbm

Enclosure Birch Plywood

Net weight 63kg

Gross weight 66kg

Feature :

    Three-way large-format line array module

    Components: 2X15"ND+4X8"ND+3X3"ND+Horn

    RMS Power Handling: LF:2000W MF:1400W HF:300W

    Captive rigging system integrated in the cabinet design

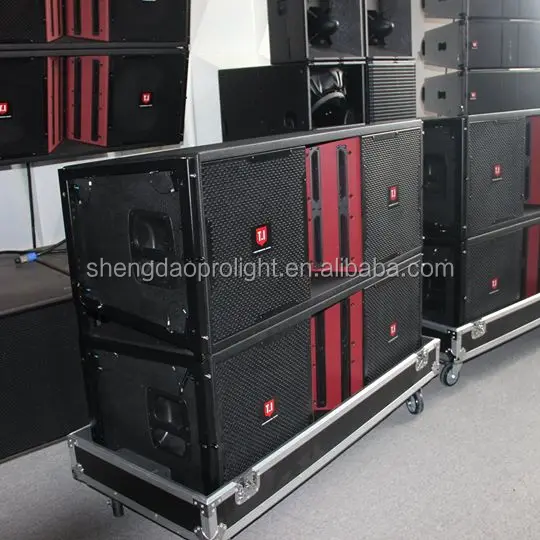

    Detachable front dolly panel

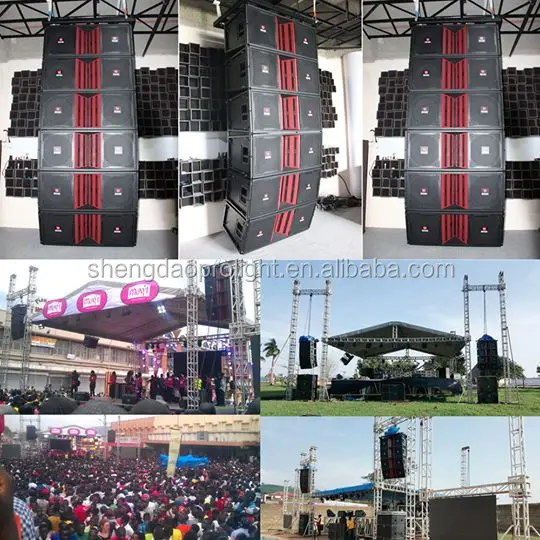

Applications: Medium-large scale venues including Touring performance ,Stadium Theater concert hall, auditorium, theatre, Music Halls, Night clubs, Large Discotheques, touring show, rental market etc

Support and Service:

1) All the Items price based on EXW (except free shipping products.)
2)Payment term:T/T (30% deposit,70% balance before goods delivery), western union, paypal etc TT to company bank account as follow :

ACCOUNT NO. :100531286
PAYEE :Besty Art Prolight Technology Co.,Ltd
ADDRESS :26/F TOWER ONE TIME SQUARE 1 MATHESON STREET CAUSEWAY BAY HK
BANK :Bank of America N.A., Hong Kong Branch
BANK ADDRESS :52/F, Cheung Kong Center, 2 Queen’s Road Central, Central,Hong Kong.
SWIFT CODE :BOFAHKHX or BOFAHKHXXXX
BANK CODE :055
BRANCH CODE :757
3)Delivery time: usually it is about 3-5days for sample order, 15-20days for mass production.

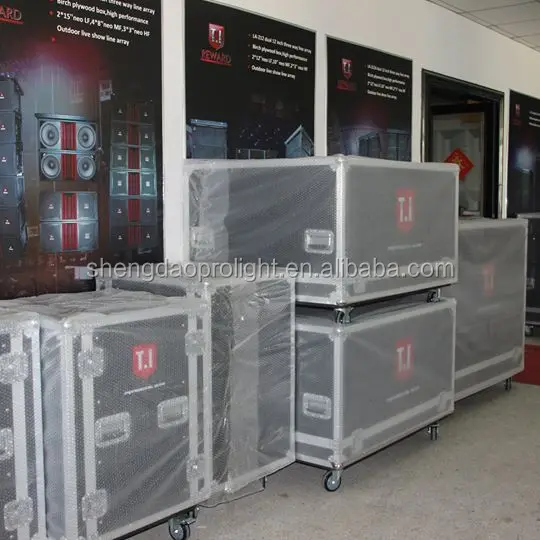

4)Packing: carton with foam or flight case or both , include supply service to make low price PI for custom clearance, print and packed with cargo, but you need to confirm low value before making low price PI.
