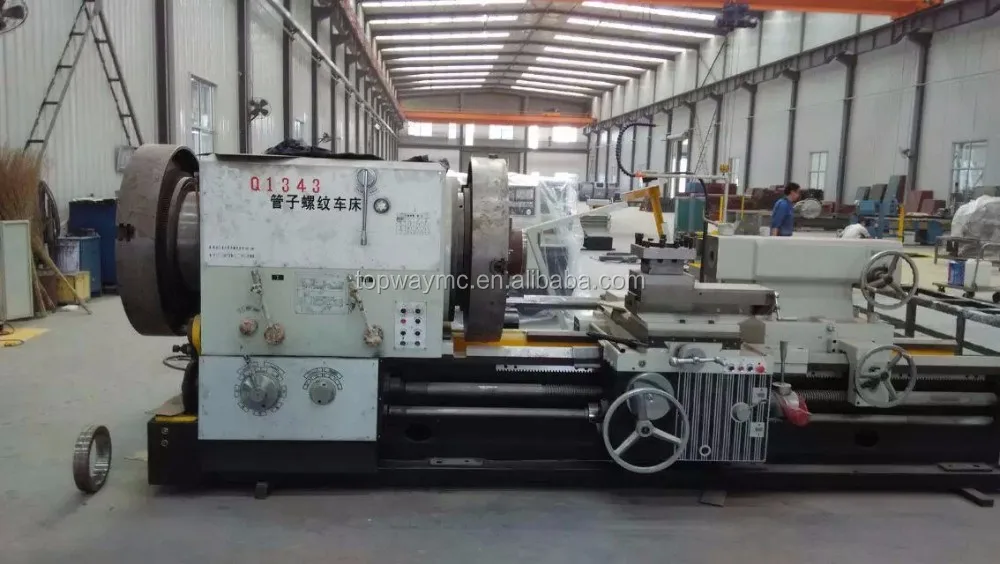

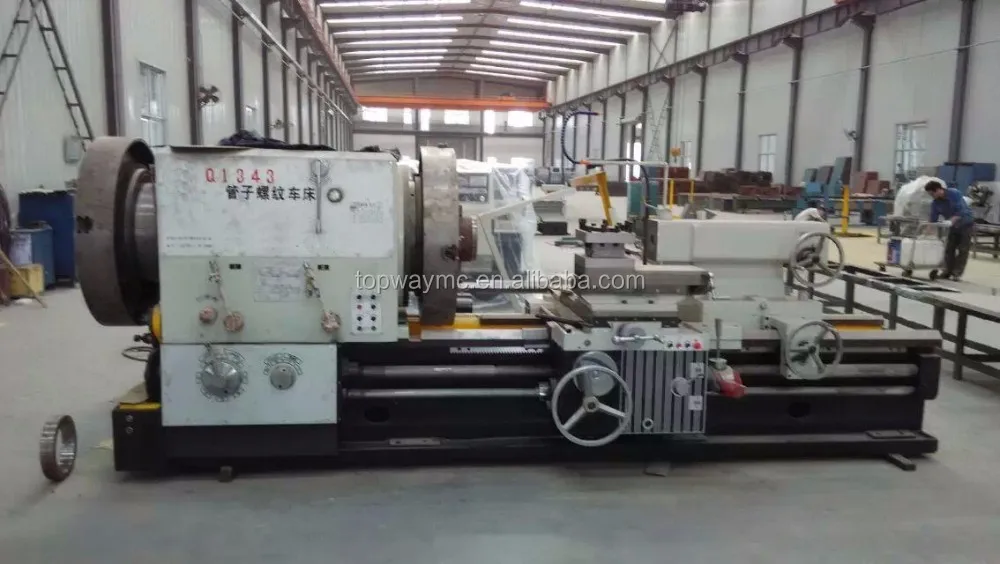

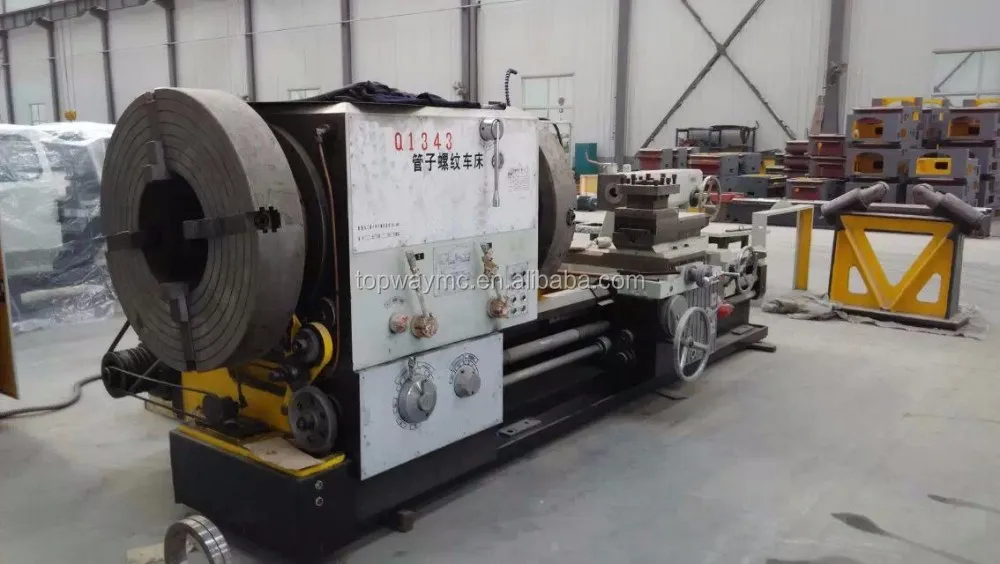

Q1350 Pipe Threading Lathe Machine
Q1350 Pipe Thread Lathe is a kind of horizontal lathe designed for professional processing of thread works. It has all the functions of an ordinary lathe, and is also used for the processing of large-diameter pipe material. It is widely used in Machinery manufacturing, petroleum, chemical, coal, geological exploration, urban water supply and drainage and other industries machining operations.
The spindle box equipped with dual chucks, and lathe bed is with taper machining device that can process various internal and external diameter , Including metric, imperial, taper thread, etc. This lathe machine can also process shaft type part, disk parts and cylindrical parts. With help of appropriate tools and accessories.
Q1350 lathe machine can also process drilling, reaming, tapping and rolling and so on.
ITEMS | UNIT | Q1350 | |
Capacity | Swing over bed | mm | Φ1200 |
Swing over cross slide | mm | Φ810 | |
Distance between centers | mm | 1500/3000 | |
Pipe threading range | mm | Φ330-510 | |
Width of bed way | mm | 755 | |
Max. load capacity | T | 5 | |
Spindle | Spindle bore | mm | Φ520 |
Spindle speed steps | - | 9 steps | |
Spindle speed range | rpm | 6-205 | |
Chuck size | mm | Φ1000 | |
Chuck type | - | 4-jaw electric | |
Turret | Turret type | - | Manual 4 position |
Tool shank size | mm | 40x40 | |
Turret travel | mm | 300 | |
Carriage | X axis feed grade/range | mm/r | 32/0.095-1.44 |
Z axis feed grade/range | mm/r | 32/0.095-1.4 | |
X axis rapid traverse speed | mm/min | 1870 | |
Z axis rapid traverse speed | mm/min | 3740 | |
X axis travel | mm | 520 | |
Z axis travel | mm | 1300/2800 | |
Tailstock | Tailstock quill diameter | mm | Φ140 |
Tailstock quill taper | - | MT#6 | |
Tailstock quill travel | mm | 300 | |
Motors | Main spindle motor | kW | 22 |
Rapid traverse motor | kW | 1.5 | |
Coolant pump motor | kW | 0.125 | |
Thread | Metric thread grade/range | mm | 23/1-15 |
Inch thread grade/range | T.P.I. | 22/2-28 | |
Dimensions | Width x Height | mm | 2100×1700 |
Length | mm | 5000/6500 | |
Weight | Net weight | T | 15.0/16.5 |
