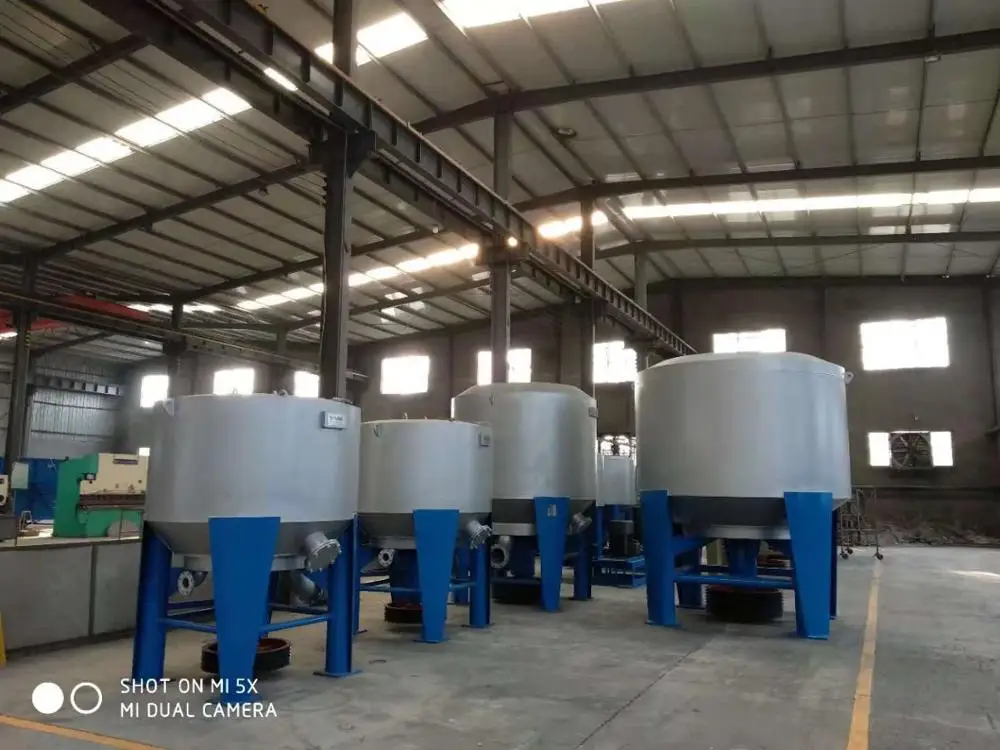

recycle paper bagasse bamboo sheet pulp molding hydrapulper beating pulper machine
- Category: >>>
- Supplier: Shandong Xuridong Machinery Co. Ltd.
Share on (60840438564):
Product Overview
Description
Product Overview

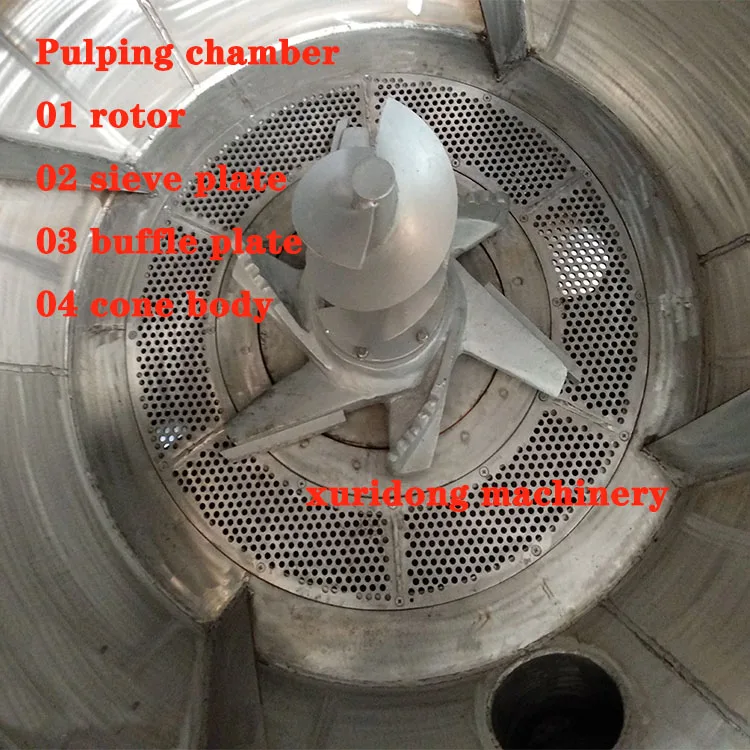

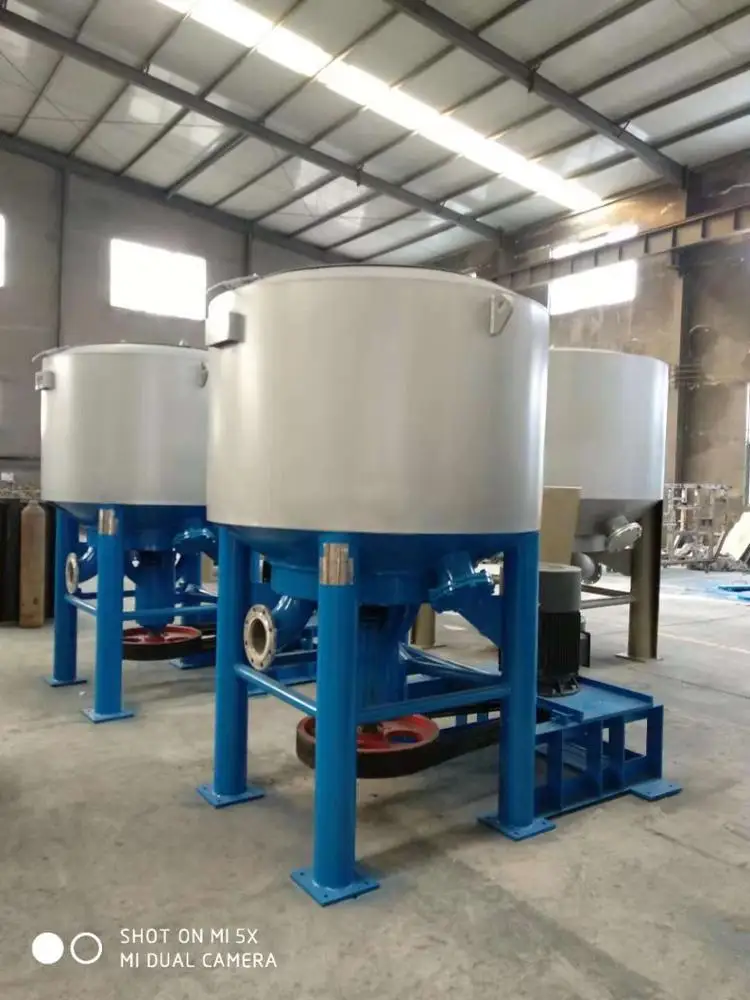

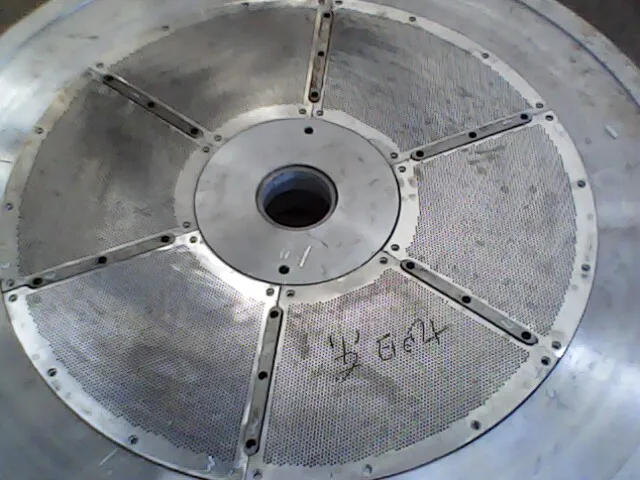

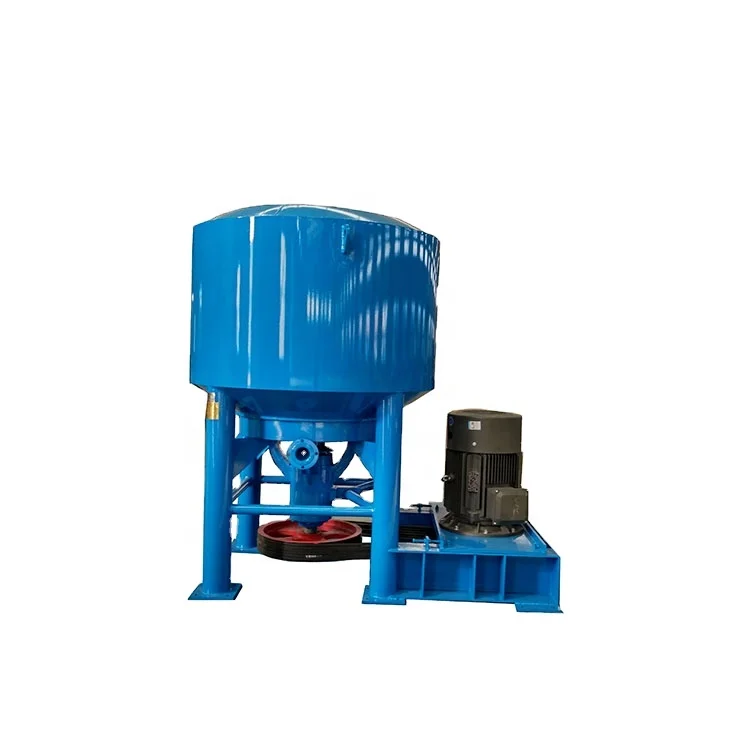

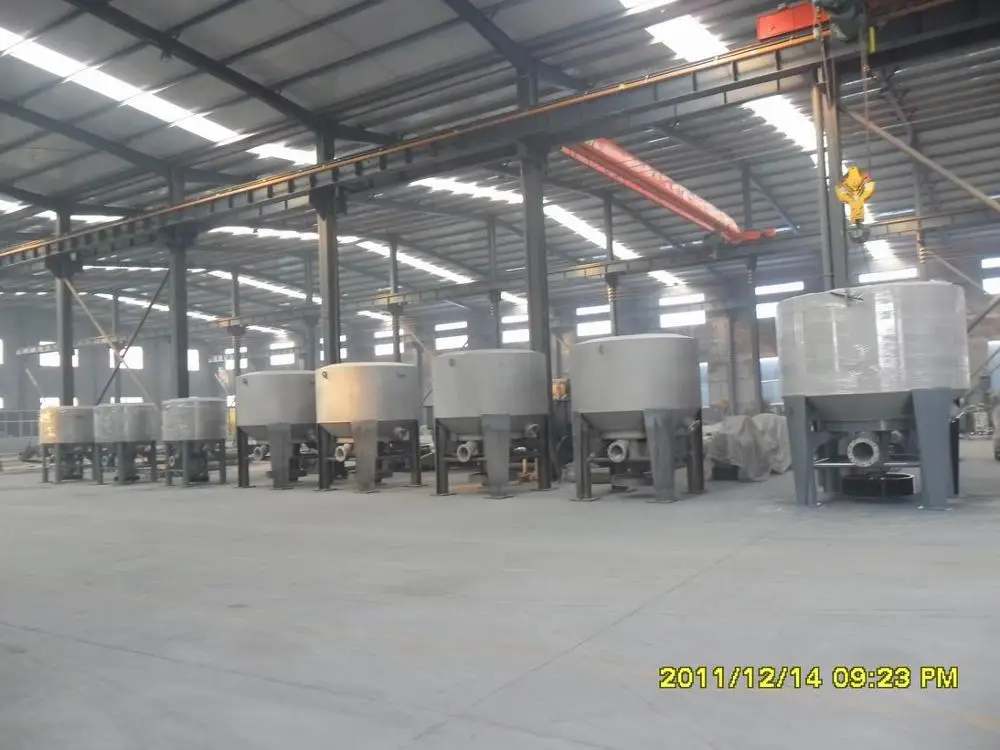

Paper pulp making hydrapulper
It can produce the accept paper pulp from waste paper, occ, or pulp sheet.
FEATURES AT A GLANCE
01. the working consistency: 2.5-15%
02. material quality: stainless steel 304 and carbon steel

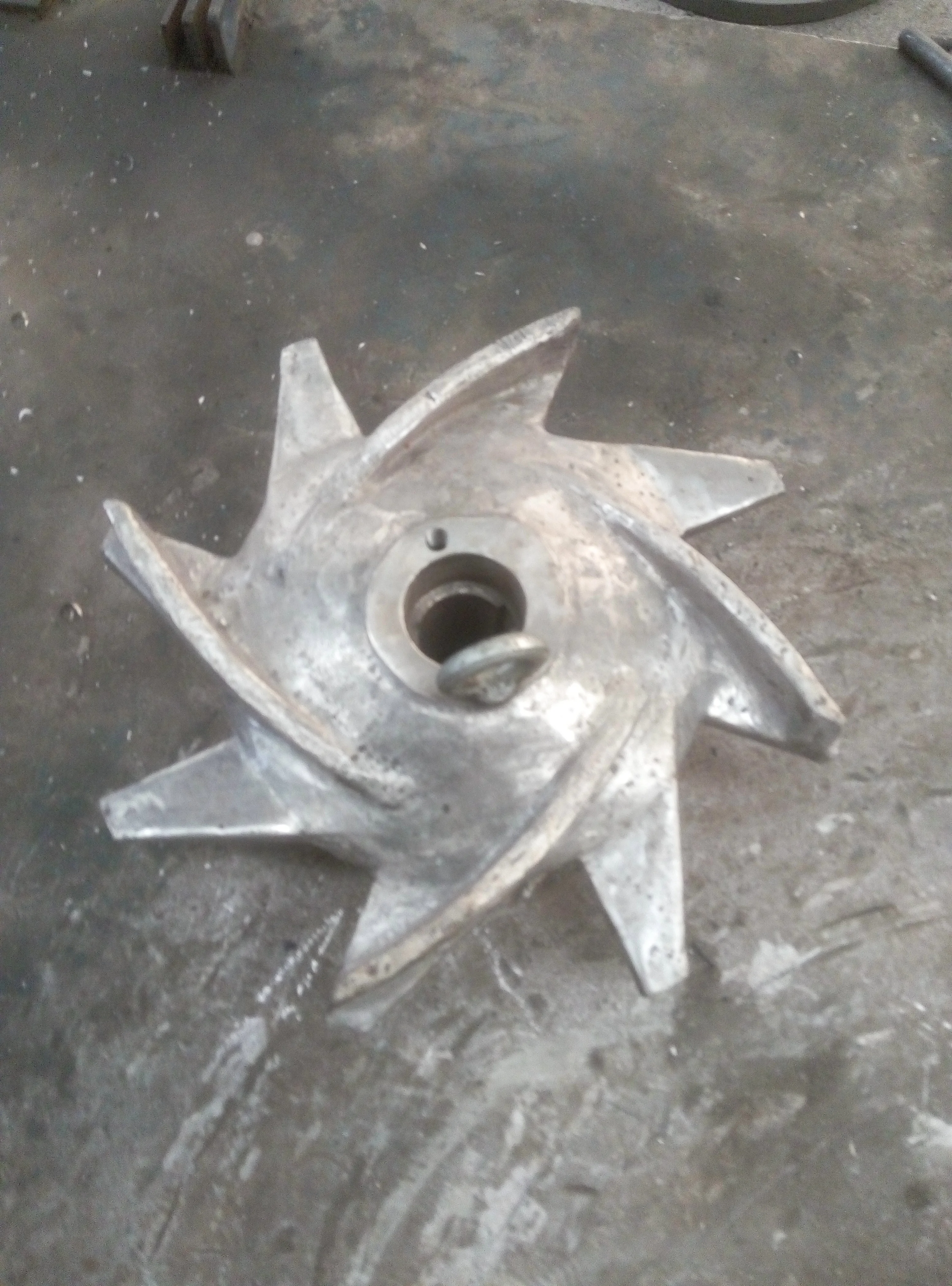

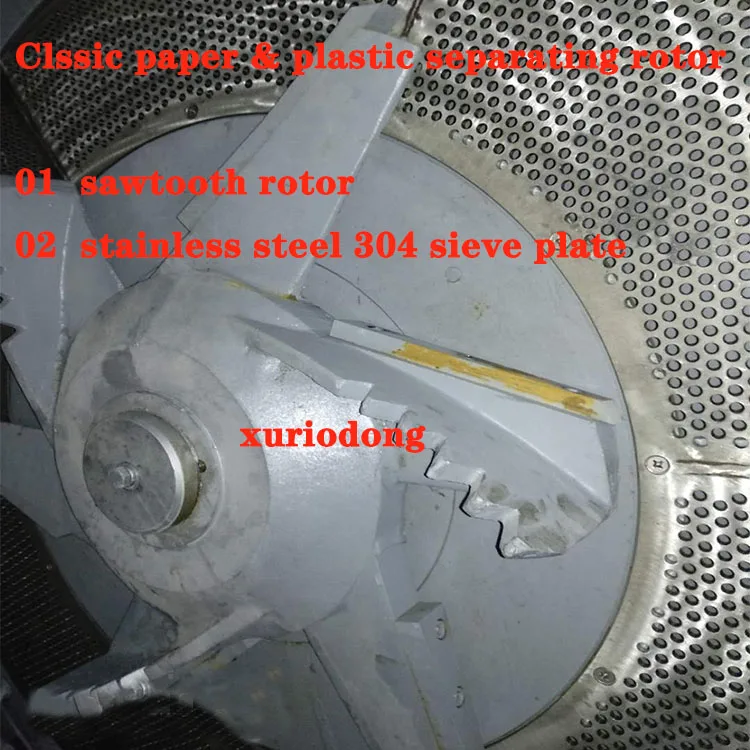

03. rotor material quality: 2Cr13
04. raw material: waste paper, occ, pulp sheet
05. application:
a. paper making mill
b. paper pulp making mill
c. paper and plastic separating mill
d. tableware making mill
e. egg tray making mill
f. fruit tray making mill
g. other pulp molding mill
PRODUCT SPECIFICATIONS
HIGH CONSISTENCY HYDRAPULPER
It is used to deinking paper pulp or paper making mill, and pulp molding mill.
Model | ZGS1 | ZGS2 | ZGS3 | ZGS5 | ZGS8 | ZGS10 | ZGS15 | ZGS20 | ZGS25 | ||||||||
Nominal volume (m3) | 1 | 2 | 3 | 5 | 8 | 10 | 15 | 20 | 25 | ||||||||
Capacity (t/d) (22.5hours/day) | 3-4 | 6-8 | 9-12 | 15-20 | 24-32 | 30-45 | 40-80 | 50-90 | 100-120 | ||||||||
Consistency (%) | 10-14 | ||||||||||||||||
Tank diameter (mm) | 1200 | 1500 | 1800 | 2200 | 2500 | 2800 | 3100 | 3350 | 3700 | ||||||||
Power of motor (kw) | 22 | 37 | 55 | 75 | 90 | 132 | 200 | 280 | 315 | ||||||||
LOW CONSISTENCY HYDRAPULPER
The working consistency is 2.5-4.5%, called low consistency paper pulp hydrapulper. It is used to waste paper pulp or paper making mill, and pulp molding mill. The machine can work continuously.
Model | ZDS1 | ZDS2 | ZDS3 | ZDS5 | ZDS8 | ZDS10 | ZDS15 | ZGS30 | |||||||
Nominal volume (m3) | 1 | 2 | 3 | 5 | 8 | 10 | 15 | 30 | |||||||
Capacity (t/d)22.5hours/day) | 6-10 | 12-16 | 18-26 | 26-34 | 45-60 | 60-80 | 80-100 | 50-200 | |||||||
Consistency (%) | 2.5-4.5 | ||||||||||||||
Tank diameter (mm) | 1200 | 1550 | 1800 | 2200 | 2500 | 2800 | 3100 | 4000 | |||||||
Power of motor (kw) | 22 | 37 | 55 | 75 | 90 | 110 | 185 | 250 | |||||||

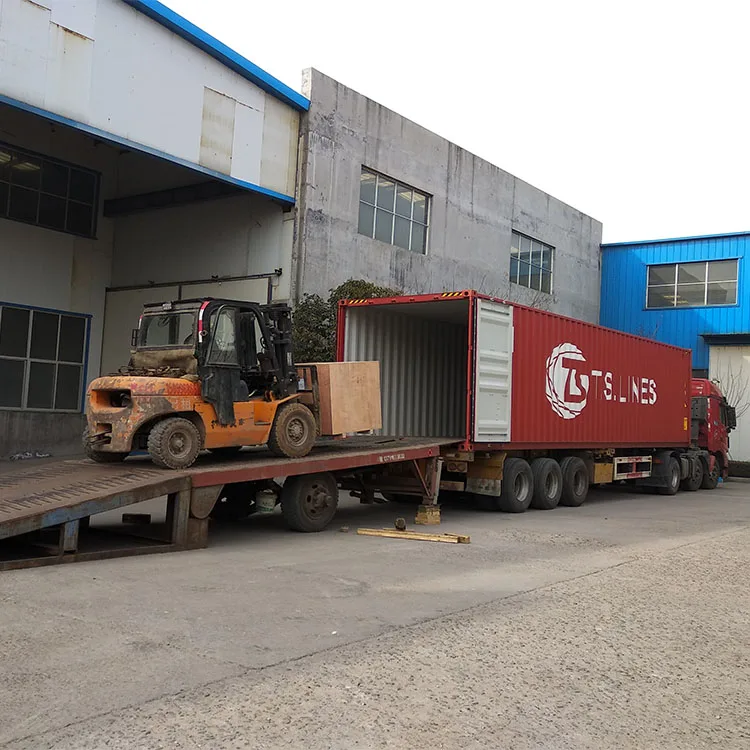

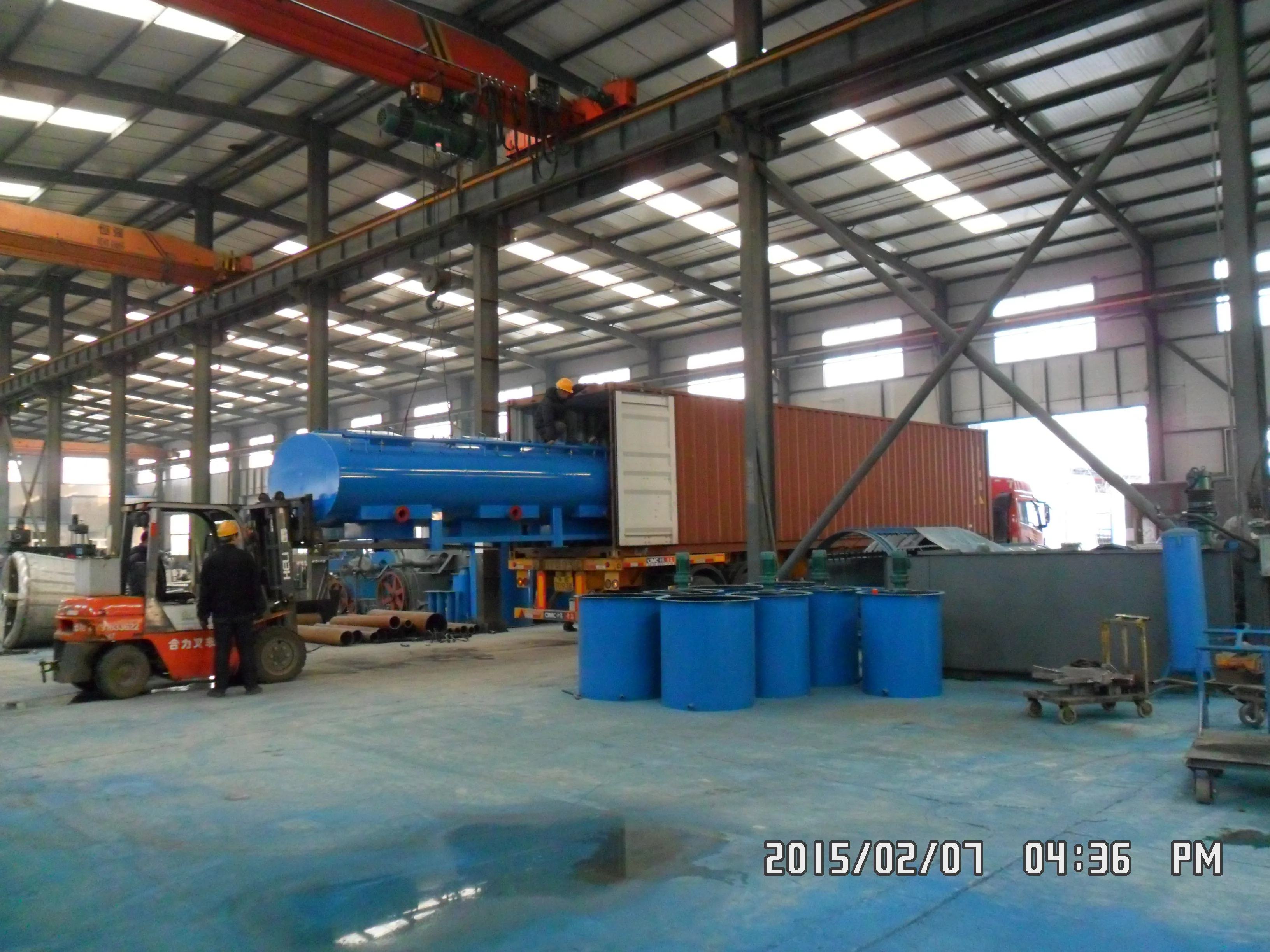

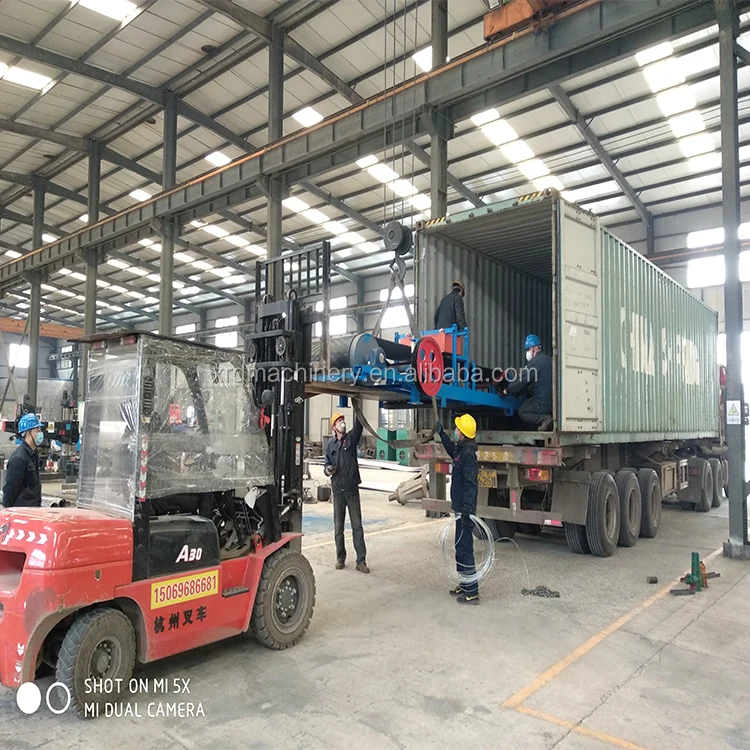

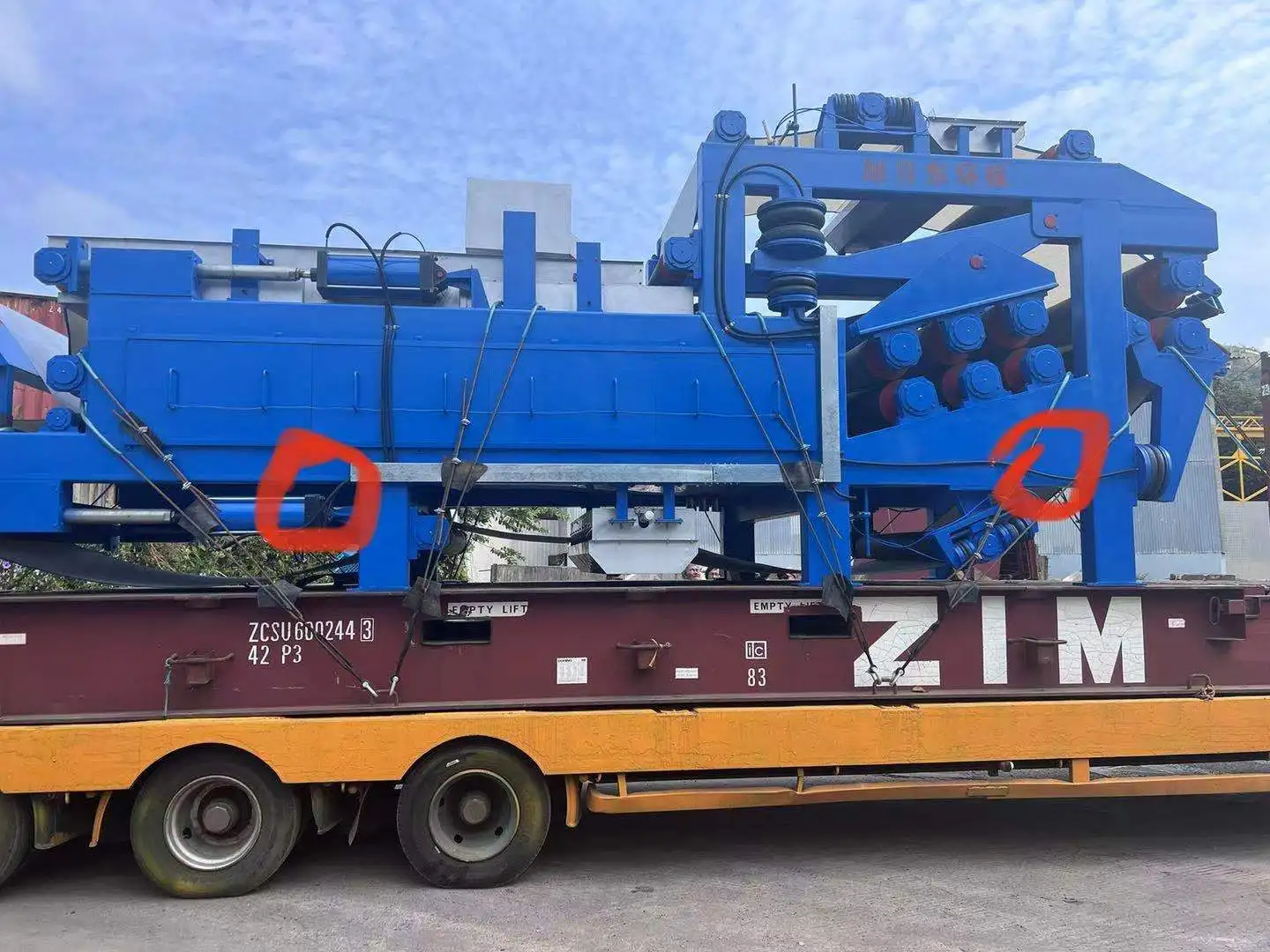

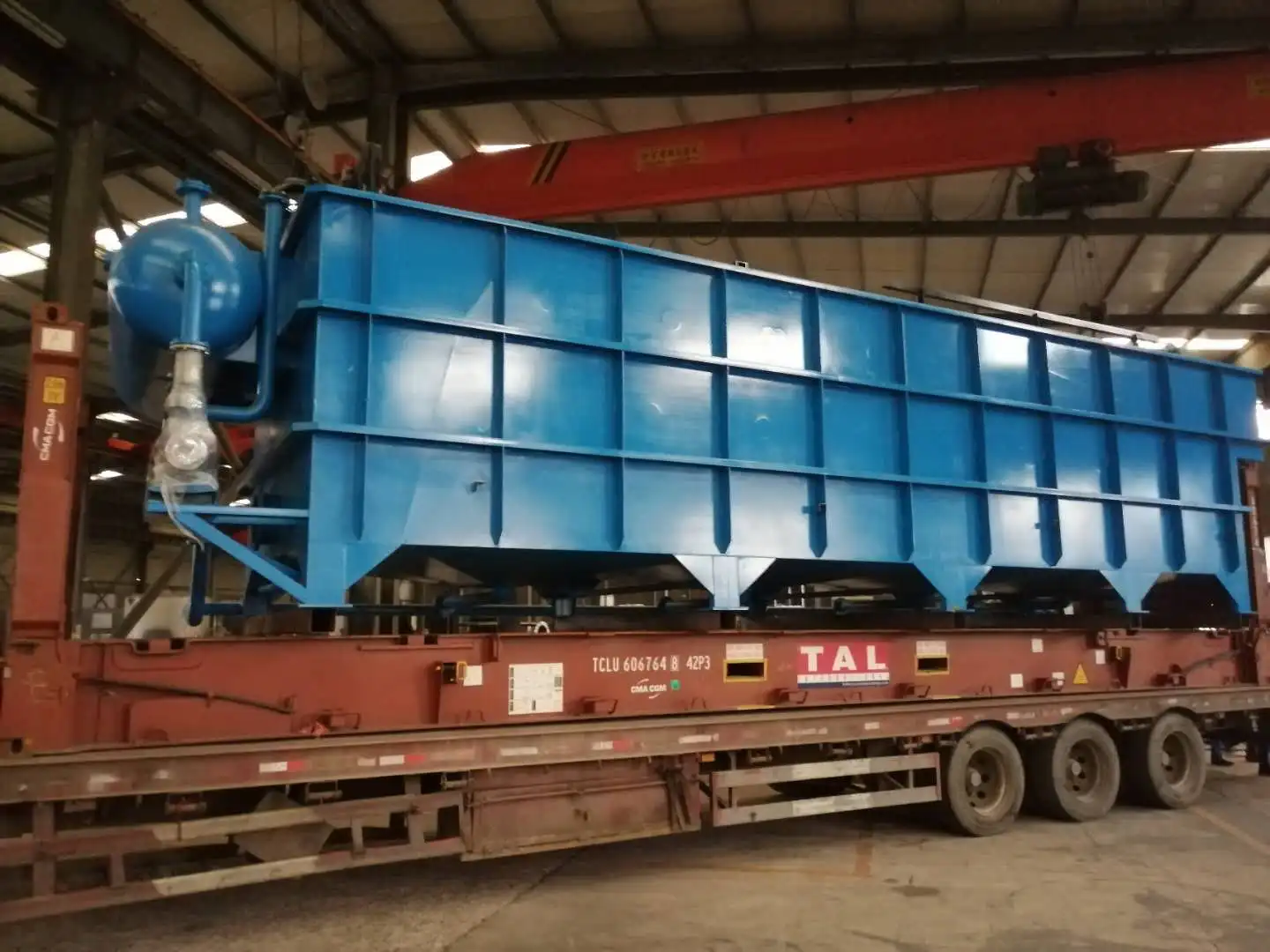

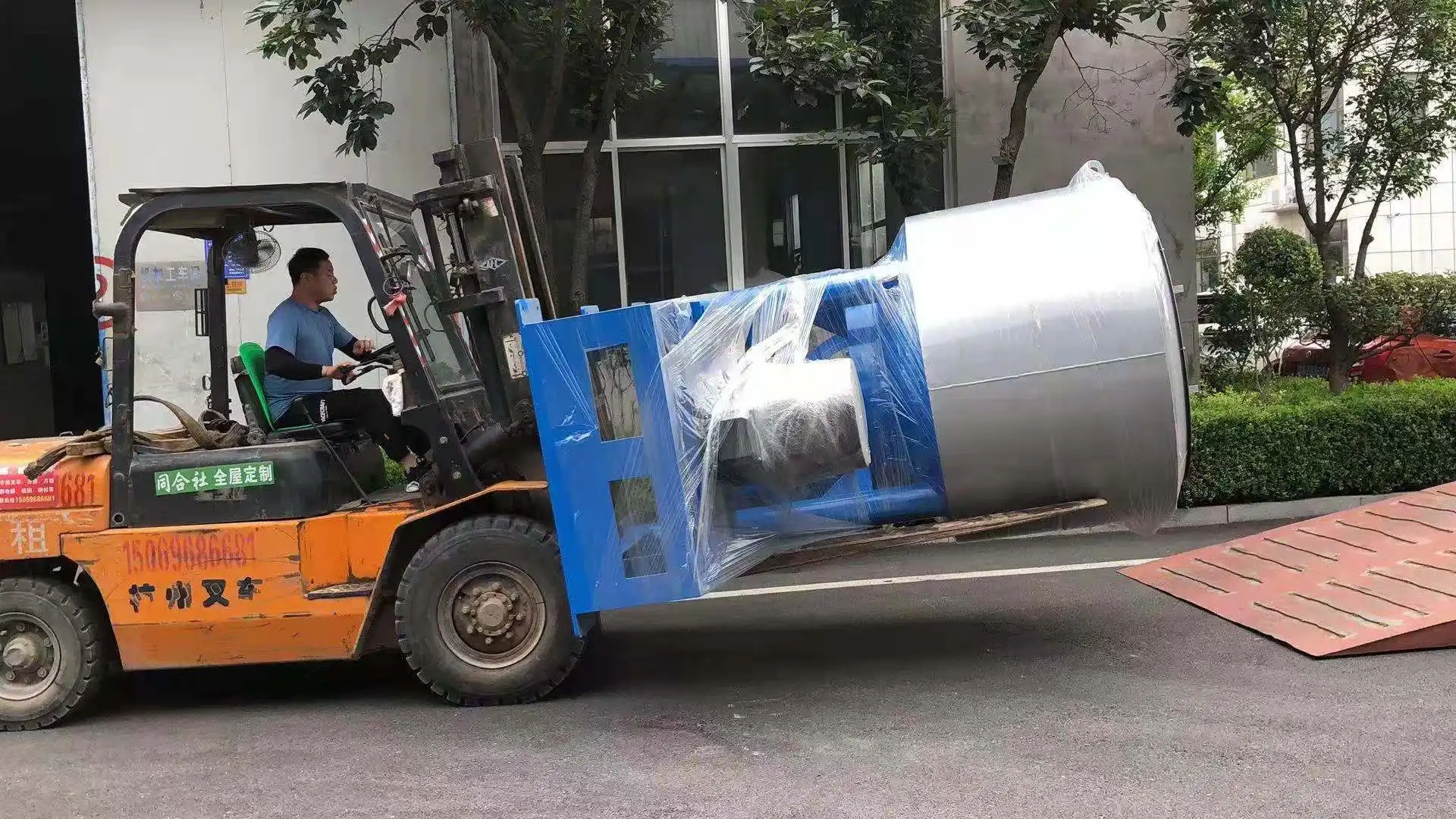

Product packaging
After service
1. We are responsible for correctly guiding the installation, commissioning and trial production of equipment for free, to ensure
that we reach the design capacity within the planned time.
2. We are responsible for the technical training of the buyer. The training content includes equipment structure and maintenance,
equipment control and operation.
3. After receiving the service call, the supplier will respond within 8 hours and provide 24-hour service to solve any problems
raised by the buyer at any time.
4. Cooperate with the maintenance service at any time and provide accessories in time. Provide accessories.
5. Commitment to lifetime service only charge for parts and materials, not any manual trav
that we reach the design capacity within the planned time.
2. We are responsible for the technical training of the buyer. The training content includes equipment structure and maintenance,
equipment control and operation.
3. After receiving the service call, the supplier will respond within 8 hours and provide 24-hour service to solve any problems
raised by the buyer at any time.
4. Cooperate with the maintenance service at any time and provide accessories in time. Provide accessories.
5. Commitment to lifetime service only charge for parts and materials, not any manual trav

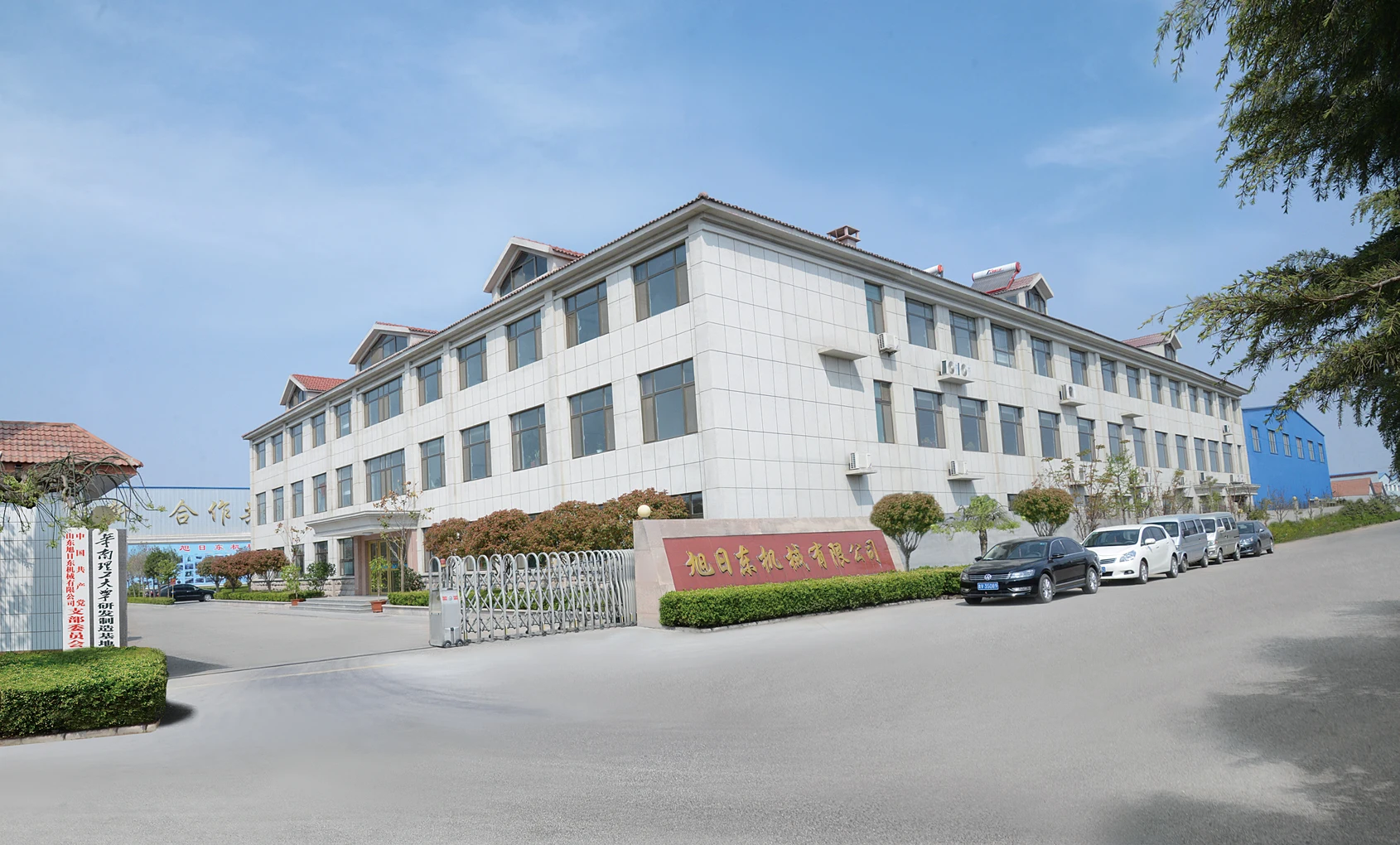

Company Profile
01. We are a manufacturer and we have import and export rights.
02. We produce wonderful environmental protection machines and solutions, pulp and paper making machines and solutions as well as
tissue paper converting machinery and solutions,
03. Our main manufacturing facility which spans nearly 30,000m2.
04. We have achieved a total of 32 patents over the past few years.
05. Each year the output value of our products can reach up to 150 million RMB, to domestic and overseas.
06. We are in very close proximity to a very famous port city – Qingdao in northern China, and this location provides us with a plethora of logistics advantages, including: easy and cost effective transport by both air and sea, also.
02. We produce wonderful environmental protection machines and solutions, pulp and paper making machines and solutions as well as
tissue paper converting machinery and solutions,
03. Our main manufacturing facility which spans nearly 30,000m2.
04. We have achieved a total of 32 patents over the past few years.
05. Each year the output value of our products can reach up to 150 million RMB, to domestic and overseas.
06. We are in very close proximity to a very famous port city – Qingdao in northern China, and this location provides us with a plethora of logistics advantages, including: easy and cost effective transport by both air and sea, also.

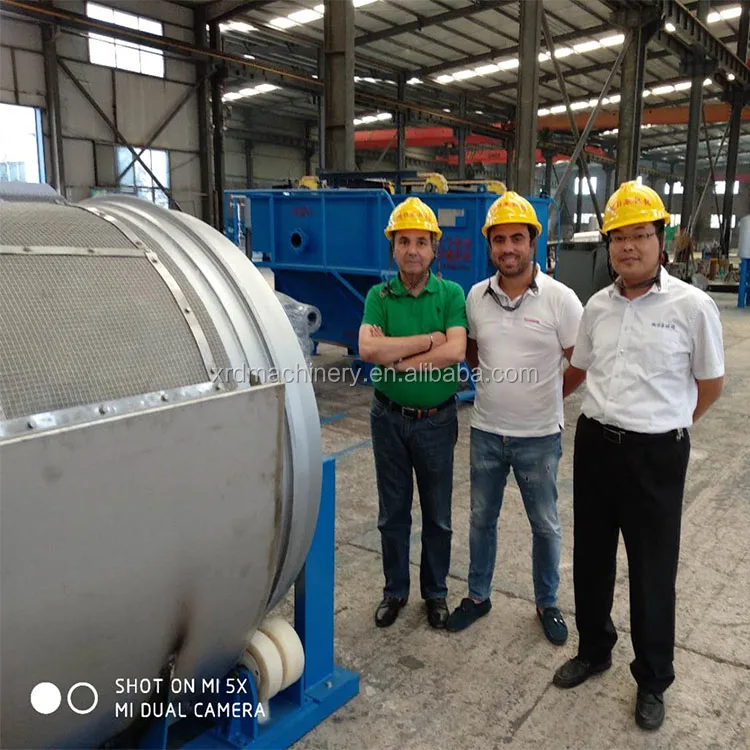

Customer Photos
FAQ
01. How to buy your idea products?
A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).
02. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
03. What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
04. How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by
customers.
05. How to keep your equipment from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard
process.

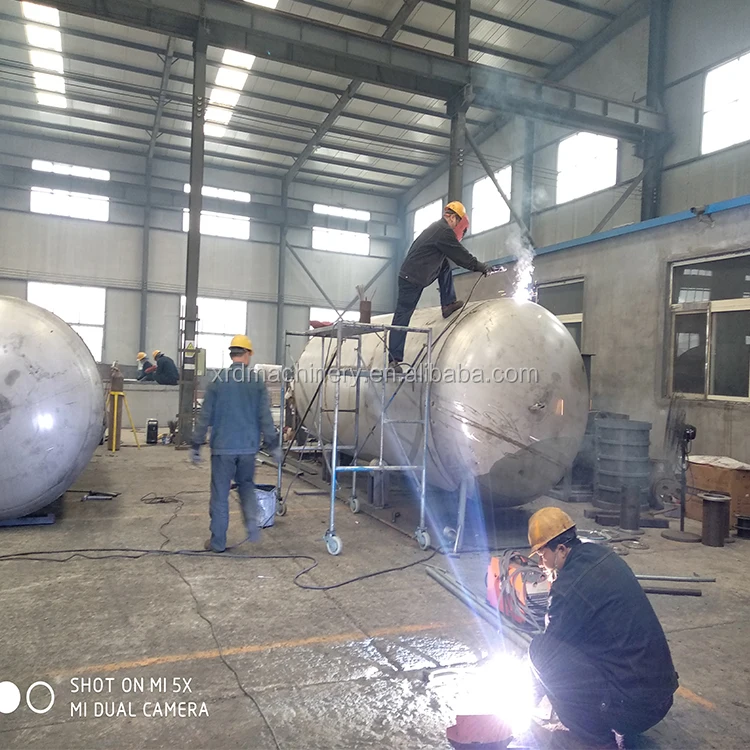

06. How do you manufacture your equipment ?

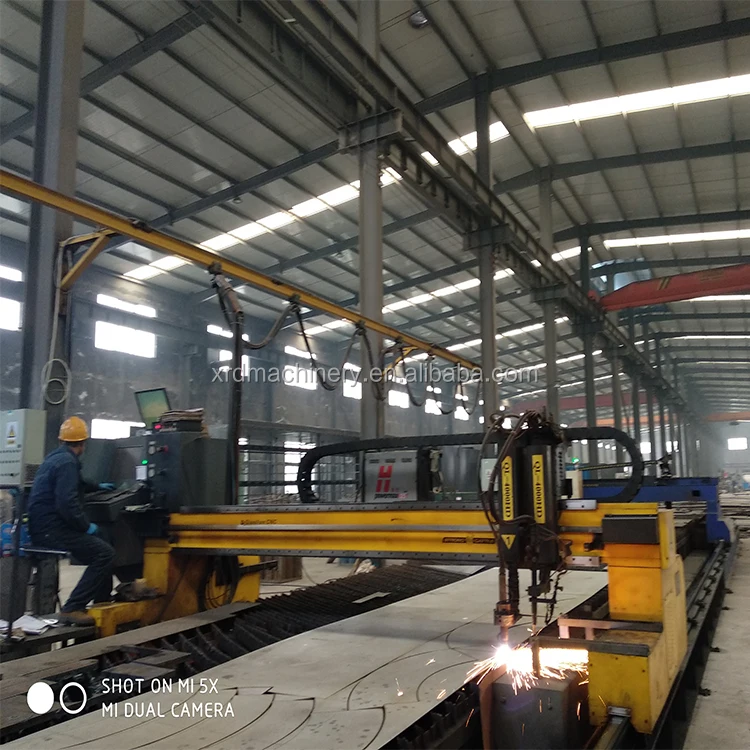

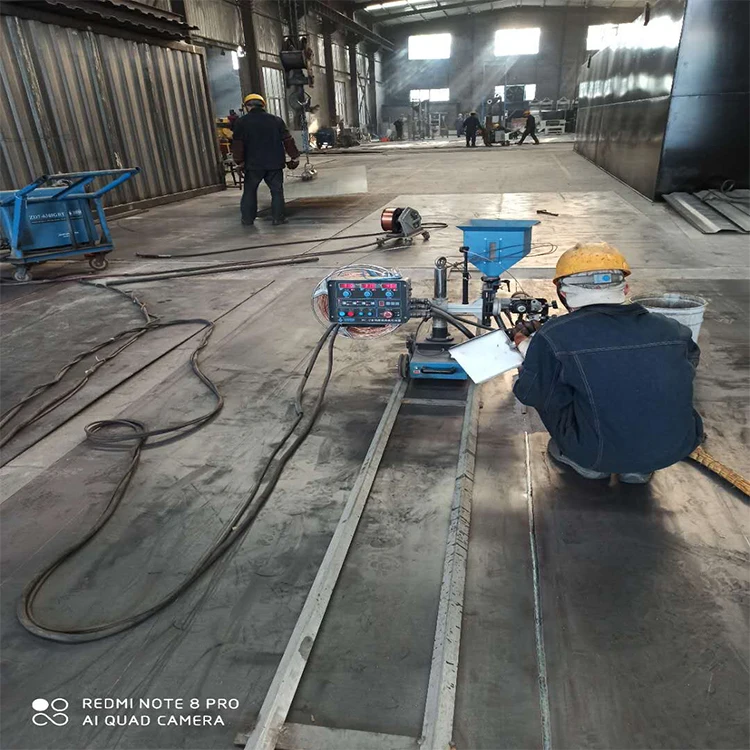

A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.
07. How to install after the equipment arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa
fee, air tickets, accommodation, wages will be paid by buyers.
A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).
02. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
03. What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
04. How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by
customers.
05. How to keep your equipment from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard
process.
06. How do you manufacture your equipment ?
A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.
07. How to install after the equipment arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa
fee, air tickets, accommodation, wages will be paid by buyers.
