Product Overview

Description



Product Description


Plain Dutch Weave & Twill Dutch Weave Wire Cloth

Dutch weave filter mesh provides superior filtration capabilities for a wide range of applications, including pressure, fuel and liquid filters for the aerospace, petrochemical, pharmaceutical, mining and waste water treatment industries.

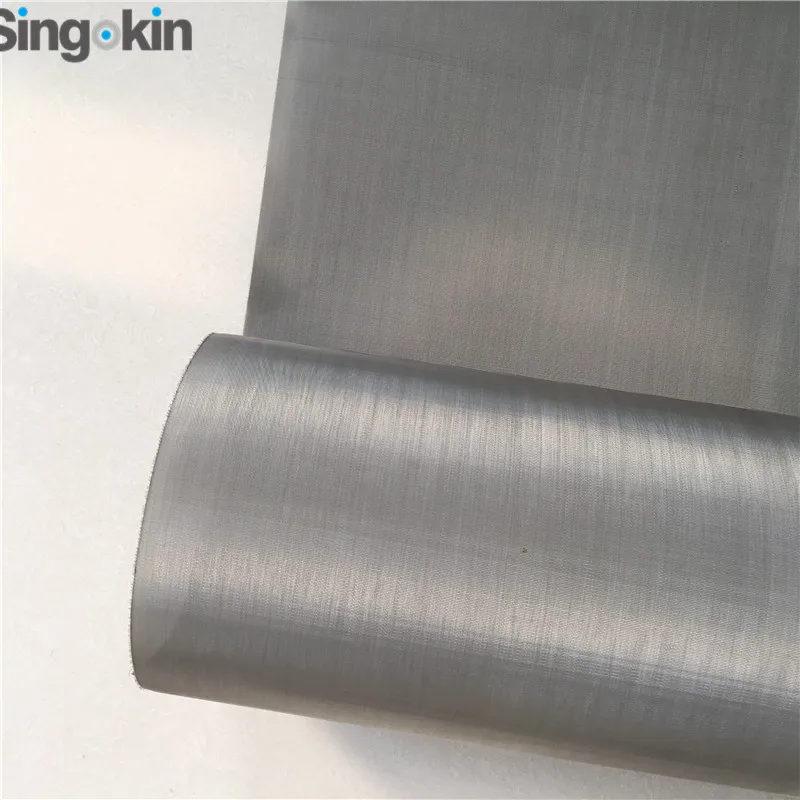

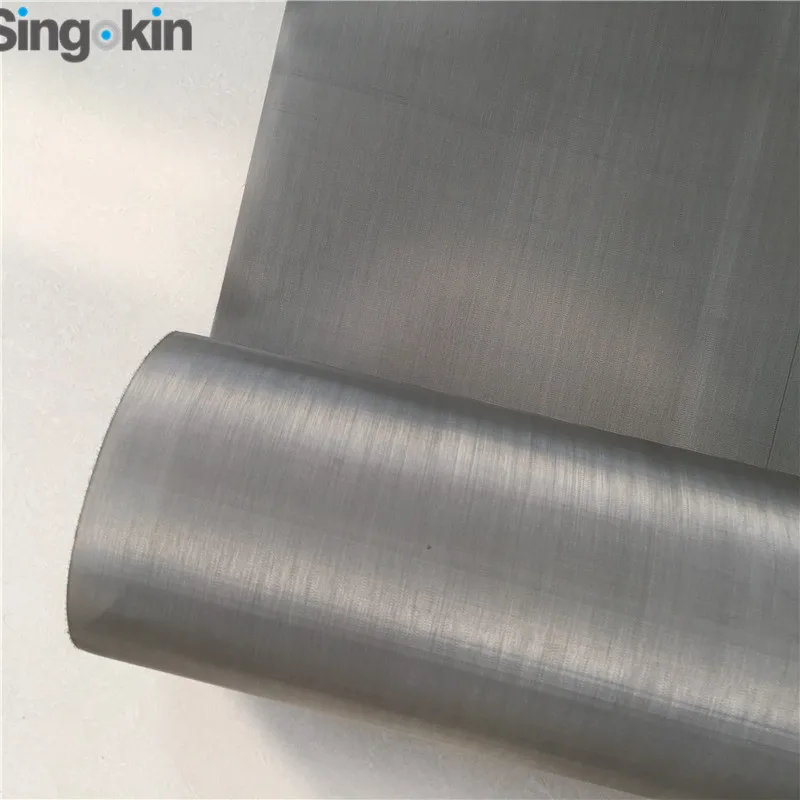

5 10 20 30 40 50 micron SUS 304 316 316L plain Dutch weave Stainless steel wire mesh price

1.Material: 304 316 316L stainless steel wire mesh

2.Mesh count: 12x64, 20x300, 30x150, 40x200, 40x250, 80x400, 80x600, 200x14mm, 325x2300  etc

3.Roll width: 3', 1.0m, 1.2m etc

Customized outside diameter

4.MOQ: 3m2

5.Delivery time: within 5 days



Twill dutch weave wire mesh cloth


The weaving process allows for the use of very fine wires, to micron size, producing filtering mesh for gas and liquid applications.

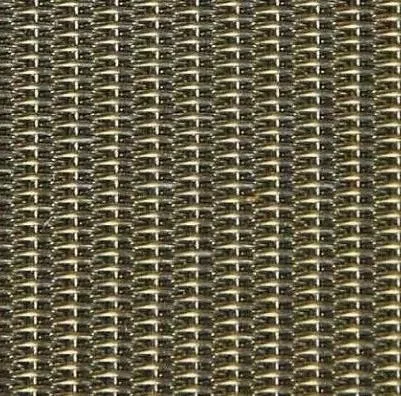

Plain dutch weave wire netting

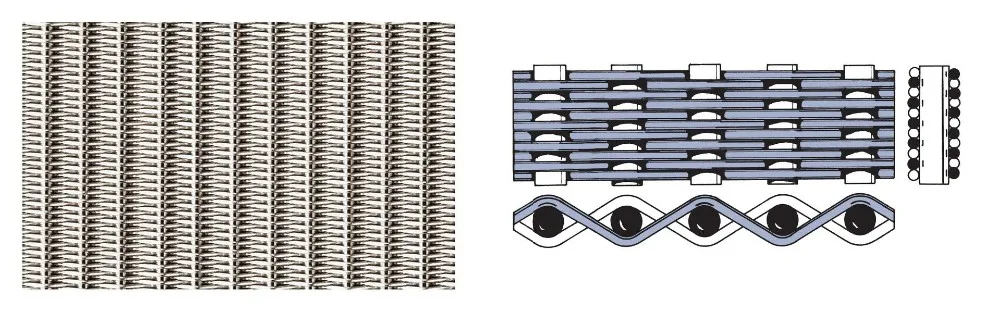

Plain Dutch weave wire cloth is woven using two sizes of wire. Smaller wires, as small as micron size, are used in the shute direction and are woven with a larger warp wire.

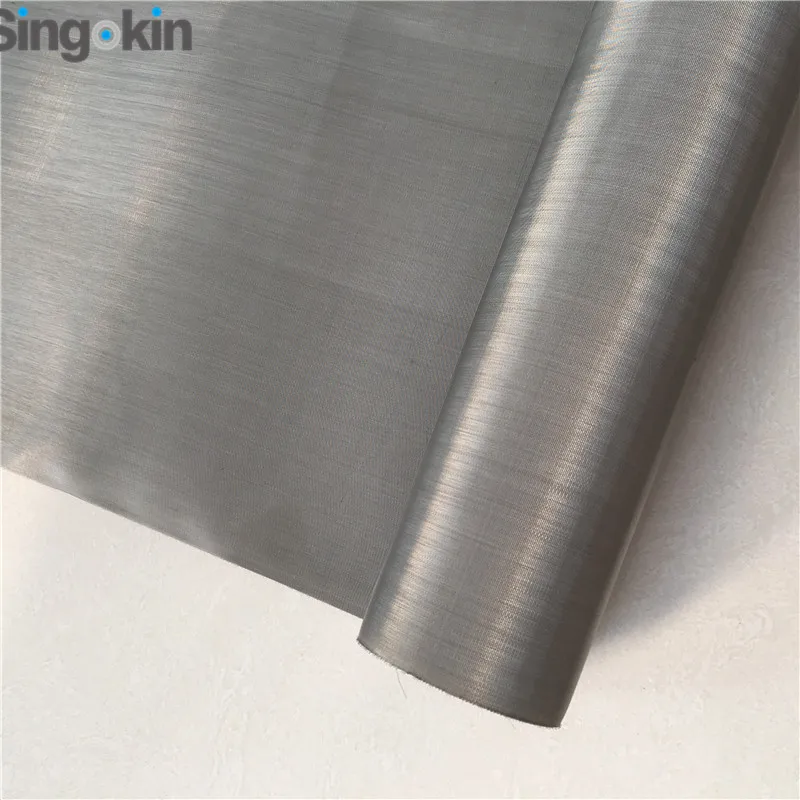

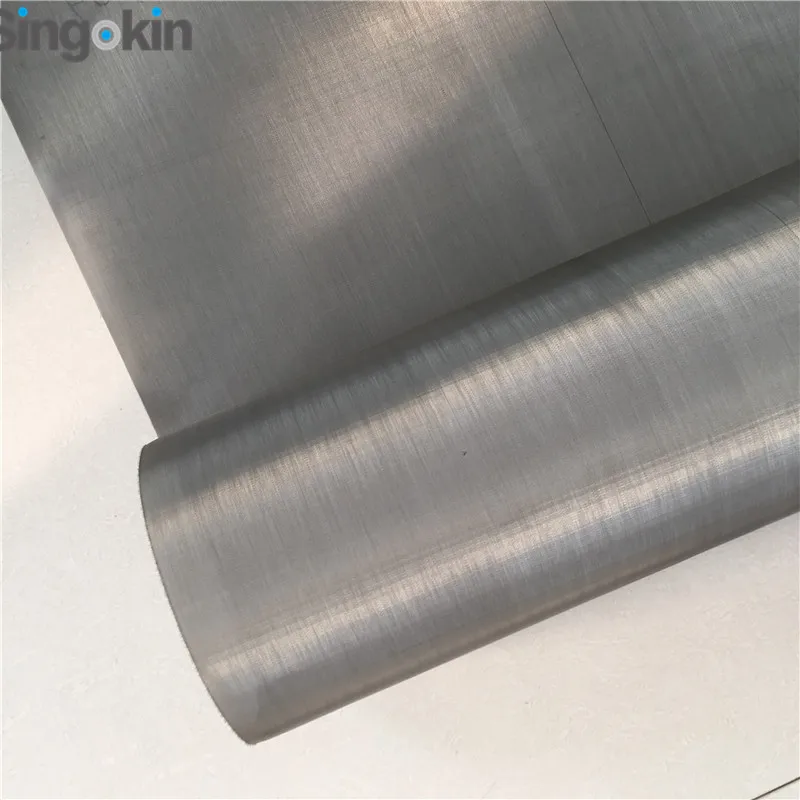

80x400mesh, Plain dutch weave mesh

Aperture: 40 micron

Weight: 0.62kg/m2

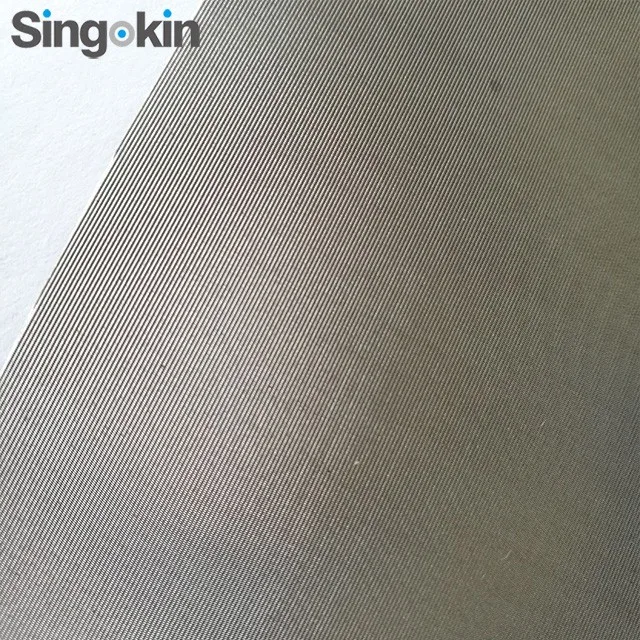

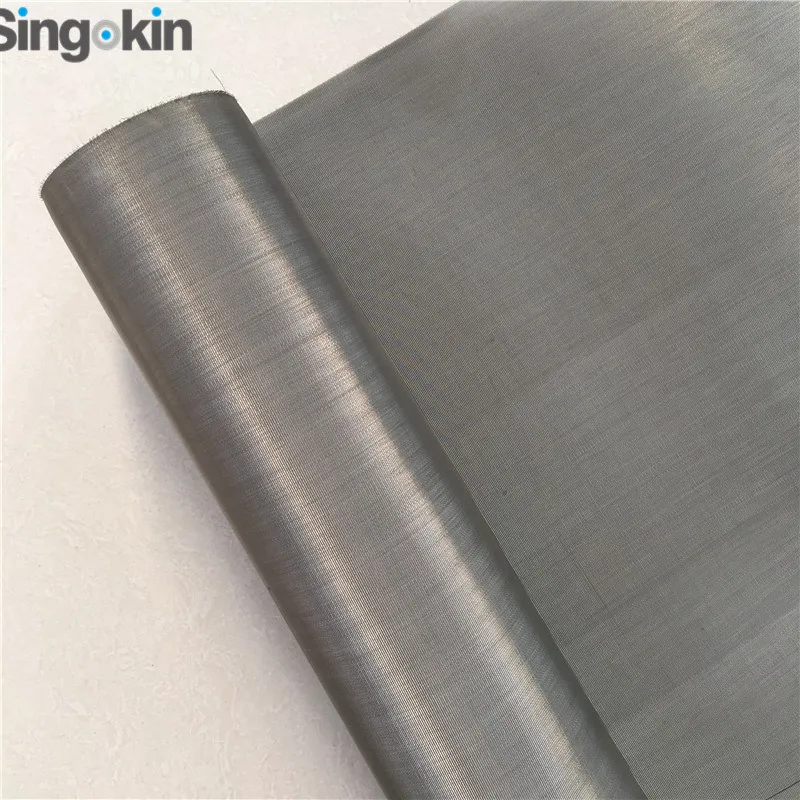

325x2300mesh, Dutch twill weave mesh

Aperture: 5 micron

Weight: 0.45kg/m2



Plain dutch weave wire mesh specifications
Item
Mesh
Wire diameter(Warp x Weft)
Hole size/Micron
KGS/M2
32#
8 x 62
0.63mm x 0.45mm
300
5.42
40#
10 x 79
0.50mm x 0.355mm
250
3.16
48#
12 x 64
0.58mm x 0.40mm
280
2.9
76#
19 x 140
0.315mm x 0.20mm
140
1.88
80#
20 x 300
0.35mm x 0.20mm
-
3.6
95#
24 x 110
0.355mm x 0.25mm
120
2.45
100#
25 x 140
0.28mm x 0.20mm
100
1.95
120#
30 x 150
0.25mm x 0.18mm
80
1.68
160#
40 x 200
0.20mm x 0.14mm
60
1.40
180#
45 x 250
0.16mm x 0.112mm
56
1.09
200#
50 x 250
0.14mm x 0.11mm
53
1.04
240#
65 x 330
0.11mm x 0.08mm
36
0.71
280#(1)
70 x 350
0.11mm x 0.08mm
35
0.72
280#(2)
70 x 385
0.11mm x 0.07mm
32
0.75
300#
78 x 700
0.11mm x 0.08mm
30
1.39
315#(1)
80 x 400
0.10mm x 0.065mm
40
0.62
315#(2)
80 x 600
0.10mm x 0.06mm
-
-
315#(3)
80 x 800
0.15mm x 0.04mm
-
-
320#
81 x 780
0.10mm x 0.07mm
30
1.22
354#
90 x 550
0.12mm x 0.05
-
-


Dutch twilled weave wire mesh cloth
Item
Mesh
Wire diameter(Warp x Weft)
Hole size/Micron
KGS/M2
472#
120 x 400
-
-
500#
127 x 1100
0.07mm x 0.05
17
0.81
630#
160 x 1500
0.063mm x 0.04
15
0.62
650#(1)
165 x 400
0.071mm x 0.06
-
-
650#(2)
165 x 600
0.071mm x 0.05
-
-
650#(3)
165 x 800
0.071mm x 0.05
25
-
650#(4)
165 x 1100
0.071mm x 0.045
-
-
650#(5)
165 x 1400
0.071mm x 0.04
16
0.76
787#(1)
200 x 600
0.071mm x 0.06
-
-
787#(2)
200 x 800
0.071mm x 0.06
-
-
787#(3)
200 x 1400
0.071mm x 0.04
12
0.8
795#
202 x 1760
0.05mm x 0.032
10
0.6
850#
216 x 1860
0.045mm x 0.030
9
-
1000#
254 x 2000
0.04mm x 0.028
8
0.5
1125#
285 x 2235
0.036mm x 0.025
7
-
1228#
312 x 2100
0.035mm x 0.025
-
-
1250#
318 x 2235
0.036mm x 0.025
-
-
1280#
325 x 2300
0.035mm x 0.025
5
0.45
1575#
400 x 3100
0.035mm x 0.019
3
-


Our products


Dutch weave wire mesh

Plain dutch weave wire cloth

Any size is accept



Please let us know the material, mesh count, quantity, then our price with air freight cost will be sent to you.

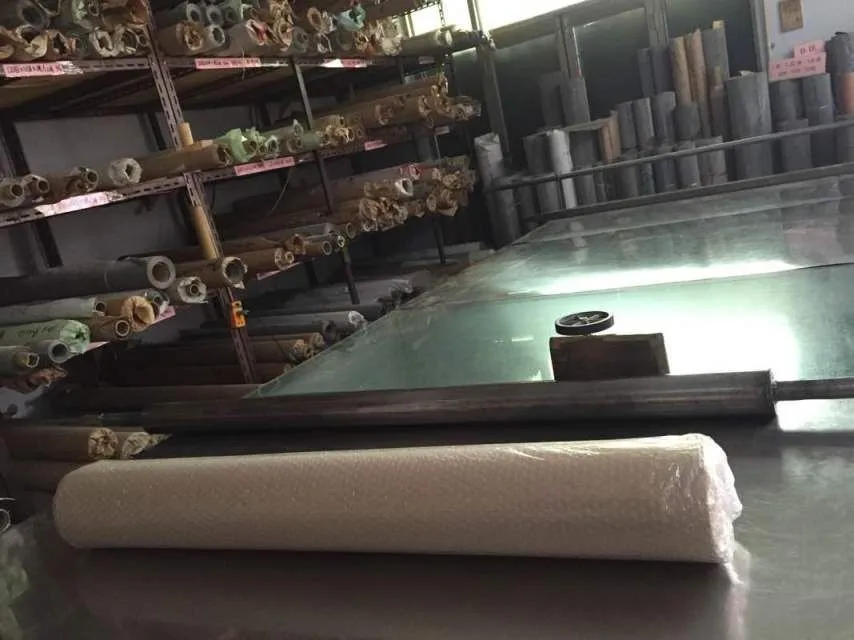

Packing & Delivery


Packing details


1)By plastic bag;

2)Then by cartons;

3)If the quantity is large, it will be packed by crate;

4)OEM packing;



In pieces, any size is ok

In rolls

Outside by paper tube
