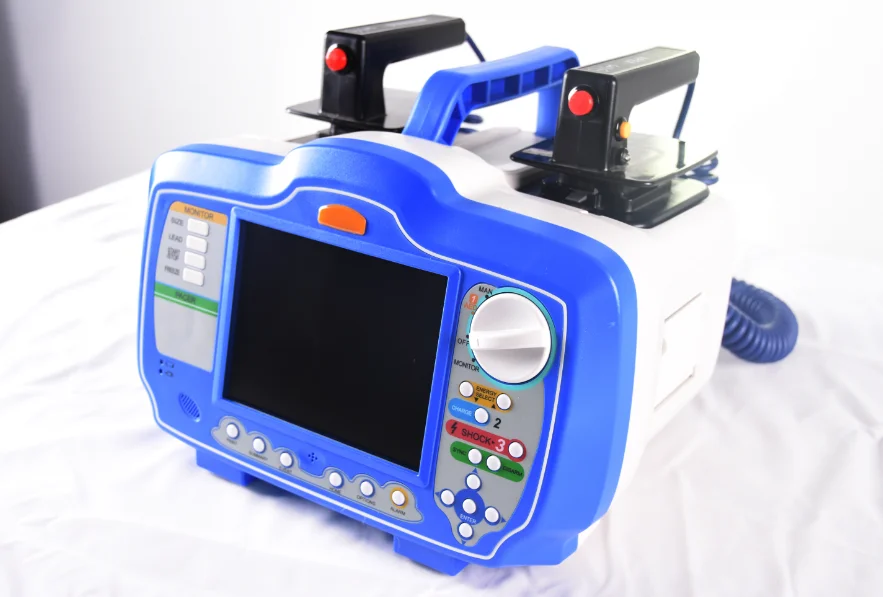

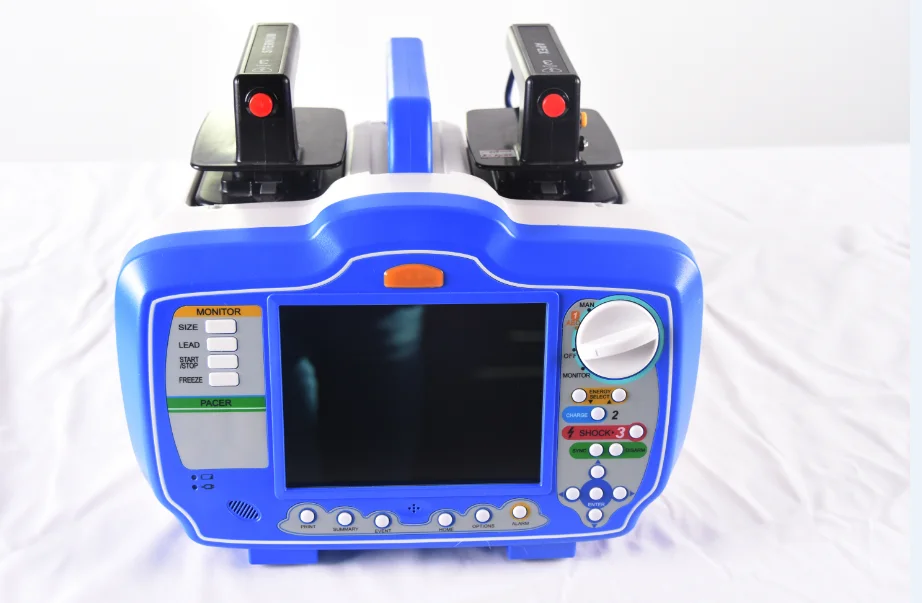

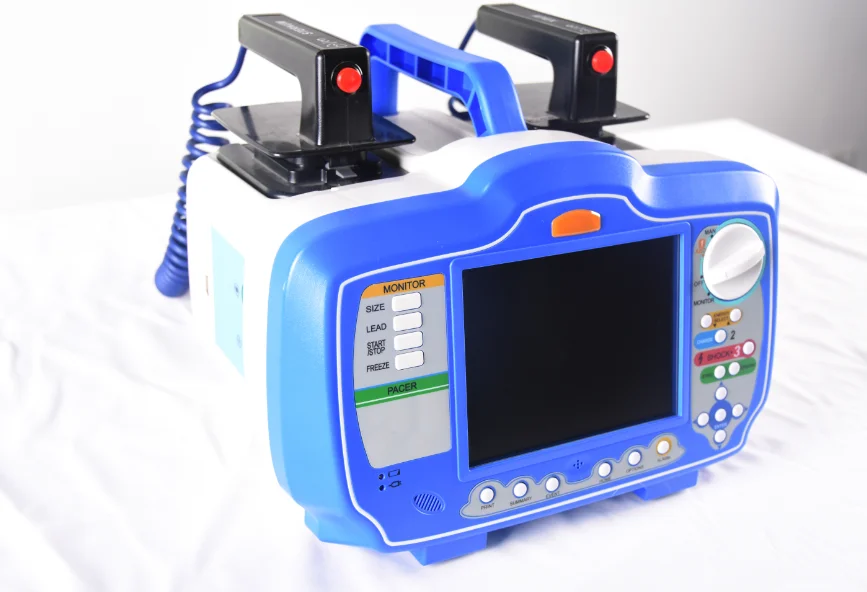

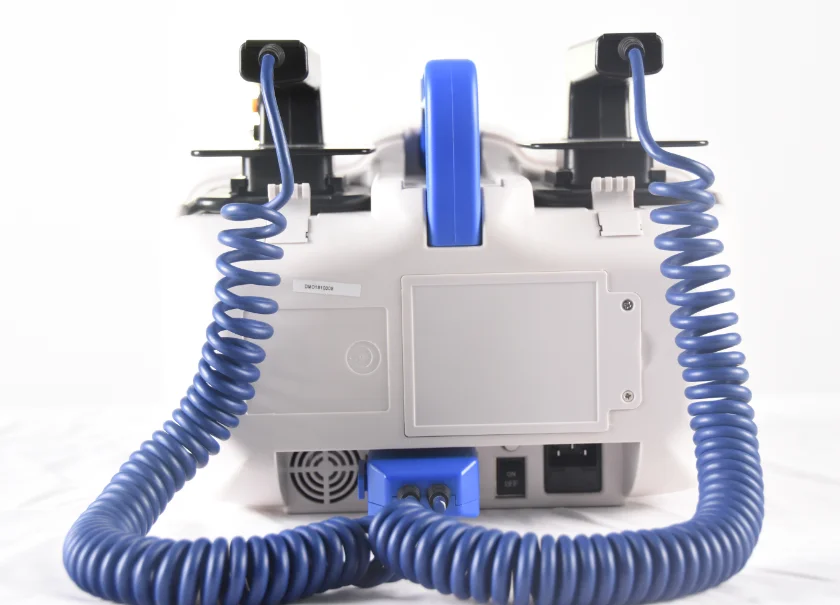

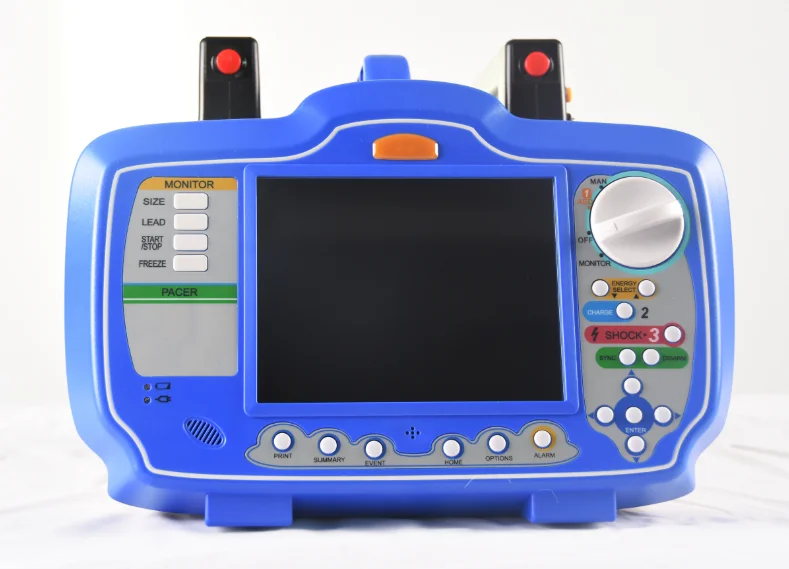

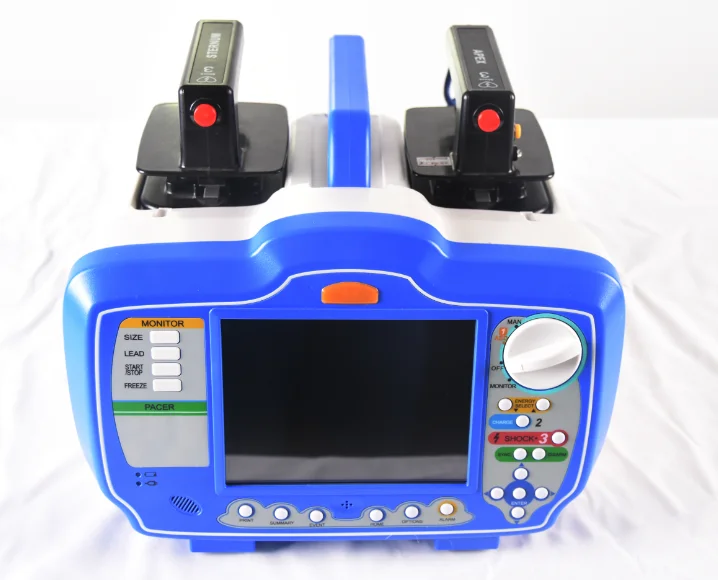

M&B Defibrillator Monitor DM7000 (HOT SALE)

Category

Parameter

Waveform:

Truncated Exponential Biphasic

Output Energy Accuracy:

+/- 15% or 1J (whichever is greater) at 25 to 175 ohms

AED Energy Sequence

150, 200J(twice)

150, 150, 200J(three times)

150,150, 150, 200J(Four times)

manual mode

no battery, 100% AC mains voltage,charge to max energy(360J)

<9 seconds

New battery, ,charge to max energy(360J)

<14 seconds

no battery, 90% AC mains voltage,charge to max energy(360J)

<9 seconds

with a Ni-MH 12 volt - M&B battery after 15 discharges, charge to max energy(360J)

<15 seconds

no battery, 90% AC mains voltage,from system on to charge max energy complete

<20 seconds

with a Ni-MH 12 volt - M&B battery after 15 discharges, from system on to charge max energy complete

<25 seconds

AED mode

no battery, 100% AC mains voltage,charge to max energy(200J)

<7 seconds

New battery, ,charge to max energy(200J)

<9 seconds

no battery, 90% AC mains voltage,charge to max energy(200J)

<7 seconds

with a Ni-MH 12 volt - M&B battery after 15 discharges, charge to max energy(200J)

<10 seconds

no battery, 90% AC mains voltage,from system on to charge max energy complete

<25 seconds

with a Ni-MH 12 volt - M&B battery after 15 discharges, from system on to charge max energy complete

<28 seconds

Analyzing time

9 seconds

The Maximum Voltage

1340±50V

Defibrilator

Resistor

range

AED mode

20Ω to 200Ω

Manual mode

20Ω to 1500Ω

Synchronous delay time

<60ms
