Steel chicken bird rabbit animal cages mesh welding machine

Product Overview

Description

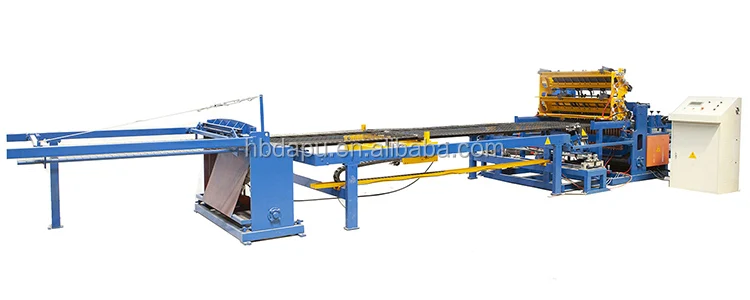

Chicken cage welding machine

This is our new developed chicken cage welding machine DP-AW-1200H (Pneumatic type). The welding speed can be up to a maximum of 130 times/min. It has the advantage of easier machine maintenance, fewer machine problems, easier to learn and operate, save power and consumption, less welding spark, etc. We also have mechanical type machine, the model is DP-AW-1200E

Model	DP-AW-1200H	DP-AW-1500H	DP-AW-1600H
Wire diameter	2-3.5mm/2-4mm
Longitude wire space	Mostly 50-200mm(If min.25*25mm, we can also design.)
Crosswire space	Min.25mm or smaller (PLC control)
Mesh width	Max.1200mm	Max.1500mm	Max.1600mm
Welding electrodes	25pcs	32pcs	32pcs
Welding transformer	125kva*3pcs	125kva*4pcs	125kva*4pcs

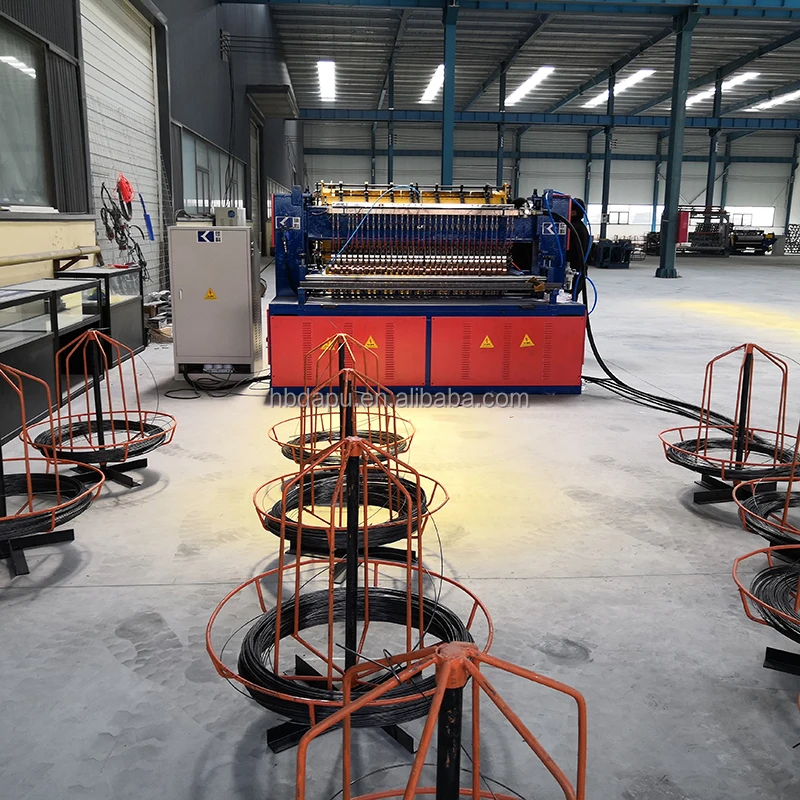

Longitude wire feeding	Form wire coils
Crosswire feeding	Pre-straightened&pre-cut(cross wire feeder)
Welding speed	Max.130 times/min
Space needed	12*5m
Machine weight	3100kg	3600kg	3840kg

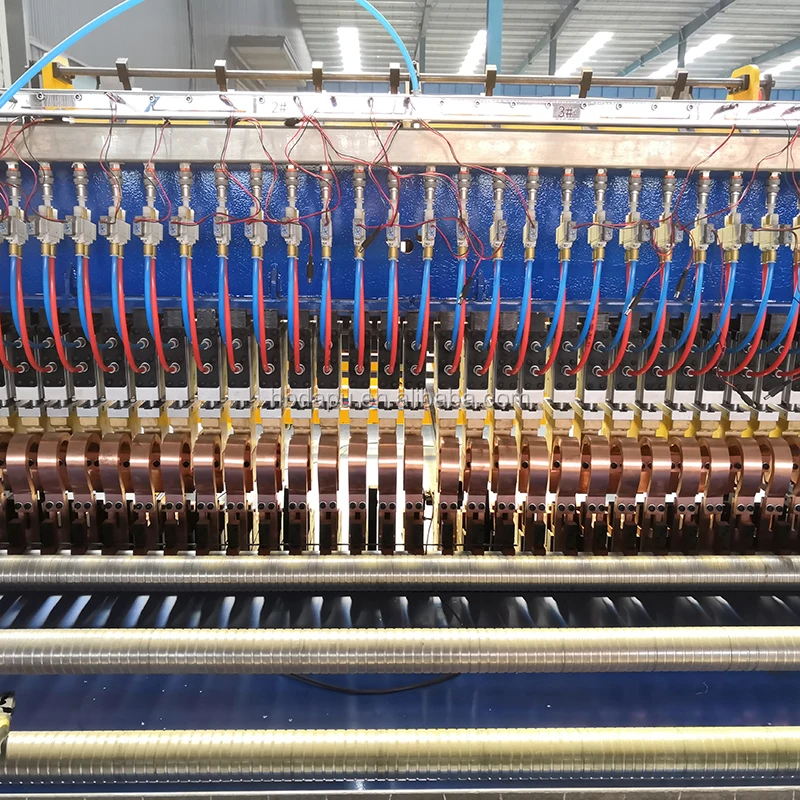

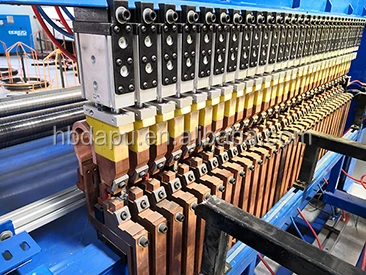

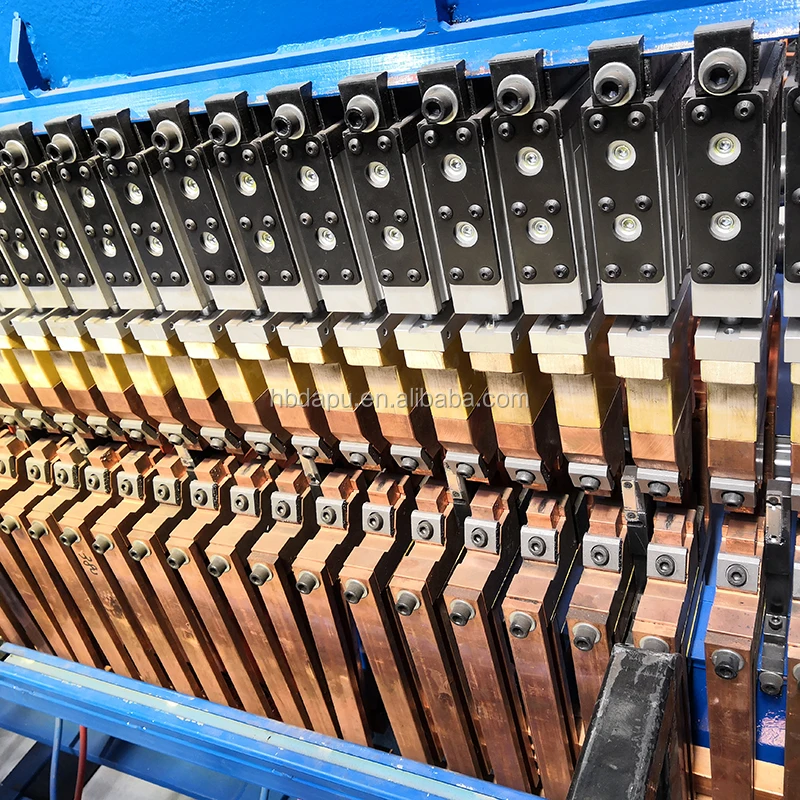

	Pneumatic welding, each welding electrode is controlled by one SMC air cylinder. Electrodes 20*20*20mm can be used 6 sides.

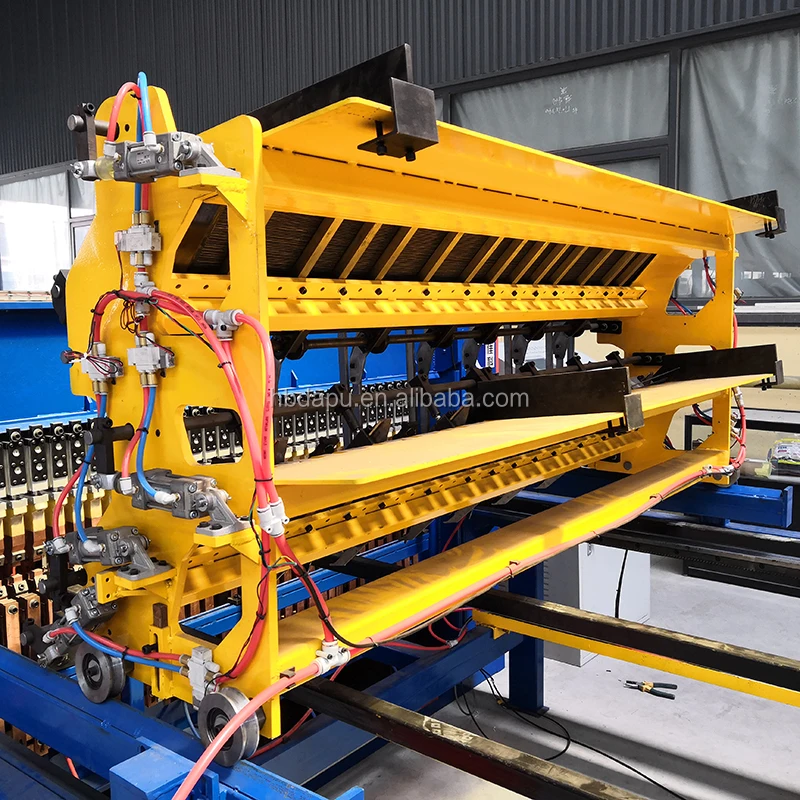

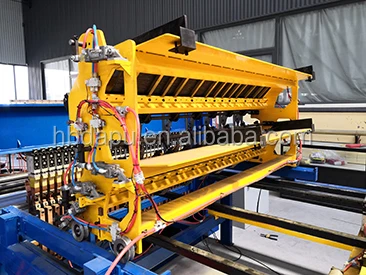

Double cross wire feeders, can feed different lengths of cross wires. You can also choose a single cross wire feeder. The feeding speed can max .130pcs/min.

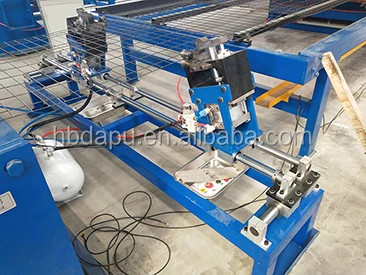

	The edge cutter is controlled by two big SMC brand air cylinders on two sides, the cutting speed can match the welding speed.

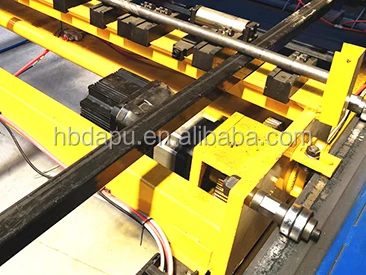

Panasonic servo motor for pulling mesh, cross wire space can be adjusted by PLC. The pulling rack is the J&T brand, more accurate, less noise.

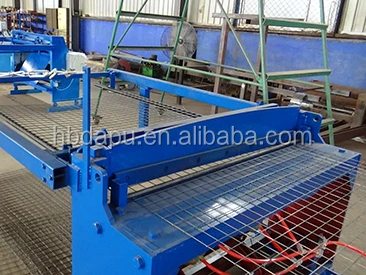

	The mesh cutting is automatic, max.3m length. After cutting, the mesh can fall down automatically to the mesh stacking car.

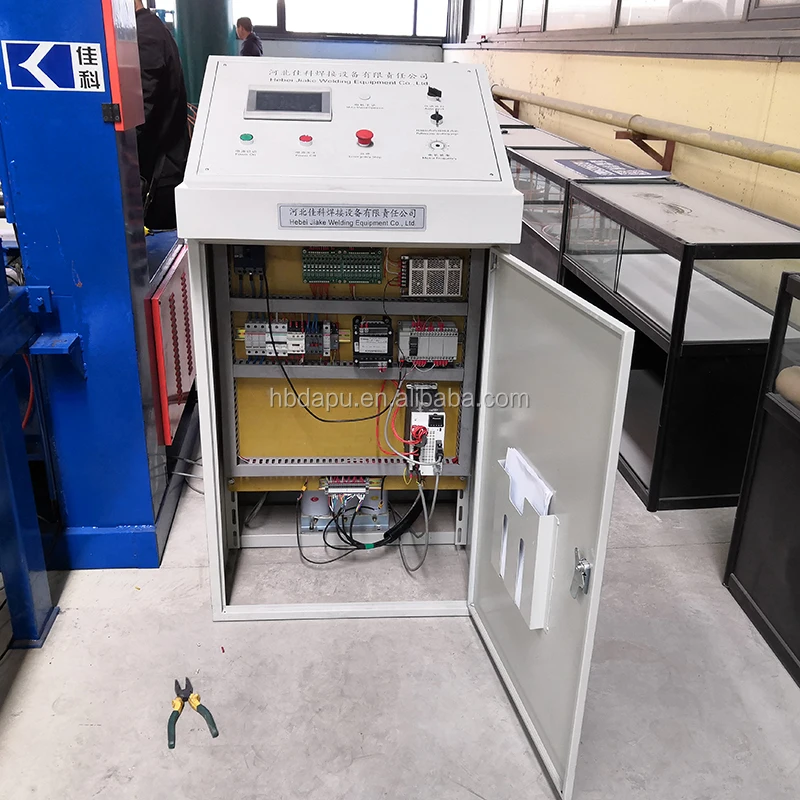

Panasonic (Japan) PLC Weinview (Taiwan) touch screen Schneider (France) low-voltage apparatus ABB (Switzerland Sweden) switch Schneider (France) air switch Delta (Taiwan) power supply Panasonic (Japan) servo driver Phoenix (Germany) wire terminal Infineon (Germany) SCR

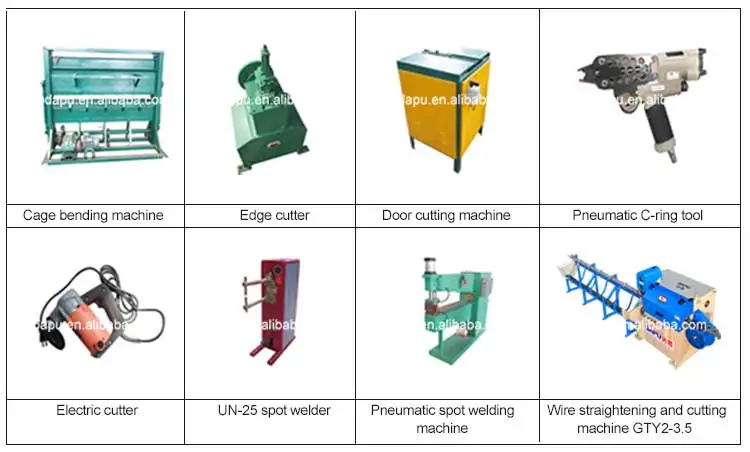

1. The cage bending machine is used to bend the top cage mesh and bottom cage mesh.

2. The edge cutting machine is used to cut the extra wires of the mesh side.

3. The door digging machine is used to cut the insider wires of the cage mesh to make a door.

4. C nail gun is used to connect the bottom cage mesh, top cage mesh, and partition mesh.

5. The electric cutter is used to cut the mesh manually.

6. The spot welding machine is used to weld the partition mesh, single spot or multi spots.

7. Wire straightening and cutting machine is used to straight and cut the wires.
