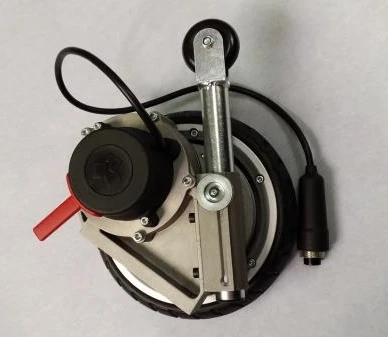

High Efficiency Ultrilight Brushless Electric Wheelchair Gear Motor

To convert a manual wheelchair  you need three systems :

 1) Motor system    2) Control system     3) Battery system

Our MP-MT17 Brushless hub motor is suitable for univercial wheelchais . You need two motors for Left & Right wheels  , it’s necessary to  find a bike repair shop to help you .

• Super long working lifespan for ten years


• Single-stage gear power transmission


• Convenient electronic brake


• Soft start-up performance


• High Efficiency ≥ 80%


• Low noise < 60db


• Energy Saving


• Long riding distance


• Logo can be customized


• ODM order are welcome













































  Continuous Current	1.1A
  Motor type	brushless , 24V 180W, 250W
  Weight	3.5kg
  Battery	24V 15AH, 24V 10AH availale
  Torque	12 N.m
  Commutation	Brushless
  Efficiency	IE 2
  Feature	8, 10, 12, 24 inch brushless electric wheelchair motor
  Gear ration	1:10
  Rated speed	6-10KM/H




After install the motor to your wheelchair , you need a Control System .

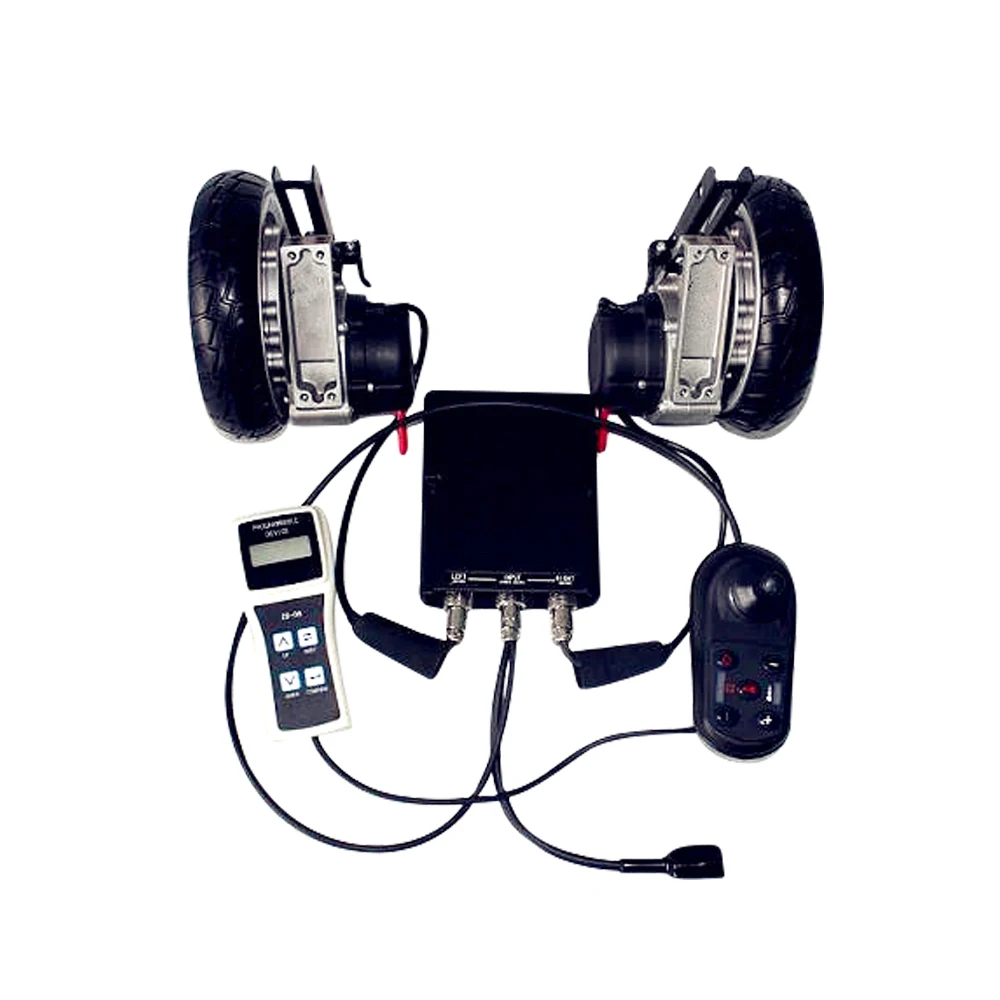

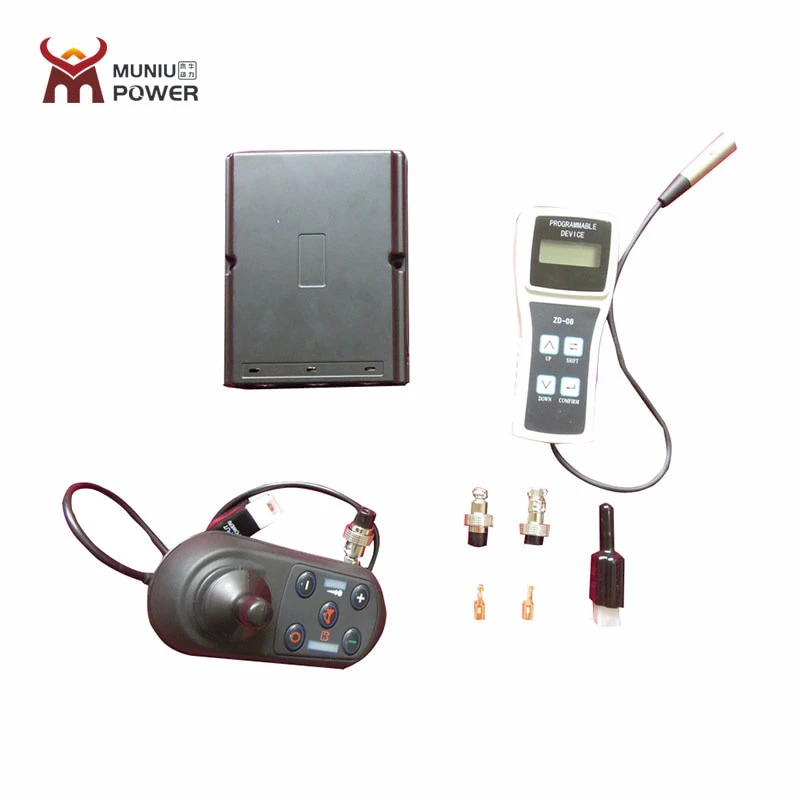

The brushless electric wheelchair control system consists of two parts. Controller and Joystick .

As the following picture shows:

It seems very communicative . You don’t need to know how it goes .We will program it well and you only need to plug in the right terminals.

Drive Wiring Diagram

Battery system

 You could choose Lithium battery or Lead Acid battery . But notice that it must be 24V  to match our motors and controller .

We suggest buying in local because the shipping cost very much  if it contains the battery .

For more information please contact us .

 All the motors are well packed and protected .

Q: Are you a factory or trading company ?
A: We are a trading company . But we own 40% of Yangzhou Flying Horse Gasoline Engine Factory . And partnership of Chongqing Yinggang Group ,Chongqing Maotian machinery which is well known in China.

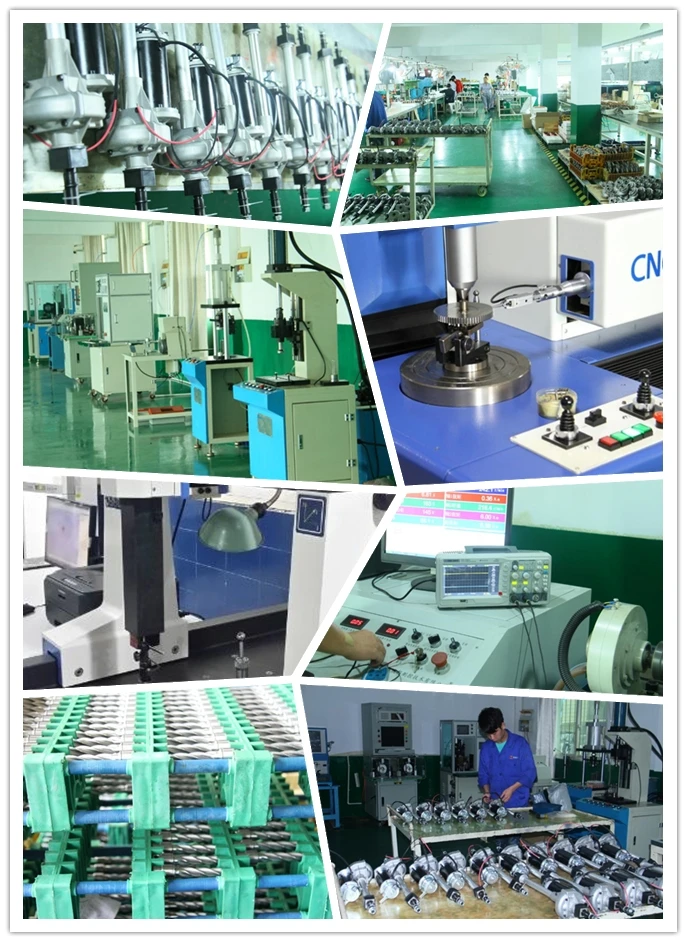

Our testing lab is well equipped and capable to develop &design products for you .
Q: How about the delivery time ?
A: Sample order : 7days ;mass production: 15-30days
Q: Do you offer free samples ?
A: No. We require buyers paying for samples and freight . But we promise the fee will be returned to you while you place a bulk order. For example, sample cost $350 , freight cost $200 . You would get $550 discount while you place an order in 20FT or 40GP container.

Q: May I get some discount?
A: Distributor or bulk orders will get discount .

Q: What is your MOQ?
A: Our MOQ is 1 piece. Mixed different items into one order is available .

Q: How can I get my goods?
A: In trade term of CIF, usually we deliver goods to the port of destination in your country by sea. Our shipping agency will contact you to pick up the goods upon arrival.In trade term of FOB, you are supposed to inform your own shipping agency to take the goods to Shanghai port.Sample orders , we deliver the samples to your door by air express . For some markets, Russia , America, Europe,etc the tax and customs clearance duties are on us .

Q: What's your working time ?
A: Get online service in anytime . Leave massage or send emails . We will reply you within 6 hours .

Q: What's your policy for distributors ?
A: Only one distributor in one area . Distributors will get logo /packing/art work design, technical support ,after sales service and special discount for replace parts .

Q: How do I place an order ?
A: Click Start-order button -- turn to online store-- buy in Ali Trade assurance .Or contact us by email . We will issue an Invoice to you with contract details and bank account . Payment terms FOB , CIF by T/T , LC .

Q: What's your warranty ?
A: 12 months after date of B/L . For some products , we offer 18 months warranty .
