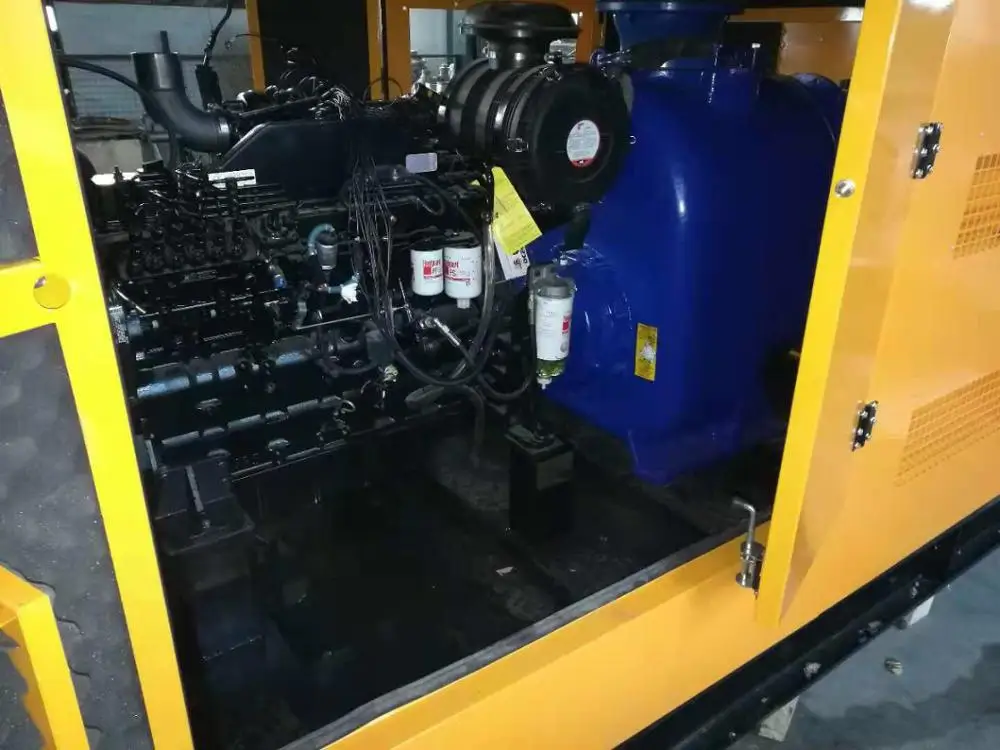

Silent 12inch Self Priming Sewage Diesel Water Pump With 6CTA8.3-C215









Product Description







    --------12inch Self Priming Sewage Diesel water pump specifications
























































































































































































Model of Diesel pump setV119DSPK01                    (Q=1250m3/h     H=43m)

Model Diesel Engine 6CTA8.3-C215
Rated Output119KW
Rated Speed (r/min)1300
Bore×Stroke114*135mm
Intake typeTurbocharged
Displacement8.3L
Compression Ration16.8:1
Starting Method24DC Electric motor
Cooling Methodclosed water cooling
Governing MethodElectric governing
Cylinders6
TypeWater cooled, In-line, 6 Cylinder, 4 Cycle, direct injection

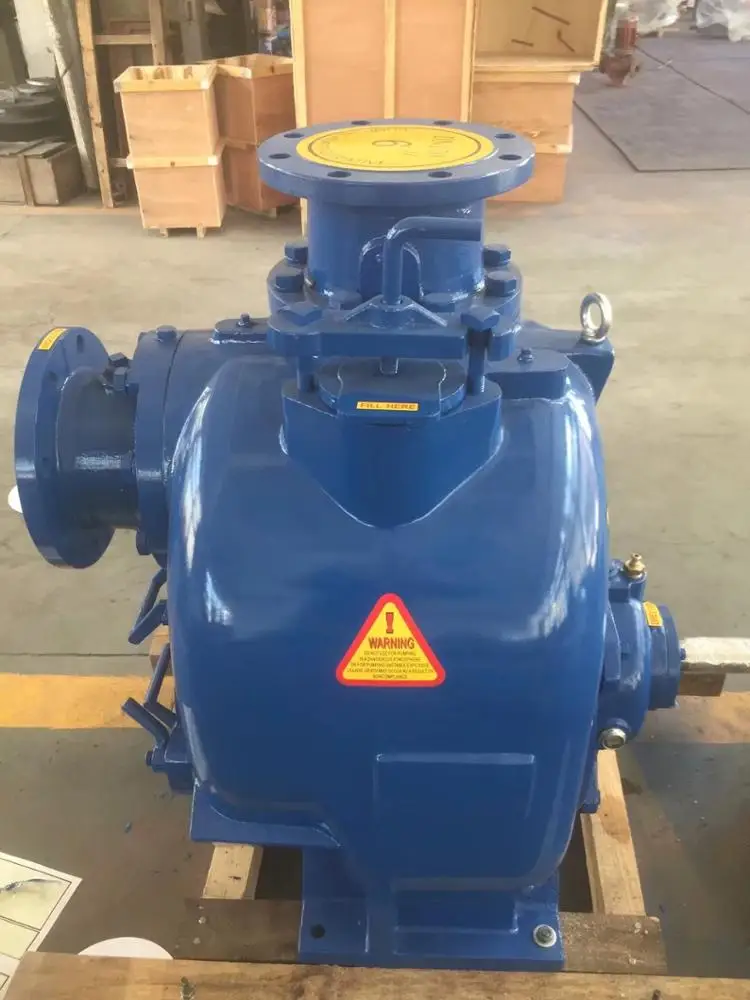

Model PumpVP-12
TypeP Type Non-plugging self-priming pump, sewage pump
Speed1250rpm
Max Outflow1250m3/h
Max Head lift43m
Max solid76.2mm
Suction lift8.5m
Shaft Power100KW
Inlet diameter300mm    (12 inch)
Outlet diameter300mm     (12 inch)
Casing materialCast iron HT200
Shaft material40Cr
BearingNSK
Impeller materialDuctile cast iron QT380
Sealing methodAlloy/Viton  Mechanical seal

Control System

Auto or Manual operation option;


 low/over speed, Battery charger fail ;


Urgent shut down; Low oil pressure;


High water temperature; Starting failure;


Loss of speed signal; and so on.


Show oil pressure, rotate speed,


oil temperature, running time and so on.



Standard EquipmentsDiesel engine: 1set
 Water pump: 1set
 Common base with 8 hour fuel tank:1 set
 Control System: 1 set
 Silent canopy: 1 set
 Manifold 2*6inch: 1 sety
 Foot valve/strainer: 1 set
 Non-return valve: 1 set
 Suction hose: 9m (pressure 10bar) with coupling
 Accessary spare parts such as Radiator,Muffler
 Technic file: 1set

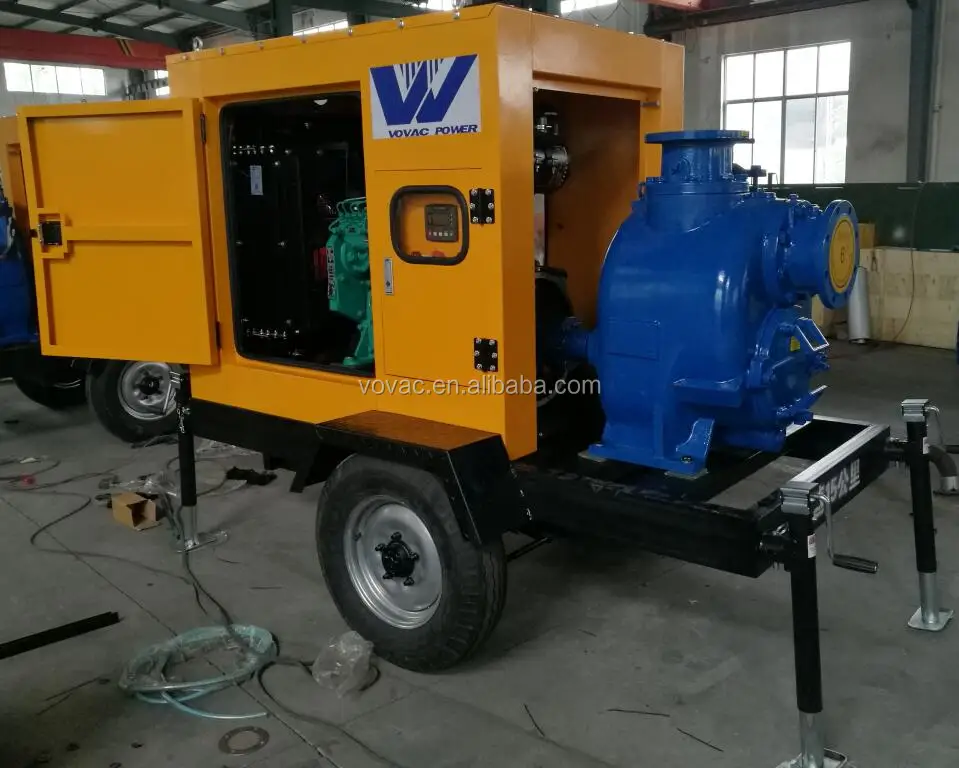

 sewage pump.jpg






Packaging & Shipping


 12inch Self Priming Sewage Diesel water pump009











Our Services


 12inch Self Priming Sewage Diesel water pump

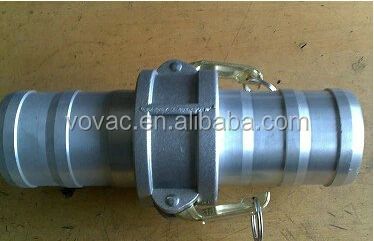

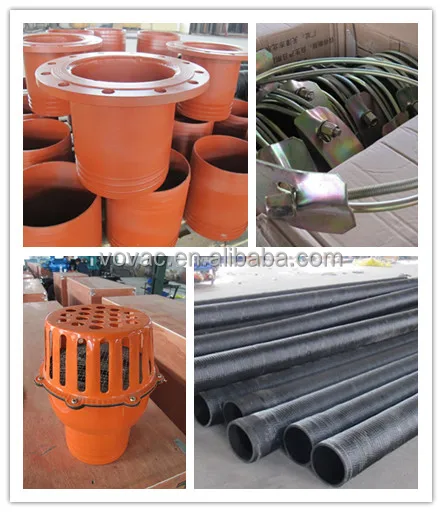

 We also produce connection flange, elbow, foot valve, black spiral rubber pipe, and quick coulping, the range from 3 inch to 32 inch















Company Information


 12inch Self Priming Sewage Diesel water pump







 1






FAQ


12inch Self Priming Sewage Diesel water pump




Any requirements about diesel water pump, pls contact with me
