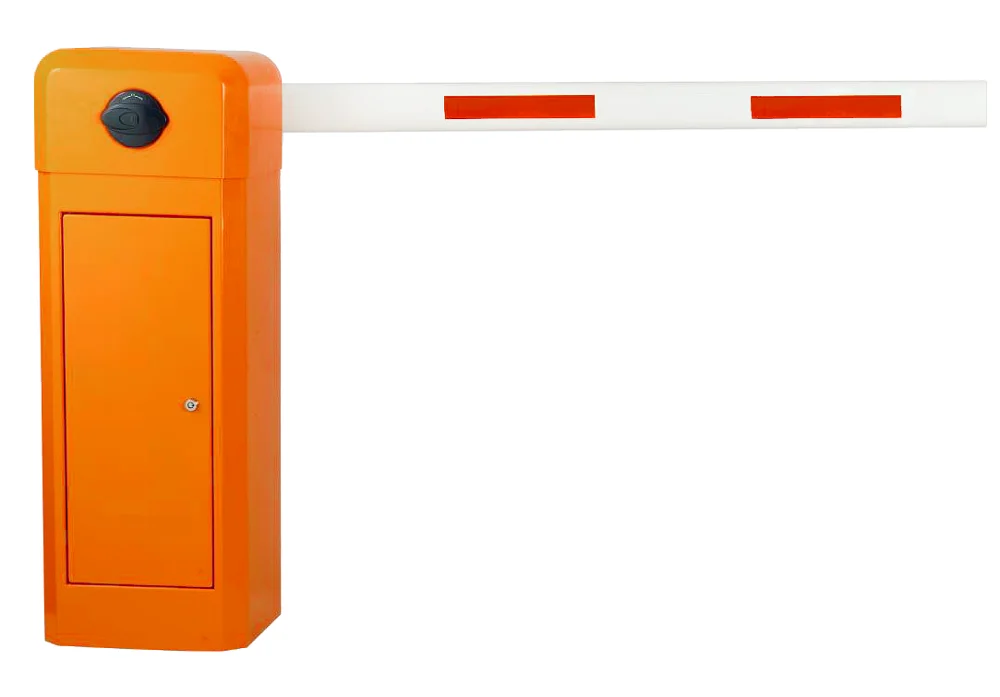

UNIQSCAN Manufacture Price Automatic Boom Barrier Remote Parking Lot Barrier UT530 A

Product Overview

Description

UNIQSCAN Manufacture Price Automatic Boom Barrier Remote Parking Lot Barrier UT530-A



Boom Barrier Specification



Open/Close time	1-6s depends on the arm length
Arm Length	3-6m
Working Temperature	-35℃ to +75℃
MTBF	>5million times
Power Supply	220V±10 %   50/60HZ /110V±10 %   50/60HZ
Rated Power	120W
Related Humidity	≤90%
Remote Control Distance	>30M
Net Weight	60KG



Characters



Ø  For security, the barrier will automatically go back when meet obstacles during closing.

Ø  Brushless DC motor is more powerful and no maintenance.

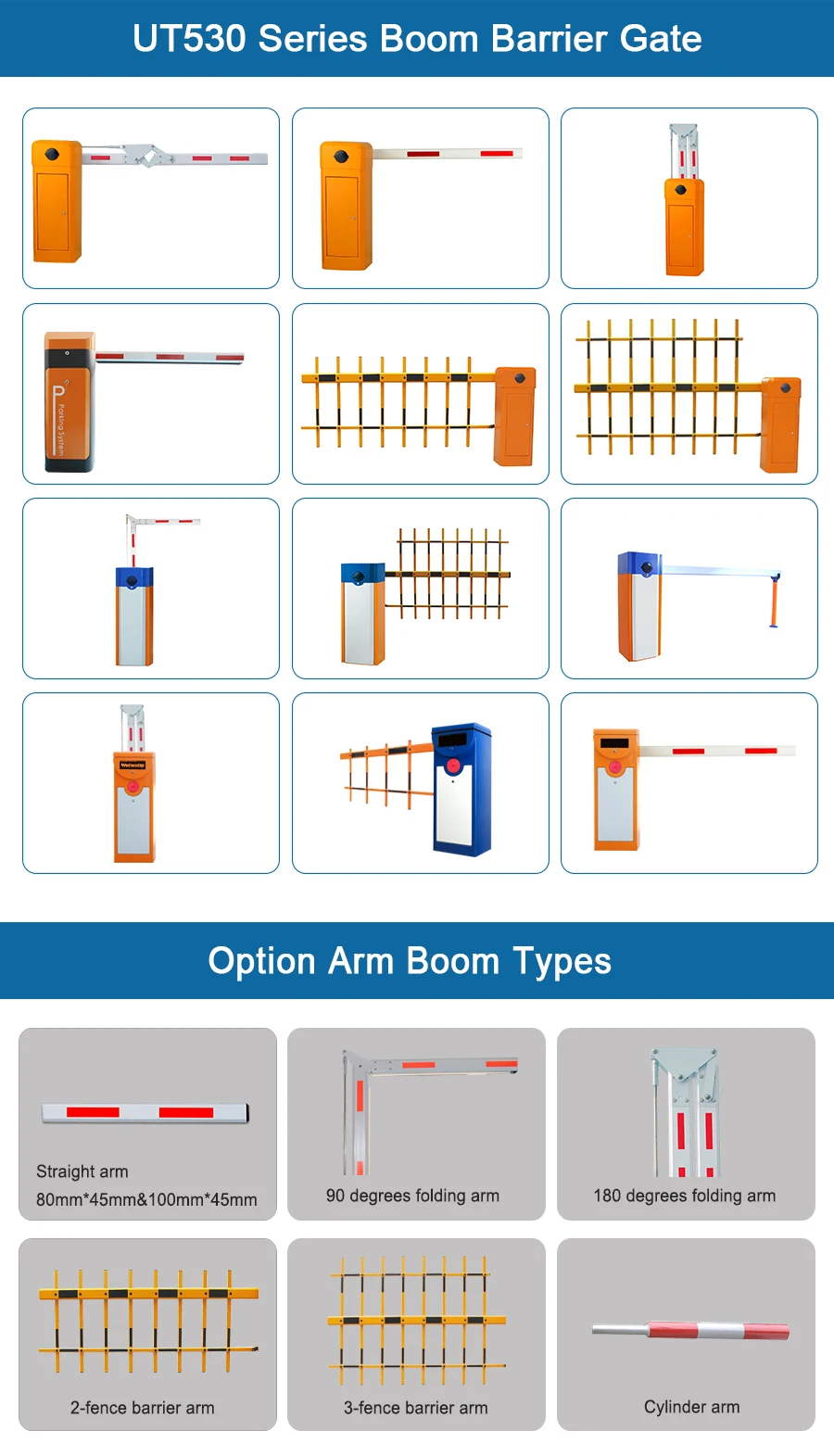

Ø  Beam can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1s to 6s.

Ø  The barrier can be installation both rightward and rightward.

Ø  All the operation process is soft without any noise and shaking.

Ø  Infrared photocell interface, Loop detector interface and IC system interface are reserved for the other functions.

Ø  Green light and red light are used inside for indication the position of the beam.

Ø  Manual release device to operate the barrier when power failure.

Ø  Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation.

Ø  Motor cooling fan to avoid the over-heating possibility.

Ø  Auto closing realization through menu setting on the control panel.

Ø  Wire control, remote control optional

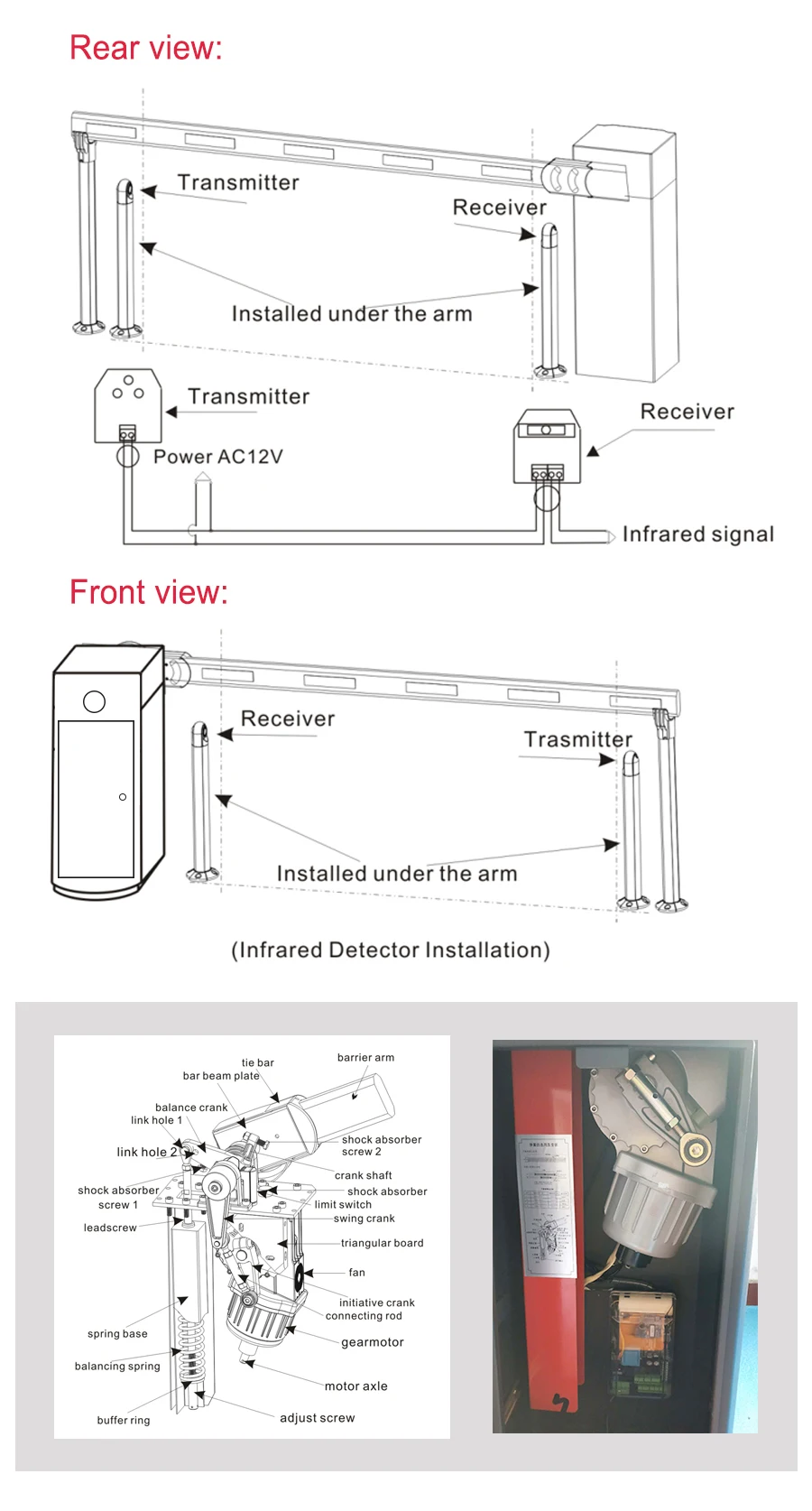

Ø  Infrared protection (requires correlation infrared device)

Ø  Optional housing color: yellow, orange, white, red and blue etc.

Ø  Variable frequency controller automatically detects and optimizes boom moving, ensures smooth moving without shake

Ø  System automatically self-checks operation status and reports errors code

Ø  Simplified design, easy installation and maintenance reduces your labor cost

Ø  Closing Priority

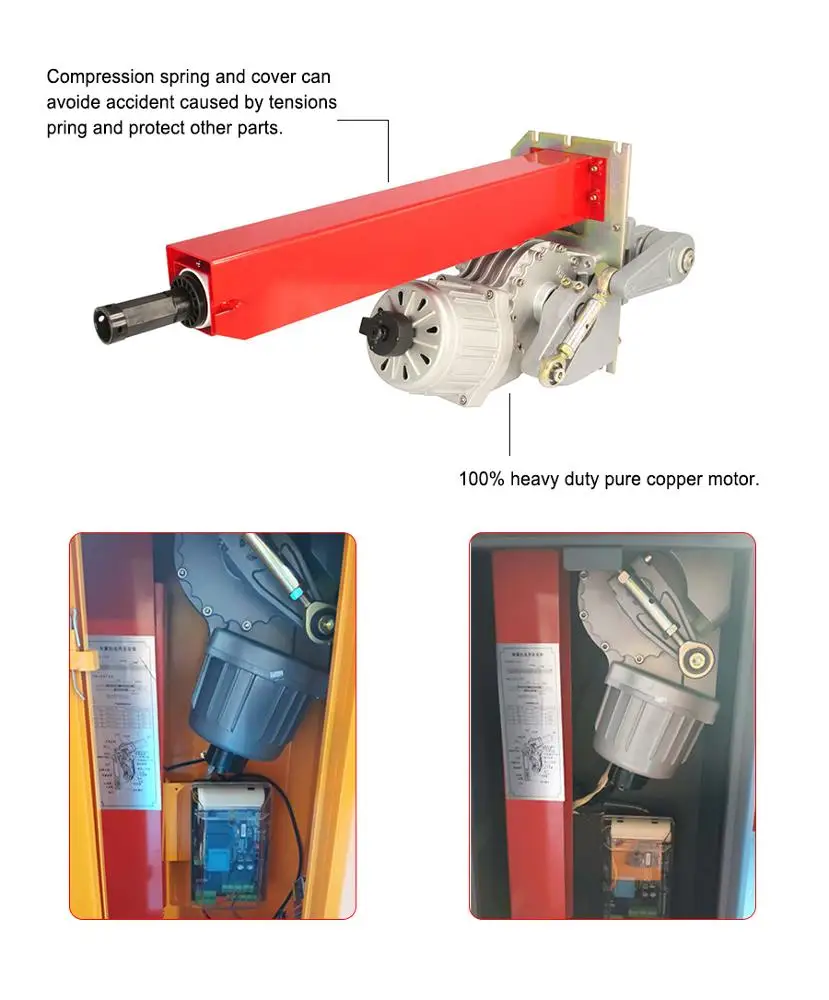

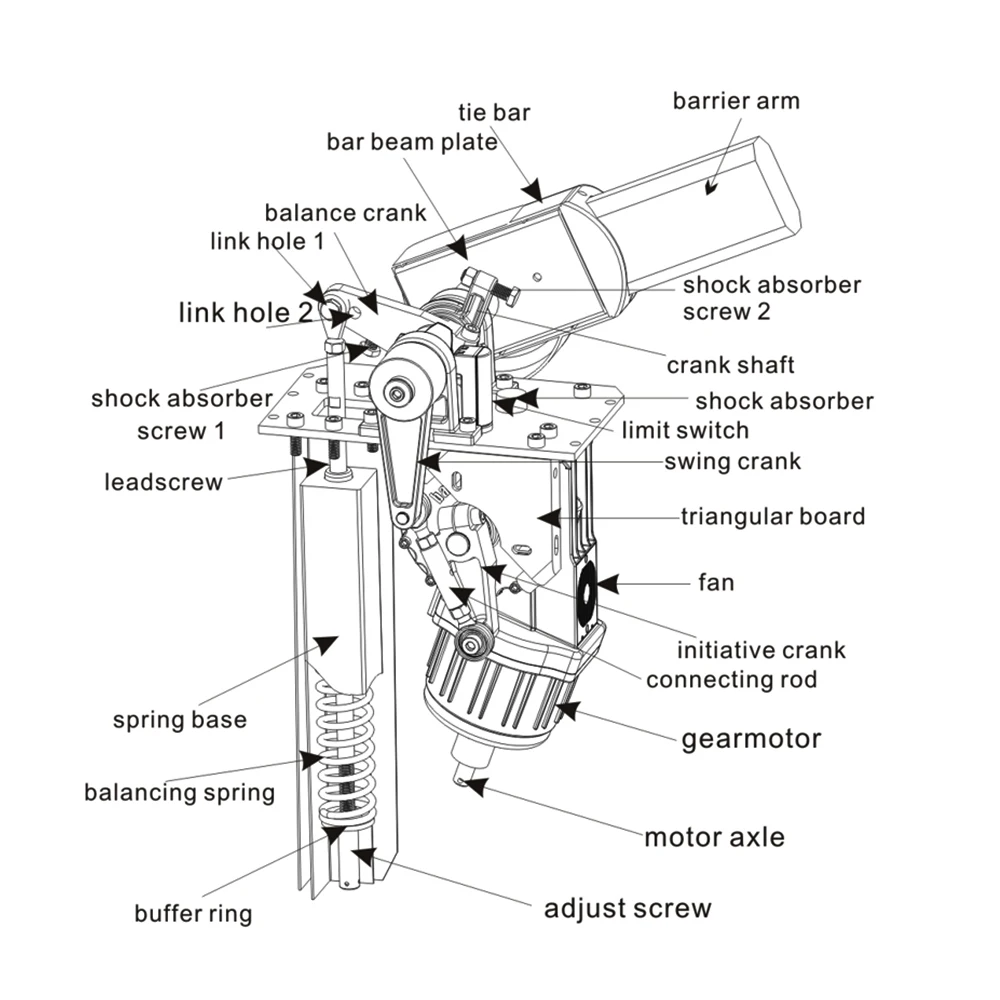

Ø  The crank-arm linkage structure adapts to the compression spring, which can be selected to avoid accidents caused by the spring breaking.

Ø  RS 485 Communication Module is compatible (Optional)

Ø  Boom swing-off protects boom and vehicle (optional)

Ø  Alarm when boom swing-off (optional)

Ø  Automatically close after the given time (programmable)

Ø  Automatically close or open by loop detector (Optional)

Ø  Heavy-duty and simple-design housing

Ø  Anti-condensation in cold climate

Ø  Transparent plastic covers on Control Board
