cnc press brake 30 degree sword punch

Product Overview

Description

cnc press brake 30 degree sword punch

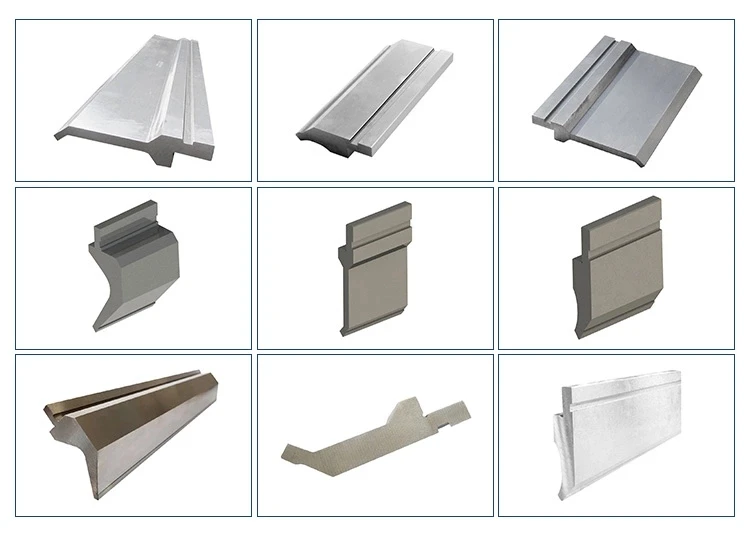

90° PRESS BRAKE UPPER DIE PRODUCTS

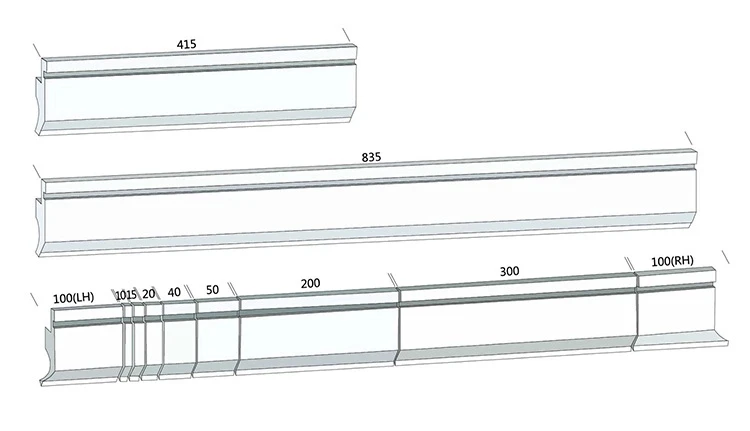

SIZE Of segmentation



The true standard length of the national diamond press brake die is:

Two kinds of L835mm and S415mm. According to the length of the press brake machine worktable, it is used in combination.



The standard segmentation size is:

Upper model: 100 (left), 10,15,20,40,50,200,300,100 (right) =835mm (set)

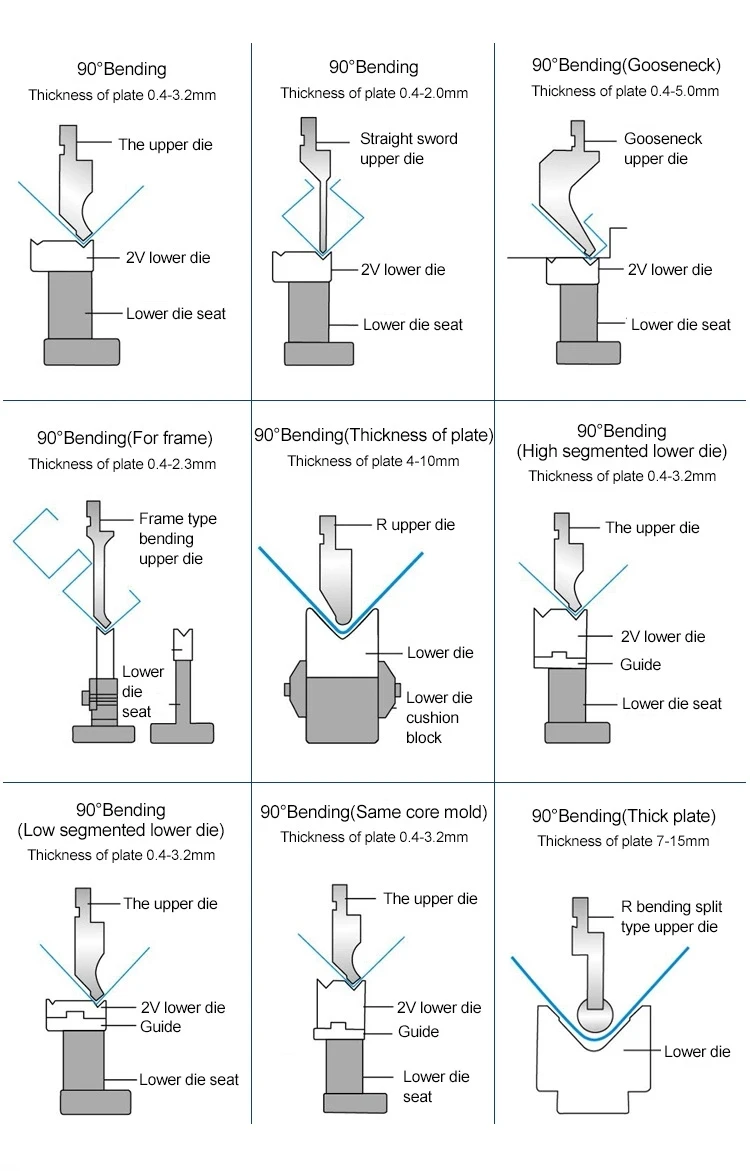

COMBINED REFERENCE TABLE Of Bottom Price Progressive Press Brake Tool







Our Services



1. Shearing blades and accessories-Customized to your specifications.In our shearing blades, our focus is on first-class, practical, well-thought-out upper and lower tools. Our tools offer solutions to your application cases-even for complex technical ones.



2. Service package Basic: we offer you rapid trouble shooting through telephone support and costs for on-site missions are reduced. Special: Engineers available to service machinery overseas for the necessary maintenance. Partner: Our located dealers or customers who sell or use our machines are fully behind you, they are our friendly partner and supply good advice to you.



3. Technical Service(After-sale service) Installation and start-up(Available for complex and big machines or if you have demand) 8. E10 Digital display system display the working position of X, Y; 9. Main operation are by the NC controllers or display system; 10. Ball screw and line guide rail as optional choices for guarantee the higher precision;





FAQ
If you want to get more information,you can  contact me directly, or browse through our web site: www.zymt.cn
