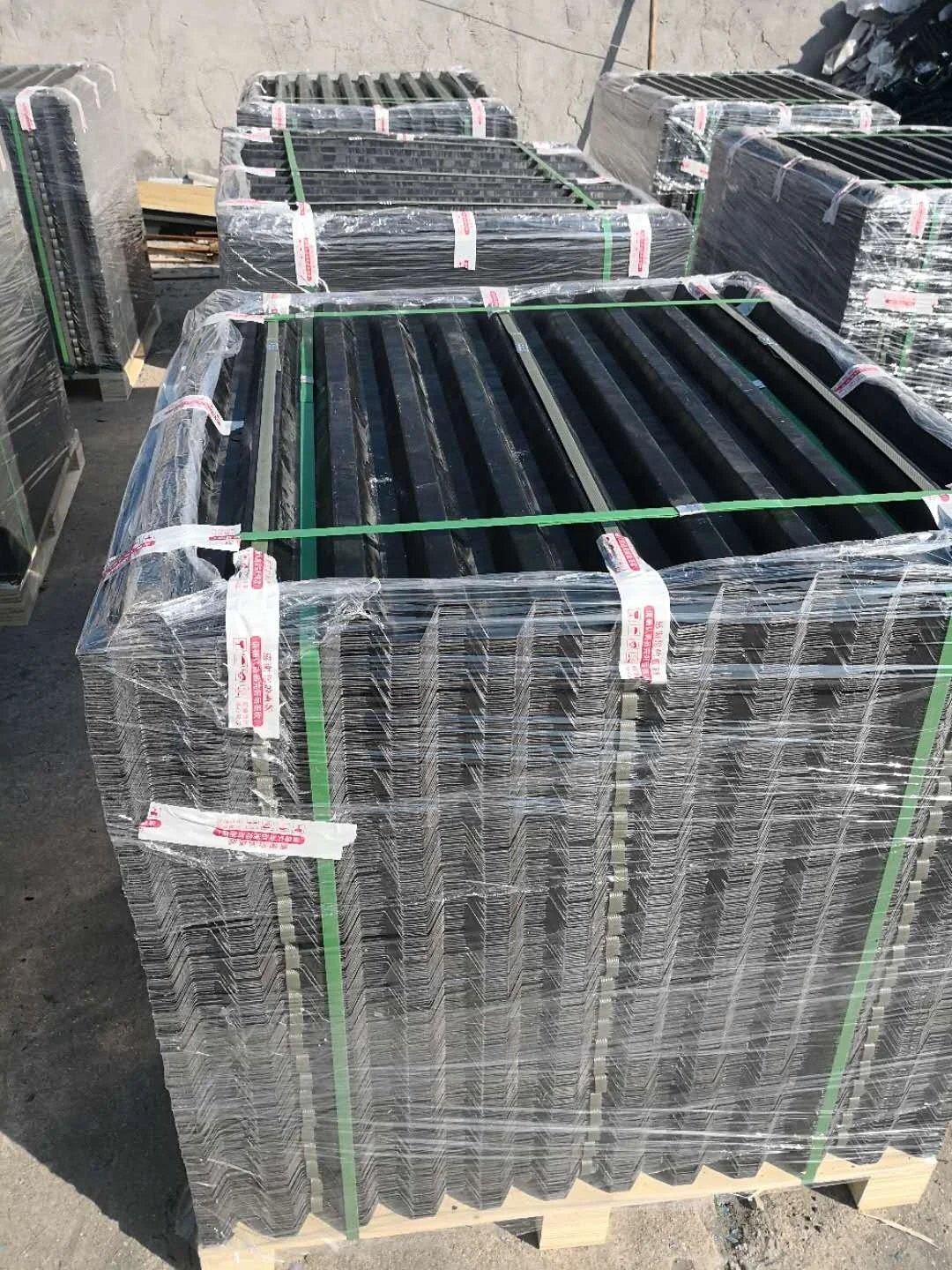

1m*1m PP PVC Tube Settler Waste Water Tank Filter Media Lamella Plate Clarifier

Product Overview

Description

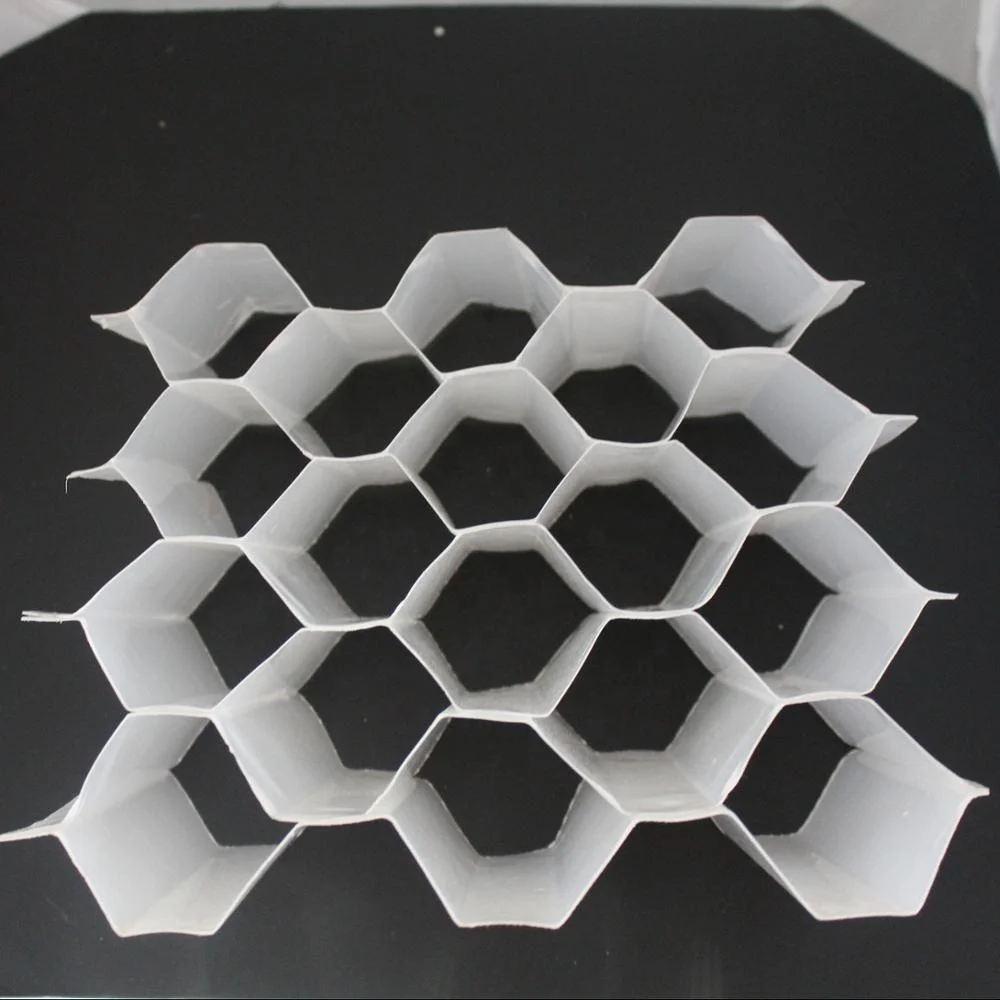

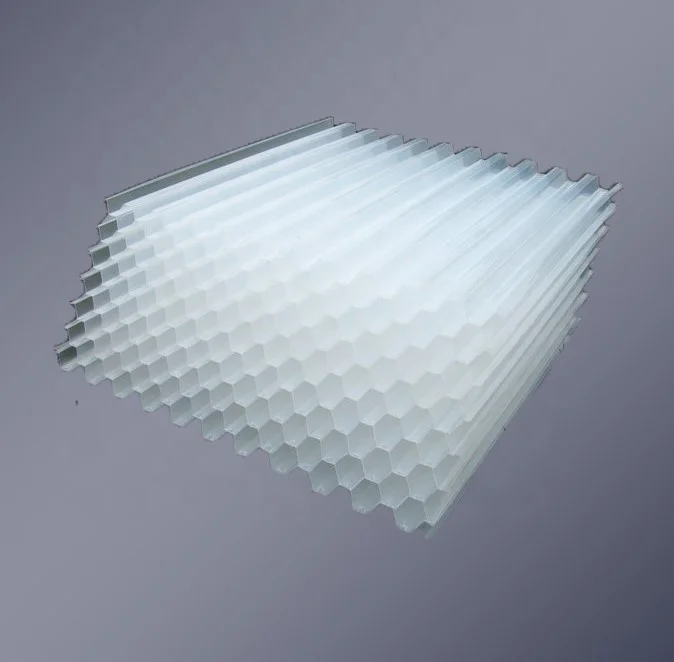

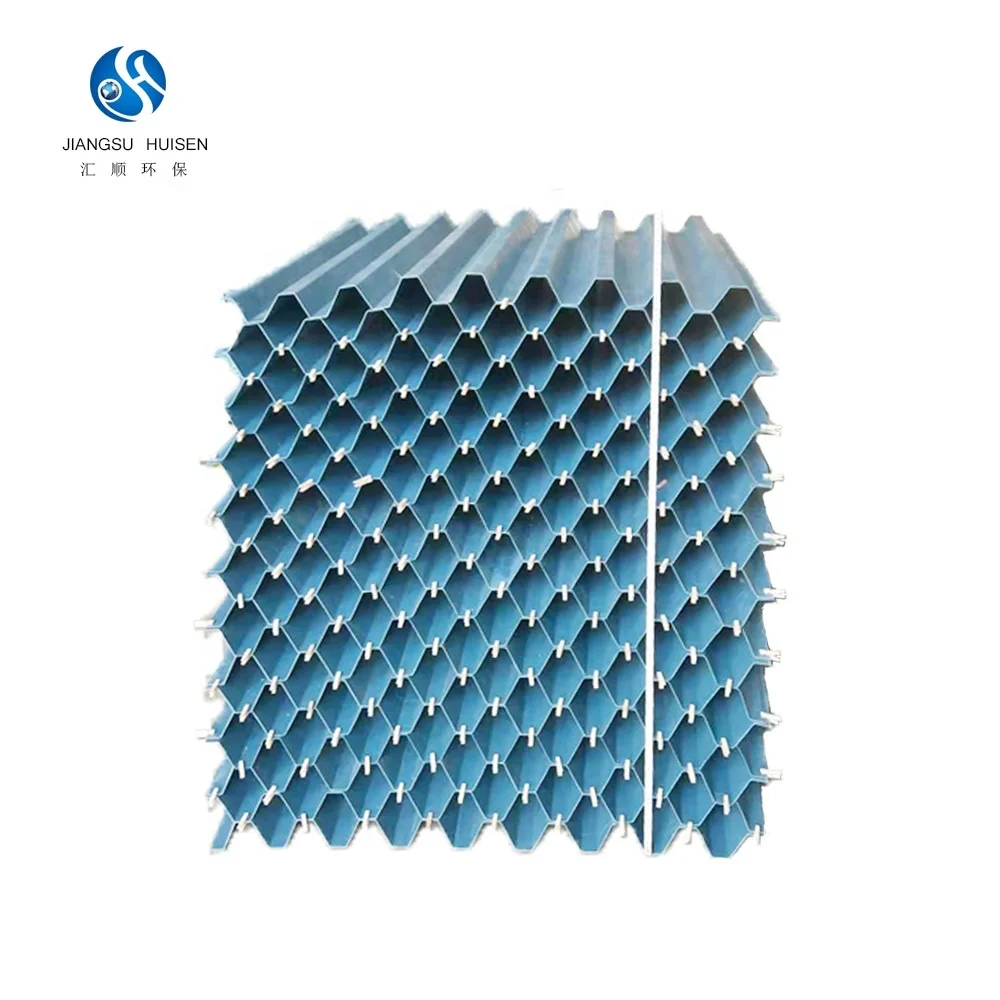

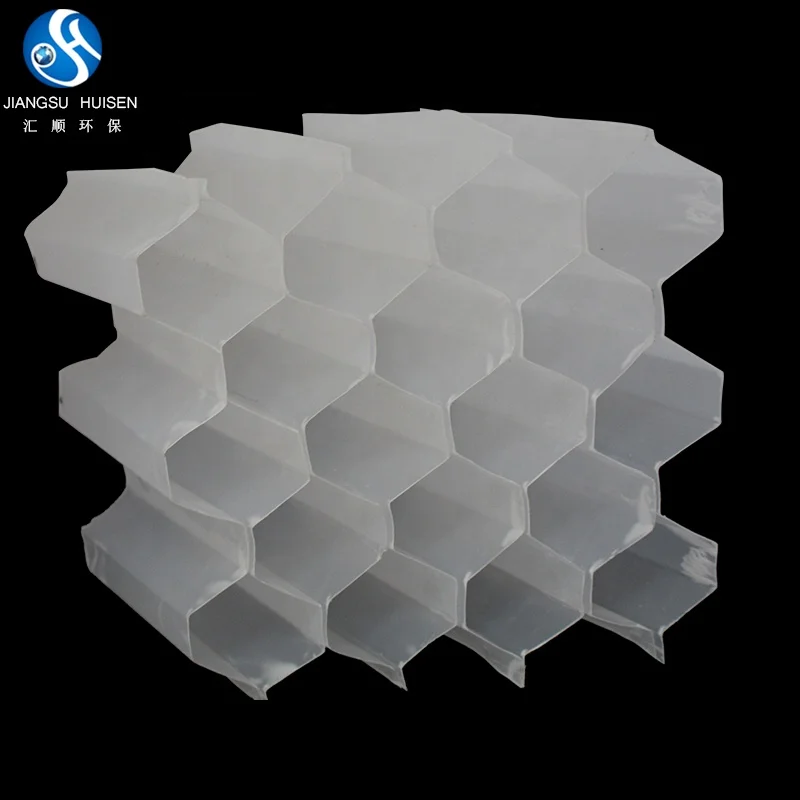

The inclined pipe is also known as hexagonal honeycomb diagonal pipe, oblique tube packing, honeycomb packing.Inclined tube packing is a sedimentation device developed in the theory of shallow pond and widely used in water treatment sedimentation tank and precipitation equipment.It is the most widely used and mature water treatment equipment in water supply and drainage engineering.









Material	Dimension(mm)	Thickness(mm)	Specific surface area (m²/m³)	Porosity(m²/m³)
PP	D35	0.4	169.4159	0.9570
	D50	0.5	119.0055	0.9739
	D80	0.8	99.3071	0.9781
PVC	D35	0.4	236.0987	0.9487
	D50	0.5	119.0055	0.9799
	D80	0.8	99.3071	0.6781
FRP	D35	0.4	236.0987	0.9487
	D50	0.5	119.0055	0.9739
	D80	0.8	99.3071	0.6781



•Small laminar flow state , the particle settlement isn’t disturbed by turbulence.•When the pipe chute length is 1m, the effective load is designed according to 3-5 tons/m².h,V₀ is controlled within the range of 2.5-3.0 mm/s, and the water quality is the best.

•Glass steel honeycomb tube is used at the intake port, the pipe length is 2.0-3.0m, and it can be safely run in the high turbidimetric content of 50-100kg/m³.

•Using the pipe chute sedimentation tank, the processing capacity is 3-5 times of the horizontal flow sedimentation tank,and 2-3 times of the acceleration clarifying tank and the pulse clarifying pool .
