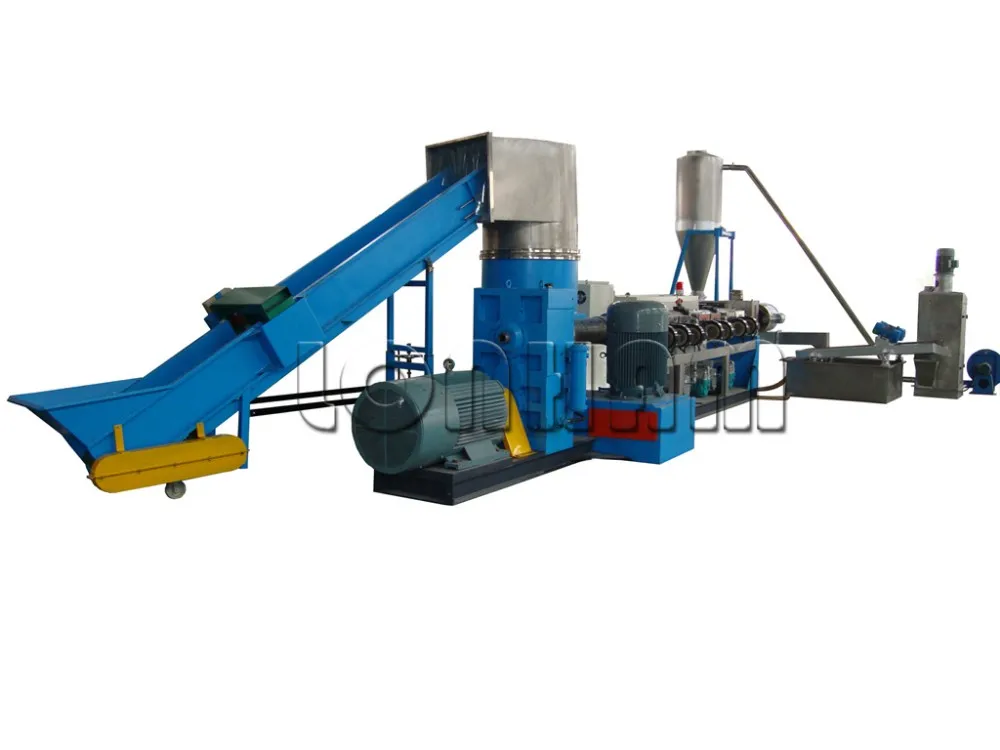

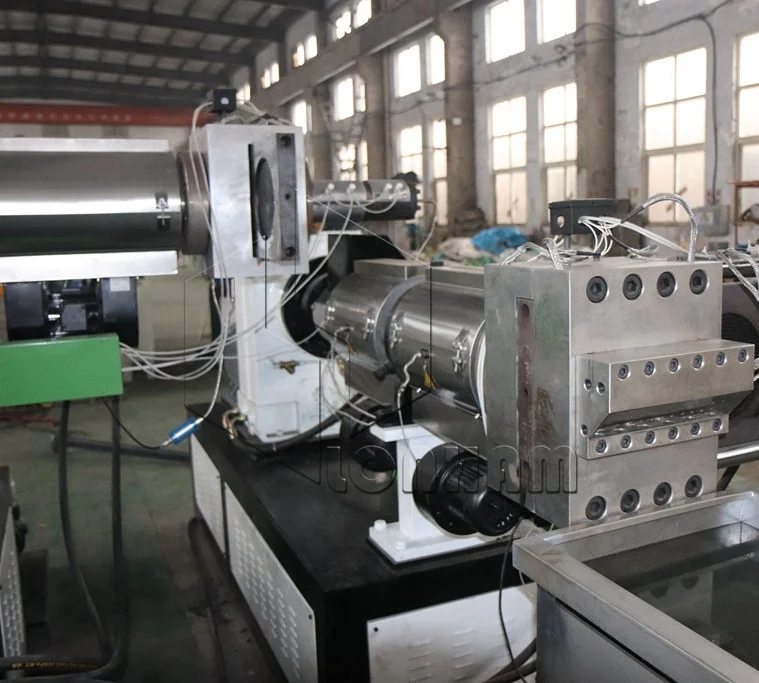

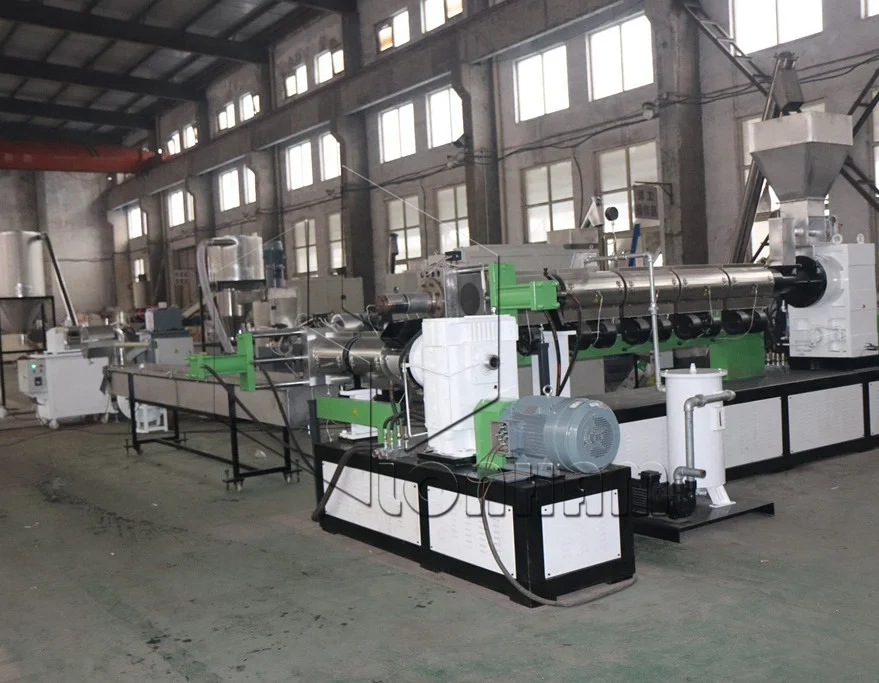

PE PP Film Granulation Production Line

Product Application

In order to recycle waste plastics, waste plastic need to be washed, dried then melted, plasticized, extruded into strips, cooled by cooling system, and cut into granules by granulator. These granules are further processed into various plastics products by blowing, injection and calendering.

Main Features
1) Single stage extruder and double stage extruders can be used according to user's requirement or material condition.
2) Plastic pelletized polyethylene (PE), polypropylene (PP), polystyrene (PS), polyvinyl chloride (pvc), PET, HDPE, ABS and other engineering plastics or general plastics recycling and granulation.

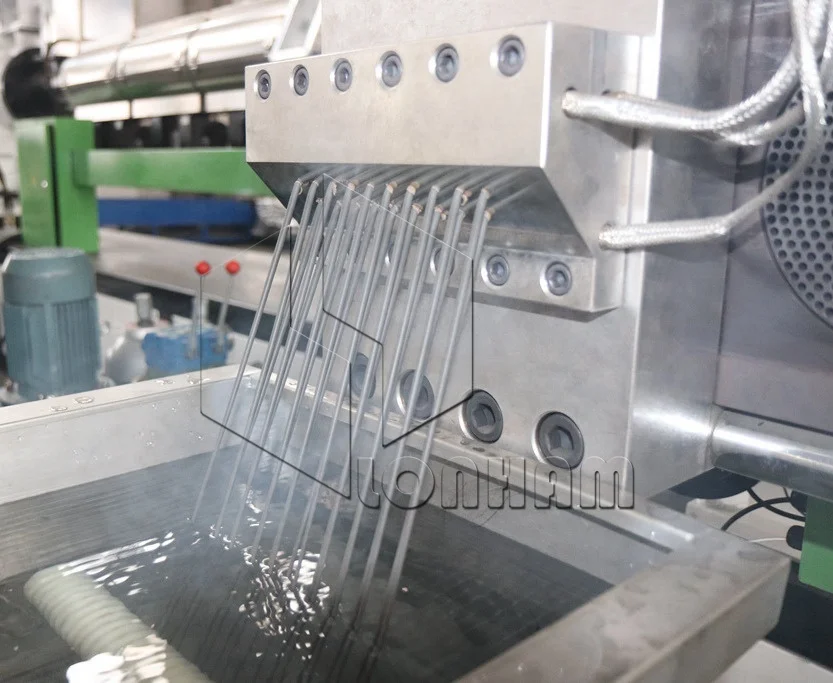

3) Granules cutting type: water ring face cutting, strip/noodle type cutting and hot cutting;
4) Waste woven bags and waste film can be directly put into the granulation line without crushing.
5) The main engine is equipped with full automatic control cabinet and PLC operating system. It is easy to operate and has stable performance.
6) Low energy consumption, remarkable energy saving effect, high output, mechatronics. Plastic granulation

Name: Belt Conveyor with metal detector

Material: PVC belt+carbon steel frame

Function: Load material into compactor, detect the metal automatically.

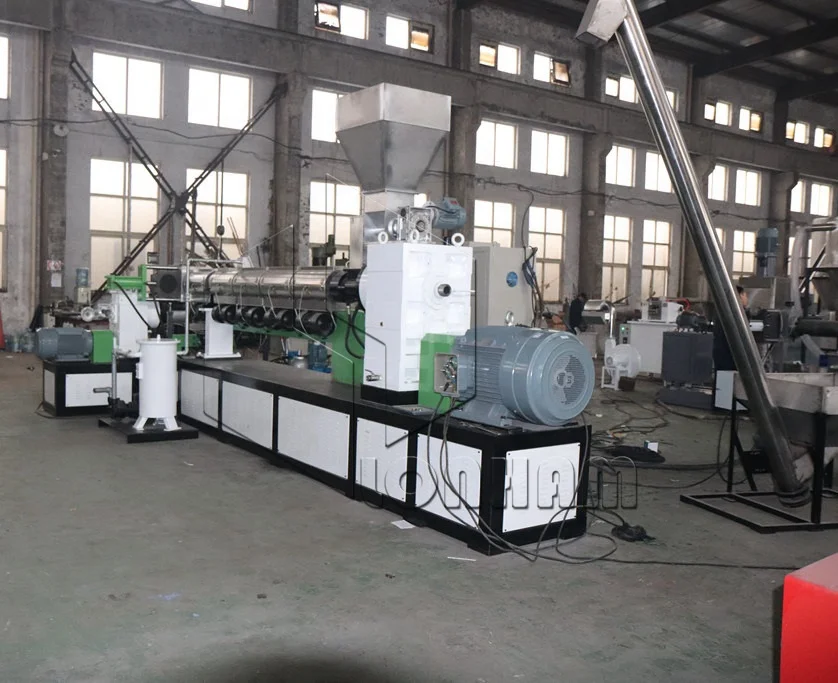

Name: Compactor and main extruder
Extruder: 38CrMoAlA Nitrogen Treatment
Function:  material will be melted, plasticized, extruded into strips.

Name: Air exhausting device/vent
Function: Exhaust air, reduce the bubble formation rate in granules, granules will be more beautiful and compact.

Name: Vertical water ring die face cutting system

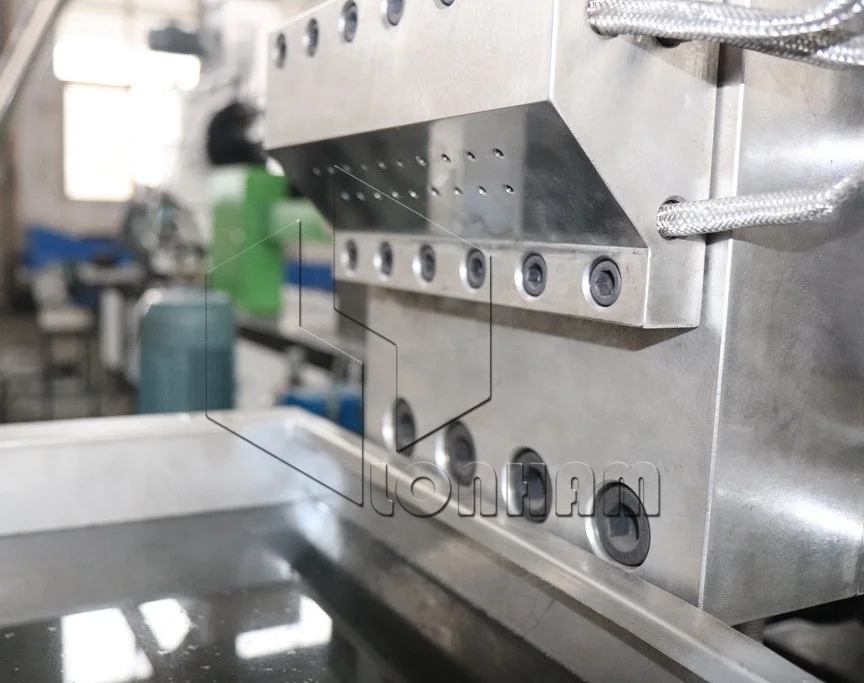

Details: Speed controlling by frequency conversion, Containing: hot cutting die head, diffluence strick, water-ring cover, knife rest, Cutter head, toolbar, etc.

Name: Centrifudge dewatering machine

Material: Stainless steel 304

Function: Dry granules by high speed rotating.
