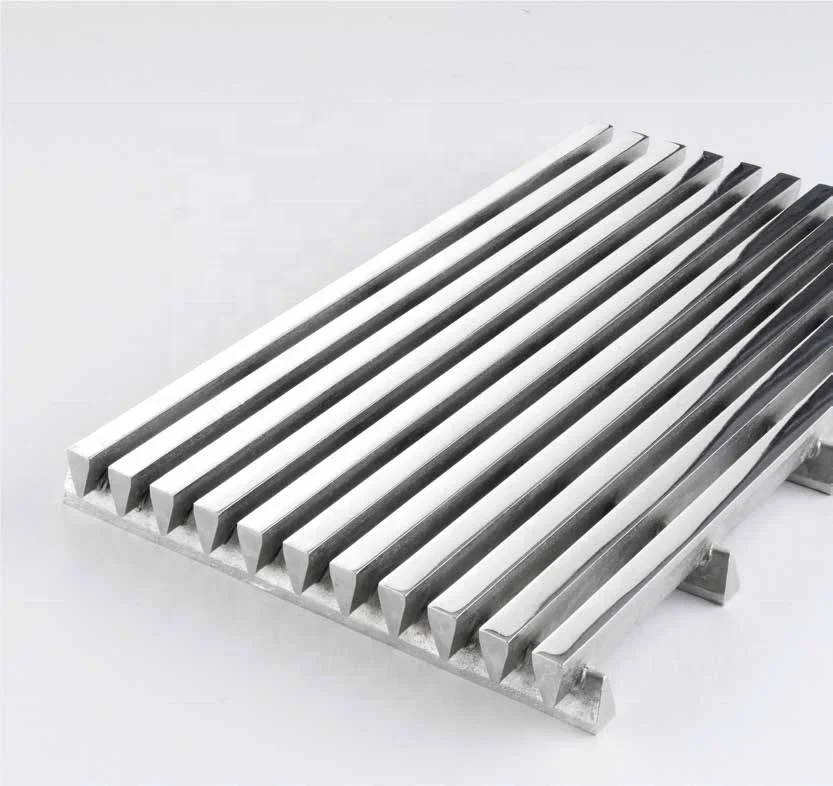

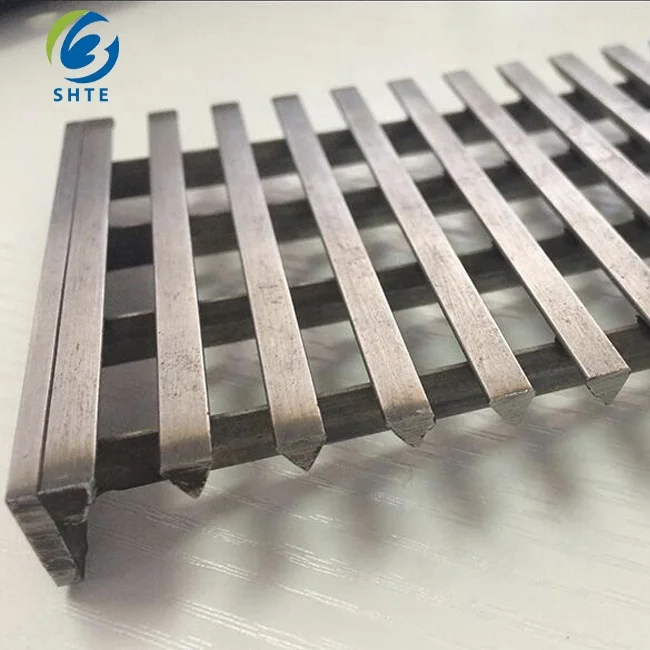

SS 304 316 219 1mm 2mm V Wire Slot Sieve Plate Filter Wire Wrapped Cylinder Liquid screen Johnson Screen
- Category: >>>
- Supplier: Tianjin Shihong Pipeline Co. Ltd.
Share on (60840647904):
Product Overview
Description
Product Description
Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||||||||
Product name | Johnson screen 1mm 2mm slot SS 304 316 316l V Wire Wedge Slot Sieve Plate | ||||||||||||
Width Range | Up to 6000mm | ||||||||||||
Slot Range | 20 micron to 3000 micron (Tolerance:+-5 micron) | ||||||||||||
Other Shapes | Could cut to any shape according to requirement, such as round, semicircle, sector, and so on. | ||||||||||||
Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5x2 | 2x3 | 2x4 | 3x5 | ||||||
Support Rod | 1.5x2.5 2x3 | 1.5x2.5 2x3 | 1.5x2.5 2x3 | 1.8x2.5 2x3 | 2x3 2x4 3x5 3x6 3x104x6 | 2x4 3x5 3x6 3x10 4x6 5x6 | 3x5 3x6 3x10 4x6 5x6 5x8 | ||||||
End Finishing | With the frame, without any frame, according to request. | ||||||||||||
Note | Customized According To Requirement | ||||||||||||
Recommend Products
Product list
including stainless steel mesh pipe,Water Well Screen,Johnson Screen,wire wrapped screen pipe,wedge wire screen,screen filter.
Product Paramenters

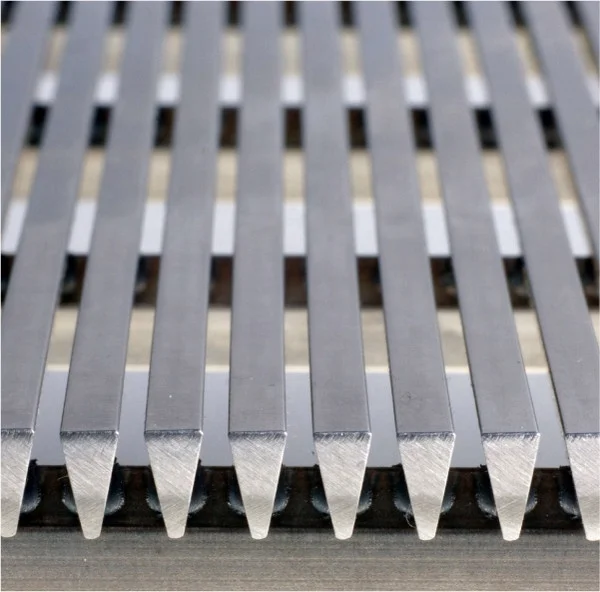

The screen is easy to leak, resistant to wear and corrosion. The cross section is trapezoidal, with narrow gap at the top and wide one at the bottom. The sieves are even, the welding quality is stable, the open rate is high, thus it has long service life, high strength, rigidity and bearing capacity, it can be made of rigid screening filter of various shapes. It is widely used for screening liquid, powder and other materials in mining, coal, petroleum, fertilizer, food, salt, environmental protection, chemical, metallurgy, mining, pharmaceutical purification, filter tanks, water treatment equipment, drilling fluid purification and other industries.
Functions and characteristics
1. Good wear resistance and long service life, which is more than 10 times of metal screen and 3-5 times of ordinary rubber plate.
2. The cost of ore consumption per ton is lower than metal screen.
2. The cost of ore consumption per ton is lower than metal screen.
3. Good moisture resistance and abrasion resistance.
4. It can reduce vibration and noise. The noise is 10dB lower than metal screen.
5. Automatic cleaning, high screening efficiency.Gap (mm): 0.10,0.15,0.2,0.25,0.30-3, which can be made according to requirements of customer.
4. It can reduce vibration and noise. The noise is 10dB lower than metal screen.
5. Automatic cleaning, high screening efficiency.Gap (mm): 0.10,0.15,0.2,0.25,0.30-3, which can be made according to requirements of customer.

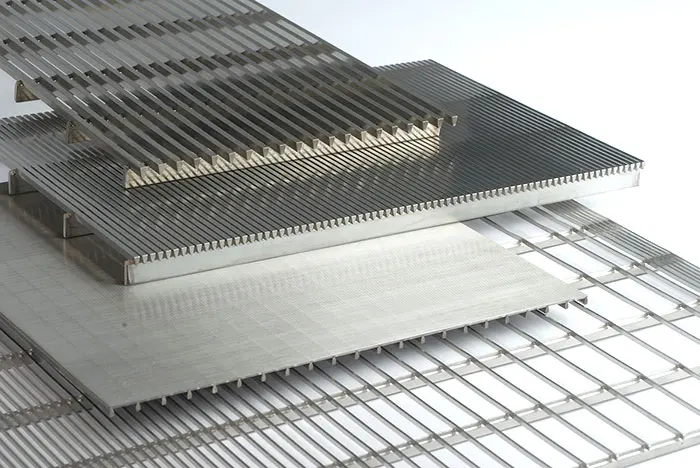

Products Show
Shaped sieve plate
Polyurethane frame screen
Punching screen
Stainless steel sieve basket
Slotted sieve plate
Wire mesh
Company Profile
Tianjin Shihong Pipeline Co., Ltd. was established in 2015. The company mainly produces, develops and sells sand control screens, including but not limited to PPS punched slot screens, composite screens, wire-wound screens, slotted screens, perforated tubes and U-PVC shaft wall pipe, etc.; we also produce stainless steel special-shaped wire, back buckle wire, steel ring wire, bright wire, spoke wird, mine screen wire, nail wire, screw wire, annealing cord, etc. The product material can be selected from stainless steel 304, 316, carbon steel according to user needs (the surface can be galvanized, plastic sprayed). The product is not easy to be clogged, and is suitable for sand control of oil, gas and water wells and various water treatment, filtration, paper, chemical and other equipment. Our company has a complete and scientific quality management system, and adopts internationally advanced production technology and testing methods to achieve an annual production capacity of 100,000 meters. Complete product specifications to ensure quality and timely delivery.
The company is a high-tech enterprise with 17 patents and 5 software copyrights. Taking science and technology as the guide and customer requirements as the goal, using our own effective resources, we will do our best to provide customers with timely and effective professional services. At the same time, we have established a complete after-sale service system to provide guidance and help for problems and difficulties encountered in the development of the enterprise.
Since its establishment, the company has reached cooperation with many large enterprises at home and abroad. We have established cooperation relationships with well-known domestic companies such as Tianjin Pipe Group, Shanghai Baogang, and Baoji Petroleum Steel Pipe Co., Ltd. And also reach cooperation with Steel Au-thority of India Ltd. Durgapur Steel Plant. M/S Larsen&Toubro Ltd and Russia Oil. The products and services of our company acquired recognition and approval from domestic and foreign customers.
The company is a high-tech enterprise with 17 patents and 5 software copyrights. Taking science and technology as the guide and customer requirements as the goal, using our own effective resources, we will do our best to provide customers with timely and effective professional services. At the same time, we have established a complete after-sale service system to provide guidance and help for problems and difficulties encountered in the development of the enterprise.
Since its establishment, the company has reached cooperation with many large enterprises at home and abroad. We have established cooperation relationships with well-known domestic companies such as Tianjin Pipe Group, Shanghai Baogang, and Baoji Petroleum Steel Pipe Co., Ltd. And also reach cooperation with Steel Au-thority of India Ltd. Durgapur Steel Plant. M/S Larsen&Toubro Ltd and Russia Oil. The products and services of our company acquired recognition and approval from domestic and foreign customers.
Packing & Delivery
Packing and shipping:
The common packing:
The common packing:
1. 30 m/roll in PVC bag
2. 2-8 rolls per carton
3.water proof bags outside
4.package belt strengthen
2. 2-8 rolls per carton
3.water proof bags outside
4.package belt strengthen
The common shipping:
1.for small quantity, shipped by courier.
2.for large quantity, shipped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.
2.for large quantity, shipped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.
