Hot selling White Color Food Grade EP Rubber Conveyor belt
- Category: Rubber Belts >>>
- Supplier: Zhejiang Three-V Imp. & Exp. Co. Ltd.
Share on (60840670323):
Product Overview
Description

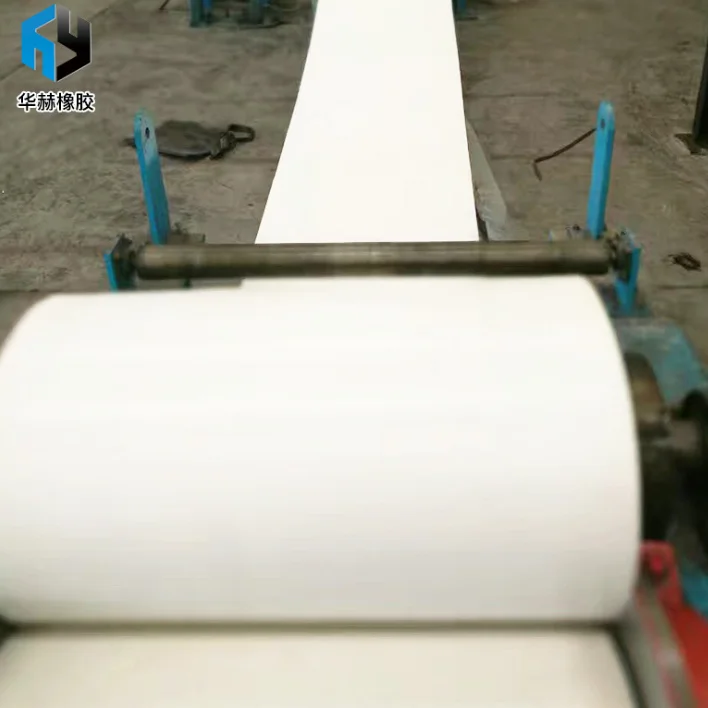

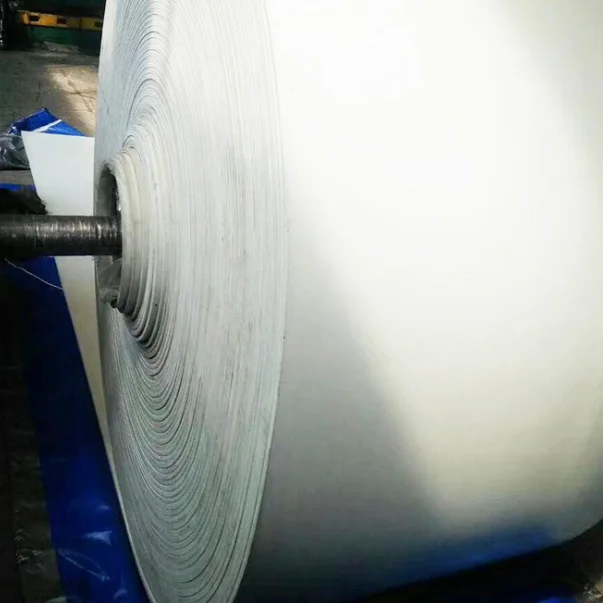

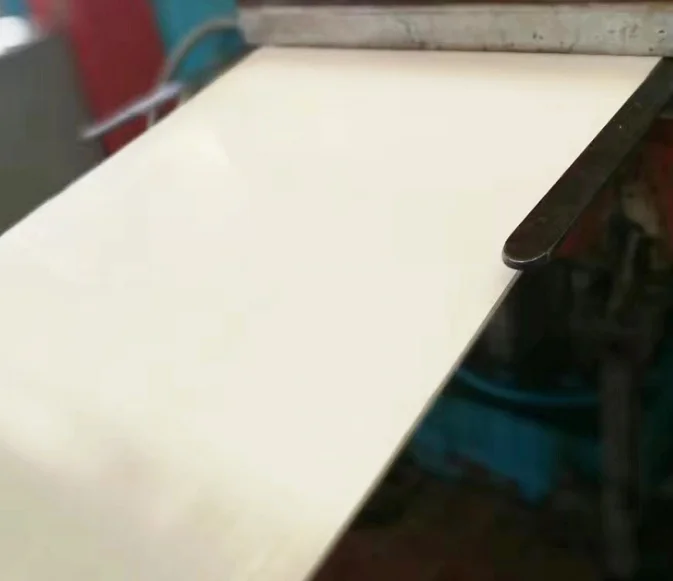

Hot-selling White Color Food Grade EP Rubber Conveyor belt
Product Description
Polyester conveyor belt, also called EP or PN conveyor belt, whose tension resistant body is canvas woven by polyester in warp and polyamide in weft
Application:
It is suitable for conveying in normal temperature various non-corrosive pointless lumps, granular or powders such as coal, coke, sand and cement in bulk or packaged.
Characteristics:
The modulus of belt is high and elongation in service is small.The belt also has good heat stability and shock resistant.In that case the EP belt is suitable for middle and long distance,high load and high speed of converying materials.
Specification Availability:
| Carcass | Fabric structure | Type | No. of plies | Cover thickness | Belt width (mm) | ||
| (mm) | |||||||
| Warp | Weft | Top | Bottom | ||||
| EP | Polyester | Nylon-66 | EP80 | 2-10 | 3-18 | 1.5-10 | 300-2600 |
| EP100 | |||||||
| EP125 | |||||||
| EP150 | |||||||
| EP200 | |||||||
| EP250 | |||||||
| EP300 | |||||||
| EP350 | |||||||
| EP400 | |||||||
| EP500 | |||||||
Rubber Cover Grade & Standard No:
Type | Rubber Cover Type | Tensile strength at break(N/ mm2 ) | Elongation at break% | Abrasion mm3 |
Abrasion Resistant | RCB-AR-M | 24 | 450 | 120 |
RCB-AR-Y | 20 | 400 | 150 | |
RCB-AR-W | 18 | 400 | 90 | |
RCB-AR-N18 | 18 | 450 | 200 | |
RCB-AR-N | 17 | 400 | 200 | |
RCB-AR-A | 17 | 400 | 70 | |
RCB-AR-Z | 15 | 400 | 250 | |
RCB-AR-Ⅱ | 14 | 350 | 150 | |
RCB-AR-L | 10 | 350 | 300 | |
Oil Resistant | RCB-FOR | 12 | 300 | 300 |
RCB-MOR | 15 | 450 | 250 | |
RCB-LOR | 17 | 450 | 200 | |
Heat Resistant | RCB-HR-T1-100°C | 17 | 450 | 200 |
RCB-HR-T2-120°C | 15 | 400 | 250 | |
RCB-HR-T3-150°C | 13 | 350 | 250 | |
RCB-HR-T4-180°C | 11 | 350 | 280 | |
RCB-HR-T5-300°C | 10 | 350 | 300 | |
FR/AR/AS Resistant | RCB-ARAS | 18 | 450 | 200 |
RCB-FRAS | 14 | 400 | 250 | |
RCB-FR | 12 | 350 | 300 | |
Cold Resistant | RCB-CR-T1-30°C | 17 | 350 | 300 |
RCB-CR-T2-50°C | 14 | 300 | 300 | |
Chemical Resistant | RCB-ANTI-ACID | 14 | 400 | 250 |
RCB-ANTI-ALKALI | 14 | 400 | 250 | |
Food | RCB-FDA | 15 | 450 | 300 |
Fire Resistant | RCB-FR-PVG | 15 | 350 | 200 |
RCB-FR-PVC | 13 | 300 | 200 |
Recommend Min.Pully Dia. of conveyor:
| Roller diameter mm | Number of | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
| Adhesive tape | Canvas model | ||||||||
| category | |||||||||
| EP conveyor | EP100 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | |
| EP125 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | ||
| EP160 | 250 | 400 | 500 | 630 | 800 | 1000 | 1250 | ||
| EP200 | 315 | 500 | 630 | 800 | 1000 | 1250 | 1400 | ||
| EP250 | 400 | 630 | 630 | 1000 | 1250 | 1400 | 1600 | ||
| EP300 | 500 | 630 | 800 | 1000 | 1250 | 1400 | 1800 | ||
| EP400 | 630 | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | ||
| EP500 | 800 | 1000 | 1250 | 1400 | 1600 | ||||
| EP600 | 1000 | 1250 | 1400 | 1600 | 1800 | ||||
cover grade International standard:
| Standards | Cover Rubber | Adhesion | |||||
| Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | ||
| DIN 22102 | Mpa | % | mm3 | N/mm | N/mm | N/mm | |
| (≤1.5mm) | (>1.5mm) | ||||||
| DIN 22102-Z | 15 | 350 | 250 | 3.5 | 4.5 | 5 | |
| DIN 22102-W | 18 | 400 | 90 | 3.5 | 4.5 | 5 | |
| DIN 22102-Y | 20 | 400 | 150 | 3.5 | 4.5 | 5 | |
| DIN 22102-X | 25 | 450 | 120 | 3.5 | 4.5 | 5 | |
| Standards | Cover Rubber | Adhesion | ||||
| Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
| AS 1332 | Mpa | % | mm3 | N/mm | N/mm | N/mm |
| (≤1.9mm) | (>1.9mm) | |||||
| AS 1332-N17 | 17 | 400 | 200 | 4 | 4.8 | 6 |
| AS 1332-M24 | 24 | 450 | 125 | 4 | 4.8 | 6 |
| Standards | Cover Rubber | Adhesion | |||
| Tensile Strength | Elongation at break | Cover to Ply | Cover to Ply | Ply to Ply | |
| RMA | Mpa | % | N/mm | N/mm | N/mm |
| (≤1.6mm) | (>1.6mm) | ||||
| RMA-I | 17 | 400 | 3 | 4.4 | 4 |
| RMA-II | 14 | 400 | 3 | 4.4 | 4 |
| Standards | Cover Rubber | Adhesion | ||||
| Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
| SANS 1173 | Mpa | % | mm3 | N/mm | N/mm | |
| A | 18 | 400 | 70 | 5 | 7 | |
| C | 20 | 400 | 150 | 5 | 7 | |
| M | 25 | 450 | 120 | 5 | 7 | |
| N | 17 | 400 | 150 | 5 | 7 | |

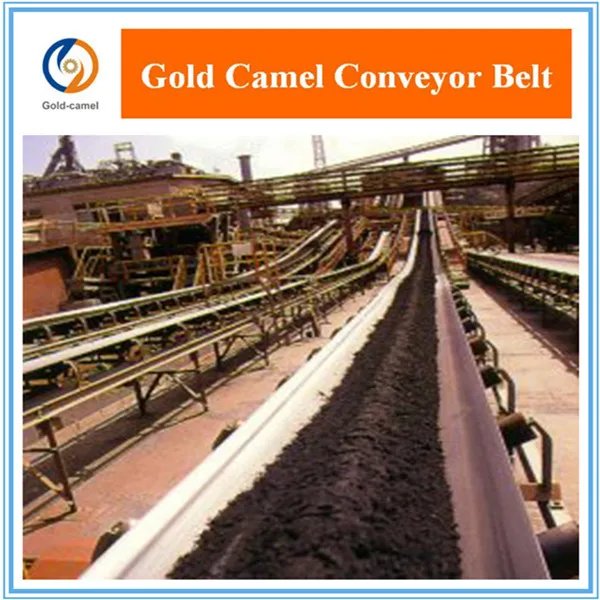

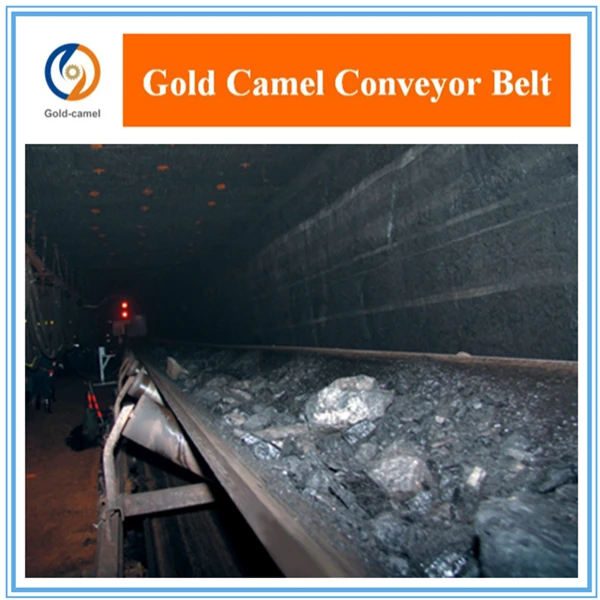

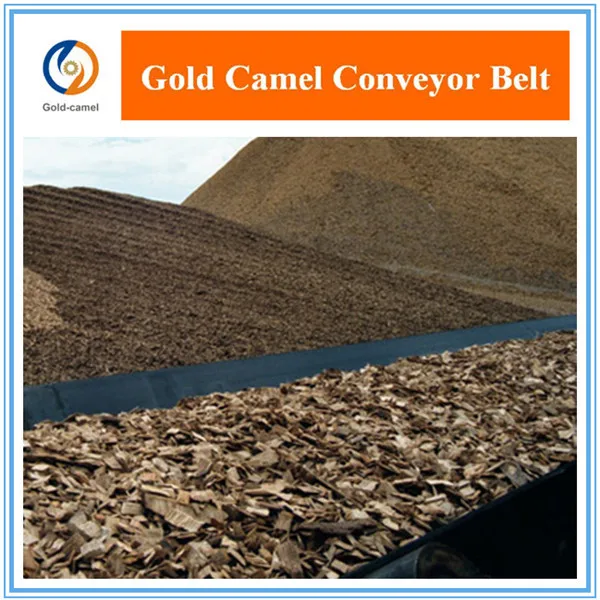

Application of EP conveyor belts
Cold resistant conveyor belt
Heat resistant conveyor belt
Fire resistant conveyor belt
Oil resistant conveyor belt
Abrasion resistant conveyor belt
anti-static
Packaging & Shipping
Related Products
View more products, please click on images below:
Our Services
Company Information
Company:
Having specilized in mechanical conveyor systems products for more than 15 years,Jinhua Gold Camel Industrial Co.,Ltd has became an experienced and professional supplier in this field.In the year of 2009,to seize more progressive development,Gold Camel got combined with Zhejiang Three-V Industry Group,which is a key Conveyor System & Rubber products manufacturer of about 20 years history in China.

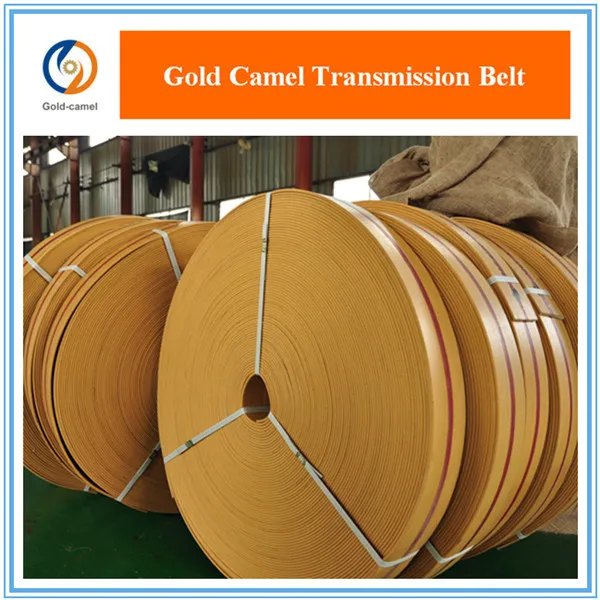

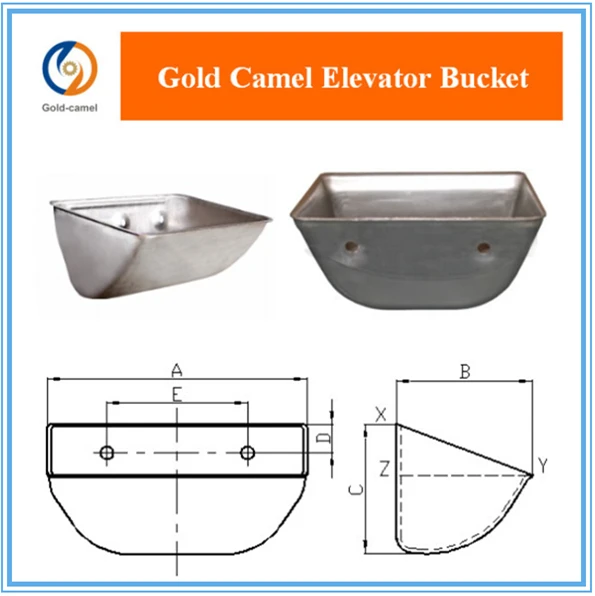

Our products are designed and produced under ISO9001 system and strict quality control,which covers various kinds of Conveying System and Fittings, especially Rollers&Pulleys, Chains Sprockets, Rubber Conveyor Belts, V-belts,Timing Belts,Flat Transmission Belts,Fasteners and Clamps; Elevator & Fittings,specially HDPE/Metal Bucket,Screw Flights,Crusher Machines and Fittings,ect.
FAQ
How to order your rubber belt:
Step1: Cover rubber grade,such as 14MPa,17Mpa,or RMA,DIN or working conditions
Step2: Dimension (mm or inch),width,top and bottom cover rubber, length
Step3: Fabric type and plies, EP or NN
Step4: Single fabric strength at breaking, such as EP100,EP125
Step5: Whether you have enquiries or questions, please feel freely to contact us
Sample:
Normally costs of samples and freight is charged. Sample costs shall be refunded to customer upon bulk orders. Samples will be shipped via express like DHL/UPS etc.. upon receipt of sample costs.
