O2 fine bubble microporous rubber aeration tube for aquaculture fish

Share on (60840724104):


Price:

Quantity:


Product Overview

Description


O2 fine bubble microporous rubber aeration tube for aquaculture fish



Product Description


 O2 fine bubble microporous rubber aeration tube for aquaculture fish

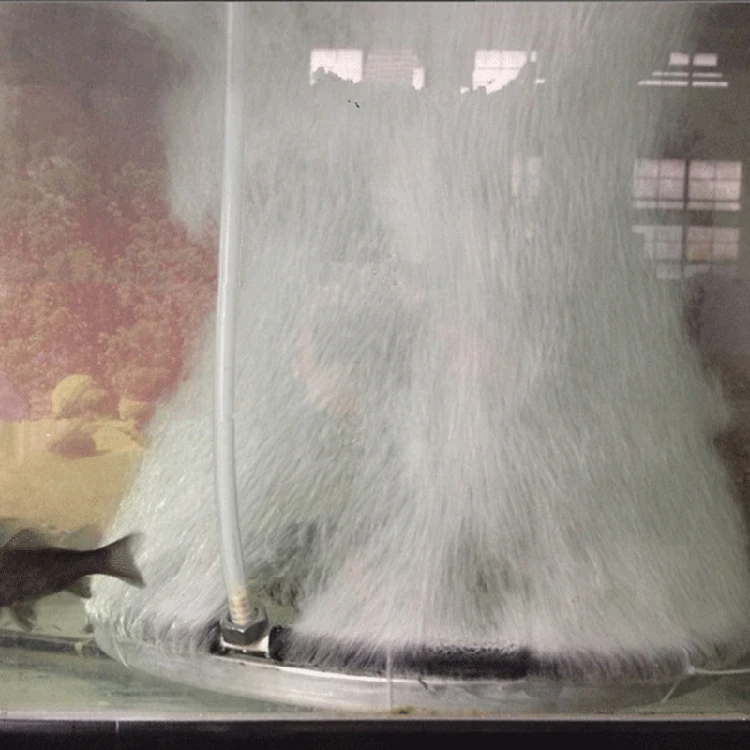

HOW IT WORKS :





The Aeration Tubing is specially designed to create fine bubbles that rise slowly in the water.  These fine bubbles have higher surface area which remain in the water for longer periods, enabling more efficient oxygen transfer into the water.  All you need is an efficient clean air blower.





O2 fine bubble microporous rubber aeration tube for aquaculture fish


What benefits you can get from Aeration Hose?


aeration tubing can solve these problems with these distinct its advantages.


1.Reduce energy cost by up to 75%


2.Lack of moving parts provides a very low maintenance alternative


3.Maintains higher dissolved oxygen(DO) levels


4.Allows for higher stocking densities


5.Allows for higher feeding rates


6.Allows for more frequent feedings


7.Faster growth and reduced FCR


8.Low start up cost


9.Low replacement cost


10.Reduce algal blooms


O2 fine bubble microporous rubber aeration tube for aquaculture fish


































































Model



D16-3.0



Outer diameter(mm)



16



Inner diameter(mm)



10



Wall thickness(mm)



3.0+-0.5



Meters heavy(g/m)



115



Packing quantity(meters/roll)



200



Packing dimension



62*62*32cm



Packing Weight(kg)



23



The air flow



0.1-0.4m3/h.m



Average micropore diameter



φ0.03~φ0.06mm



Micropore density



1000~1600/m



Bubble diameter



0.5~2mm(fresh water) ;
0.8~3mm(seawater)



Effective aeration rate



0.002~0.004m3/min.m



Effective working area



1~8m2/m



Applicable water depth



0-5 meters



O2 fine bubble microporous rubber aeration tube for aquaculture fish

































































Aeration tube



Item



OD/mm



WALL/mm



ID/mm



 SIZE



D14-2.5



14



2.5



9



D16-3.0



16



3.0



10



D18-3.5



18



3.5



11



D20-3.5



20



3.5



13



D25-4.0



25



4



17



D25-6.0



25



6



13



D25-7.0



25



7



11



D28-4.0



28



4



20



Note: size can be customized

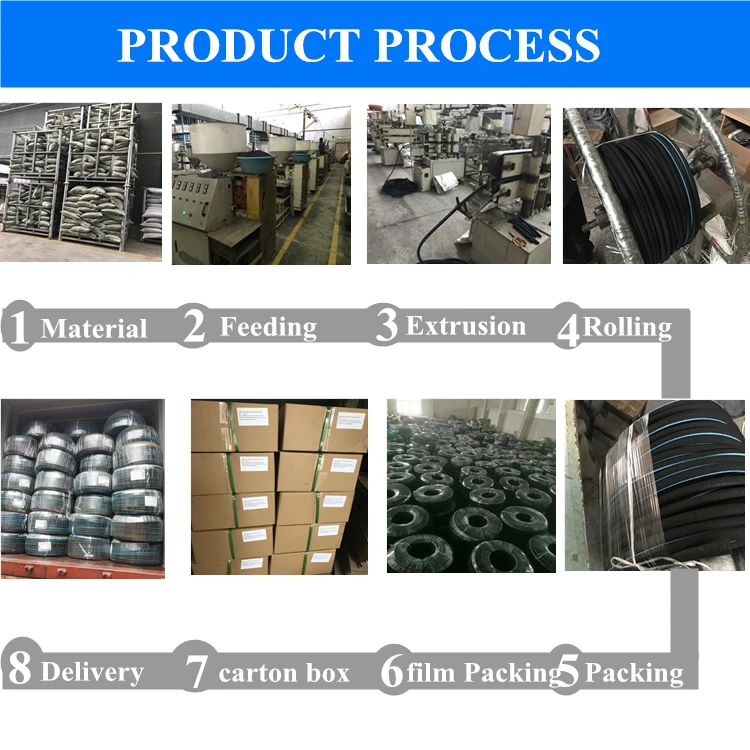

PRODUCT PROCESS


O2 fine bubble microporous rubber aeration tube for aquaculture fish

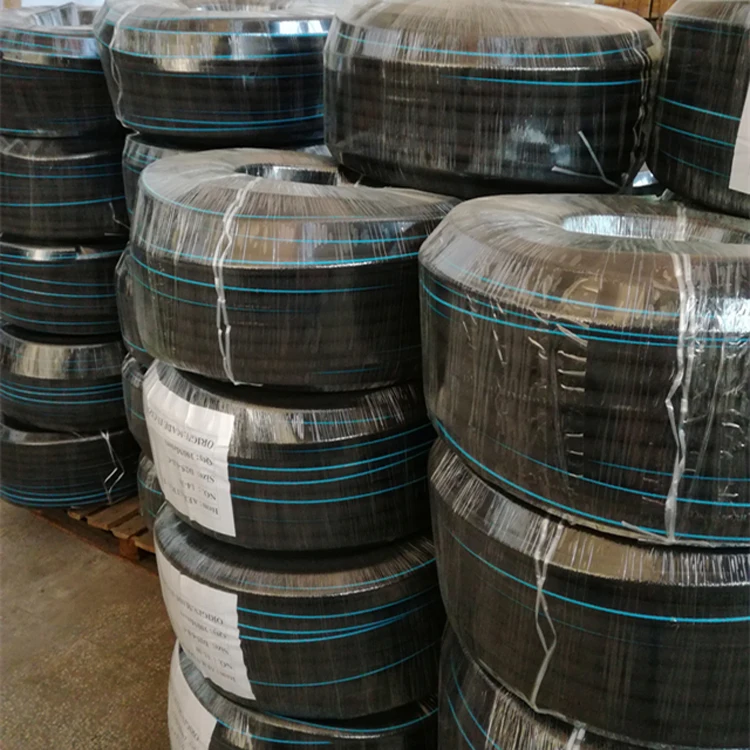

Packaging & Shipping


O2 fine bubble microporous rubber aeration tube for aquaculture fish

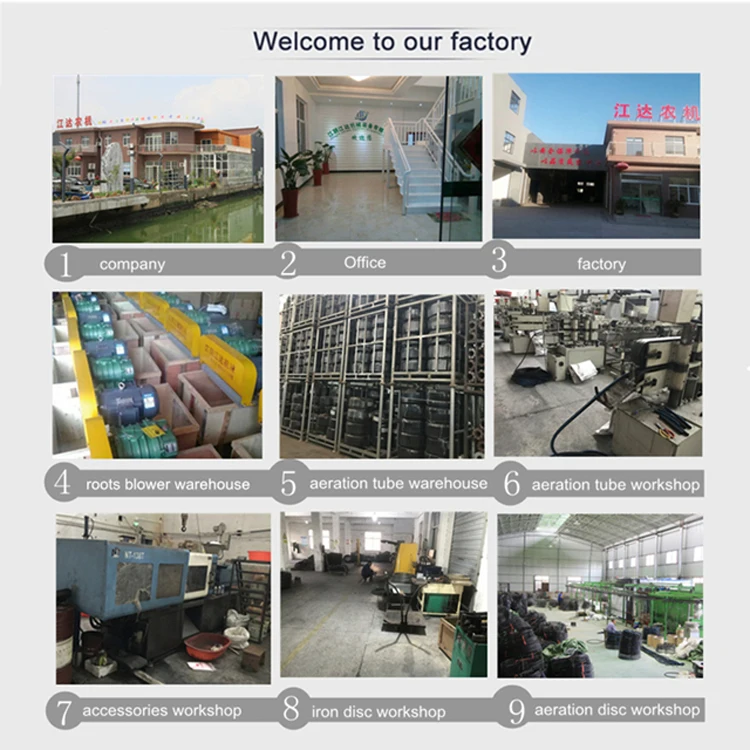

Company Information


 O2 fine bubble microporous rubber aeration tube for aquaculture fish


Jiangyin City Jiangda Machinery And Equipment Co.,Ltd. is a professional manufacturer in the field of aeration hose , with more than 20 years' manufacture experience. We have a whole set of equipment and techniques in the design, manufacture and after sales services.








Trade Shows


O2 fine bubble microporous rubber aeration tube for aquaculture fish





Certifications


 “Quality and Customers Come First” is our business principle.


Customers satisfaction is our pursuit of life goals.


We are looking forward to your precious cooperation, and to achieve  glorious future together with you


O2 fine bubble microporous rubber aeration tube for aquaculture fish





Our Services


O2 fine bubble microporous rubber aeration tube for aquaculture fish
