DXJ 10T Model Electric Hydraulic Pit Lift

Product Overview

Description

DXJ-10T Model Electric Hydraulic Pit Lift



DXJ type trench hanging hoist for vehicle maintenance industry trench or high-profile operations when the vehicle lift operation, with easy operation, lifting force, safe and reliable and so on.

The device has a vertical and horizontal movement function and positioning and locking device, and has a fault protection and other functions.

The lift can only be used for one end of the wheel lift from the ground, the other end of the wheel contact with the ground, can not be used for vehicle lift.





Features:

l  It is used on the trench.

l  Hydraulic drive and stable lift;

l  Insured pin;

l  With quick falling handle;

l  Longitudinally move the cushion for positioning;

l  Lateral movement with manual locking positioning;

l  Equipped with all special brackets according to the requirements of users;

l  It can be made according to size of the trench (width and height);

l  It is easy and saft to operate



Technical Parameters:

Maximum lifting weight: 150KN

Maximum lifting height: 800mm

Minimum height (from the surface of guide ways): 170mm

Working stroke: 630mm

Applicable for trench width(Inner distance of guide ways):950~1050mm

Motor power: 2.2KW
Working voltage: AC 380V

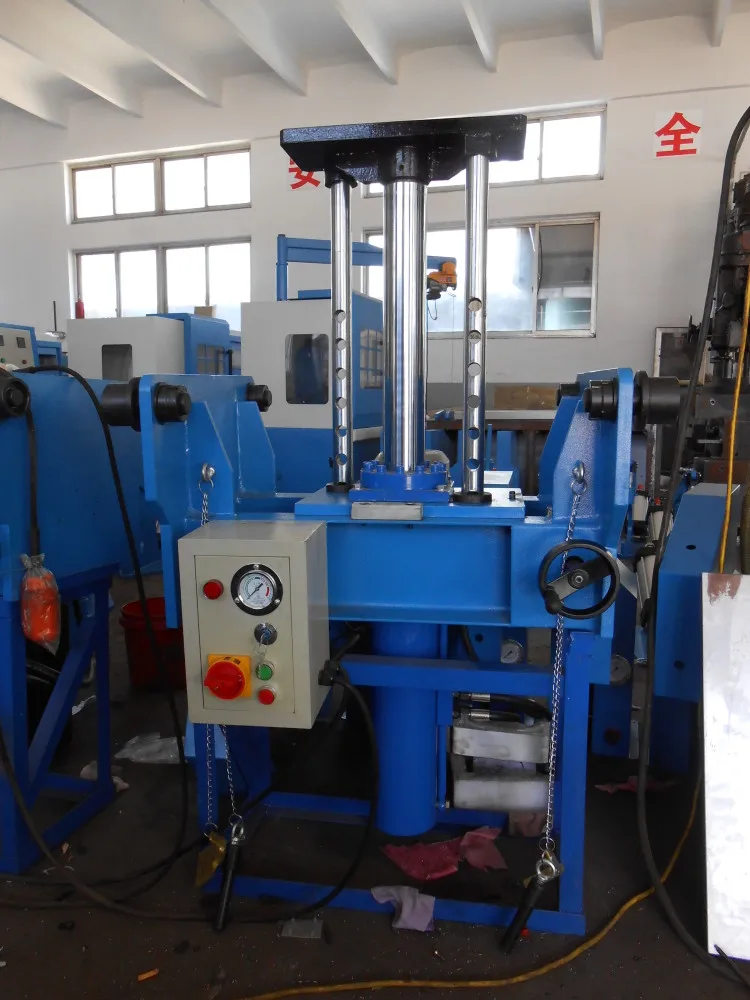

Machine real photos:





Standard export Package:
