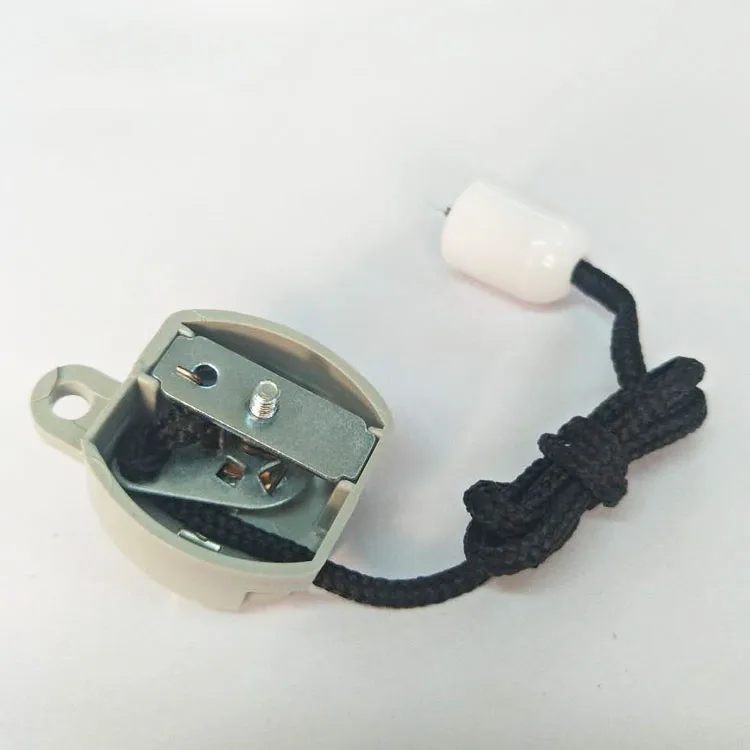

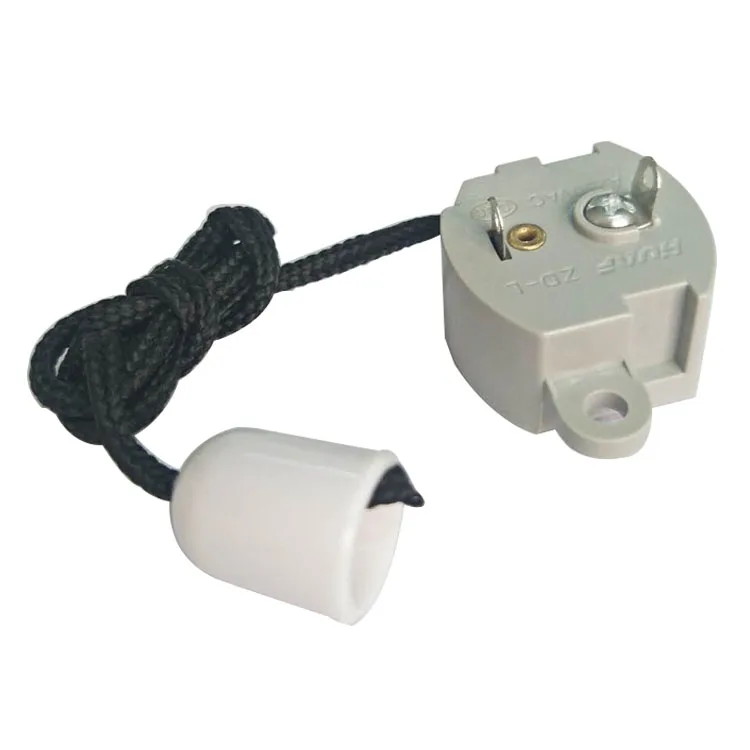

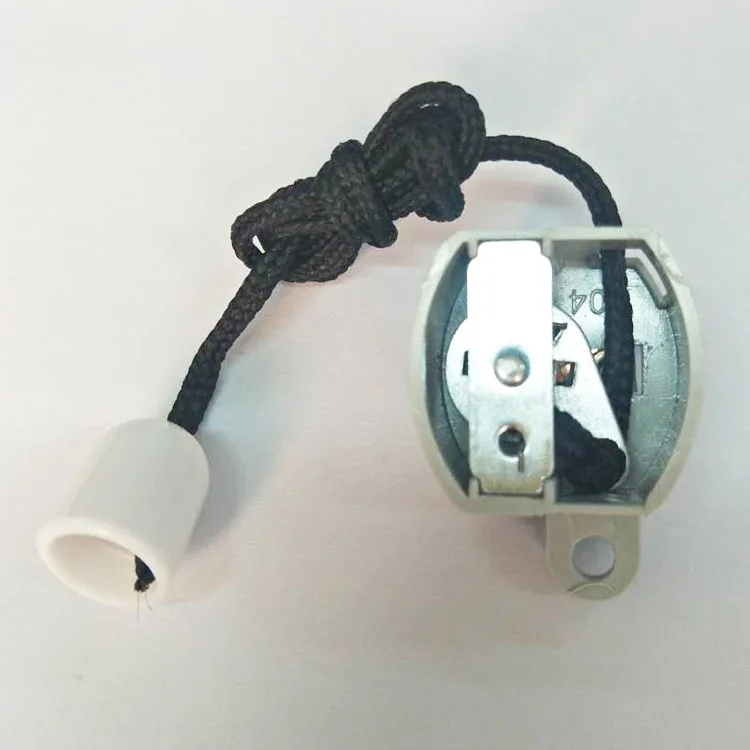

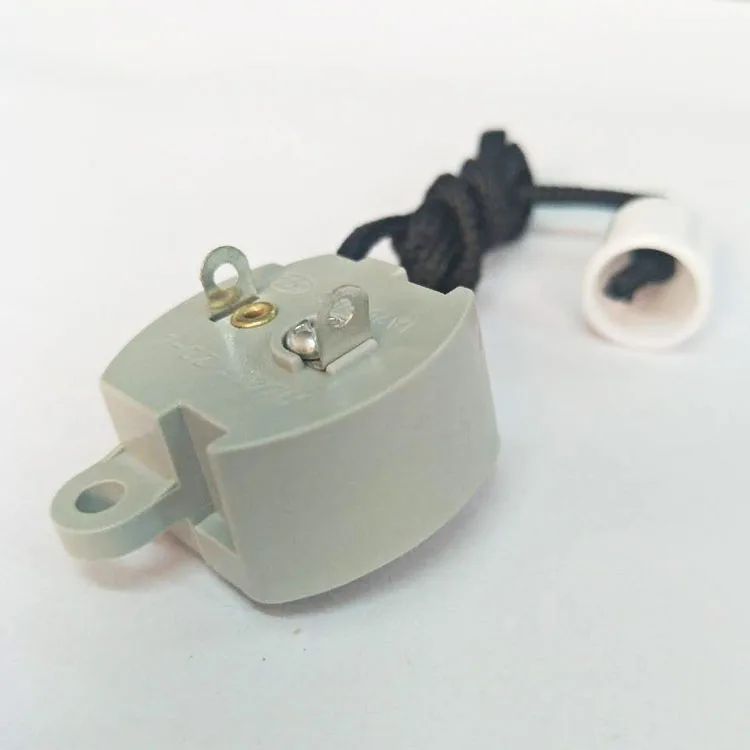

Tuowei 1A~250V 1 speed 2 way rotary wall switch with pull cord for exhaust fan

Product Overview

Description



                          Tuowei 1A~250V 1 speed 2 way rotary wall switch with pull-cord for                                                             exhaust fan   Item No.:ZD-L-06



Technical Parameter
Electrical Rating	1A-250V
Function	OFF-ON
HZ	60/50
Load	Res/ Mot
Temp(C)	105°C
Pol/Thr	1/2 or M
PP/Circuit	--/A
Endur	10K
SPCOA	22-14AWG UL1015
Material:
Cover: PC                     Flame rating: V-2 or V0               Temperature: 130°C              Grade: SABIC
Rotary: PA66                Flame rating: V-2 or V0               Temperature: 130°C              Grade: Dupont
Movable Contract: Copper Plating silver
Base: PC                     Flame rating: V-2 or V0               Temperature: 130°C              Grade: SABIC
Apply to:
Electric Fan, blower, humidifier, massage equipment, juicer, electric ovens, electric cookers, heaters and        other home appliances.
