Тележка с покрытием для железной дороги

Share on (60840757752):


Price:72 000,00 $ - 80 000,00 $

Quantity:


Product Overview

Description


Product Description

RTCW33 Covered Wagon is used for shipments of goods that are subject to sun exposure, rain, and snow, as well as boxed and bagged goods.

1) The wagon has the characteristics of light weight, heavy load, long service life;

2)The main material of the wagon if weather resisting steel, and the body has strong corrosion resistance;

3) The side door can be rearranged according to customers' usage habits;

4) Thermal insulation liners can be added according to customer requirements.

\t
Main Parameters for RTCW33 Covered Wagon
\t
Tare weight
\t
15 tons
\t
Load capacity
\t
33 tons
\t
Capacity
\t
64 cubic meters
\t
Axle load
\t
12 tons
\t
Track gaue
\t
1000 mm
\t
Max. Operating Speed
\t
80km/h
\t
Max. height(Unloaded)
\t
3330mm
\t
Height from track surface to coupler center line(unloaded)
\t
584mm
\t
Brake type
\t
AAR
\t
Bogie type
\t
Casting type

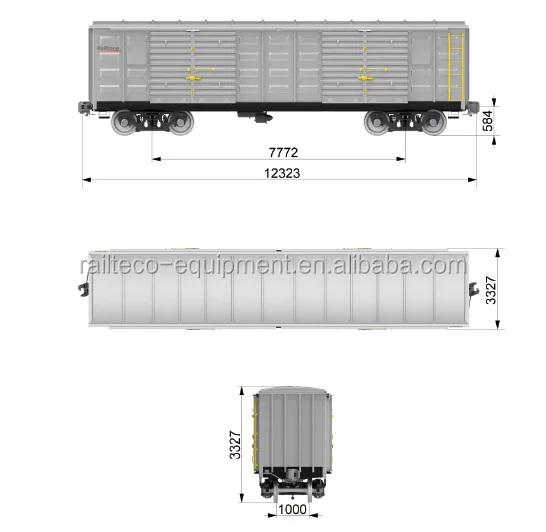

Detail Dimension

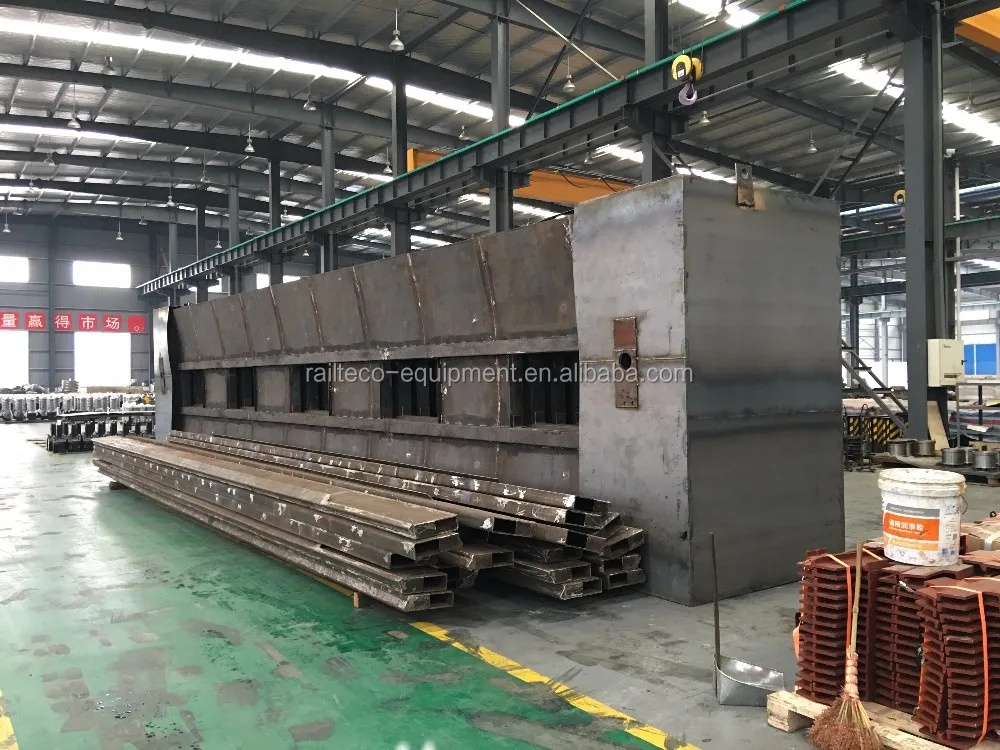

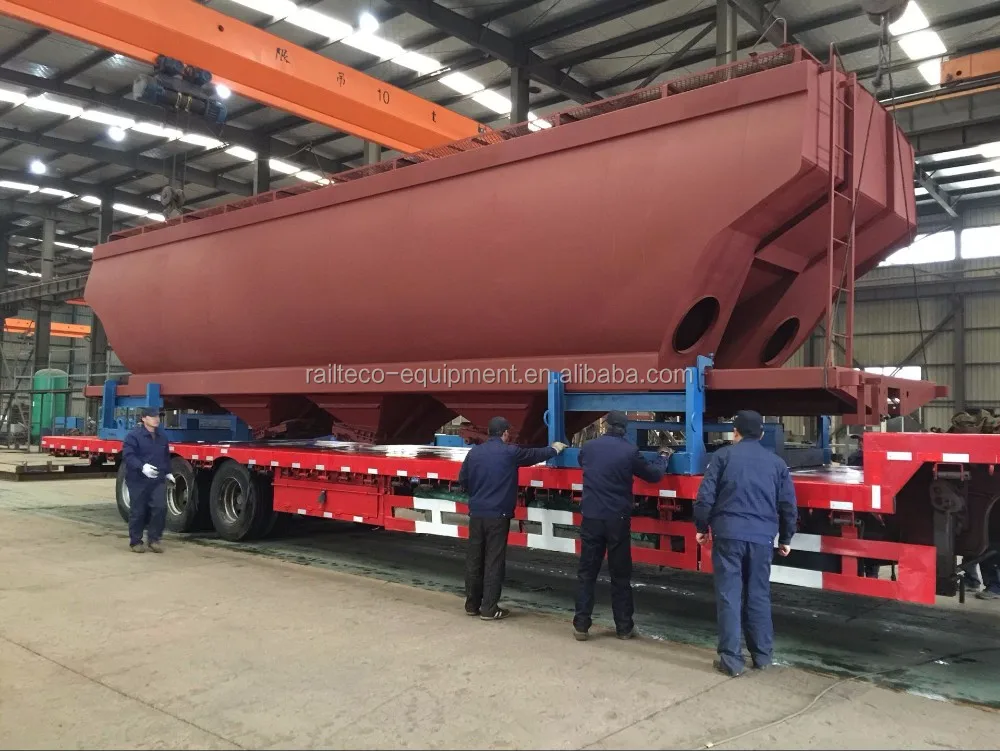

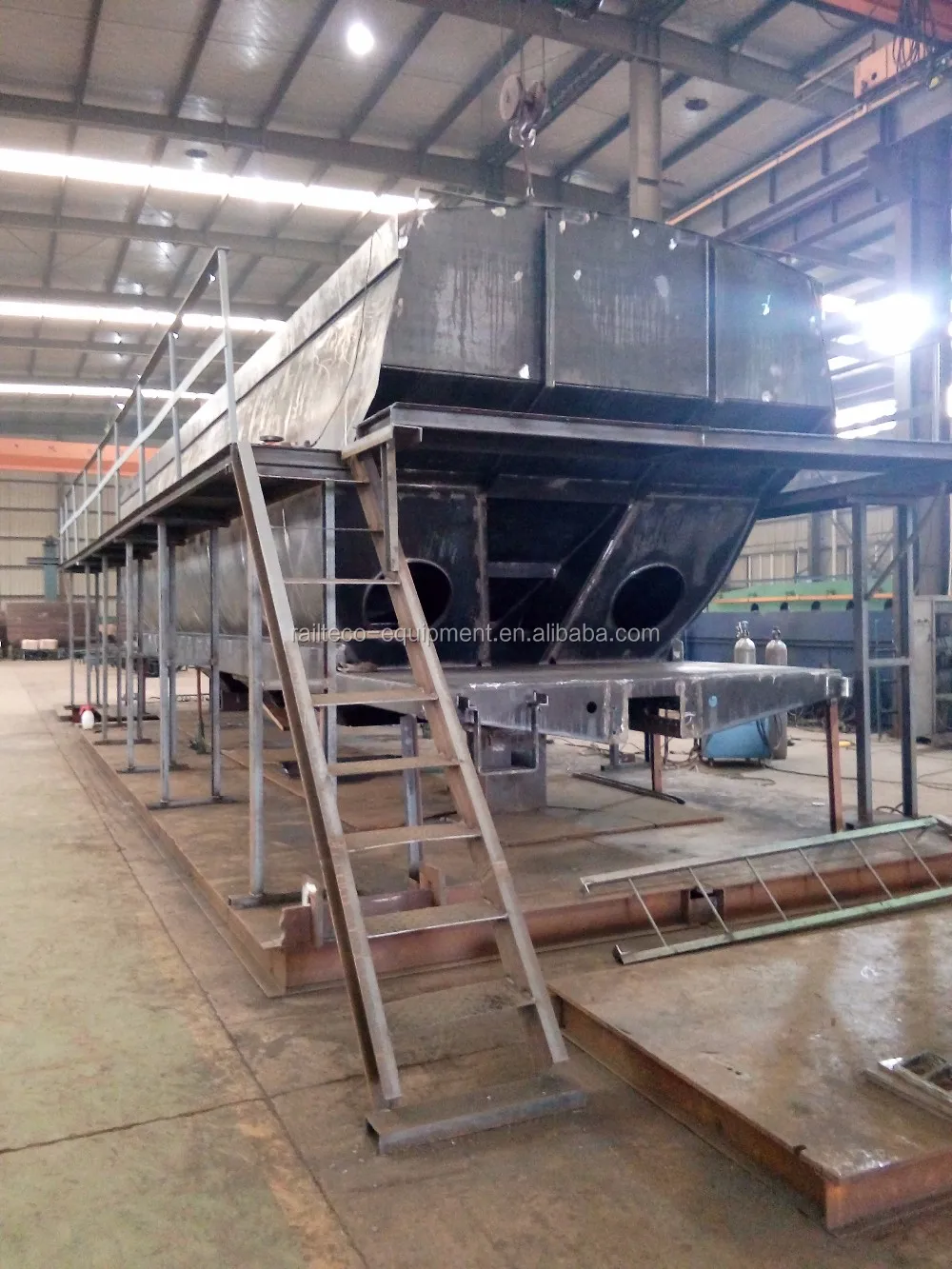

Manufacture Pictures
Delivery
Certifications
