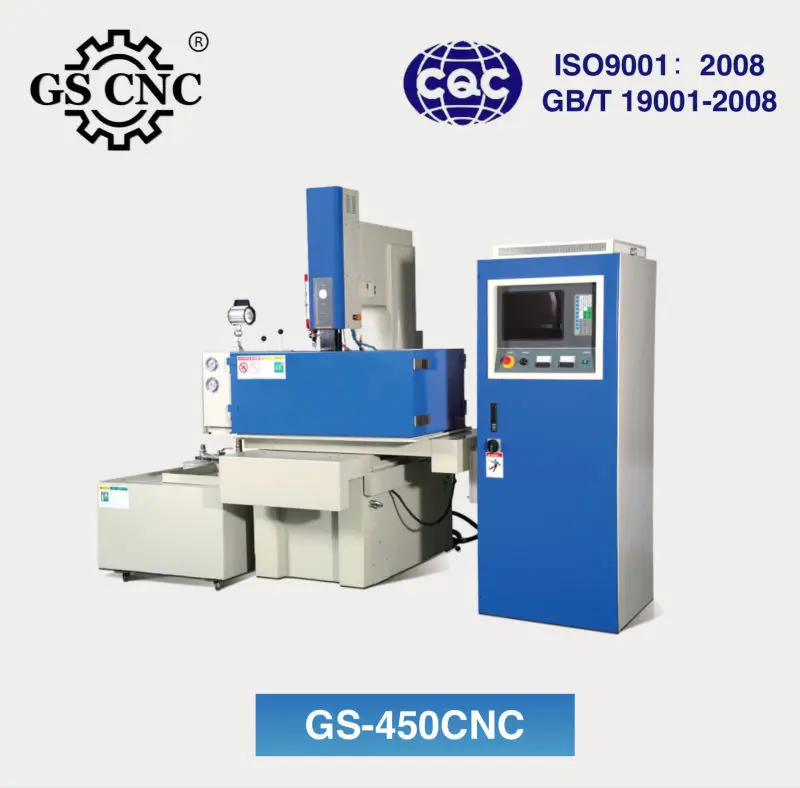

CNC 450 x 350mm High Precision Die Sinking EDM Machine

Die Sinking EDM, also called cavity type EDM or volume EDM, consists of an electrode and workpiece submerged in dielectric fluids. The electrode and workpiece are connected to a suitable power supply which generates an electrical potential between the two parts. As the electrode approaches the workpiece, dielectric breakdown occurs in the fluid, forming a plasma channel, and a small spark jumps.

These sparks usually strike one at a time, because it is very unlikely that different locations in the inter-electrode space have the identical local electrical characteristics which would enable a spark to occur simultaneously in all such locations. These sparks happen in huge numbers at seemingly random locations between the electrode and the workpiece. As the base metal is eroded, and the spark gap subsequently increased, the electrode is lowered automatically by the machine so that the process can continue uninterrupted.

SPECIFICATIONS FOR DIE SINKING EDM MACHINE
Z Axis Movement	CNC
Worktable Size	700 x 400 mm
Travel of X, Y Axis	450 x 350 mm
Travel of Electrode Head	200 mm
Max. Electrode Load	80 Kg
Max Weight on Table	600 Kg
Max. Working Current	75 A
Max. Working Speed	700 mm³ / min
Electrode Wear Ratio	≤0.3%
Best Surface Finishing	Ra≤0.5 μm
Input Rating	8KVA
Output Voltage	90 - 260 VDC
Work Tank Size	1100 x 670 x 400 mm
Machine Weight	2050 Kg
Machine Size	1500 x 1950 x 2200 mm
Filter Capacity	450 L

Main Features of Die Sinking EDM

1) V-Shape adopted track-way with TURCITE-B wear resistant sheet.

2) High temperature treated work table.

3) Smooth ball-screw adopted X axis and Y axis.

4) Spindle made from advanced alloy steel withy great processing accuracy.

Main Features of Electrical Control Box

1) Capable of micro-holes processing, tungsten steel and black lead processing.

2) Excellent deep-holes processing with 2-way feeding speed.

3) High sensitive sparkle infrared detecting system with auto power-off function.

4) Controlled by industrial DC, SERVO, DRIVER, protecting machine from over-electricity, over-speed, over-weight and short-circuit.

5) Equipped with 3 axises digital readout system.

6) 10 ways auto fine processing function assisting all kinds of mould-making process.

OTHER SPECIFICATION

Controller

Industrial Computer with 17 inch LCD

Standard Accessories

Collect Chuck - 1 pc

Filter - 2 pcs

Clamping Tool - 1 set

Injection Tube - 4 pcs

Injection Tube Magnetic Block - 2 pcs

Allen Key - 1 set

Tool Box - 1 set

Nuts - 1 set

English User Manual Book in DVD - 1 set

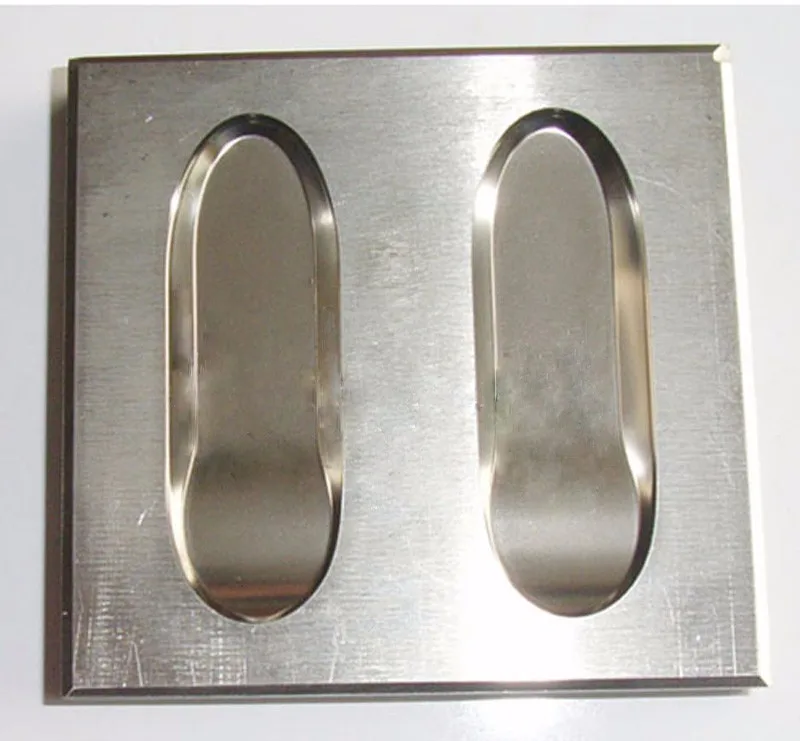

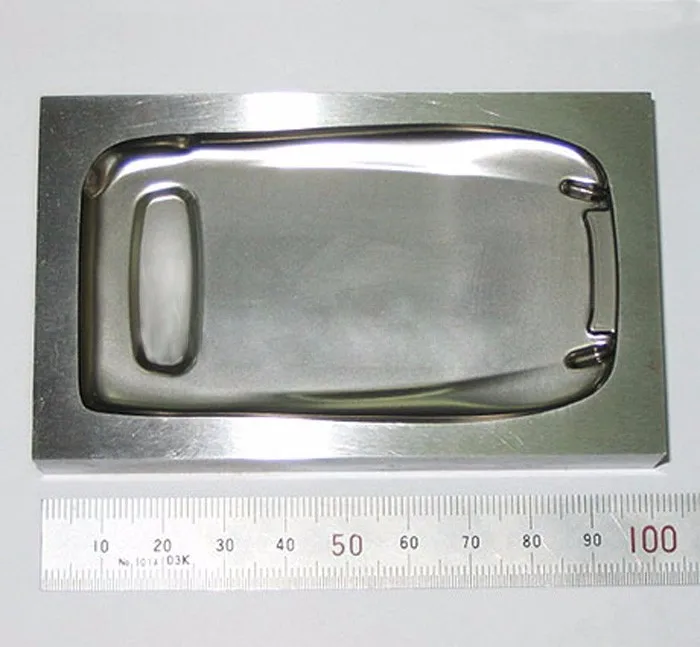

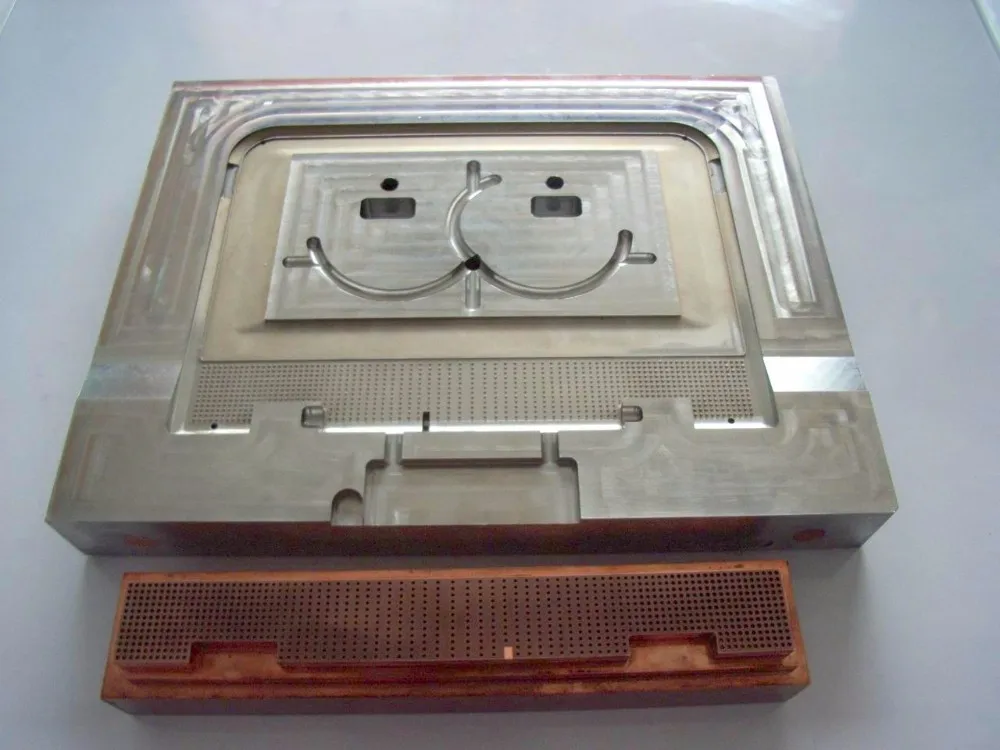

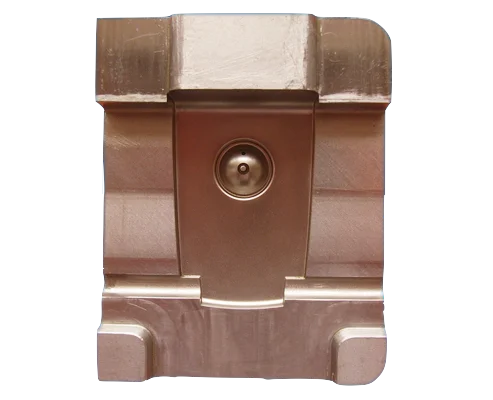

Product Samples

Our Company

Since 1991, GOLD SAN has exported EDM machines to 34 countries in the world. Our machines are widely applied to the production of dies and molds and other appliactions that cannot be achieved by standard machining methods.

Providing professional advice, support and traning for clients are our core rule. We insist to satisfy every customer not only with our productive machines but also our sincere services.

GOLDSAN's factory is located in Jiangmen Industrial Park, China, which is conveniently located 90 minutes driving from Guangzhou Baiyun airport. Customer support is handled by experienced engineers and all support calls and emails are documented and entered into a CRM database resulting in highest degree of customer satisfaction.

Our Service

Quality Control

* To deliver the best quality to our customers, every new machine from the production line is challenged by an extremely strict quality check procedure.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Certifications

FAQ

Q1: Are you trading company or manufacturer?

A: Manufacturer.

Q2: How long is your delivery time?

A: 35-60 days for general model. If it needs customized production, it will be longer. Delivery time depends on product changes.

Q3: Do you provide samples ? is it free or extra ?

A: Yes, we could provide samples. Sample fee and freight cost are paid by your side.

Q4: What is your terms of payment ?

A: T/T or L/C is ok. T/T is 30% after PI confirmation, 70% before shipment.

Related Products

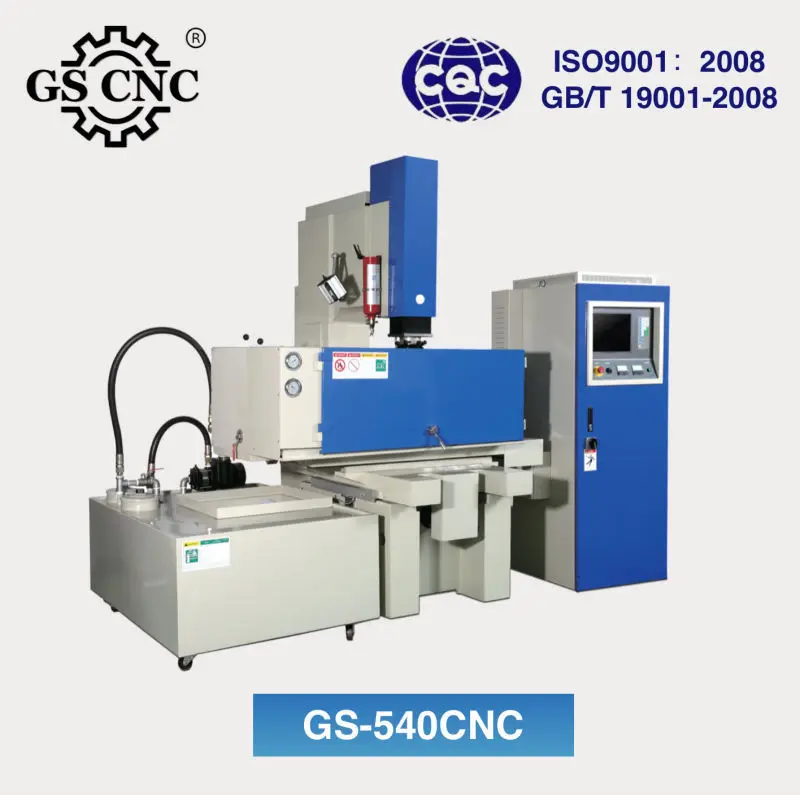

GS-540CNC

CNC 500 x 400mm High Precision Die Sinking EDM Machine

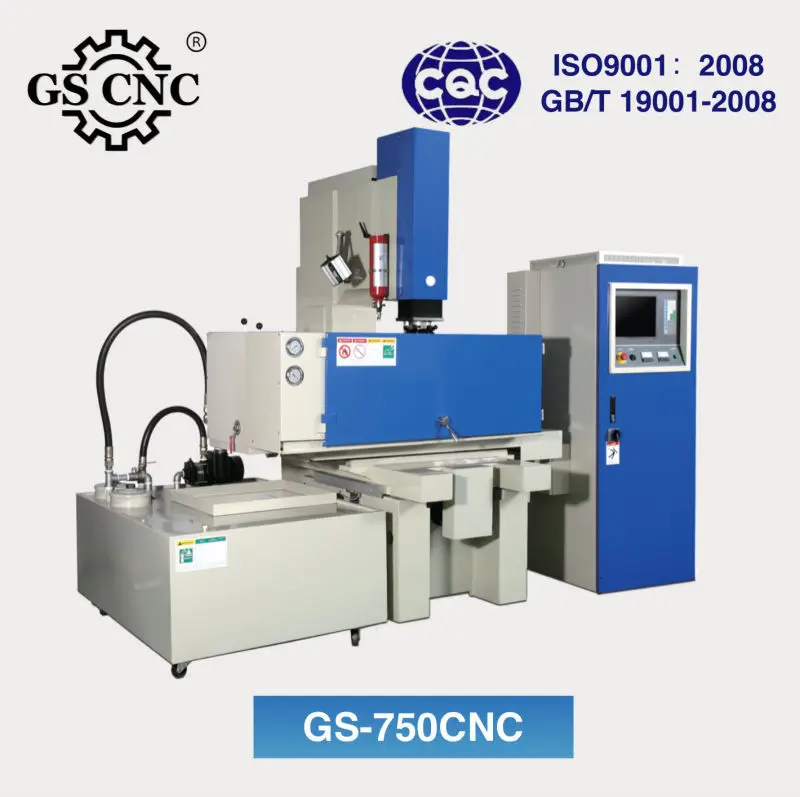

GS-750CNC
