pallet brick separator machine brick stacker block stacker pallet block separator
- Category: >>>
- Supplier: Dongyue Machinery Group Co. Ltd
Share on (60840801472):
Product Overview
Description
pallet brick separator machine brick stacker block stacker pallet block separator
Product Description
Pallet size: 1*1*1.2m or 1.2*1.2*1.2m (fixed length and width, adjustable height, maximum 1.2m)
Output (the time required for the two palletizing sizes is the same):
1: Stacking size 1.2*1.2*1.2 efficiency calculation
240*115*53 standard bricks: (one stack in 4-6 minutes)
Each layer is 23*5=115 blocks, and up to 11 layers can be coded. 1265 pieces per stack. Packing efficiency 12650-18975 blocks/hour
Hollow bricks: (one stack in 3-5 minutes)
400*200*200 hollow brick:
Each layer is 6*3=18 blocks, and up to 6 layers can be coded. 108 pieces per stack. Packing efficiency 1296-2160 blocks/hour
400*150*200 hollow brick:
8*3 blocks per layer = 24 blocks, up to 6 layers can be coded. 144 layers per stack. Packing efficiency 1728-2880 block/hour
400*100*200 hollow brick:
Each layer is 12*3=36 blocks, and up to 6 layers can be coded. 216 pieces per stack. Packing efficiency 2592-4320 block/hour
200*100*60 bread bricks: (a pile of 6-9 minutes)
Each layer is 6*12=72 blocks, and a maximum of 20 layers can be coded. 1440 yuan per stack. Packing efficiency 9600-14400 pieces/hour
Total power: 42.8Kw
Weight: about 15 tons, three 40HQ are required for loading

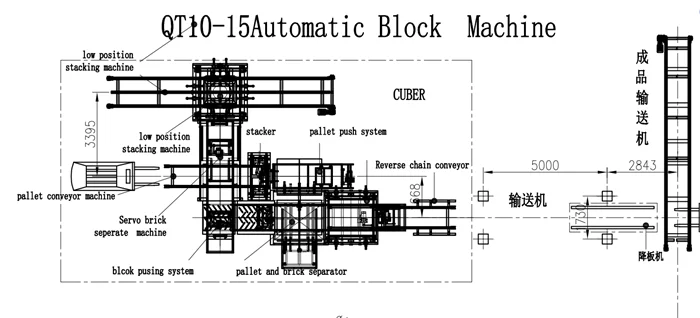

1 Reverse chain conveyor
2 Reverse plate lifting machine
3 pallet and brick separator
4 blcok pusing system
5 Servo brick seperate machine
6 low position stacking machine
7 finished block conveyor machine
8 pallet push system
9 stacker
10 pallet conveyor machine
11 PLC control system
12 hydraulic station
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* In-process Product 100% Check
* Machine testing support.
* View our Factory.
* Customized moulds and colour
After-Sales Service
* One year warranty
* Free supply of spare parts and tools for one year use.
* Free supply of spare parts and tools for one year use.
* Engineers available to service machinery overseas.
Company Information
Donyue Machinery Group Former: SHANDONG DONYUE BUILDING MACHINE CO,LTD, founded in 1994, established in June 2012, including Don yue Machinery Group Co.,Ltd, Linyi Donyue Import&Export Co.,Ltd, Linyi Don yue Pressure Vessel Manufacturing Co.,Ltd, total assets of 29 million USD, covers of 500 acres, more than 1500 employess, it is a set of product research and development, production, sale as one the national fixed point large private building materials machinery manufacturing entreprise.
Our main products are automatic burn-free brick making machine, autoclaved aerated concrete production line, the aerated concrete wall panel production line, autotoclaved lime sand brick production line, autoclave etc,A and B class pressure vessel, aerated concrete blocks, sand-lime brick, panel products, oxy-genated diesel, dimethy lether, plant asphalt nineseries, more than 60 varieties.
Donyue Machinery Group "strive to produce higher quality products", built and completed managements and quality control system, with broad demestic and international sales network and responsible after-sales service team, we gain the initiative in the fierce markets competition, "Donyue" Brand has been well accepted in domestic and international markets.
