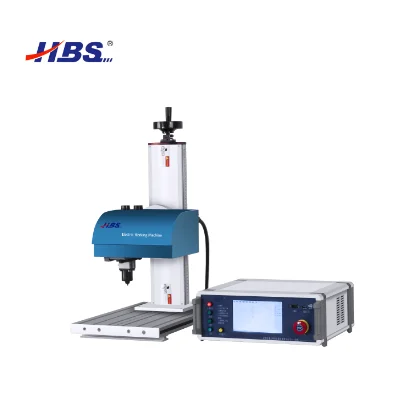

Desktop electric dot peen chassis number marking machine /nameplate dot peen engraving machine

Product Overview

Description

Desktop electric dot peen chassis number marking machine /nameplate   dot peen  engraving  machine    HBS-JZ115P

Model	JZ115D
Marking area	150*150mm
repetition accurancy	0.05mm
marking depth	0.02-1mm
Marking speed	1500-2000mm/min
power supply	AC220V+-10% 50HZ
power consumption	305W





JZS115D

Circular Marking Φ5-100mm (Large circular clamp can be customized)



Non-standard Options

Marking Area     150mmx150mm,200mmx200mm

Circular Marking Can be customized as user’s requirement



Packing Details

Dimension(mm):  750X530X390 (marking: 320X440X800, controller:390X380X150)

Net Weight(kg):  64(machine: 58, controller: 6)

Gross Weight(kg): 68



Product Features

No need to equip with pneumatic supply or computer, built-in programming system with industrial microcomputer and various USB ports.

Able to mark on wide variety of products or signs made of steel, iron, copper, aluminum, plastic and other material.

Able to mark in Chinese and English characters, Arabic numbers and any picture with harmonized and aesthetic effects.

Serial number automatically increasing or decreasing, VIN code, random code and 2D code, etc.

Key factor is high impact frequency of marking head and fast marking speed making. It’s possible for mass production to customers’ satisfaction.

Very small force of marking pin has no influence on the mechanical property of work pieces.

Marking depth from 0.02~1mm (adjustable), meeting demands for various marking depth.

Simple operation, easy maintenance.
