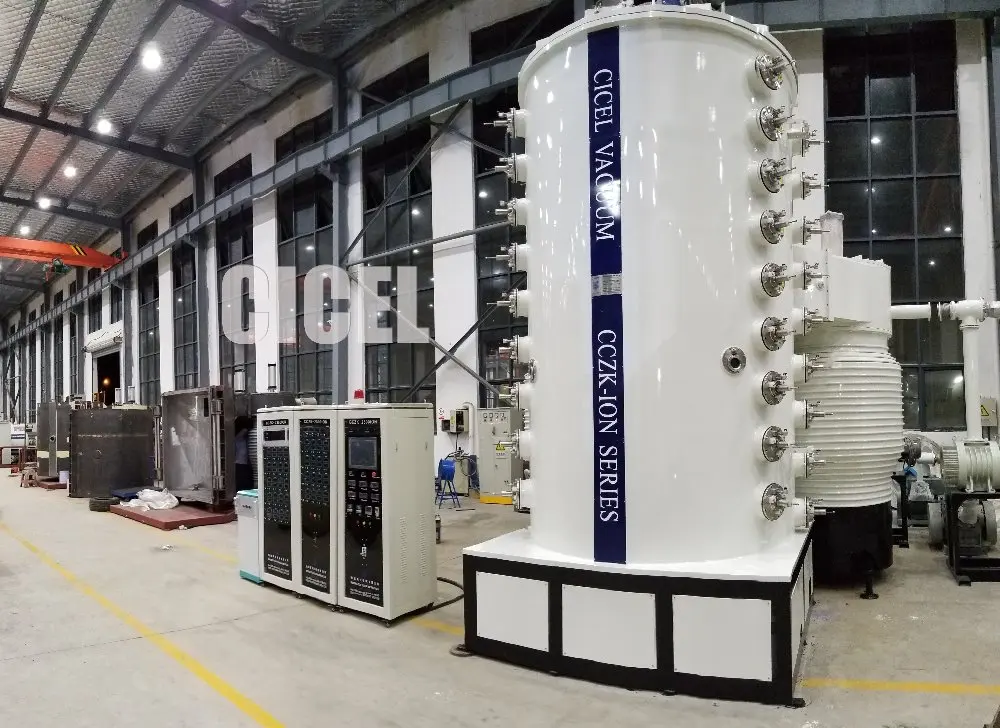

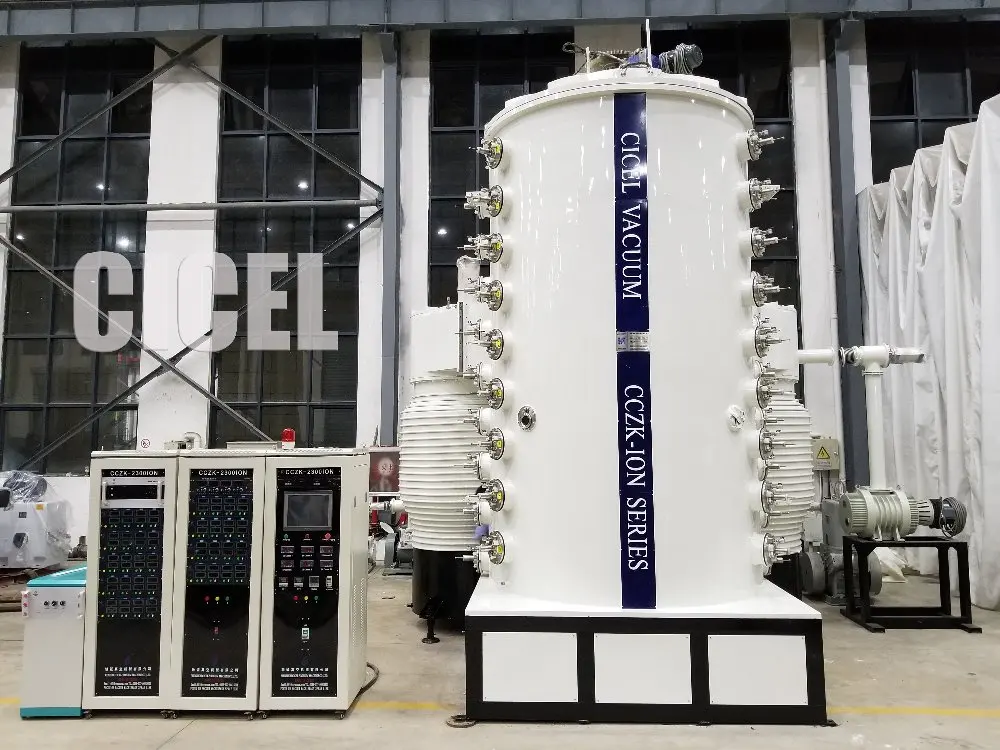

Многодуговая ионная вакуумная машина для покрытия из нержавеющей стали

configuration

Model

CCZK-2000-ION

CCZK-2200-ION

CCZK-2400-ION

Customized

Size is available

Chamber size

 D2000*H3000mm

 D2200*H4000mm

 D2400*H5000mm

 Customized

Vacuum system

Diffusion pump/ + Roots pump + Double stage direct driver Rotary pump + Holding pump + Cryogenic pump(optional)

Customized

Arc

power supply

7^th generation

32sets

7^th generation

40sets

7^th generation

48sets

Customized

Arc source

7^th generation

32sets

7^th generation

40sets

7^th generation

48sets

Customized

Bias

power supply

50KW

80KW

100KW

Customized

Gas MFC system

4-way intake sys

4-way intake sys

4-way intake sys

Customized

Baking system

Up to 350C

Up to 350C

Up to 350C

Customized

Control system

IPC + PLC+HMI Full automatic + Remote control system ( optional)

Customized

Ultimate vacuum

5.0*10^-4pa

5.0*10^-4pa

5.0*10^-4pa

Customized

Total power

360KW

455KW

567KW

Customized

Coating Cycle time

Around 15 to 50 mins one cycle ( Depending on the coating film layer of different coating products)

Customized

Delivery container size

1set 20FR

1set 40HQ

 1set 20FR

2sets 40HQ

 1set 20FR

3sets 40HQ

Customized

Machine installing time

15days(2engineers)

20days(2engineers)

20days(2engineers)

Customized
