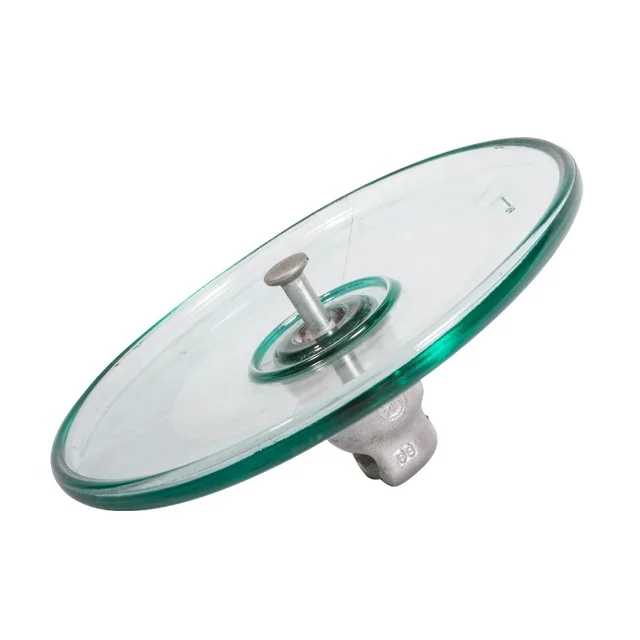

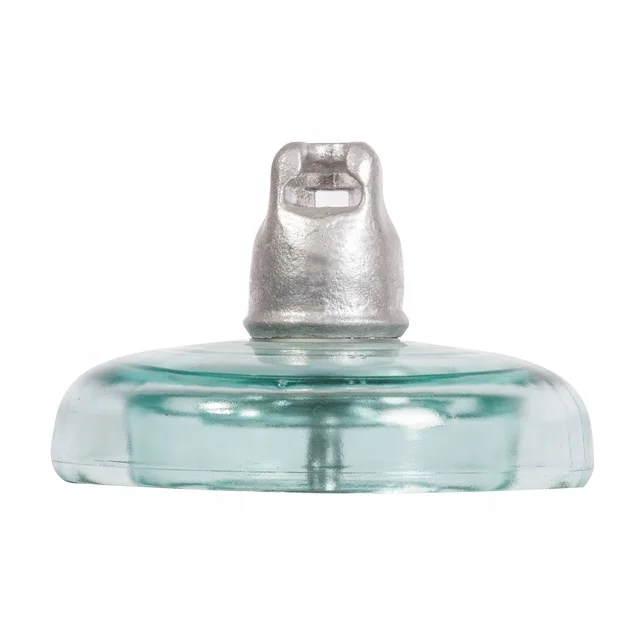

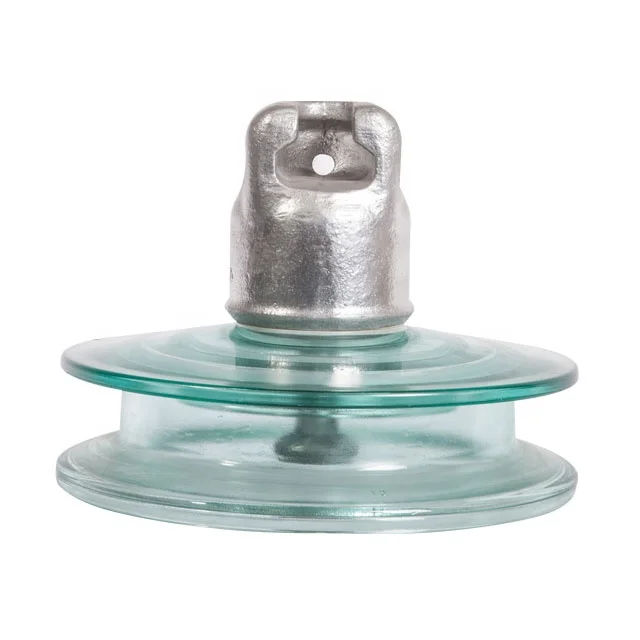

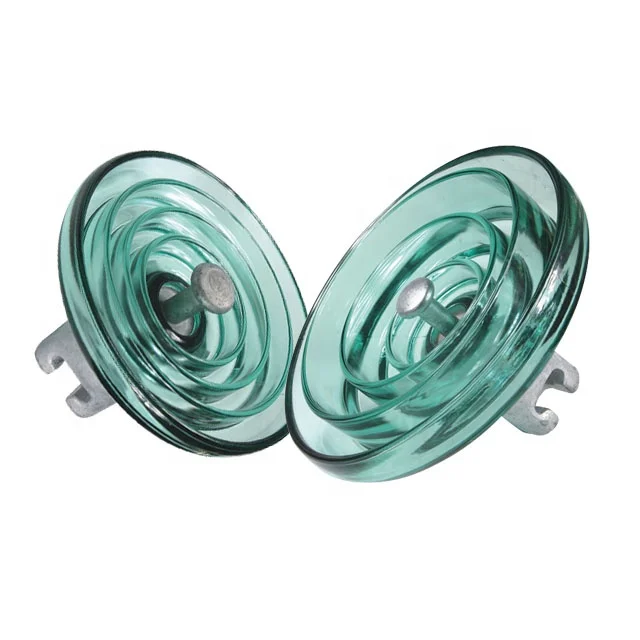

Low Price Fiber Glass Disc Insulator 160kn Pylon Insulator

Product Overview

Description

Low Price Fiber Glass Disc Insulator 160kn Pylon Insulator







Product Model		U40B/110	U70B/140	U100B/140	U120B/146	U160B/170
Main dimension,mm	D	178	255	255	255	280
	H	110	140	146	146	170
Creepage distance,mm		185	320	320	320	400
Socket soupling,mm		11	16	16	16	20
Mechanical failing load,kN		40	70	100	120	160
Mechanical routine test,Kn		20	35	50	60	80
Wet power frequency withstand vol.,KV		25	40	40	40	45
Dry lightning impulse withstand vol.,KV		50	100	100	100	110
Impulse puncture voltage,P.U		2.8	2.8	2.8	2.8	2.8
Power frequency puncture vol.,		90	130	130
Radio interference voltage,uV		50	50	50	50	50
Corona visual test,kV		18/22	18/22	18/22	18/22	18/22
Power frequency electric arc voltage		0.12s/20Ka	0.12s/20Ka	0.12s/20Ka	0.12s/20Ka	0.12s/20Ka
