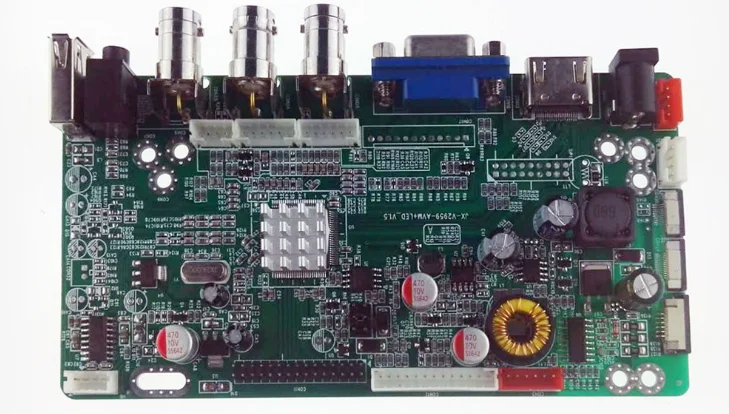

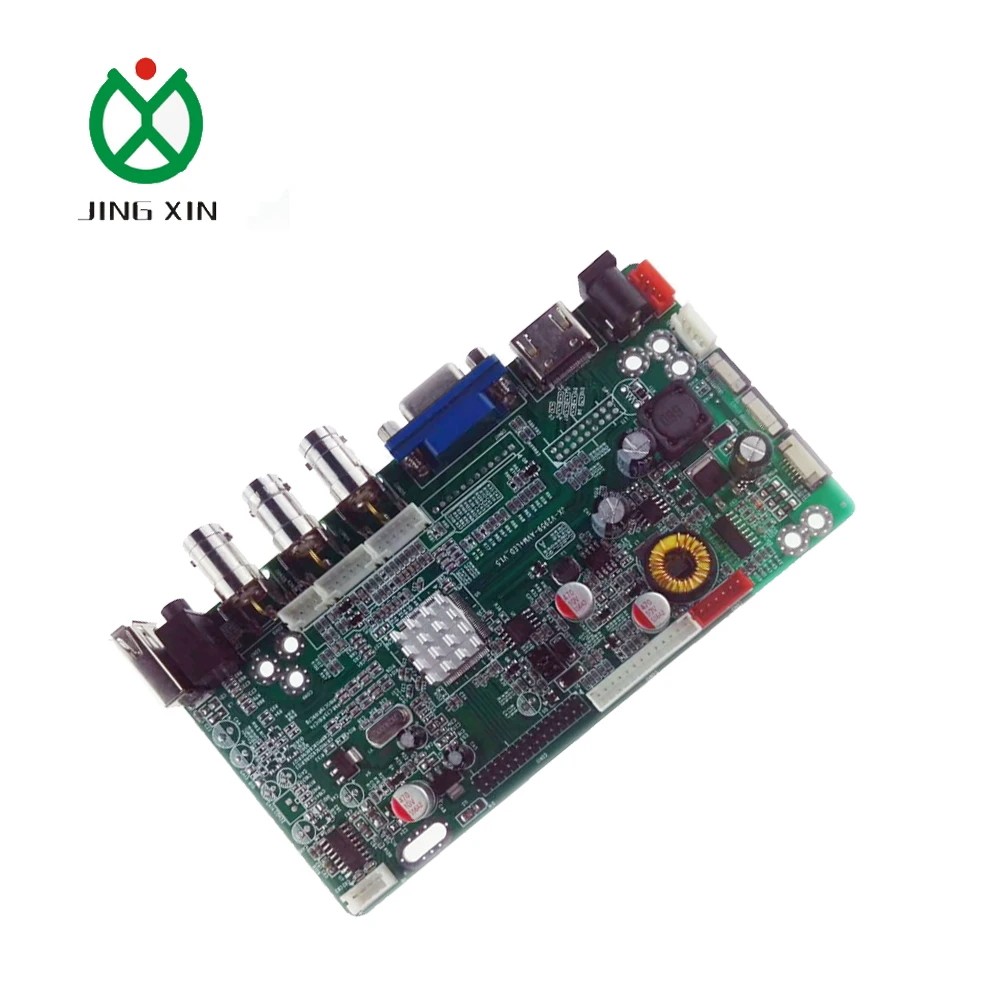

JX manufacture universal V59 1080P LCD LED TV mainboard

General description

  LCD av/monitor - the high-end product position,Using MSTAR Single Chip TV processing IC TSUMV56RUU,With good quality, multi function, rich interface, the system is mature and so on ,Support full color / sound system ,Mainly for 32 and below the size of LCD LVDS panel,Support the current market commonly used lcd/led, plasma screen. .
The analog audio amplifier:Max output power 2x3w (4 Ohm).
The input signal:VGAx1,HDMI(1.3 ) ,USB(2.0), AV, BNC.
support screen resolution :1920*1080, double6/8bit LVDS signal output.
 Multi Country OSD menu language, for the screen voltage optional 3.3v/5v/12v.
support screen Tcon,Vgh,Vgl,Vcom,Vgamer,LED inverter.
Obligate multi I/O port to use control other device.
Wide power supply range:8—36Vdc.

Main technical parameters

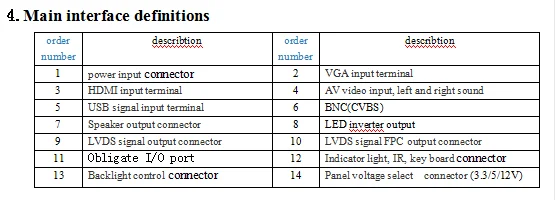

Main connector  defined description

1.Power supply DC +12V input

2.Back light control connector

3.5V output supply connector

4.Indicator light, IR, key board input connector

5.Panel power select  connector

6.I/O obligate connector

7.LVDS output

1. Quality of products
All of our product will be testing before shipment. So you can be assured the quality of our products. However, If you found any problem after received the goods, Please feel free to contact us at any time. We will solve your problems at the first time .

2. Payment terms
Sample order :A Alibaba B Paypal C Western Union
Large order: HSBC bank (Company bank account)
If you choose A, Then we will send the payment link to you soon.
If you choose B or C ,Please send your shipping information (Name, address, postal code, telephone number) to me , Then I will send the PI for your payment (PI include our Paypal or Union Western account).

3. Warranty
We will give our customer a best after-sale service, so we will offer one year warranty for most of our products and professional technical support.
