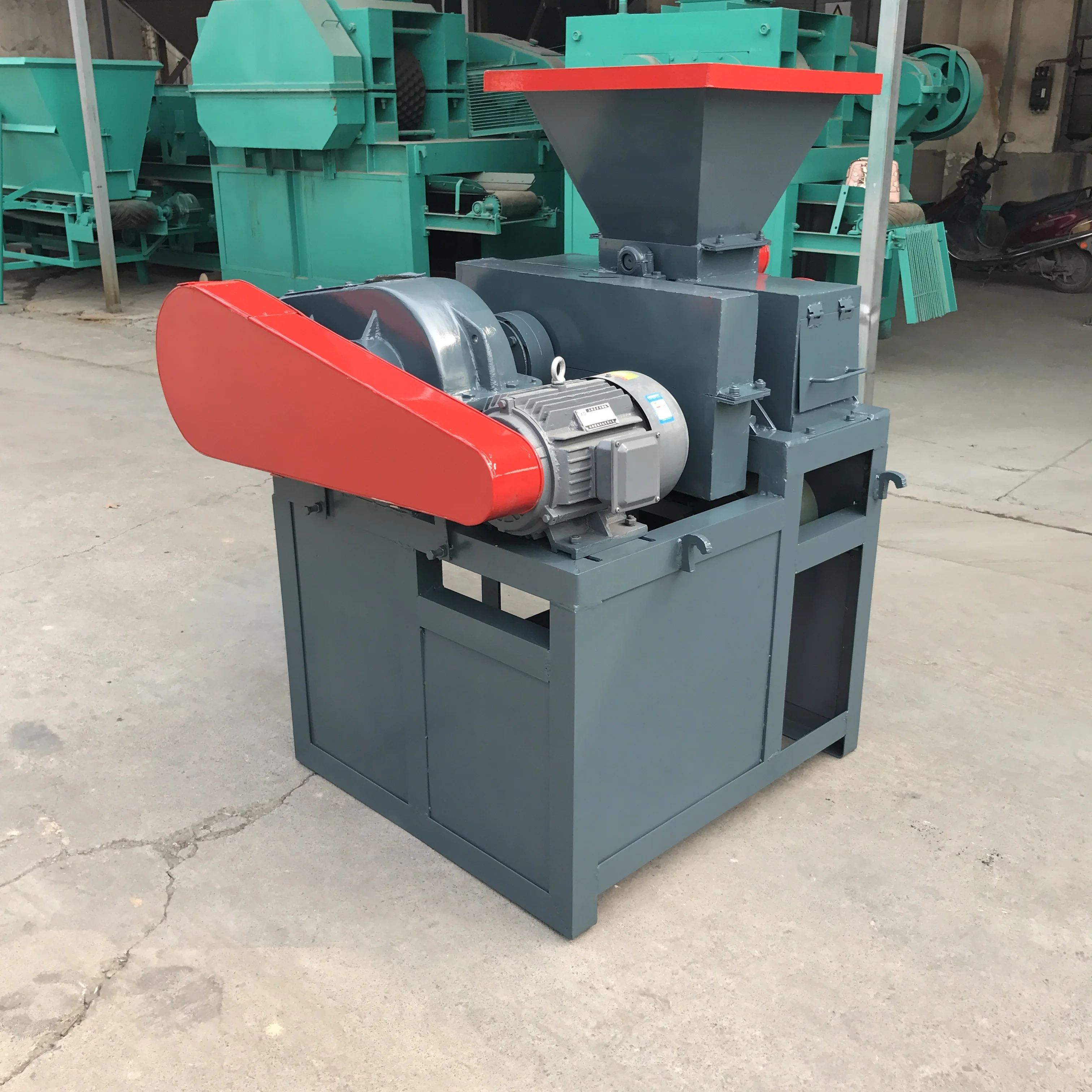

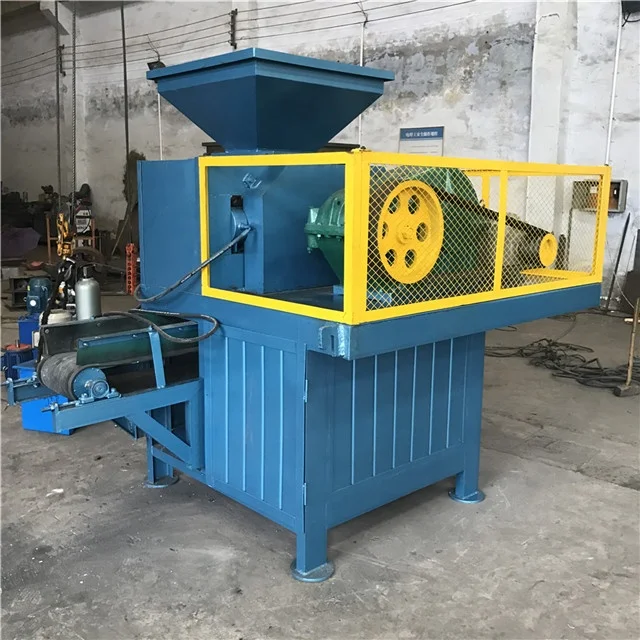

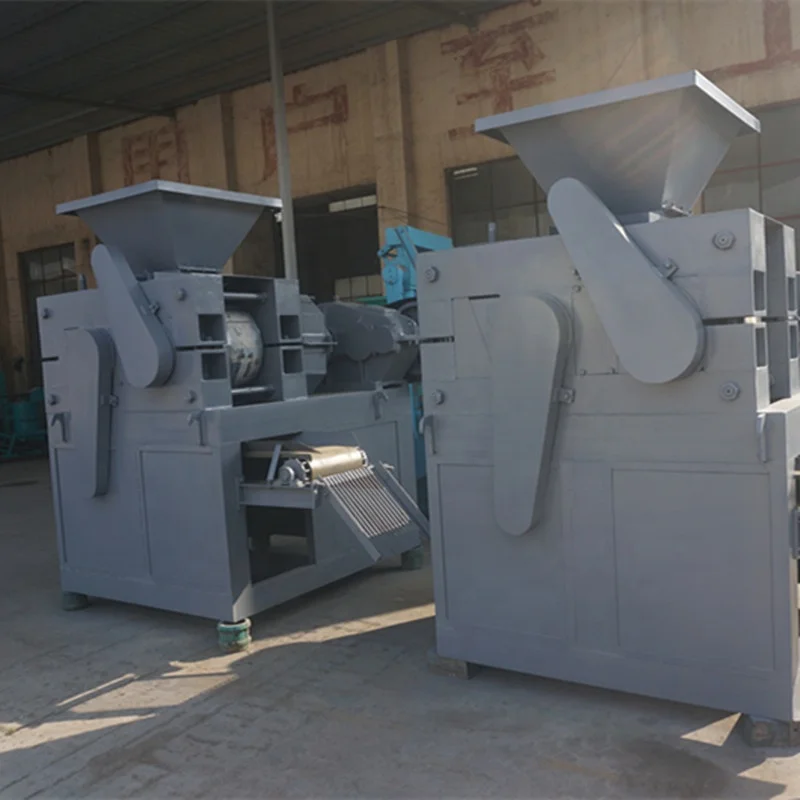

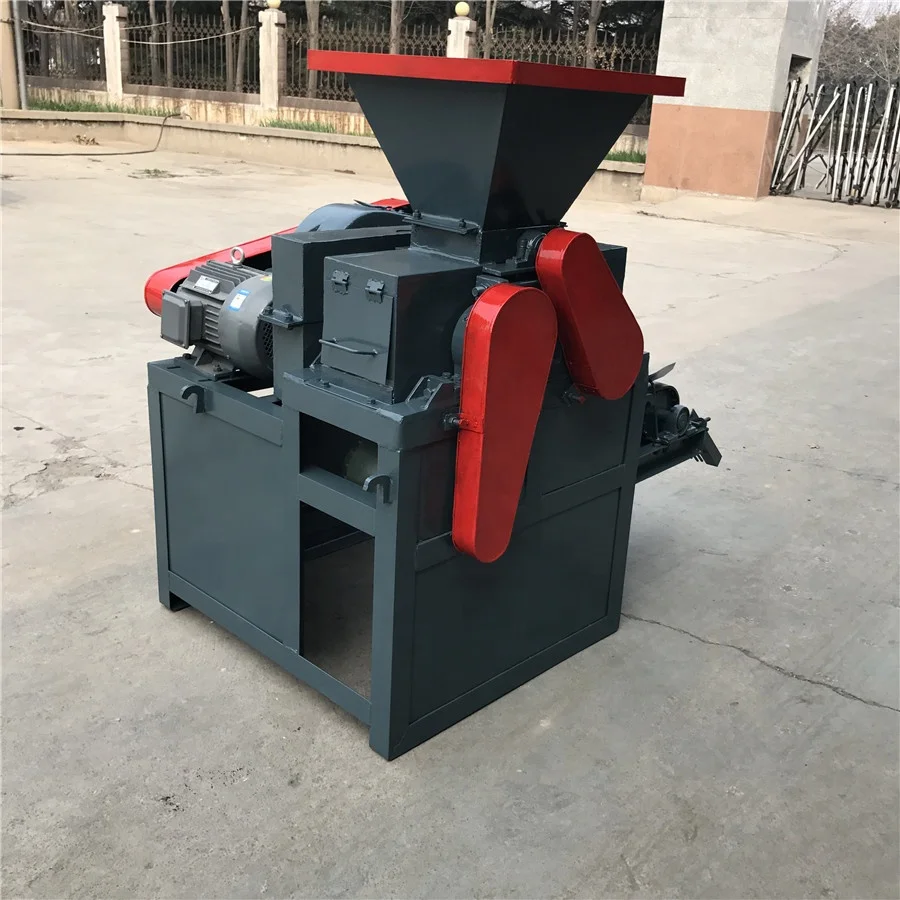

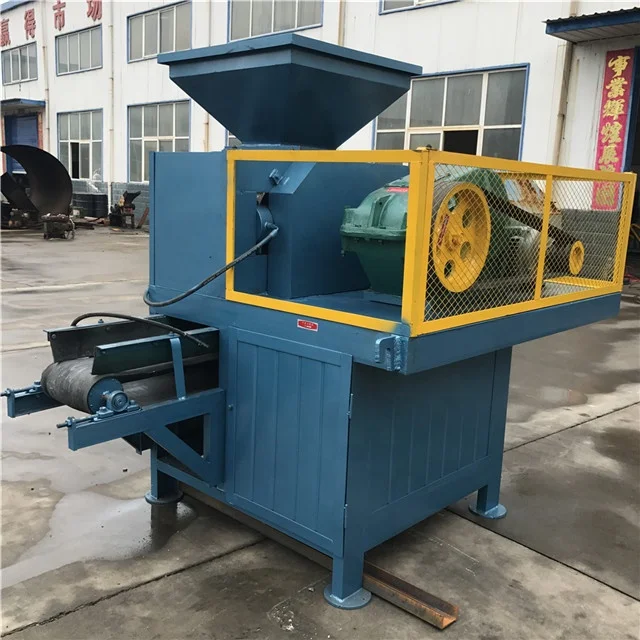

Hot sale square coal ball briquettes extruder

Product Overview

Description

square coal ball briquettes extruder

  Carbon black briquette extruder machine can press coal powder,dry powder,coke powder,carbon powder,iron scale, mineral waste residue,iron powder,variety of powder metallurgy and Sponge iron carbon products into different shape and size balls according to the different moulds. It is mainly used for boiler heating or used at home for cooking,BBQ.The shape and size also could be desingned of oval shape,egg shape,pillow shape,square shape,etc.This machine widely used in coal industry and metallurgy industry.





The colors could be customized according to the customer's requirements.







Features of carbon black briquette extruder machine

 1.High briquette ratio and high density,energy saving
2.Professional Ball briquette machine manufacturer
3.Advanced briquette technology
4.Environment friendly briquette machine
5.Shape of briquette could be designed according to the customer requirements
6.High pressures briquette machine



Type	Capacity	Power	Weight	Size(L*W*H)	Roller materials
HY-290	1-2t/h	5.5kw	800kg	1.32*1.23*1.52m	65Mn   2rollers
HY-360	3-4t/h	7.5kw	2100kg	1.45*1.47*1.75m	65Mn   2rollers
HY-430	6-8t/h	15kw	3800kg	1.45*1.52*1.75m	65Mn   2rollers
HY-500	8-10t/h	37kw	5800kg	1.75*1.78*2.43m	65Mn   2rollers
HY-650	12t/h	45kw	6500kg	2.65*2.70*2.43m	65Mn   2rollers
HY-750	16t/h	55kw	8500kg	3*2.9*2.43m	65Mn   2rollers
HY-850	18-20t/h	75kw	13000kg	3.2*3*2.45m	65Mn   2rollers
HY-1000	23-25t/h	110kw	17000kg	3.5*3*2.8m	65Mn   2rollers





Raw materials for square coal ball briquettes extruder

Coke powder,iron scale,coal powder/dust,charcoal powder,coal slurry,cooking coal,all kinds of powder metallurgy, Sponge iron carbon products,dusting ash,pond slob,fire coat,aluminum ash powder,lime,silicon carbide,copper powder and so on.

Requirements of raw material:

a) Size of materials: less than 1mm, should be controlled between 30-40%; between 1-2mm, should be 30-40%; the max size should be no bigger than 3mm, with 20%.

b) Moisture of material: should be in8-12%.

c) Not allowed: slad or other massive sundries with high hardness, or the roll and splindle will bedemaged.

d) Agglomerant or other additives(e.g. dedulfurizer): should be prepared by users in accordance with coal type and the operating environment(or supplied by the supplier through consulation)





Moulds of carbon black briquette extruder machine

The moulds could be customized according to the customer's requirements.







Final product for square coal ball briquettes extruder

The shape of the final product can be round shape,square shape,ellipse shape and pillow shape.We could by changing the mold for different shape and size.We also could customized moulds according to the customer's requirements.













Working principle for square coal ball briquettes extruder

The working principle of charcoal/coal ball making machine is pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.



Final products with the character of energy saving,easy to transport,increase of wastes utilization,with good economic and social benefits.

 Q: Does our machine need any binder during the whole production process?Answer: Well, this generally depends on the feature of your raw materials. If your raw materialsare charcoal powder, there may need some binder to better shape. And, using some binder can make sure the final  products with high density, and assure the long burning.
