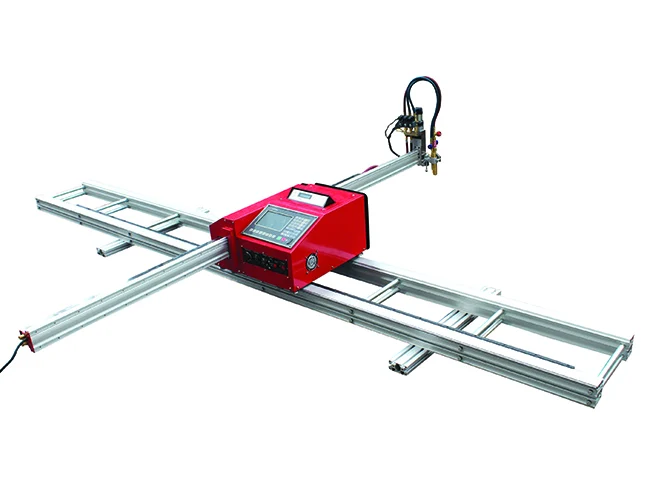

HNC 1800W Heavy rail portable cnc plasma cutter

Share on (60840920637):


Price:

Quantity:


Product Overview

Description


                                                HNC-1800W Heavy rail portable cnc plasma cutter



Product Description





(1) Tailored track acquires high-intensity, high-speed and high-precision features.
(2) Human computer interface design makes the machine easy to learn and operate, and have complete functions.
(3) Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.
(4) Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB to cut plate into any shape.
(5) With two cutting modes: Flame Cutting & Plasma Cutting.
(6) Chinese, English, French, and Portuguese are ready to use.
(7) Can automatically memorize and restore when power is off.
(8) Plasma THC ( torch height control) device function: By automatically adjust the height of the torches
according to the feedback of the plate height changes, THC can keep good effect of cutting meanwhile,


protect the torch form damage and prolong life span of the nozzles.
(9) With status indication device.
(10) With positioning functions of protection cover, proximity switch and dual-speed.
(11) Compatibility of the domestic plasma and foreign-brand plasma.




































































Model

Cutting Range


MM



Supply Voltage


V/HZ



Cutting TorchNumber


of groups



Cutting speed


(mm/min)



MAX no-loading


speed


(mm/min)



Overall dimensions


L*W*H



Weight


(kg)


HNC-1800W-31800*3000AC220V-50HZ150-75030003.5*2.6*0.4175
HNC-1800W-3.51800*3500AC220V-50HZ150-75030004*2.6*0.4191
HNC-1800W-41800*4000AC220V-50HZ150-75030004.5*2.6*0.4207
HNC-1800W-51800*5000AC220V-50HZ150-75030005.5*2.6*0.4239
HNC-1800W-61800*6000AC220V-50HZ150-75030006.5*2.6*0.4271

 HNC-1800W-Q this series use the high cost-effective light track good option for low budget customer.




HNC-1800W this series use the heavy-duty track working more stable.

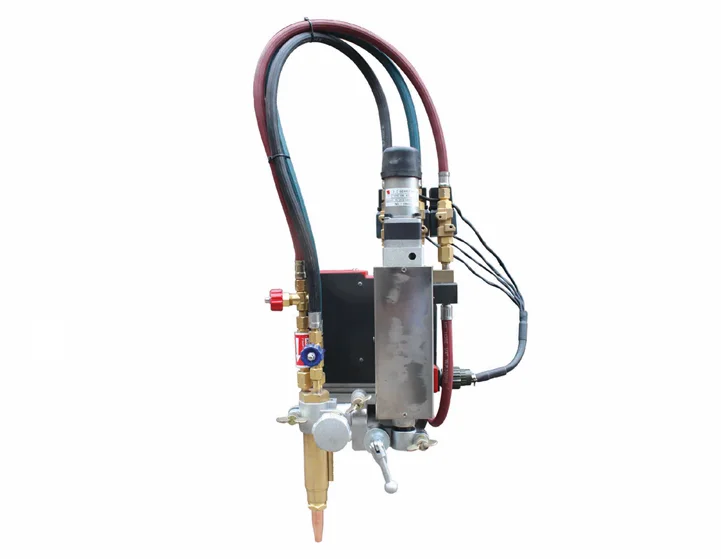

The torch part of HNC-1800W Portable CNC cutting Machine

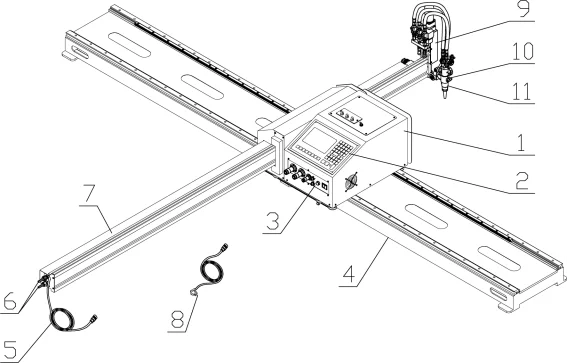

The Separate of HNC-1800W Portable CNC cutting Machine




1. Main engine                                            7. Transverse guide rail assembly 2. Control system                                        8. Power cord 3. Operation panel assembly                        9. Lifting device assembly 4. Longitudinal guide rail assembly               10. Torch gripper assembly 5. Lifting motor line                                     11. Torch assembly 6. Gas supply interfa
