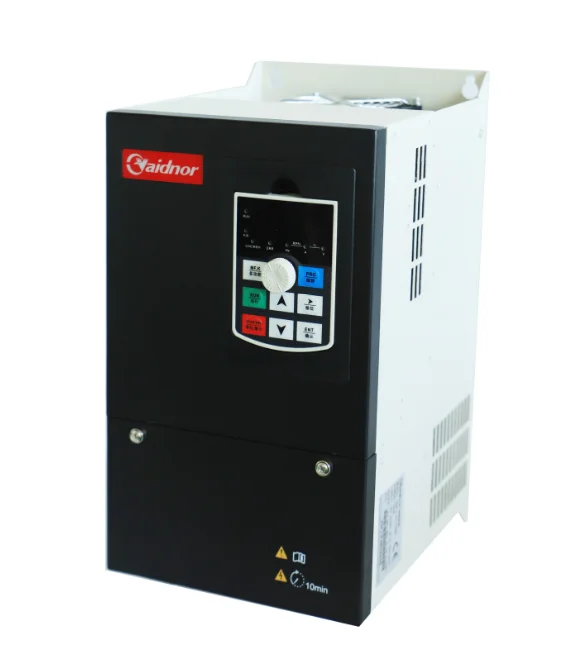

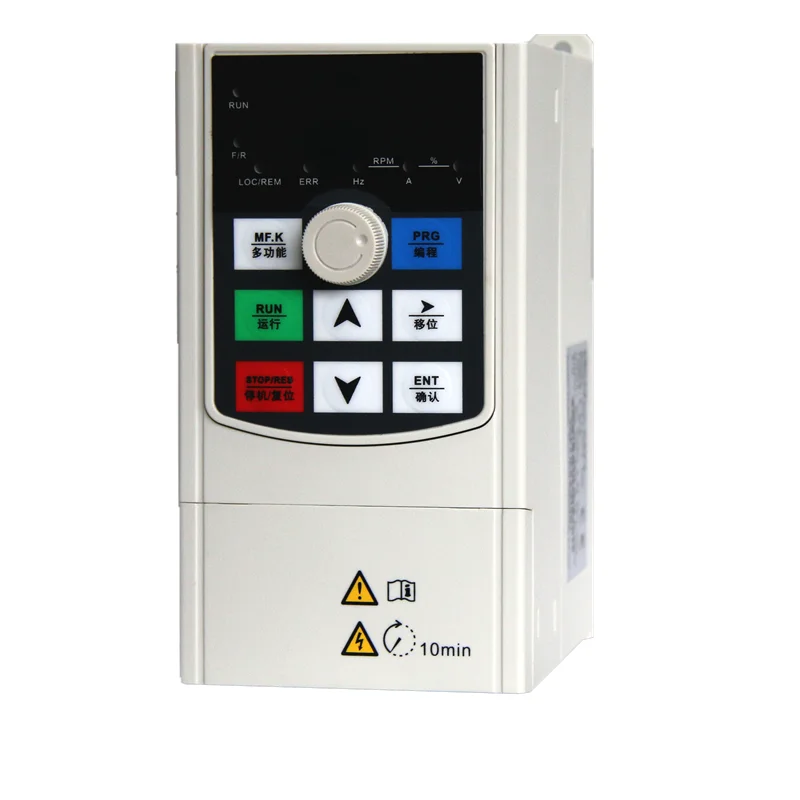

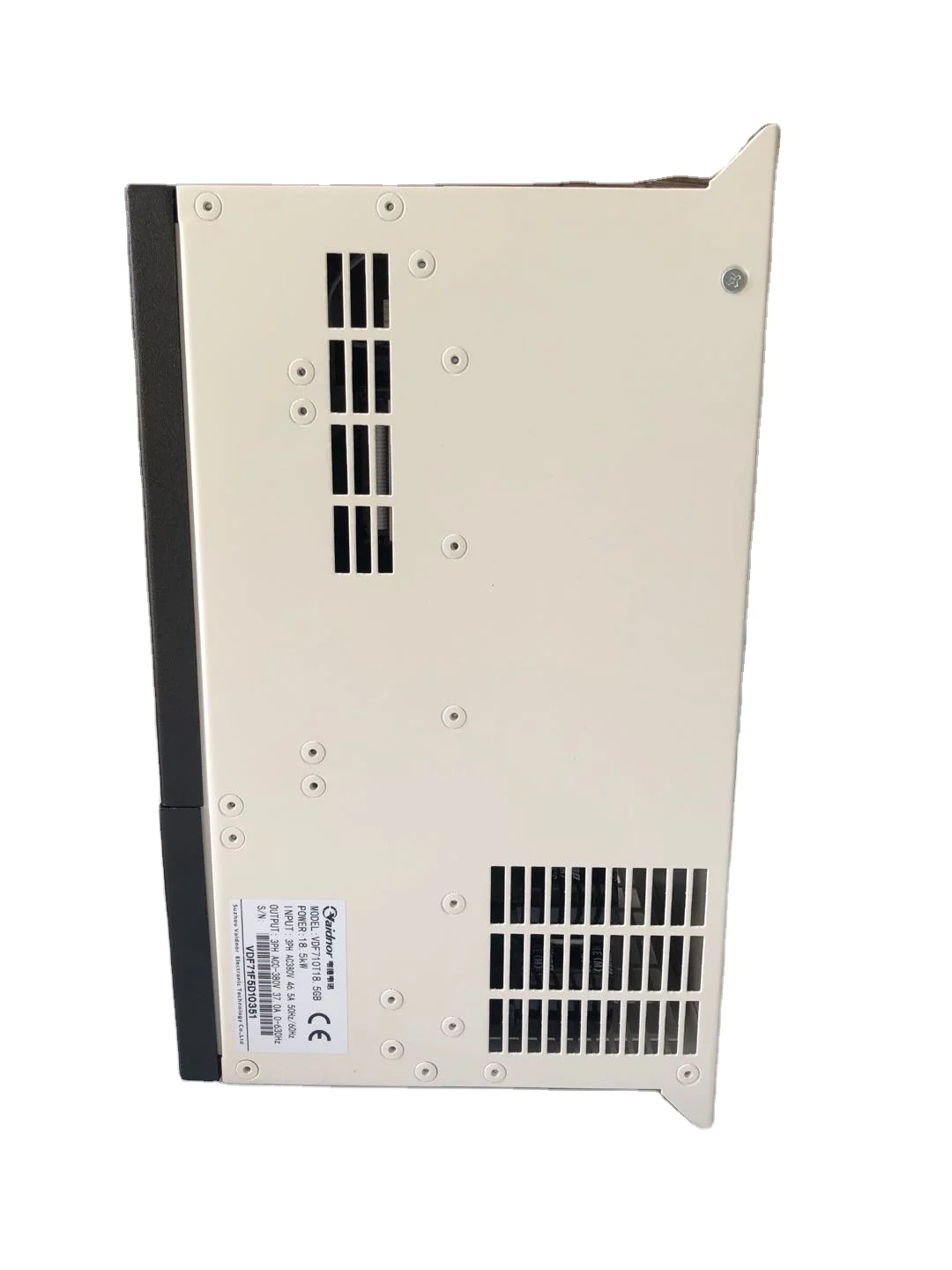

Fully enclosed enclosure 380v 50hz/60hz Braking element frequency converter vector variador de frecuencia
- Category: >>>
- Supplier: Suzhou Vaidnor Electric Technology Co. Ltd.
Share on (60840938701):
Product Overview
Description
Product Parameters
710 series A D V A N T A G E
The series of VDF710 is based on the market demand of small power ,small volume and simple speed regulation, the single-phase 220V AC and three-phase 380V AC smart inverter are introduced. As a small volume inverter, VDF710 series has high power density, high EMC design specifications, high protection performance and other significant advantages, can be widely used in wood sculpture, glass edge grinding, medical centrifuges, automation production lines, electronic equipment, logistics equipment, spindle small
automatic machines
automatic machines
Items | Specifications | ||||||
Input | Rated voltage, frequency | 380V/220V;50/60Hz | |||||
Permissible range of operating voltage | Fluctuation:<＋20%; voltage imbalance rate:<3%; freq fluctuation:<＋5% | ||||||
Output | Voltage | 0~380V/0~220V | |||||
Freq | 0.0~630.0Hz | ||||||
Overloading ability | 150% rated current 1min; 200% rated current 1s; 220% rated current, instantaneous trip. | ||||||
Main control performances and featured functions | Control mode | V/F control(simplified magnetic flux control technology)/advanced magnetic flux vector control | |||||
Modulation mode | Flexible PWM technology | ||||||
Speed range | 1:50 | ||||||
Startup torque | At 3.0Hz,>150% rated torque(VF control),torque response time <50mS At 1.5Hz,>180% rated torque(Advanced magnetic flux vector control),torque response time <20mS | ||||||
Freq accuracy | Digital setting: maxi freq ×＋0.02%; analog setting maxi freq×＋0.1% | ||||||
Freq resolution(step) | Digital setting:0.1 Hz, analog setting: maxi freq × 0.05% | ||||||
Torque boost | Automatically arise torque/ arise torque by hand 0.1%~30.0% | ||||||
V/F curve | 21 modes: linear, 2 squared characteristic curve and V/F curve with multiple dots | ||||||
Speed up/down curve | Linear curve speed up/down: 2 kinds of speed up/down time, longest time: 1 hour | ||||||
DC braking | Startup freq of DC braking:0.00Hz~maxi freq, Braking time:0.0s~30.0s, braking current: 0.0~150.0% rated current of motor | ||||||
Auto voltage regulation(AVR) | When system voltage change, able to keep output voltage constant automatically | ||||||
Compensation of rotation error | Rational setting of compensation for rotation error, can compensate the change of rotation speed due to load, to achieve higher control accuracy of speed | ||||||
Limit the operation current, prevent frequently tripping due to over-current | |||||||
Control of over-voltage speed loss | Limit the operation voltage, prevent frequently tripping due to over-voltage | ||||||
Magnetic flux braking | To achieve shorter speed-down/braking time through this mode | ||||||
Over-modulation | Utilize over-modulation technology for over the basic freq, to get higher voltage output, increase hi-freq output torque of the motor. | ||||||
No stop at instantaneous | When voltage fall down at short time, it can keep inverter busbar voltage constant, to avoid tripping. | ||||||

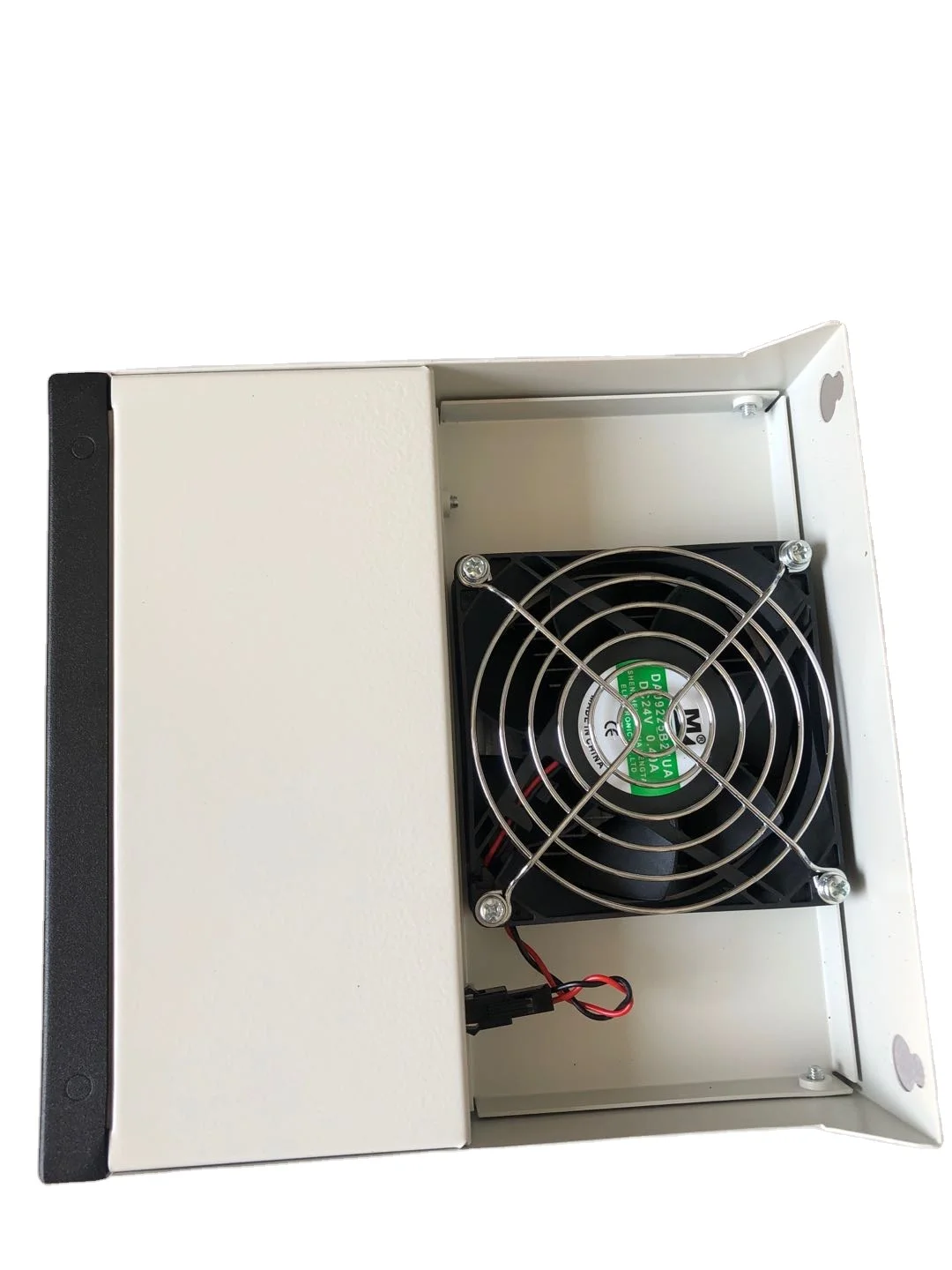

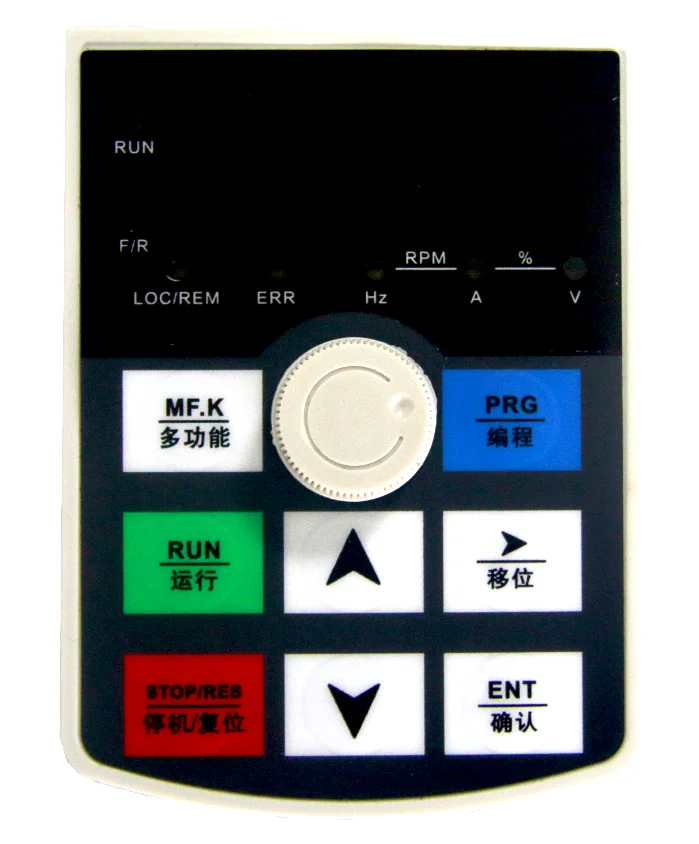

Product Display

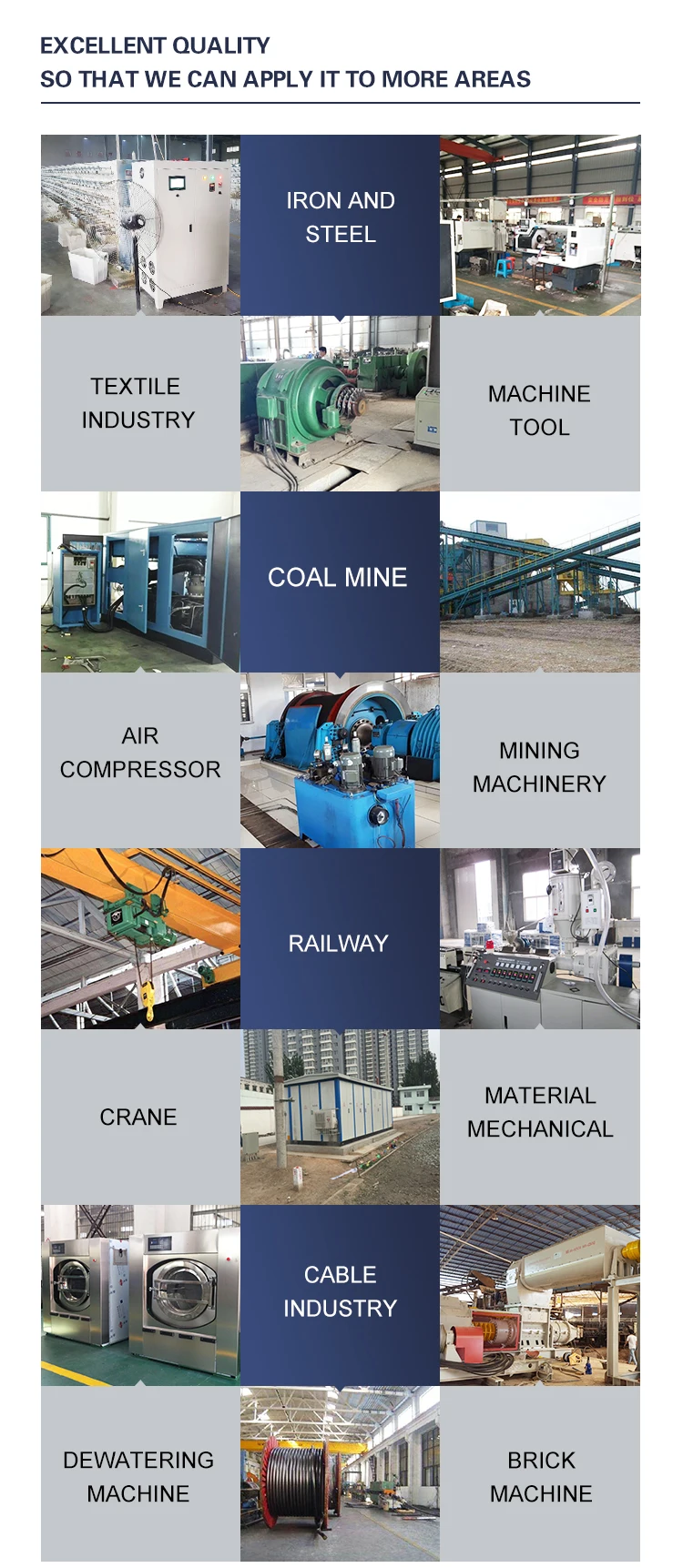

Application

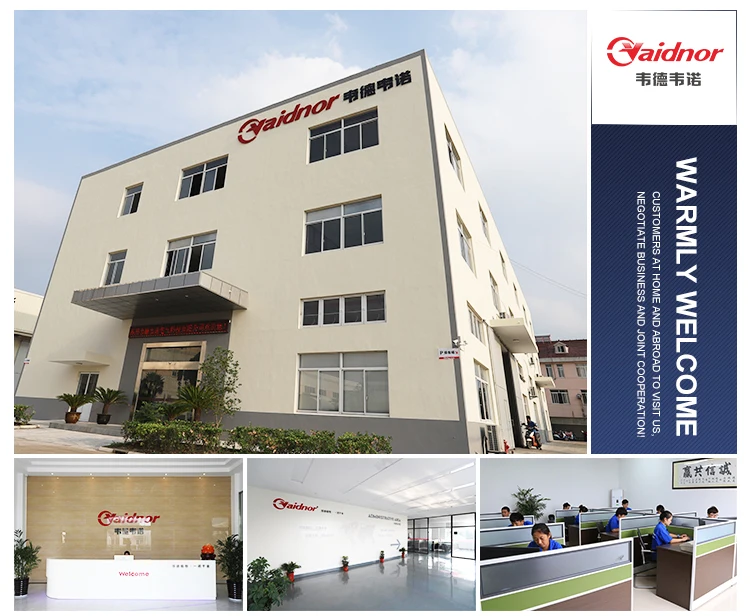

Company Information
Suzhou Vaidnor Electronic Technology Co., Ltd is a modern hi-tech enterprise integrated with professional research, production, and sales of inverters, soft starter, and servo driver.
Our company possesses the intellectual property rights in the field of torque control technology for driving motor, and further involved into technical creation and exchange with international experts, fully control the core technology, meanwhile we have complete production ability.
The product voltage level covers 220V, 380V, 690V, 1140V, capacity range 0.4KW ~ 3MW, also we can design the peculiar products according to user requirements, provide professional guide and after-sales services. Our powerful research and development capacity ensure the products have excellent and reliable performances and different applications

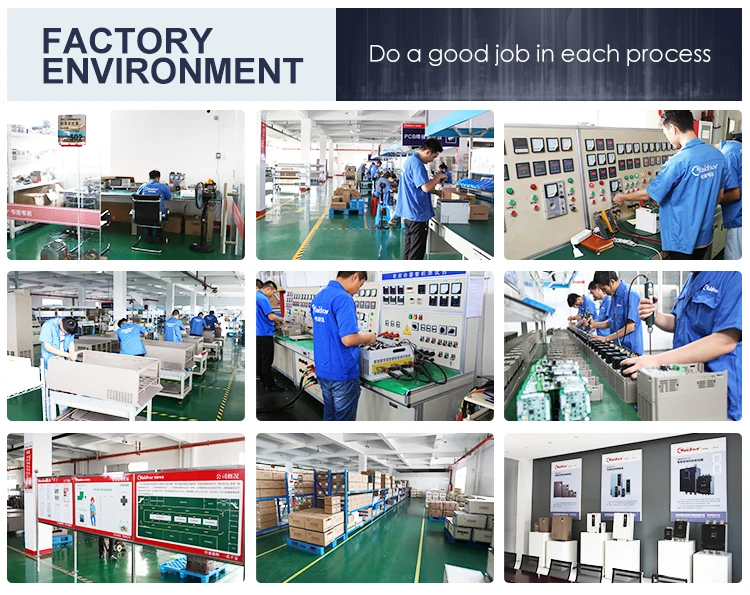

Moreover, our company employed the advanced assembly line, test facilities, packing equipment, hi-temp and aging test room. set up the complete management system of raw material, production, inspection, engineering test. the reasonable production program, strict quality management system can guarantee the quality of our products,which is widely used in machine tool, plastic, printing and packing, textile, construction material, metallurgy, coaling, city projects.
Based on “great virtue and credit”, we continue improving service quality, insists the creation is the essence of development, provides high quality products and excellent after-sales services, all of which are the kernel of our brand. In future, Vaidnor will keep exploitation and improvement, to provide best services for our customers. warmly welcome you to cooperate.
Our company possesses the intellectual property rights in the field of torque control technology for driving motor, and further involved into technical creation and exchange with international experts, fully control the core technology, meanwhile we have complete production ability.
The product voltage level covers 220V, 380V, 690V, 1140V, capacity range 0.4KW ~ 3MW, also we can design the peculiar products according to user requirements, provide professional guide and after-sales services. Our powerful research and development capacity ensure the products have excellent and reliable performances and different applications
Moreover, our company employed the advanced assembly line, test facilities, packing equipment, hi-temp and aging test room. set up the complete management system of raw material, production, inspection, engineering test. the reasonable production program, strict quality management system can guarantee the quality of our products,which is widely used in machine tool, plastic, printing and packing, textile, construction material, metallurgy, coaling, city projects.
Based on “great virtue and credit”, we continue improving service quality, insists the creation is the essence of development, provides high quality products and excellent after-sales services, all of which are the kernel of our brand. In future, Vaidnor will keep exploitation and improvement, to provide best services for our customers. warmly welcome you to cooperate.
Exhibition
Certificate
Logistics Customer Service
FAQ
Q1: Are you the manufacturer?
A: Yes,we are manufacturer have more than 5 years' experience in this industrial-driver field.More than 7 producing lines,and more
than thirty colleagues.
Q2: what kind of certificate you have ?
A: We have ISO9001, CCC, CE.
Q3: What kind of product quality your factory offer?
A: We offer most competitive prices with best quality.
Q4: Do you accept OEM business?
A: Yes,include User-manual,up-cover,labels,outer box.Please email us that what you want to print.
Q5: How to choose right inverters?
A: Tell us your demands and concerns , we will consult our engineer and adapt the right device for you.
Q6: Which market do you already sell?
A:We already ship to Europ, Middle East, South America, Asia, Afria etc.
Q7: What is your delivery date?
A:We have ready stocks,the delivery date is under 2 days after
A: Yes,we are manufacturer have more than 5 years' experience in this industrial-driver field.More than 7 producing lines,and more
than thirty colleagues.
Q2: what kind of certificate you have ?
A: We have ISO9001, CCC, CE.
Q3: What kind of product quality your factory offer?
A: We offer most competitive prices with best quality.
Q4: Do you accept OEM business?
A: Yes,include User-manual,up-cover,labels,outer box.Please email us that what you want to print.
Q5: How to choose right inverters?
A: Tell us your demands and concerns , we will consult our engineer and adapt the right device for you.
Q6: Which market do you already sell?
A:We already ship to Europ, Middle East, South America, Asia, Afria etc.
Q7: What is your delivery date?
A:We have ready stocks,the delivery date is under 2 days after
