Automatic saw blade sharpnging machine,circle balde sharpending machine GD 127B
- Category: >>>
- Supplier: Dongguan Qiandao Precision Machinery Manufacture Co. Ltd.
Share on (60841032375):
Product Overview
Description

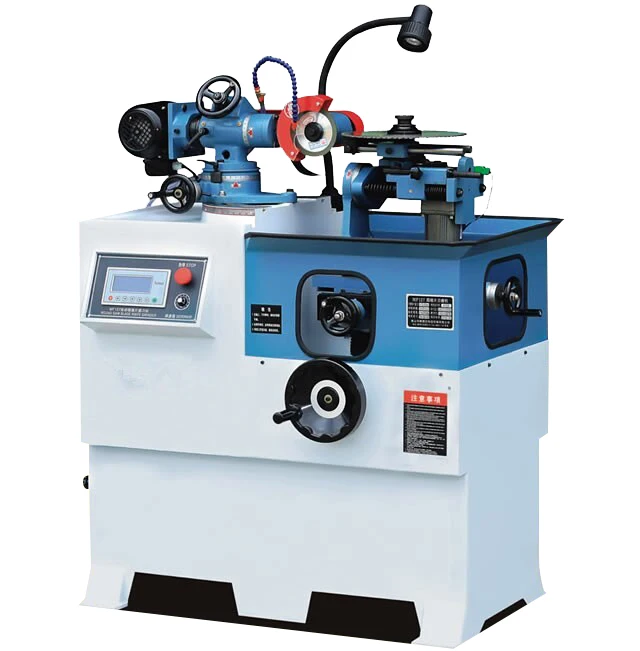

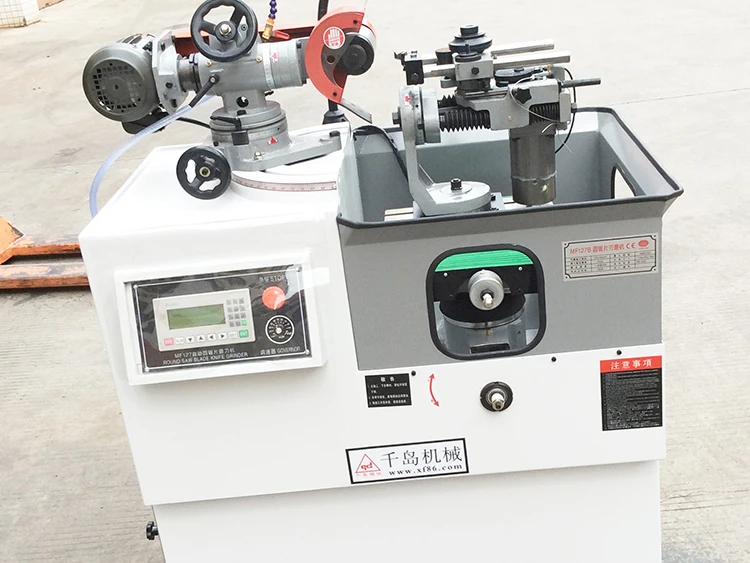

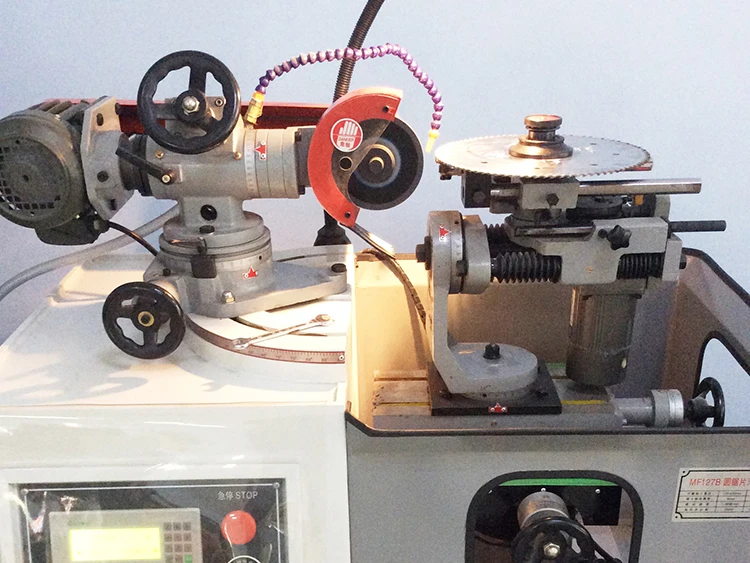

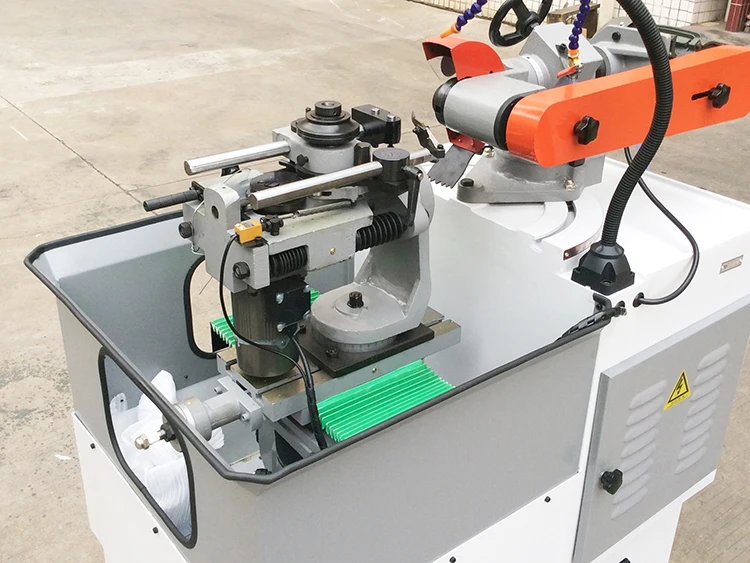

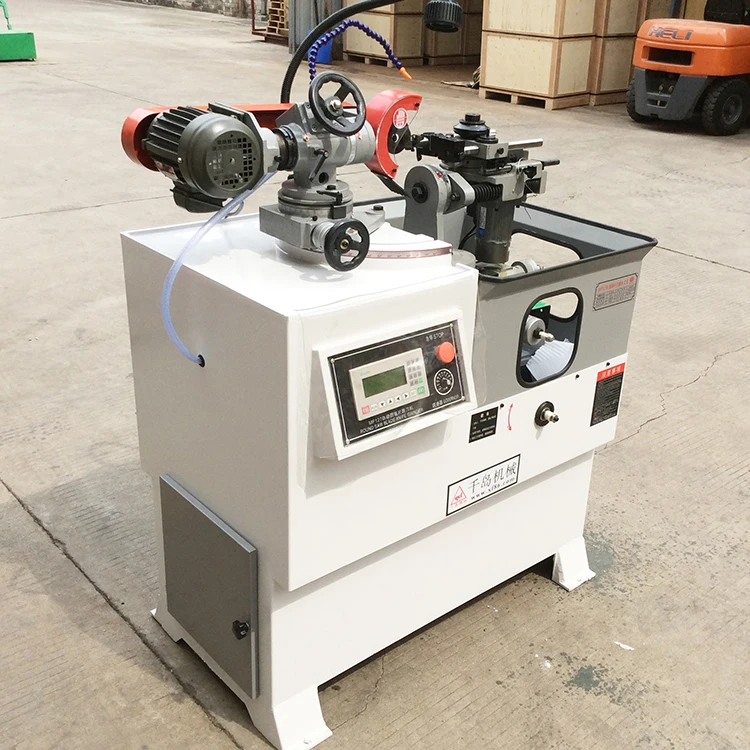

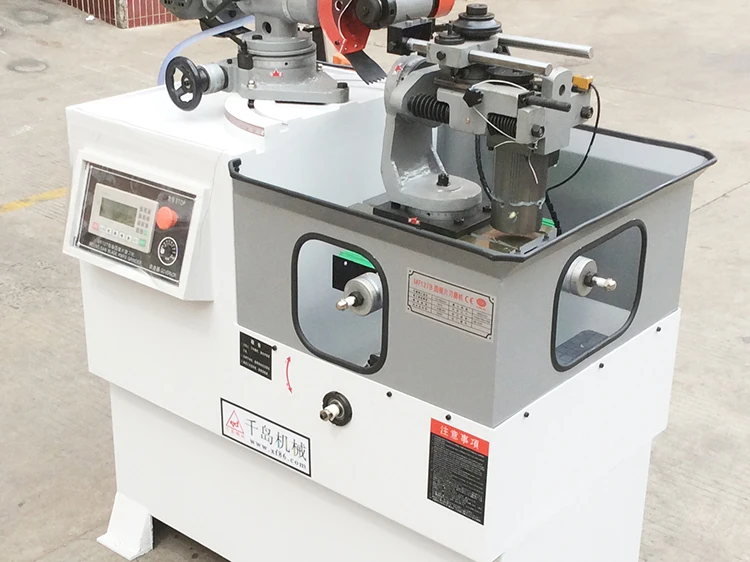

GD-127B Circular saw blade grinding machine
Feature:
This machine mainly used for grinding carbide cutting saw blades's various angles.
Such as teeth surface,teeth top,teeth bevel, bevel gear.
Parameter:
Diameter of grinding Saw blade: | Φ125~Φ500mm
|
Applicable Grinding Saw Blade Aperture: | Φ16,Φ20, Φ22, Φ25, Φ30, Φ40, Φ50, Φ60mm. |
Max.Sawtooth Depth: | 8mm |
Max.Grinding Wheel Diameter: | Φ125,Φ150mm |
Grinding Wheel Aperture: | Φ32mm |
Max.Angle: | 30° |
Wheel Size: | 10*32*125(mm) |
Grinding Wheel Spindle Rotate Speed: | 5800R.M.P
|
Grinding Wheel Motor Power: | 550W |
Feed Motor Power: | 60w |
Voltage: | Three-phase 380v |
Electric Power Speed: | 0~24°teeth/min(Infinite Variable Speed) |
Weight: | 290KG |
Package Size: | (LxWxH)1100x850x1380mm |
