GSM 12dbi long rang wifi wireless omni fiberglass antenna
- Category: >>>
- Supplier: Foshan Huarongtong Antenna Co. Ltd.
Share on (60841039744):
Product Overview
Description
GSM 12dbi long rang wifi wireless omni fiberglass antenna
Application:
GSM 900MHz
cellular mobile communication system
repeater outdoor omni antenna
Network optimization
Features:
Low VSWR ,High gain
Fiberglass material
Full day working
Steel mounting kit
Specification:
Category | Fiberglass antenna |
Model | TQJ-900B |
Frequency range-MHz | 890~960 |
Bandwidth-MHz | 70 |
Gain-dBi | 12 |
Vertical Beamwidth-° | 7 |
VSWR | ≤1.5 |
Nominal impedance-Ω | 50 |
Polarization | Vertical |
Maximum power-W | 100 |
Dimensions-m | 2.6 |
Weight-kg | 2.5 |
Wind strength-m/s | 60 |
Connector | N female or user specified |
Rod diameter-mm | Φ35~50 |

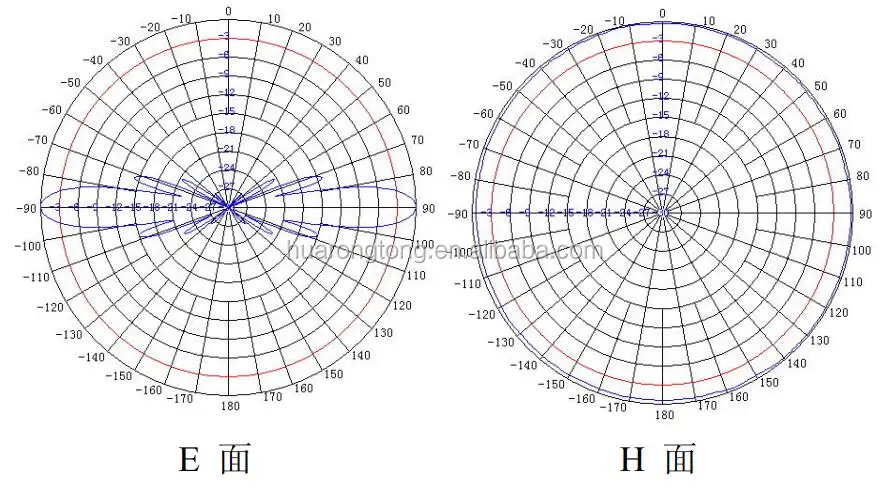

Pattern for reference
some application case
we have our own factory ,we also have professional R&D team
1. Quality control: most of products have UL CE , certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time : 2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 2 Year Warranty.
6. OEM/ODM service.
7. We are available with Alibaba Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
If you are interested in our product ,please feel free to contact us
