Product Overview

Description


Product Description

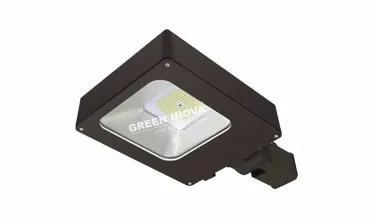

6th Gen. Slim Profile LED Shoebox

65W 105W 140W 180W 210W 280W LED shoe box parking lot lights are designed to enhance safety and free maintenance with 10KA surge protection as standard. It features toughened, UV stablized glass cover structure, more sturdy, solid for longer durability. Power option is upgraded to 65W/105W/140W/210W/300W, replacing High Pressure Sodium & Metal Halide fixtures of up to 1000W. It's a 360° energy saving solution with a long L70 lifespan of 100,000 hours.

Energy saving up to 80% by utilizing functional sensors such as 0-10V dimming, motion sensor and photocell sensor. Methods of installation have been increased to 4 options: Straight arm mount, Slip fitter mount, Trunnion mount, Yoke mount.

Specification chart of 65W 105W 140W 180W 210W 280W LED shoe box parking lot lights:

\t
Item No.
\t
6SB65L(c)(d)1P(i)
\t
6SB105L(c)(d)1P(i)
\t
6SB140L(c)(d)1P(i)
\t
6SB180L(c)(d)1P(i)
\t
6SB210L(c)(d)1P(i)
\t
6SB300L(c)(d)1P(i)
\t
Wattage
\t
65W
\t
105W
\t
140W
\t
180W
\t
210W
\t
300W
\t
Lumens
\t
7,800 LM
\t
12,495LM
\t
16,800 LM
\t
21,600LM
\t
25,200 LM
\t
36,050LM
\t
Replacement
\t
250W MH/HPS
\t
350W MH/HPS
\t
450W MH/HPS
\t
550W MH/HPS
\t
750W MH/HPS
\t
1000W MH/HPS
\t
Input Voltage
\t
AC100-277V/347-480V
\t
Distribution
\t
Type III, Type V optional
\t
CCT
\t
4000K/4500K/5000K
\t
CRI
\t
>73
\t
Power Factor
\t
>0.9
\t
Operating Temperature
\t
-25-40ºC
\t
Sensors
\t
Photocell sensor; Dimming motion sensor; Remote controller optional
\t
Surge Protection
\t
10KA surge protection as standard
\t
Mounting Options
\t
Straight arm pole, Slip fitter, Trunnion, Yoke
\t
IP Rating
\t
IP65
\t
Certification
\t
UL/cUL listed, applying utility certificates
\t
Warranty
\t
6 years
Our Advantages

Electrical Advantages:

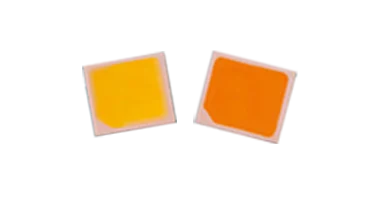

1. High quality LED chips.
2. Market-leading efficiency up to 130LM/W.
3. Top quality MeanWell driver or UL driver.
4.100-277V & 347-480V available for all items.

Structure Advantages:

1. Aesthetically designed housing with corrosion resistant polyester powder coating.
2. Reflector: Anodic Oxidation reflector of high reflective rate.
3. Cover: Toughened, UV stabilized glass cover.
4. Screws: SUS316 stainless steel screws, stronger ability to resist corrosion.
5. Heat Sink: Die-casting aluminum features excellent heat dissipation.

Multifunctions:

1. 0-10V dimming.

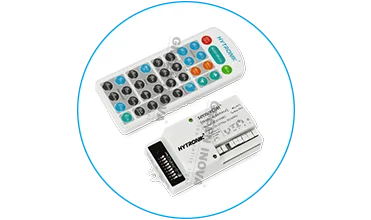

2. Sensors: photocell, microwave sensor (compatible with remote controller).
3. 10KV Surge Protection as standard.

Distribution

Type III, Type V Light Distribution optional for 65W 105W 140W 180W 210W 280W LED shoe box parking lot light.

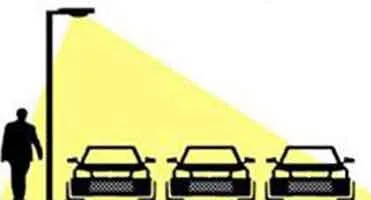

Type III

Type V

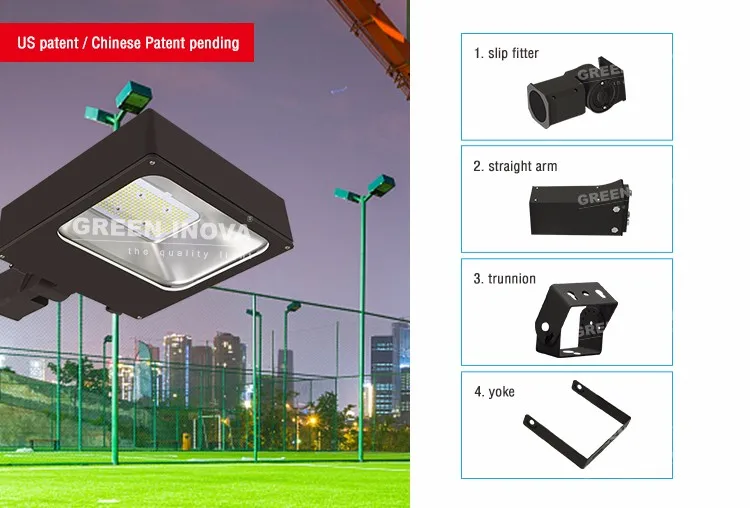

Installation Ways

Four installation ways optional for 165W 105W 140W 180W 210W 280W LED shoe box parking lot light:

1. Straight arm pole (Our patent pending design, it can be installed by one person only.)

2. Slip fitter

3. Trunnion

4. Yoke

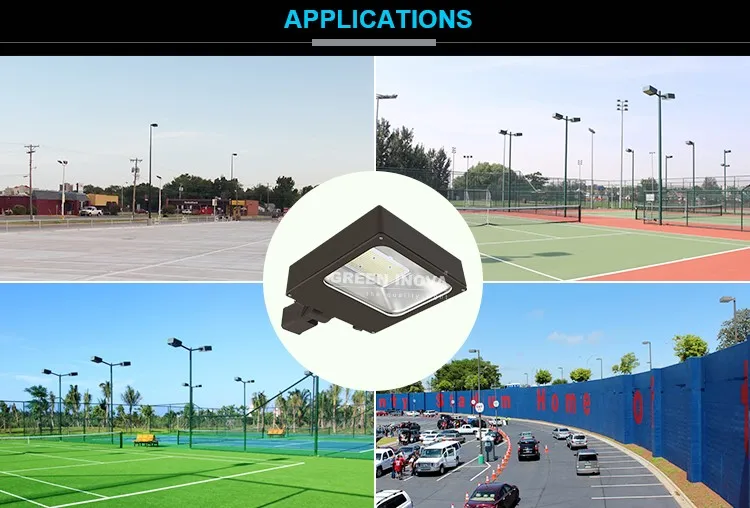

Application

65W 105W 140W 180W 210W 280W LED shoe box parking lot lights are ideal for outdoor lighting applications such as parking lots, automotive dealerships, roadways, schools, parks, etc.

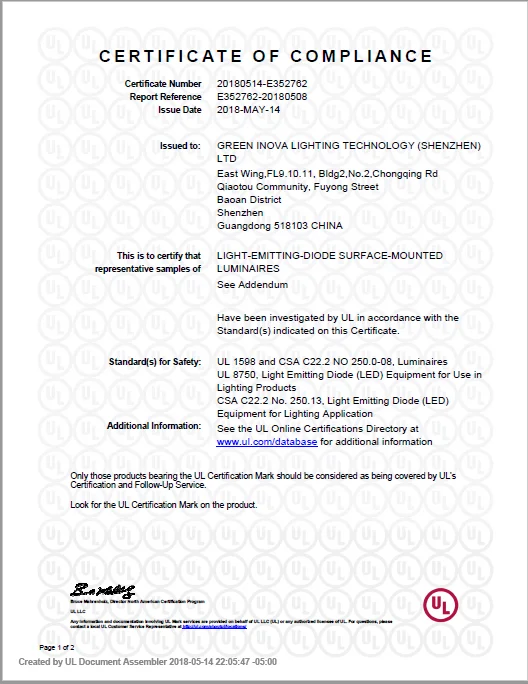

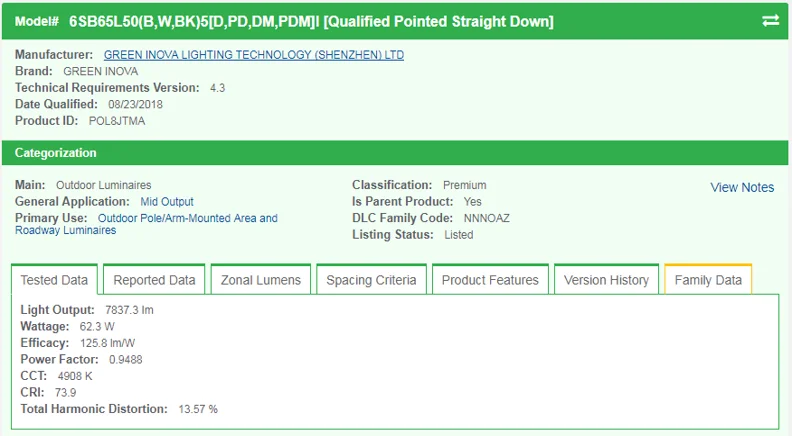

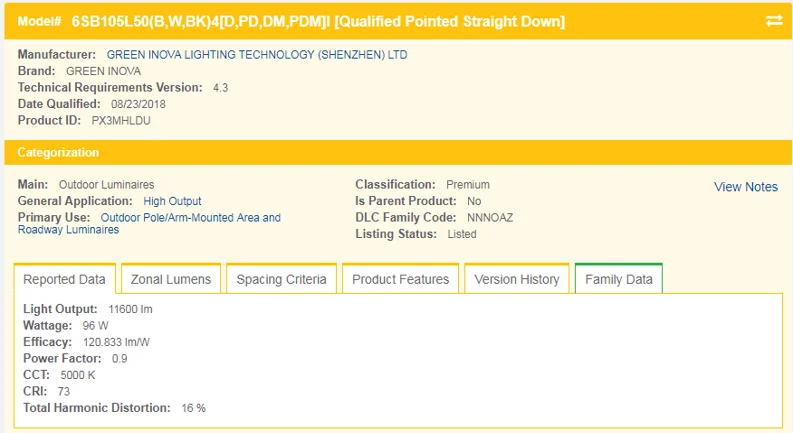

Certifications
Company Information

Green Inova's 6th Generation Canopy Light is designed with optical lens distributing more uniform light for various applications. Wide wattage options of 20W/30W/40W/55W/80W and high luminous efficacy of up to 139LM/W, replacing metal halide/high pressure sodium of 100~400W with a 100,000 hours lifespan.

The concise and elegant housing features an impressive design, allowing hand-free wiring connection. Optimized thermal management system and separated drivers from heat sink maximizes the fixture's lifespan with a thoughtful construction.

50% labor cost saving for quick maintenance & installation for 6th Gen, widely used for parking garage lighting, stairway security lighting, pathway lighting, entryway and shopping area walkway lighting and other locations where heavy pedestrian traffic makes maintenance difficult.

Qaulity Control

IQC

1.Most stringent raw material selection.
2.100% inspection of incoming raw materials.

IPQC

1. Testing all PCB after soldering with electricity.
2. Integrating sphere testing.
3. Waterproof testing.
4. Cooling effect testing.
5. 100% 48 hours aging testing(72 hours for high voltage products).

FQC

1. 100% appearance checking
2. 100% label checking
3. 100% function checking

Green Inova Services

1.Customize services are available when needed. OEM/ODM available.

2.More than 8 years experience R&D and sales engineers would offer best lighting solution for projects.

3.Best after services:Time tracking of customers' usage, collect information to improve,fast action of dealing with problems in 48 hours.

4.Quick action of technical support and maintenance.
