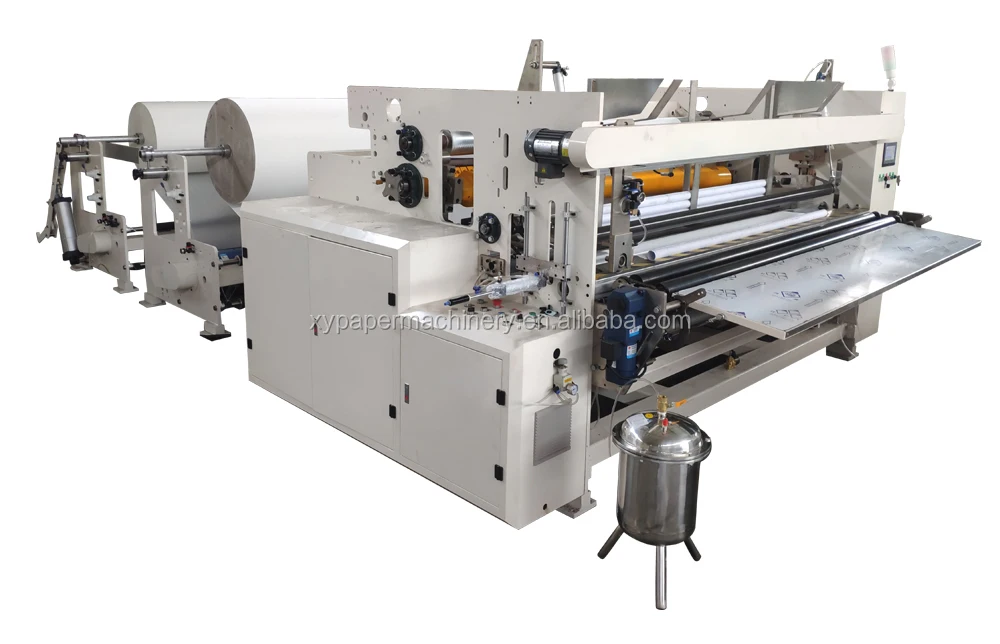

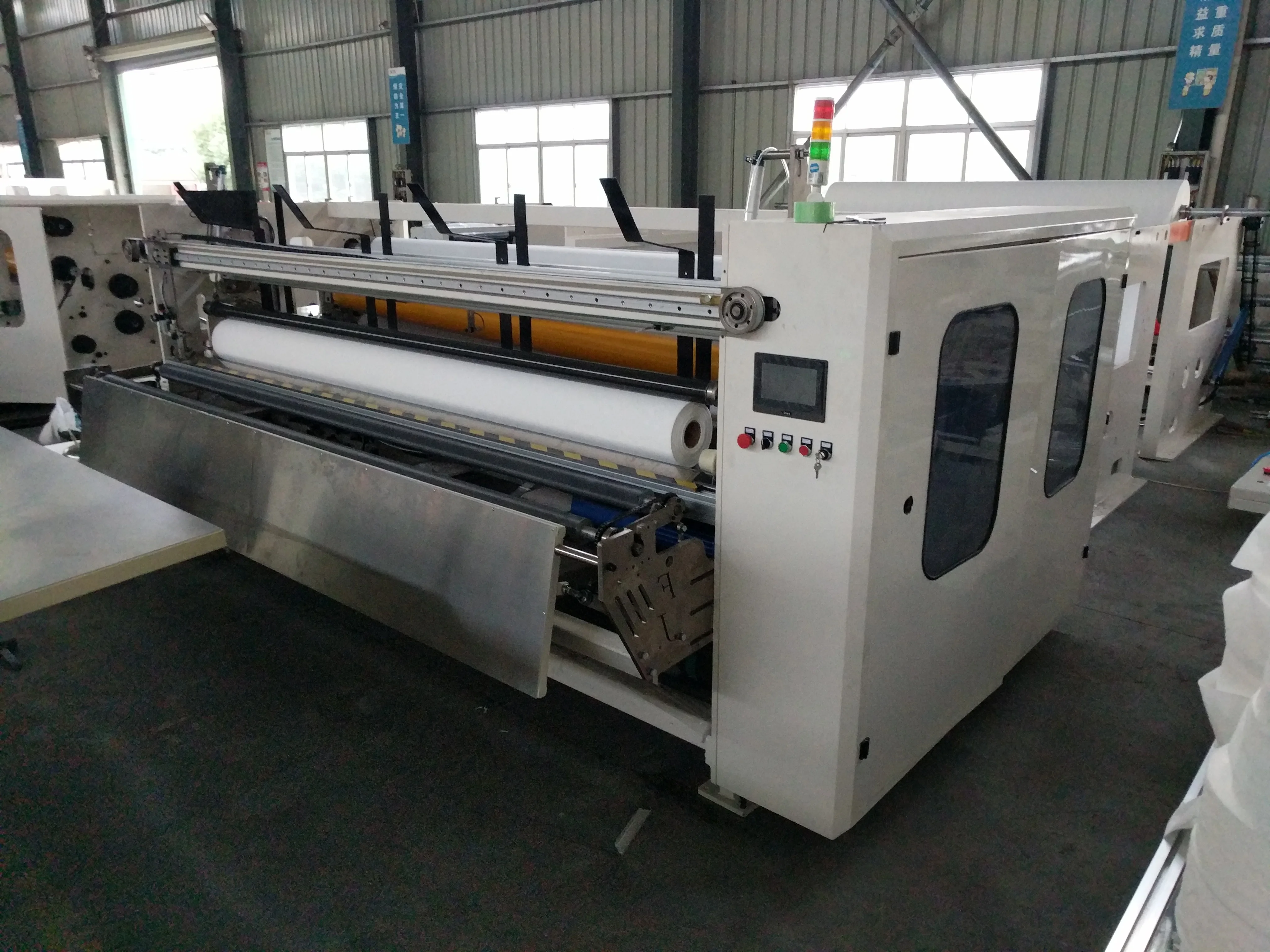

Small business toilet paper manufacturing machine XY-TQ-B
Product Application

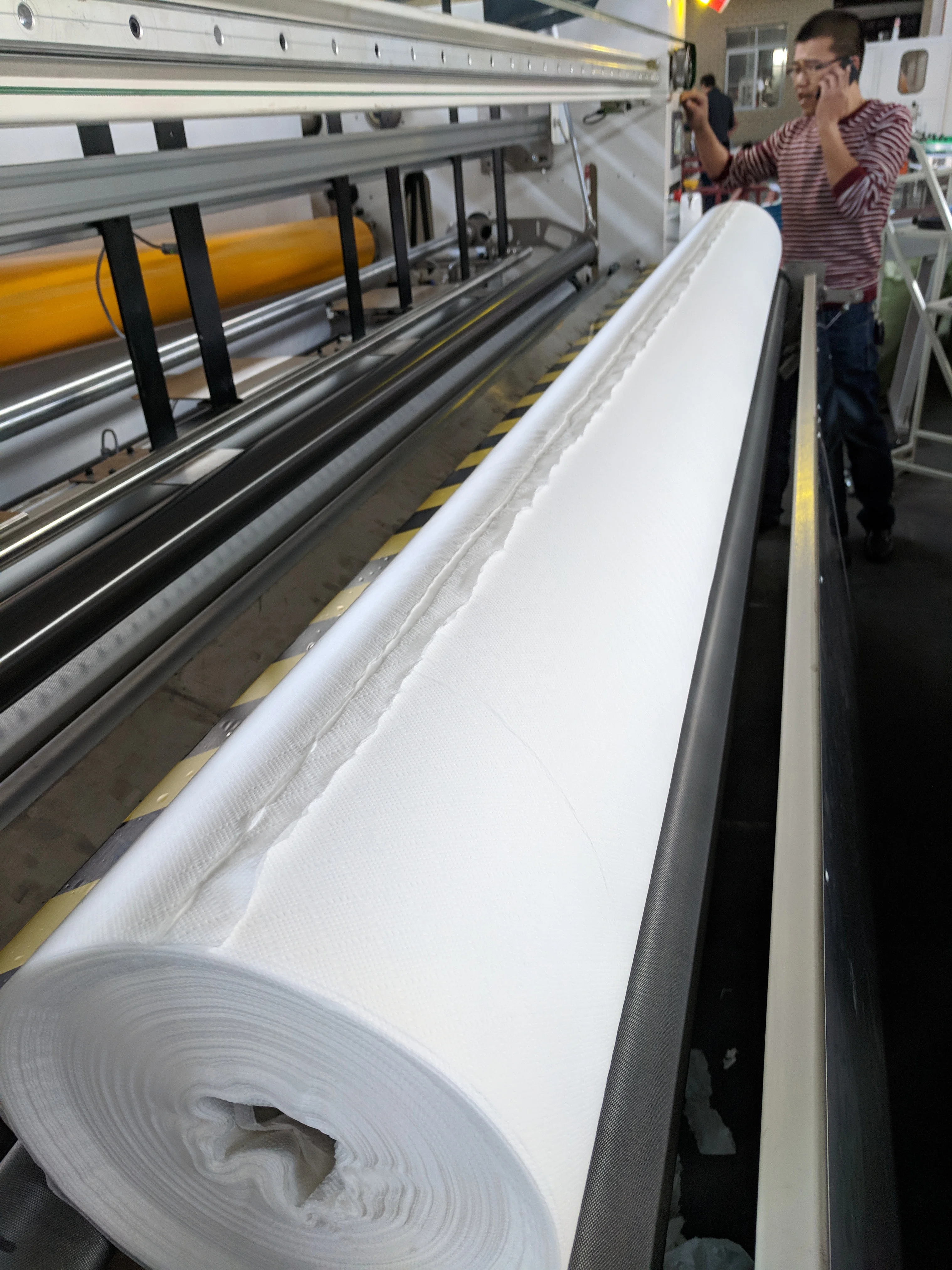

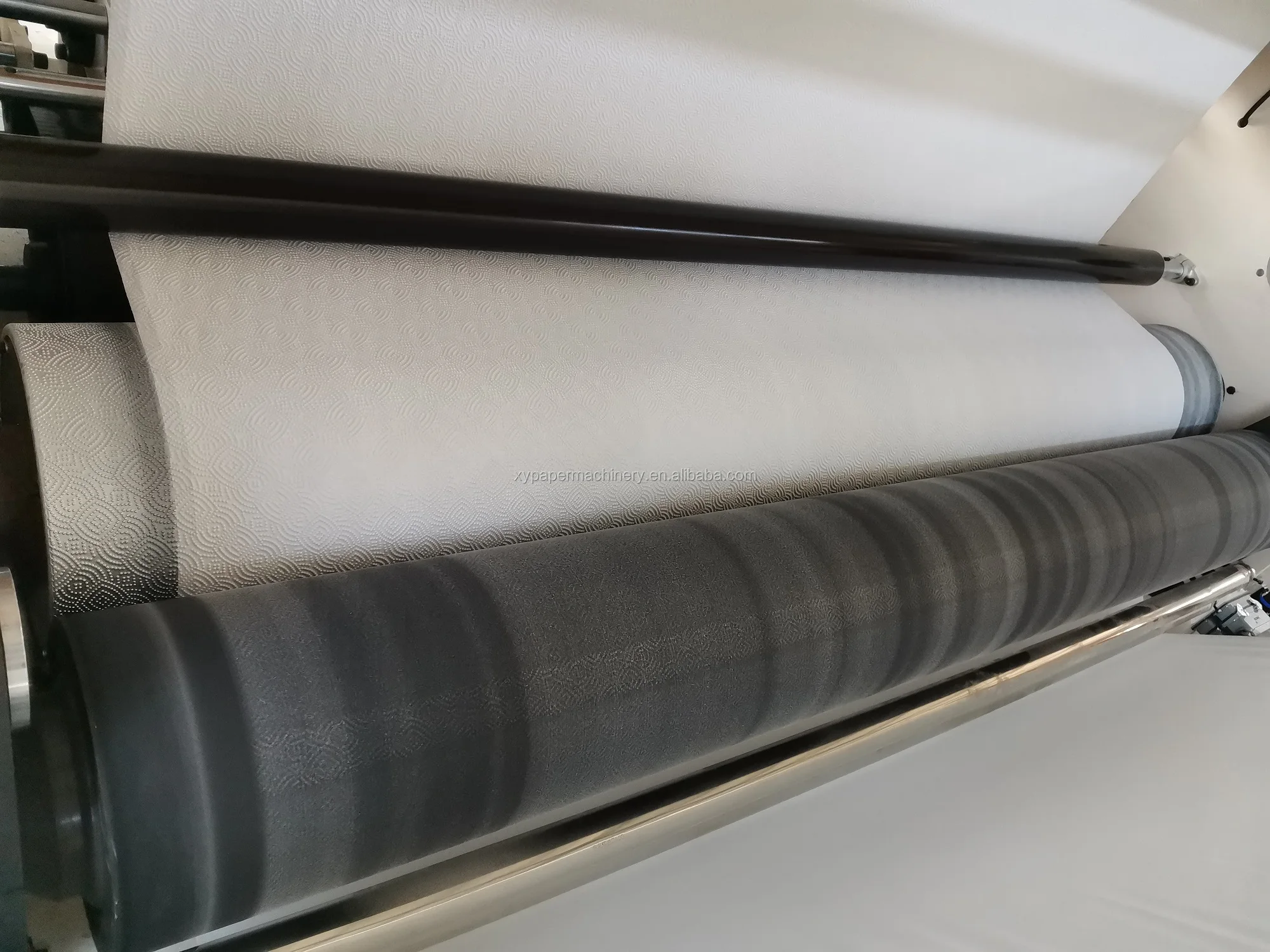

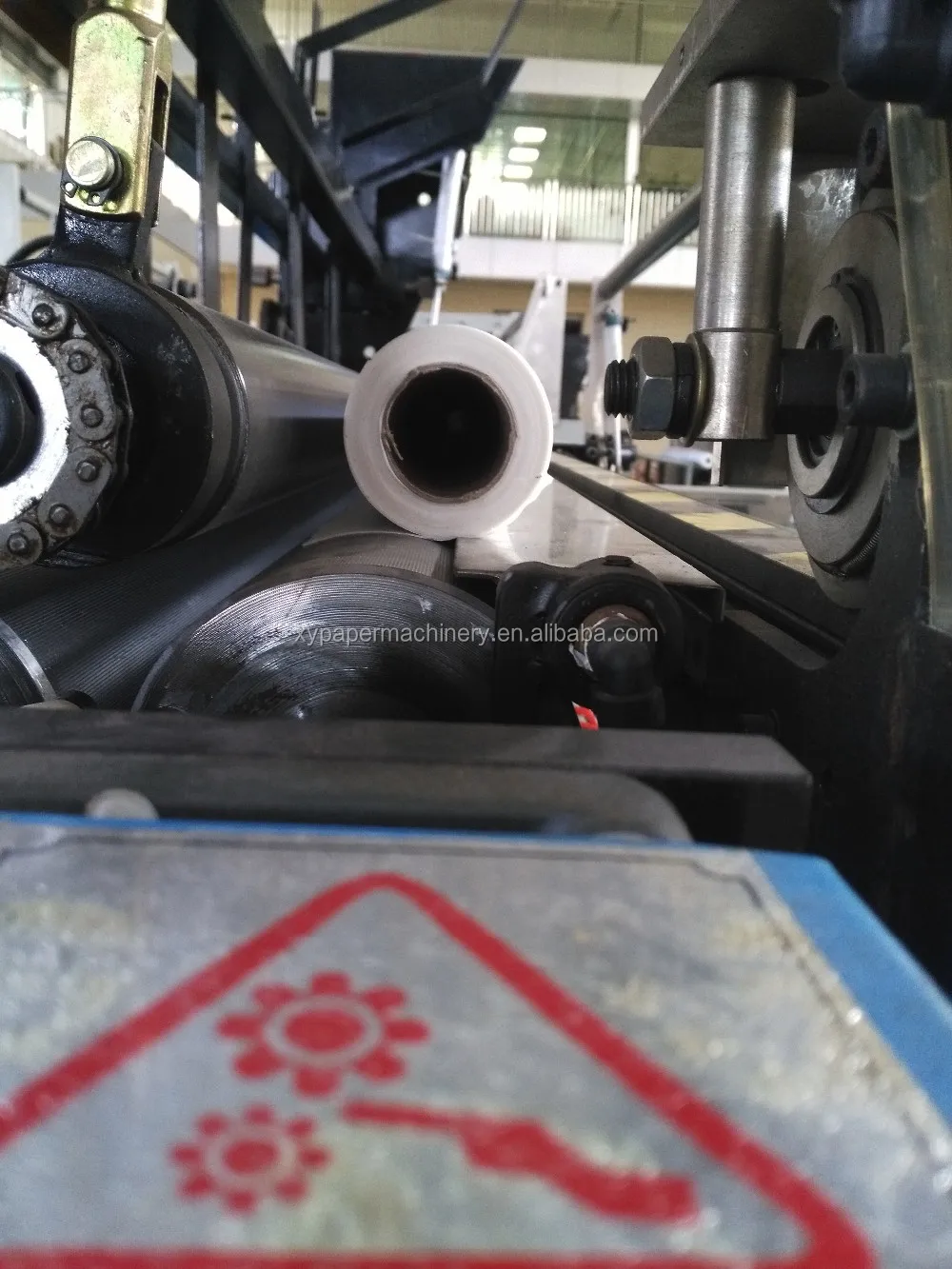

Automatic Wrapper Type High Speed Toilet Paper /Maxi Roll Rewinding Machine is for toilet paper roll/maxiroll processing. Machine have core feeding unit. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

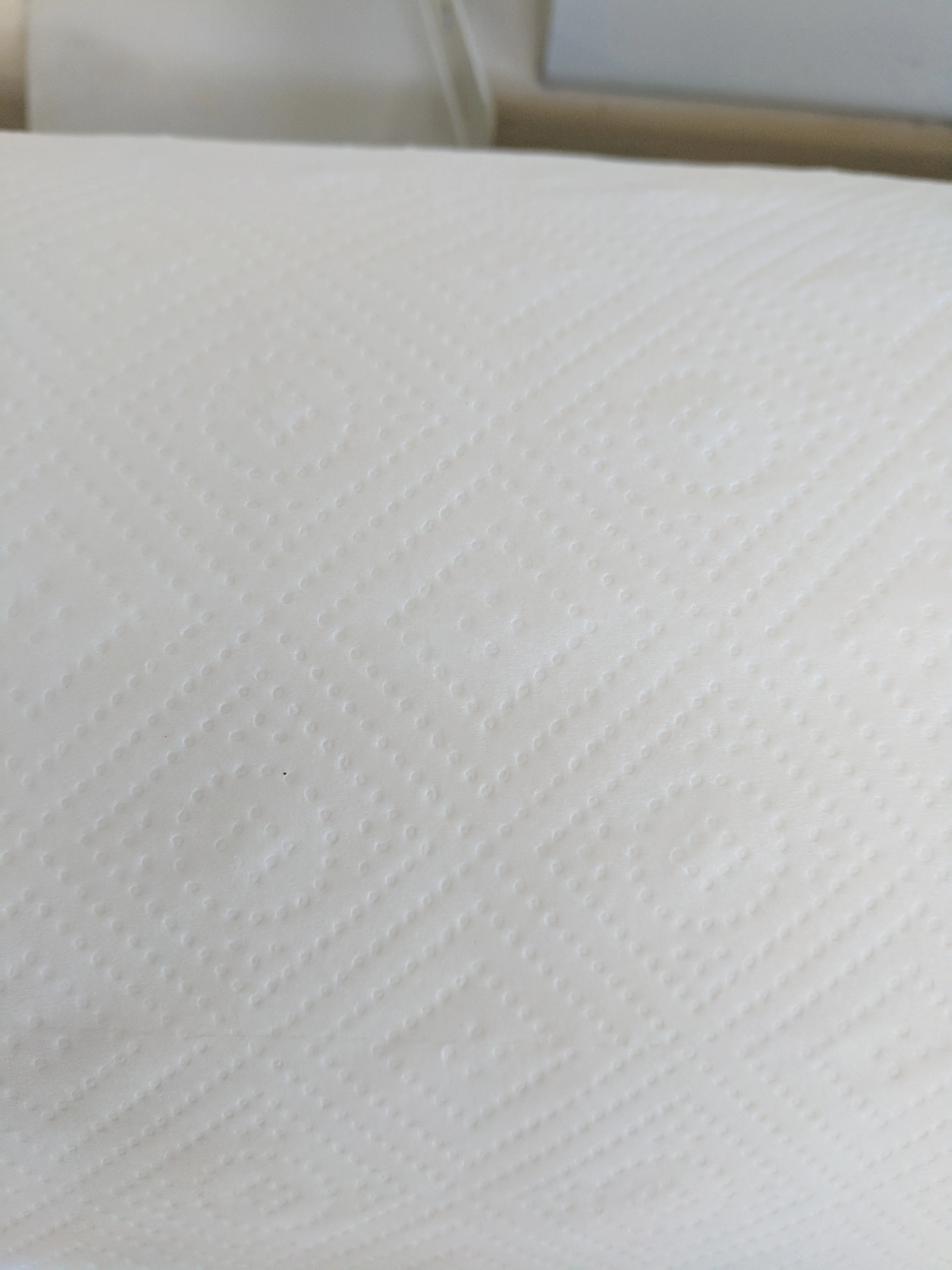

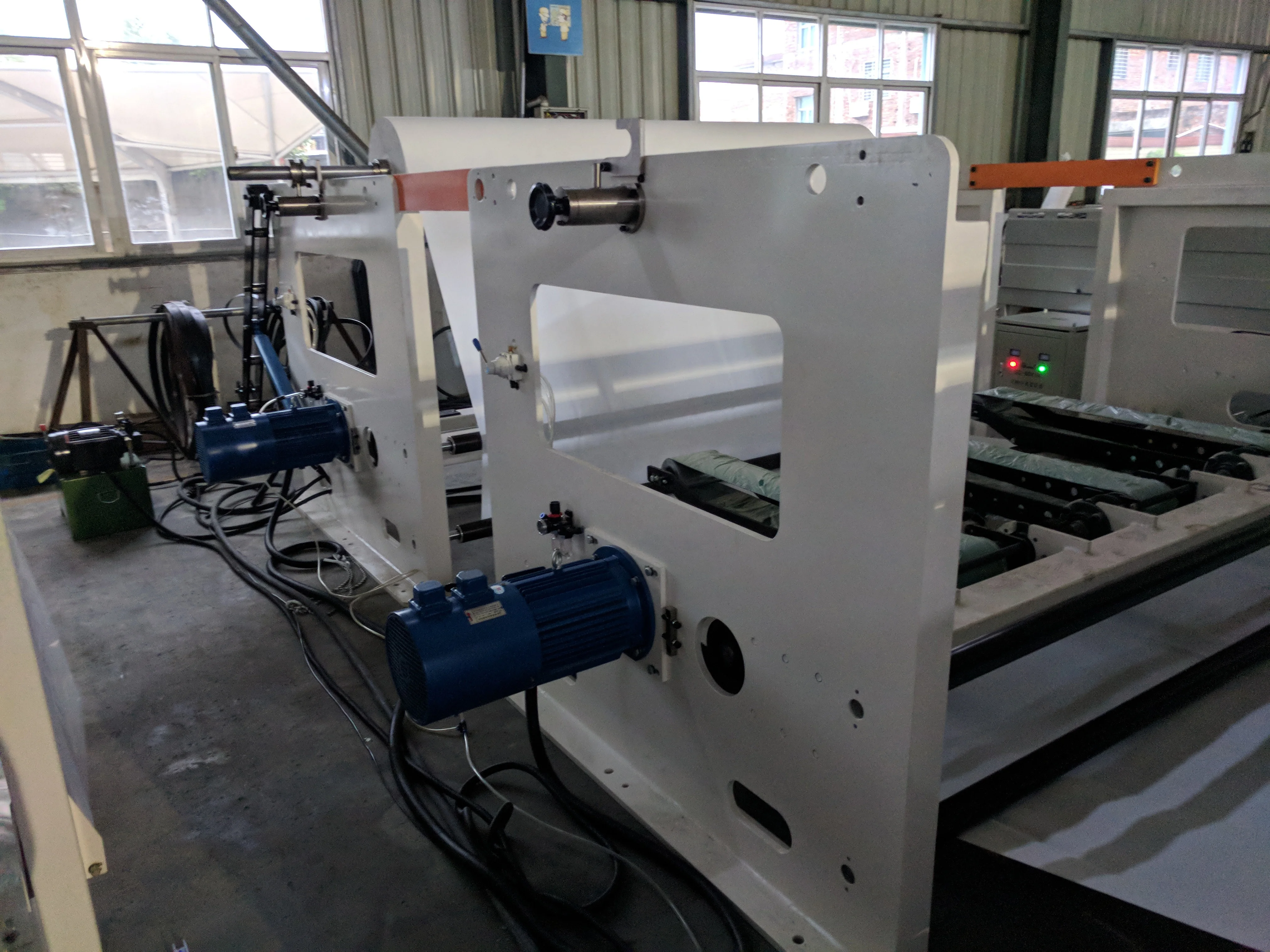

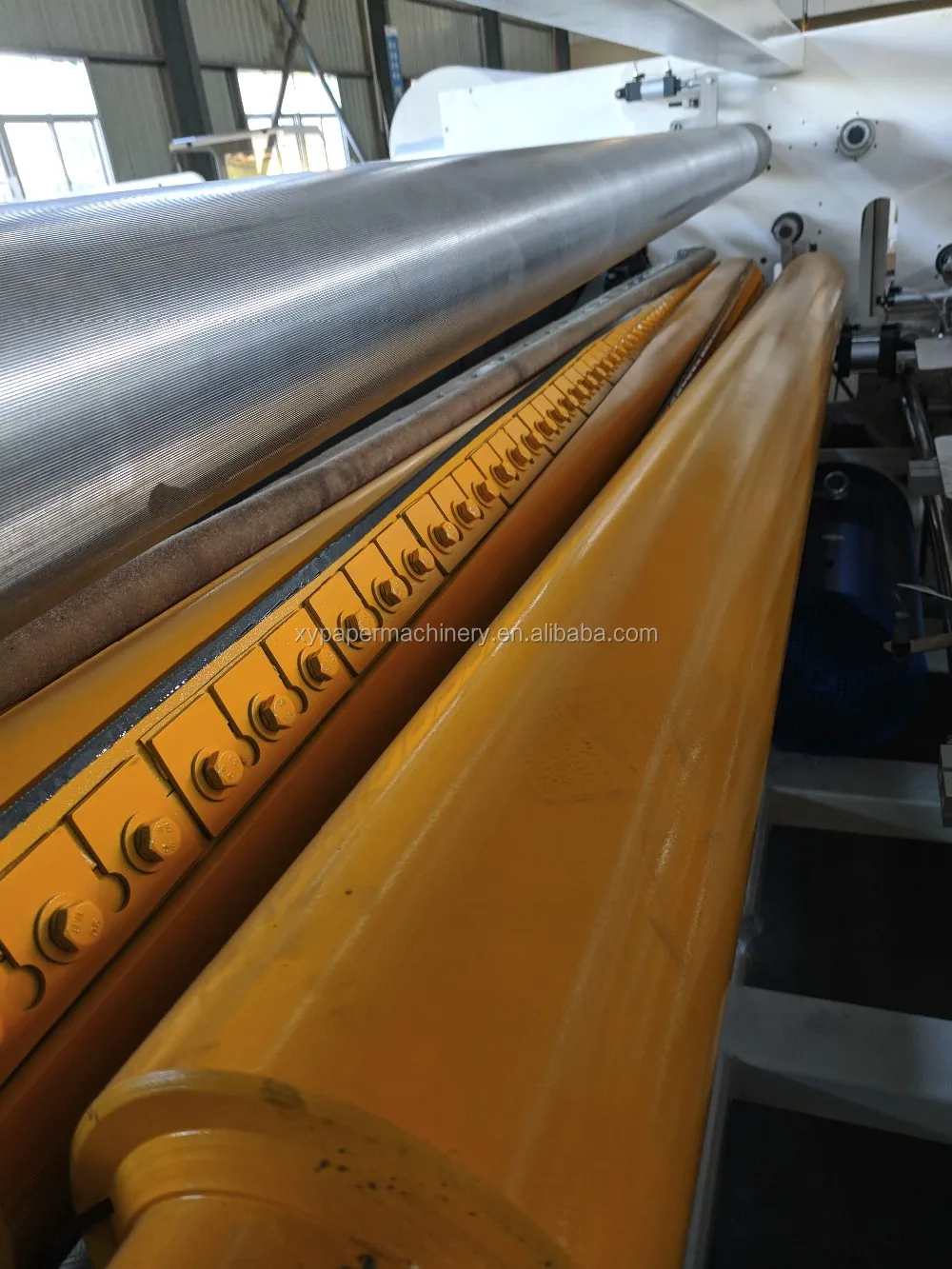

Function and Features: 1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless. 2. Perforation distance is adjustable to meet different distance needs. 3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again. 4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost. 5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen. 6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range. 7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently. 8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Video Link: https://youtu.be/hSpFOJYgueA
https://youtu.be/Zm8wNMsR4pc
The width of jumbo roll paper
1200-2800 mm
Jumbo roll diameter
Φ1200mm
Jumbo roll inner core diameter
3inches(76.2mm)(Other size can be specified)
Finish product diameter
Φ80-φ280mm
Finish product Inner core diameter
φ38-φ76mm
Production Speed
0~230m/min
Perforation Distance
4 anvil Blades(115mm)(Other size can be specified)
Program Controller
PLC

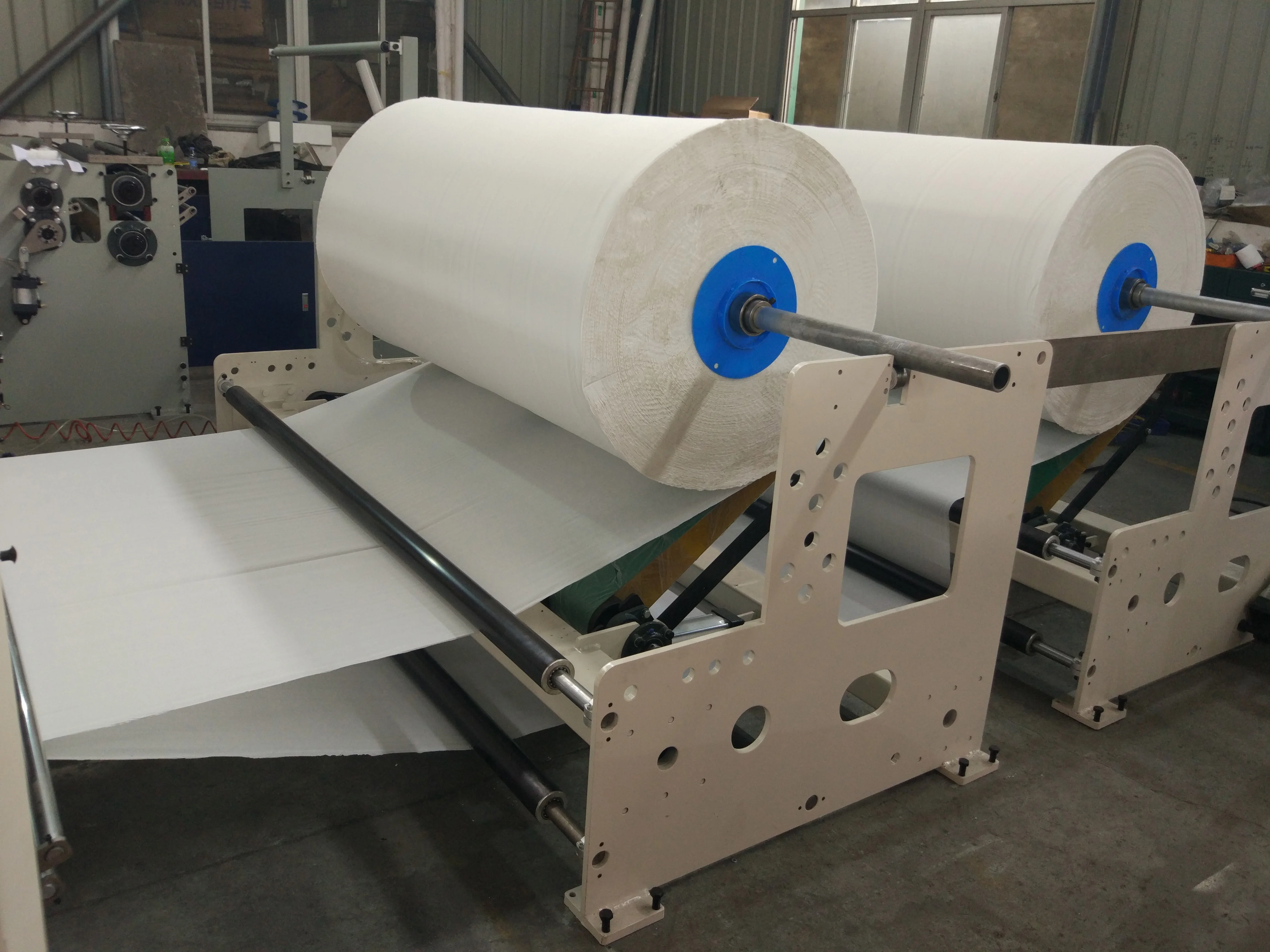

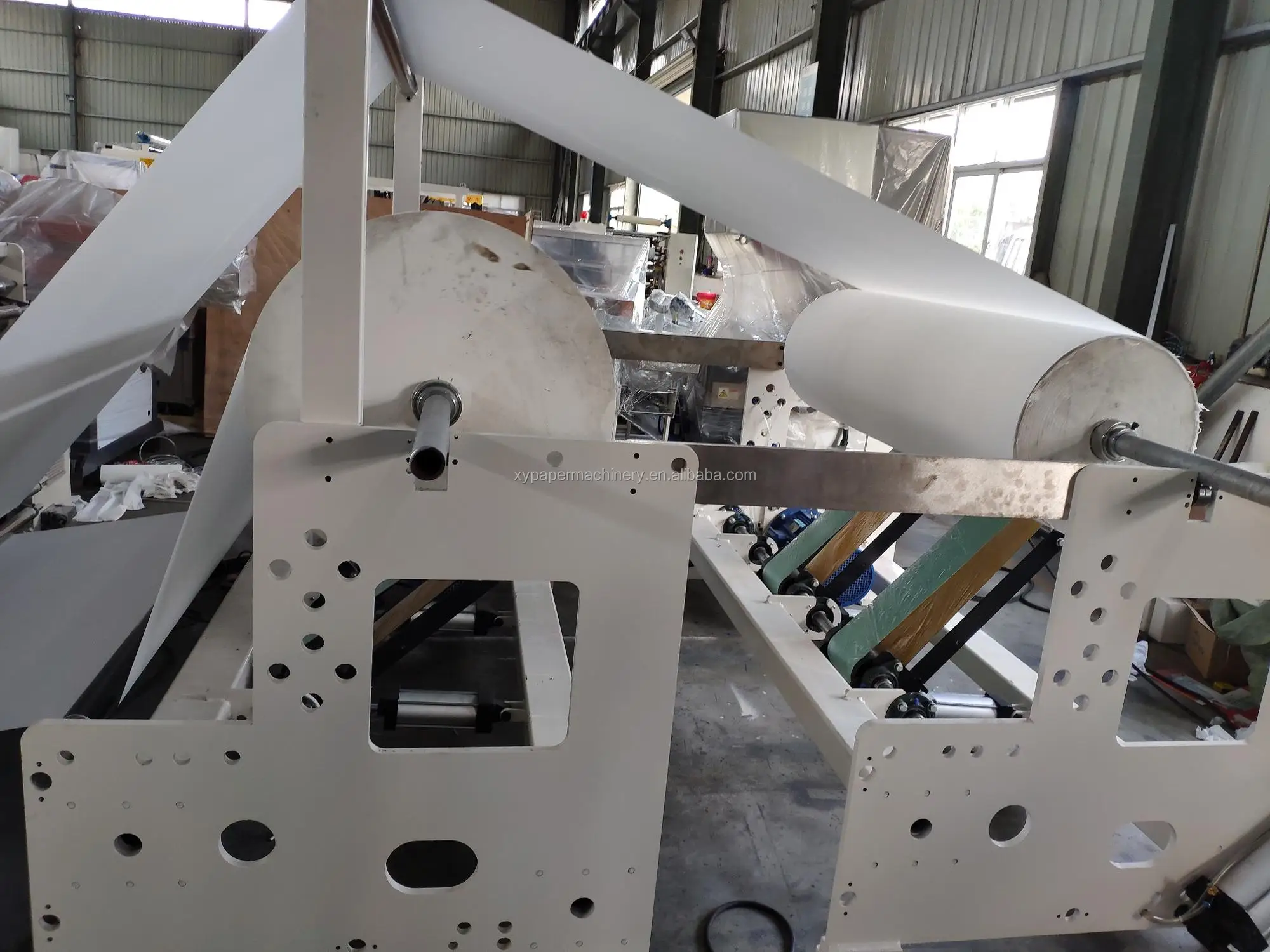

Unwind Stands
2 or 3 Stands(Need to be specified)
Pneumatic System
3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ? 1. Good quality of machine with reasonable price. 2. Good service: Any question from customer will be reply within 24 hours For all the machines we sell, we will offer two-years guarantee for free and all life maintenance. We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy. After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
Workshop
Our Company
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of: 1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
