250 300b/min 600ml Bottle cooling machine with 12 15min cooling time sterilizer

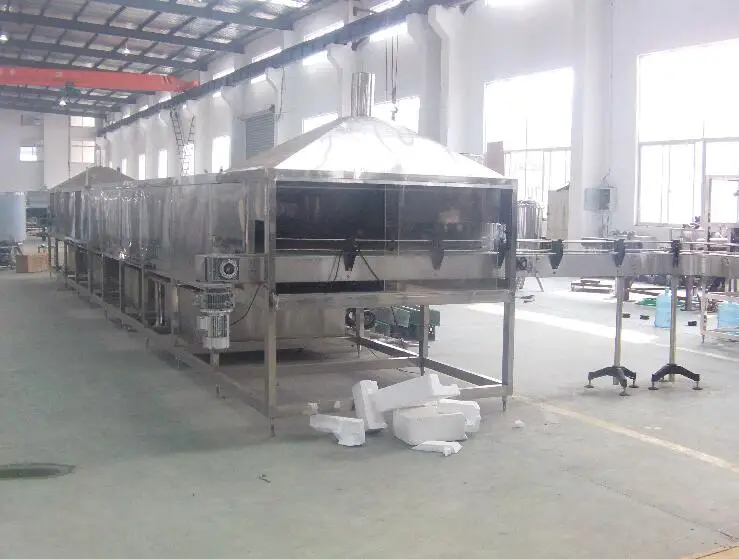

 Bottle cooling machine
1, Processing type: Plastic, Glass bottled juice, Ice tea sterilizing and cooling machine
2, Cooling and sterilizing material: Pure water
3, Material: SUS304
4, Different temperature zones
5, Capacity: 15000BPH for 500ml plastic bottled juice

 This machine is integrated with those new and advanced technologies applied to most of the popular cooling equipment in the world. The newly version thanks to the three-stage disposal of the cooling water circulation, the cooling time of which can be frequency controlled according to users requirements. It can give ideal cooling effects to all kinds of non-carbonated beverage, such as tea, wine, sauce, vinegar, juice and other beverages. The smoothing and abrasion-proof chain plates, the intellectualized microcomputer control parts from OMRON (Japan), the beautiful and cleanly body is made by SUS304 stainless steel, ensure the reliable, stable operation and beautiful appearance.

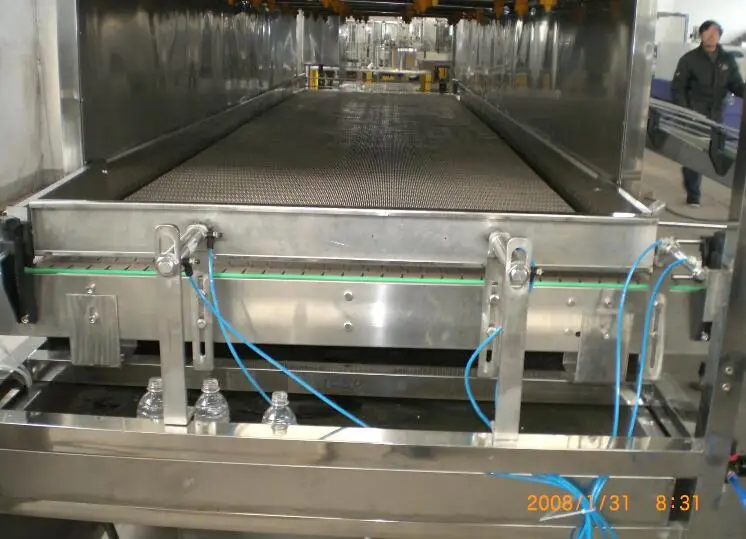

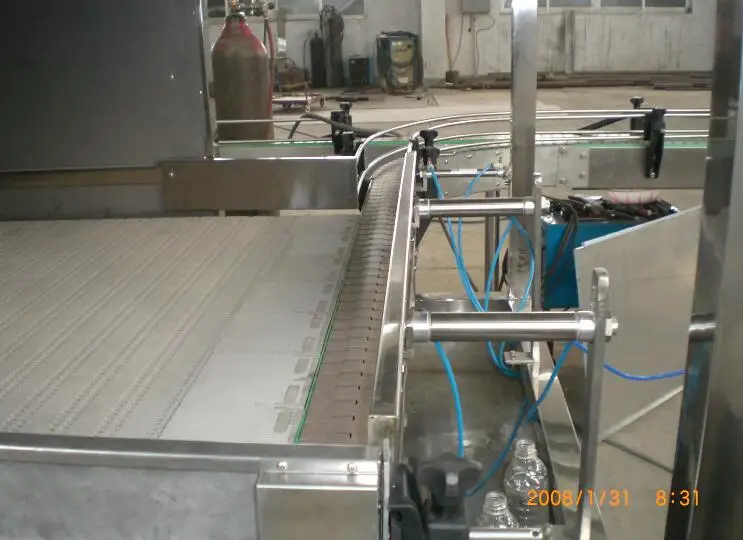

1. High reliability conveying device and flexibility speeding system; The conveying belt for bottles is high strength plastic chain net which has god strength and abrasion proof. The driving conveying adopts stepless motor which can change the speed of conveying belt easily.
2. The temperature can be controlled flexibly and easily set. The machine adopts temperature controlling system which can control the temperature exactly and be sensitive to the response. Press the button to set temperature between 0-100degree centigrade

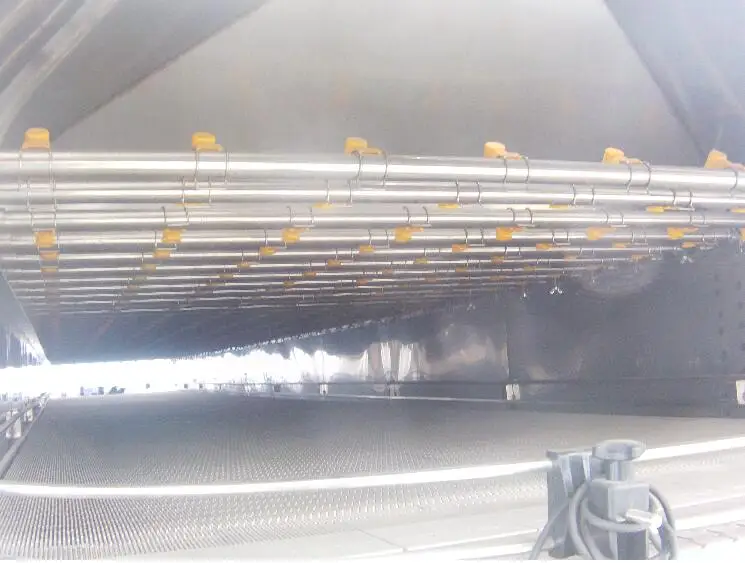

3. High effective spraying system. Via arranging the atomization nozzles on the chain plate in order to spray the bottles evenly, the spraying water can be utilized completely and the spraying covers large area.
