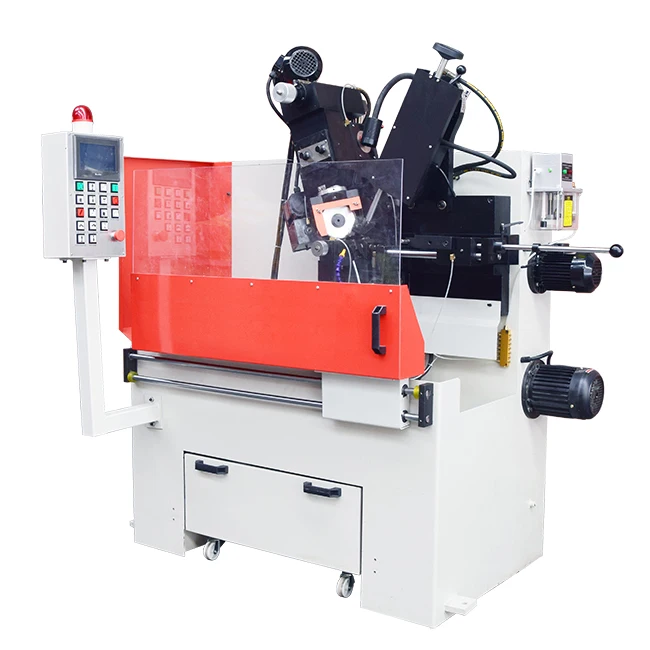

80~800mm PLC Control TCT Saw Blade Grinding Machine GD 026 Automatic Circle Blade Sharpening Machine
- Category: >>>
- Supplier: Dongguan Qiandao Precision Machinery Manufacture Co. Ltd.
Share on (60841141390):
Product Overview
Description

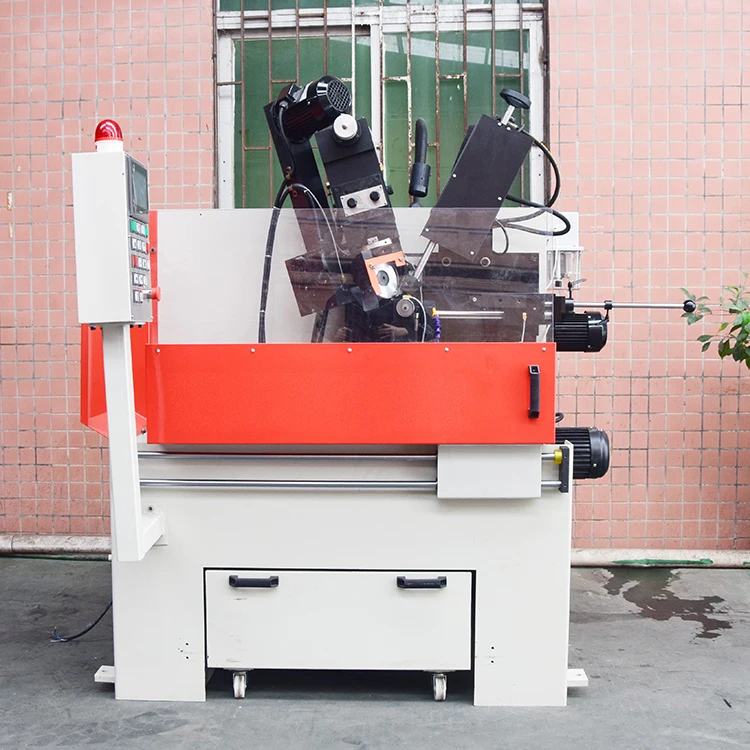

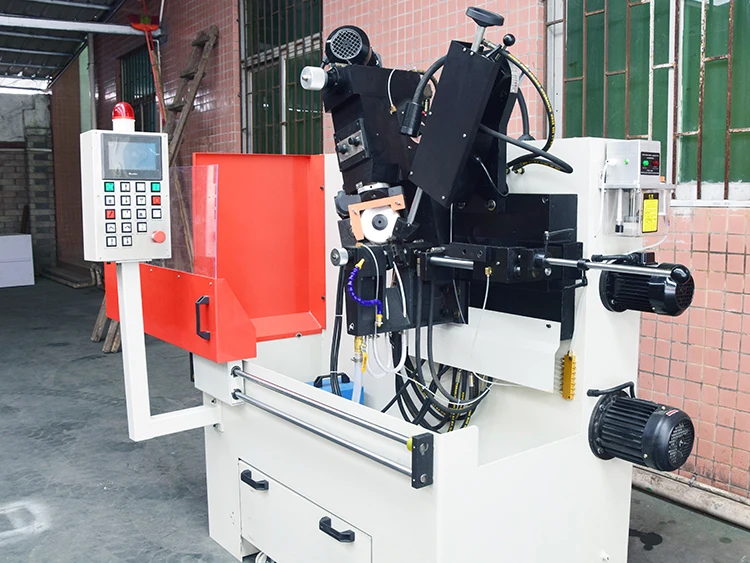

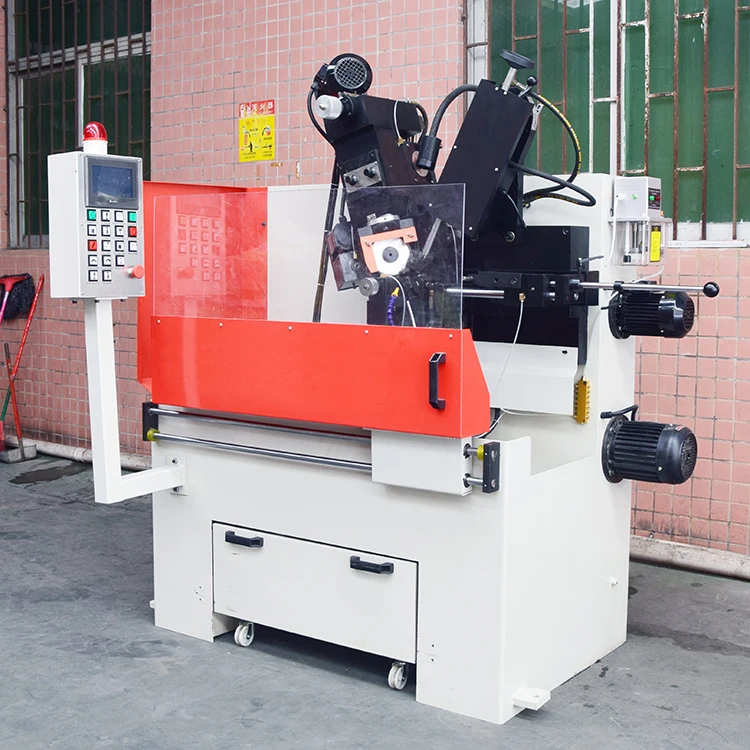

80~800mm High precision PLC control automatic circular saw blade sharpener grinder machine GD-026
Features:
The design of the machine is based on the characteristics of the same type, and the advantages of the same type are absorbed and analyzed, and some improvements are made at the same time.
1 preset multiple sets of teeth type, a key multifunctional operation.
The 2 steps can be completed in one time, numerical control grinding, arbitrary tooth type, can improve the efficiency of 3 times, improve the type of tooth extraction operation, improve the precision and extend the service life.
Technical parameter:
Saw blade capacity | 80-800mm |
Hole size | 10-220mm |
Saw blade thickness | 1-7mm |
Tooth distance | 7-100mm |
Tooth surface angle | 5 degree ~+30 degree |
Tooth tip back angle | 6-45 degree |
The left and right side of the pitch | 45 degree of the tooth surface |
Edge grinding stroke range | Max 25mm teeth / min |
Edge grinding speed | 0.5-6mm/s |
Working speed | Max 20 teeth / min |
Wheel size | 125mmx32mm |
Negative chamfer grinding | -27 degree |
The grinding head rotating angle | 90 degrees and 180 degree |
Wheel line speed | 26m/s |
Coolant pump flow | 501/min |
Coolant tank volume | 85L |
Voltage | 3 phase 380V |
Machine weight | 900KG |
Package size | 1500X1300X1900mm |
Company Information
FAQ
1.Q: What is your MOQ of this item?
A: Our MOQ is 1 set
2.Q: What is the delivery time?
A:1-2 days if in stock,15-20days if customize after receiving your T/T or Western Union.
3.Q: Is it all right to make customer's own brand name?
A: OEM is ok.
4.Q: Where is your Loading Port?
A:Shenzhen / Guangzhou ,China port.
5.Q:Are you a manufactuer or trading company?
A:We are a manufactuer specialized in drill bit grinder,end mill re-sharpener,screw tap re-sharpener,lathe tool grinder,saw blade re-sharpener,chamfer,universal cutter grinder,tapping machine and electrical tapping machine more than 10 years.
6. Q:How many exhibitions will you participate in every year?
A: As last year we took part in 80 exhibitions, which include the 2 exhibition in the other countries.
7.Can you provide the CE certification?
A: Yes, we can offer CE certification for our products!
