Automatic Liquid Surface Tension Meter Interfacial Tensiometer With Platinum Plate and Platinum Ring Method 0 to 400mN/m Range
- Category: >>>
- Supplier: Hefei Vetus Electronic Technology Co. Ltd.
Share on (60841156438):
Product Overview
Description
Products Description

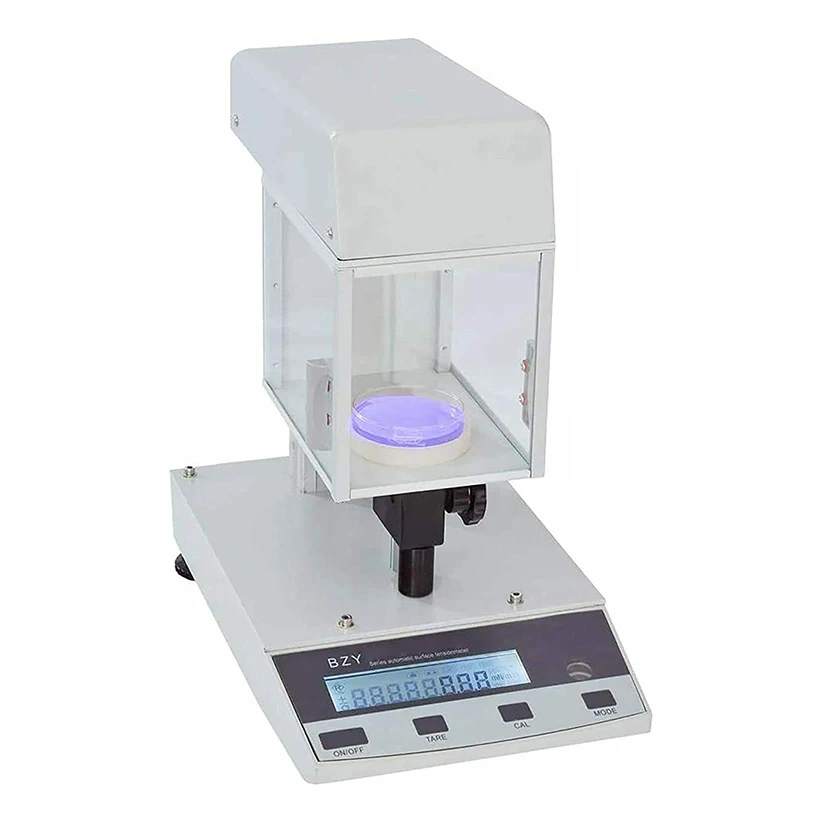

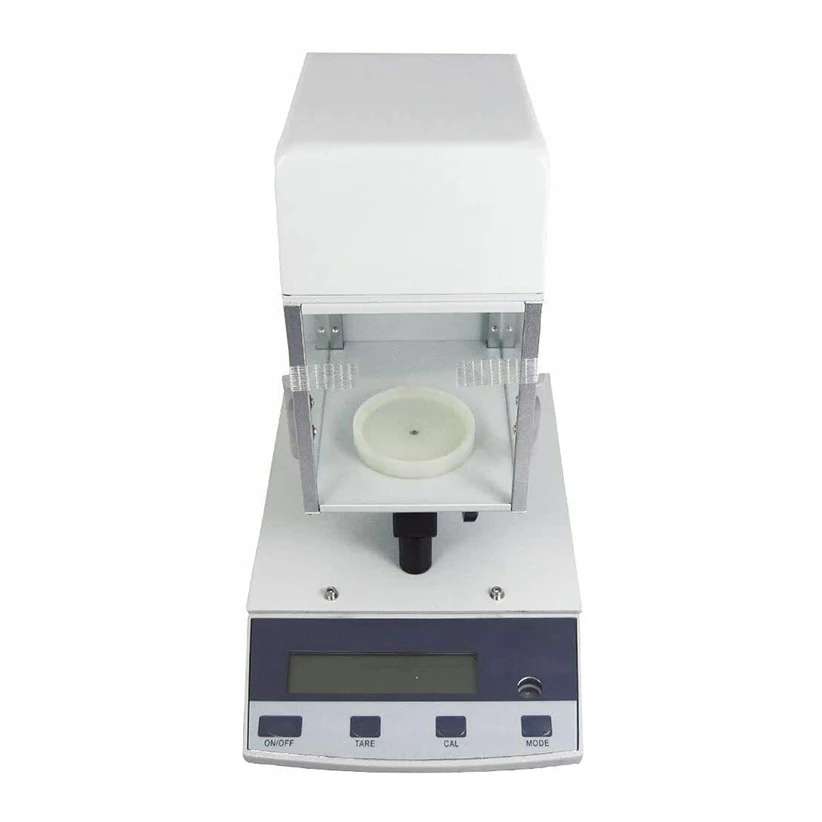

Automatic Liquid Surface Tension Meter Interfacial Tensiometer With Platinum Plate and Platinum Ring Method 0 to 400mN/m Range
Instrument main features:
1. Compact structure, independent working;
2. Full measuring range clear: instant one-key clear, no deviation at zero position;
3. When measuring with the plate method, the value displayed is the surface/ interface tension value of the sample, and
recalculation is unnecessary;
4. When measuring with the ring method, the peak value can be kept, and will be automatically converted into the surface/
interface tension value via Excel or any data process software;
5. Change of sample surface tension with time can be measured;
6. The traditional mechanic surface tension meter can be fully replaced;
1. Compact structure, independent working;
2. Full measuring range clear: instant one-key clear, no deviation at zero position;
3. When measuring with the plate method, the value displayed is the surface/ interface tension value of the sample, and
recalculation is unnecessary;
4. When measuring with the ring method, the peak value can be kept, and will be automatically converted into the surface/
interface tension value via Excel or any data process software;
5. Change of sample surface tension with time can be measured;
6. The traditional mechanic surface tension meter can be fully replaced;
Application
Instrument application range:
- Ink, printing ink, oil paint industry: analyzing the wettability in printing and coating, product research and development,
quality control
- Cleaning agent industry: analyzing the absorbing rate, property and a suitable concentration of any surface activating agent
- Cosmetic industry: analyzing the dispersibility, stability and wettability of any emulsion or suspending agent
- Electroplating industry: analyzing the surface tension of any electroplating solution for quality control
- Pesticide industry: preparing any additive agent and analyzing the wettability
- Petroleum industry and auxiliary agent industry, etc
- Ink, printing ink, oil paint industry: analyzing the wettability in printing and coating, product research and development,
quality control
- Cleaning agent industry: analyzing the absorbing rate, property and a suitable concentration of any surface activating agent
- Cosmetic industry: analyzing the dispersibility, stability and wettability of any emulsion or suspending agent
- Electroplating industry: analyzing the surface tension of any electroplating solution for quality control
- Pesticide industry: preparing any additive agent and analyzing the wettability
- Petroleum industry and auxiliary agent industry, etc
Product Paramenters
Model | BZY-101 | BZY-102 | BZY-103 | BZY-201 | BZY-202 | BZY-203 | |||||
Measuring modes | Pt board | Pt loop | Board or loop | Pt board | Pt loop | Board or loop | |||||
Operating mode | Sample disc manual elevating, fully automatic measuring | ||||||||||
Measuring range | 0~600mN/m | 0~400 mN/m | |||||||||
Sensitivity | 0.1 mN/m | 0.01 mN/m | |||||||||
Repeatability | ≤±0.2mN/m | ≤±0.1mN/m | |||||||||

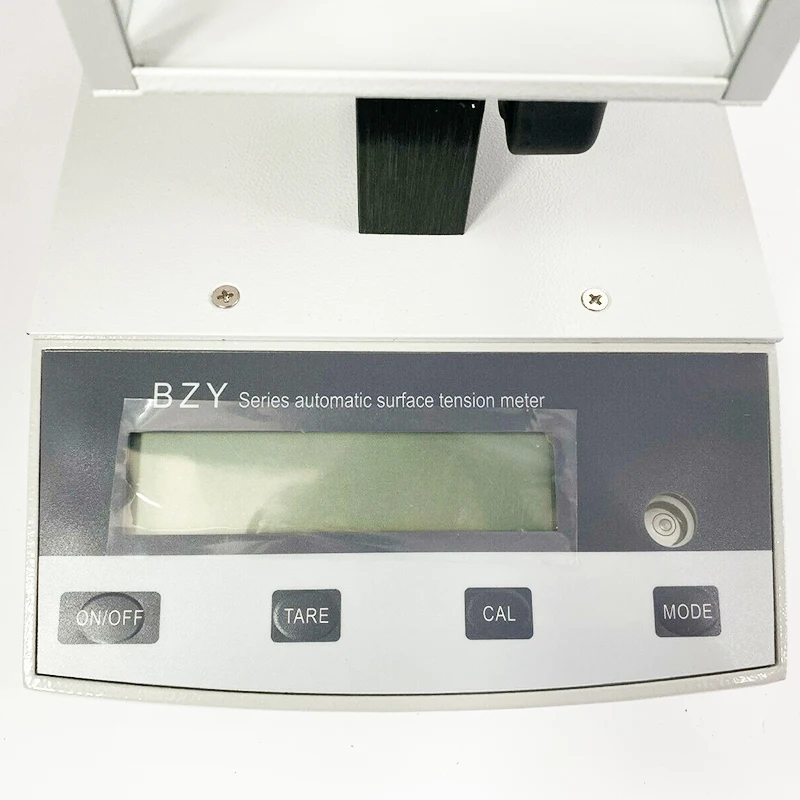

Data display | Wide visual angle ,backlight LCD screen | ||||||||||
Temperature range | Standard room temperature or 5℃~90℃(optional sample constant jacket cup and constant temperature circular bath are necessary) | ||||||||||
Measuringtime | Lowconcentrationsample:3~5sec for Pt board method, 40~60 sec for Pt loop method | ||||||||||
Data output | RS232C | ||||||||||
External dimensions | 320*200*340mm | ||||||||||
Net weight | 7kg | ||||||||||
Power supply | 110V~220V,60Hz/50Hz | ||||||||||
