Product Overview

Description

Please Attention

"with us your MONEY in safe ; your BUSINESS in safe"

YIDAO FACTORY OFFER YOU :

1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: NO MOQ ,1PC OK.
4.ONLINE PAYMENT.
5.SUPPORT 7 DAYS REFUND.
WELCOME TO BE ONE OF OUR TOP "VIP" CUSTOMERS". WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTREPRISE".
WELCOME TO CONTACT US.

Product Description

Machine features:

This machine is slitting equipment of high precision and high sensitivity , with 3 inch inflatable shafts used for feeding and receiving materials. The magnetic powder clutch is adopted to control the tension . The gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection,rectification and metering can be realized. It is characterized that accurate slitting , fast slitting speed, easy operation and maintenance, etc.


Technical parameters:

Item No.
YD-1300FQ
YD-1600FQ
Slitting Speed
80m/min
80m/min
Max.Web Width
1300mm
1600mm
Max.Unwinding Diameter
600mm
800mm
Max.Rewinding Diameter
450mm
450mm
Slitting Precision
±0.1mm
±0.1mm
Total Power
6KW
6KW
Machine Size
2400x2000x1300mm
2400x2300x1600mm
Machine Weight
1200kgs
1500kgs
Voltage
380V 50HZ
380V 50HZ

*the voltage can customize according to your country standards.

Characteristics :

1.Laminating function
2. EPC (edge positioning control) device:Ultrasonic sensor
3. Waste discharge function
4. Magnetic brake and clutch
5. Length counting function, automatically stop after it reaches the length you set.
6. 2 rewinding inflatable shafts, easy for unloading materials.
7.The minimum slitting width: 8mm
8.Material thickness range: 0.05-3mm


Standard configuration:
1.One slitting station
2.One laminating station
3.With one piece 3'' unwinding shaft,2 pieces rewinding shafts
4.With meter/number counter
5.With 10 sets of round slitting knives
6.Machine has blower fan to blow away the trimmed edge


Application:


It is applicable for slitting industrial tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, 3C, leather, garment, plastic, etc.

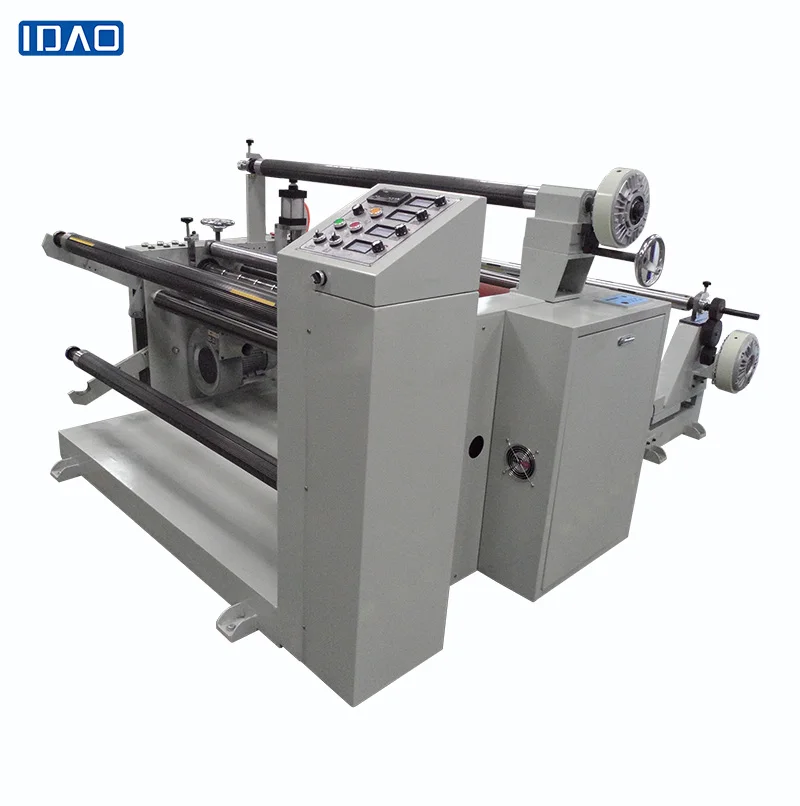

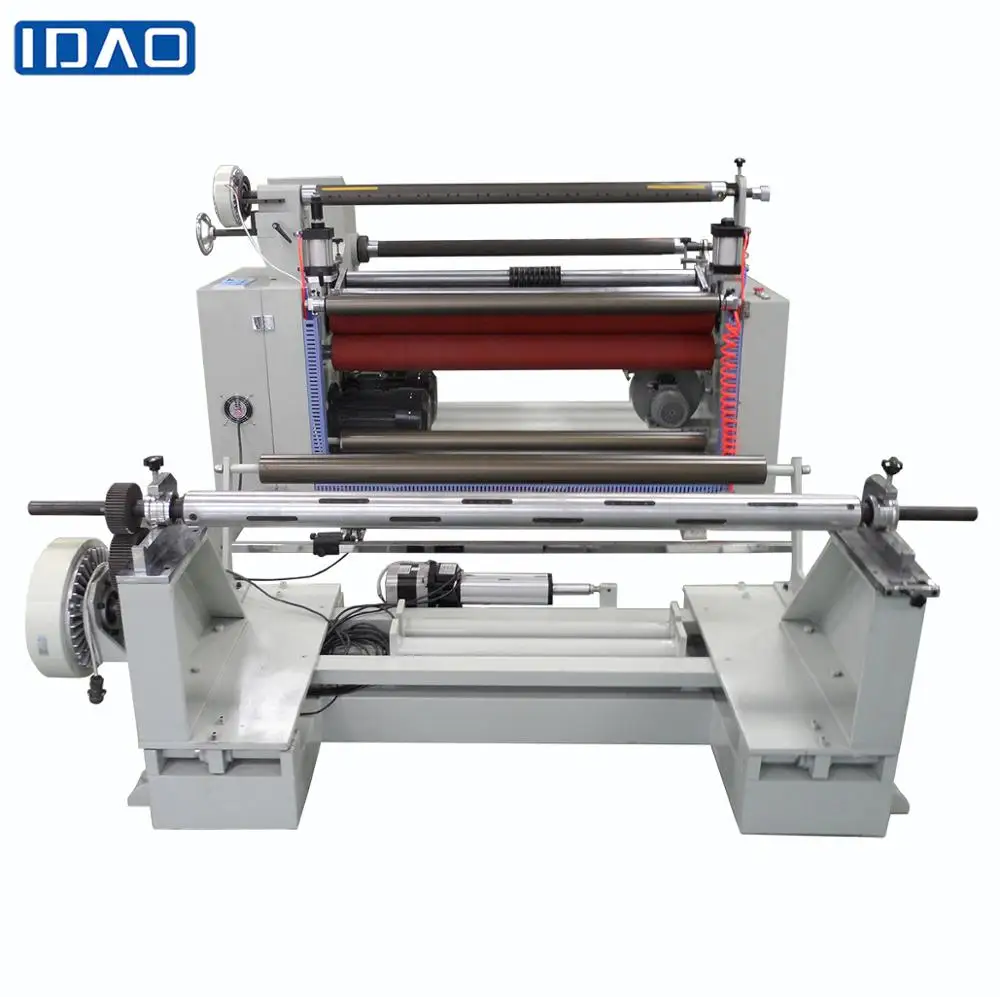

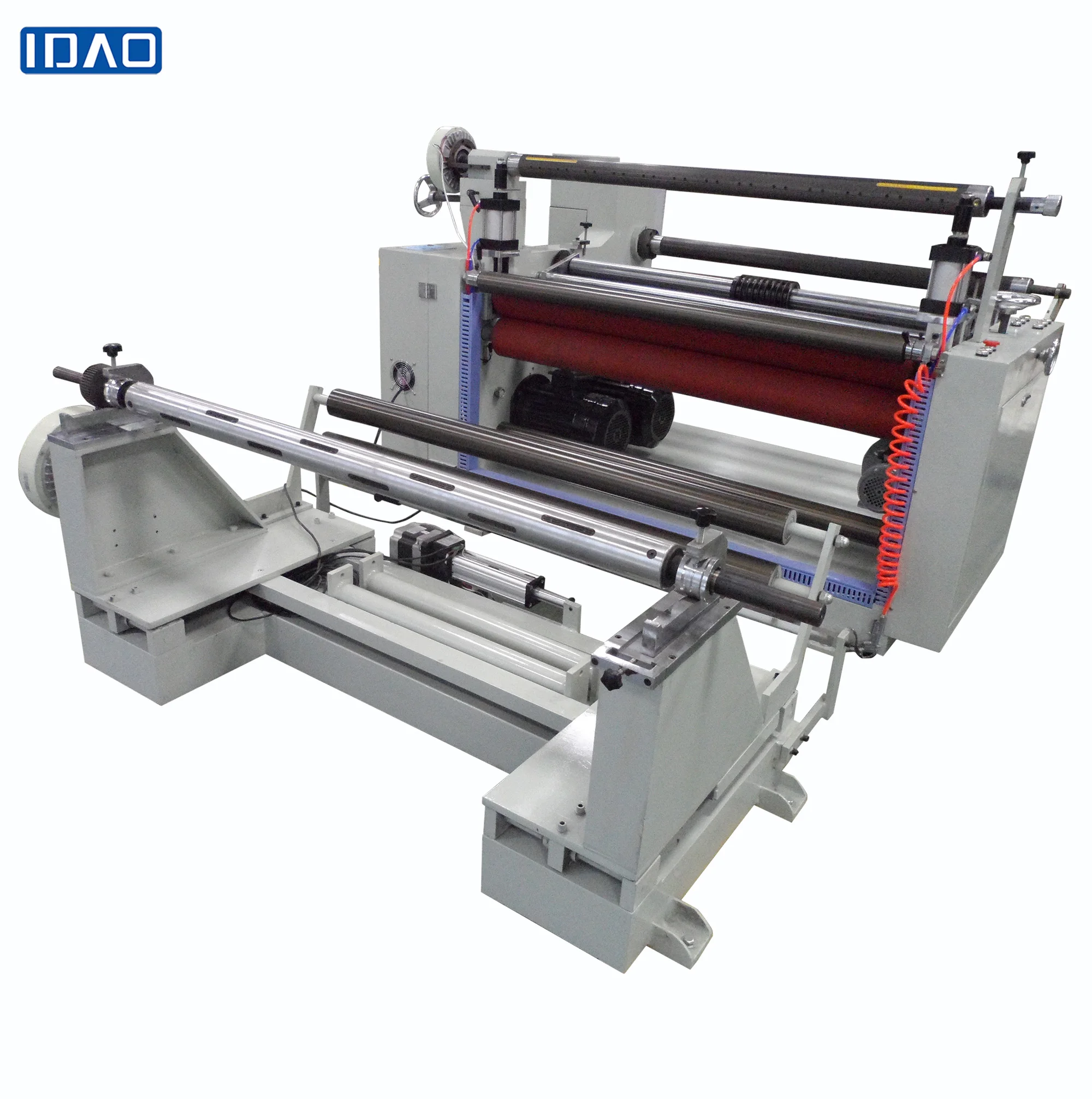

Machine Display
Machine Details



Control Panel

You can set slitting speed,running length,unwinding and rewinding tension on it.

It is very easy for worker to operate the machine.

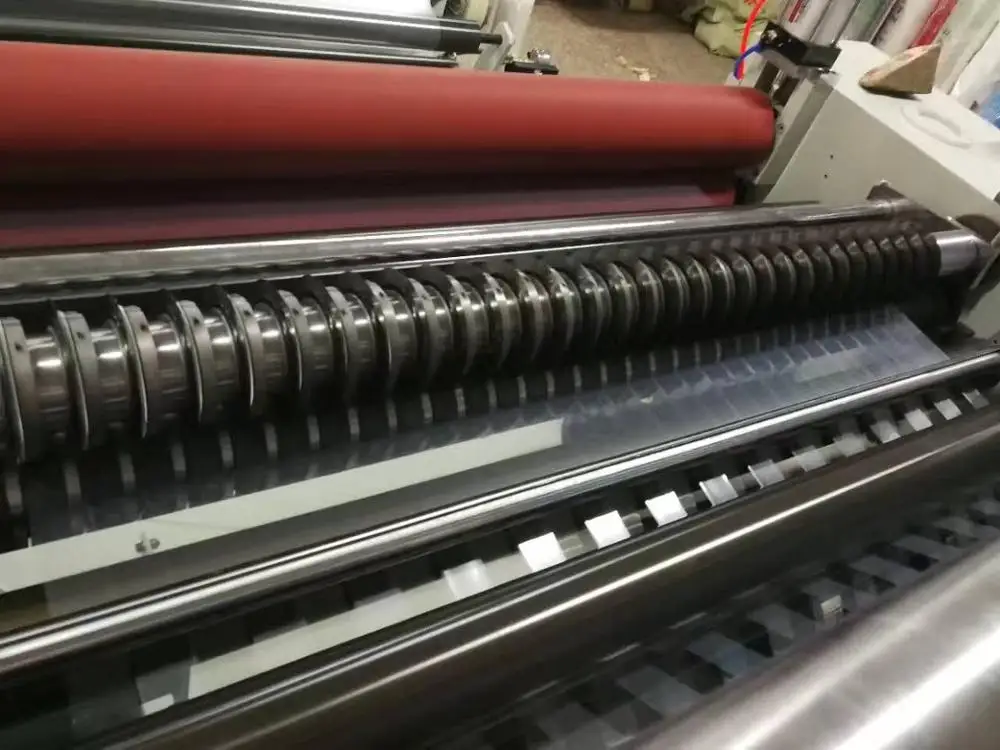

Slitting Blades

This machine is standard equipped with 10 sets of slitting blades,the min slitting width is 15mm.if you want to slit smaller width,you can customize self-lock knives.

It's easy to adjust the slitting width based on your products.

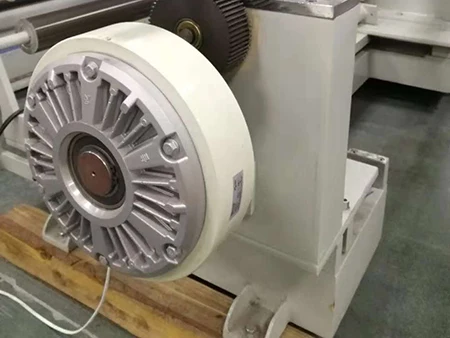

Magnetic powder Brake/clutch

Unwinding and rewinding tension adjustable via magnetic powder brake/clutch.

You can set the tension on the control panel according to your material and requirements.


EPC Edge/Line position controller

This ultrasonic sensor is used to guide the non neat material.to make sure the slitting rewinding effect is good.Automatic web guide is composed of ultrasonic sensor and one AC electric actuator which moves left or right if the material comes out of the path of the photoelectric eyes.

Slitting Samples:

After-service

1.Free sample testing and video for your reference
2. Prompt delivery
3.One year warranty ,whole life technical support
4. Free training in our factory available before delivering machines.
5.24-hours Email technical support, we will do our best to help the clients solve problems.
6. Engineers available to service machinery overseas
7. Technical support: Professional engineers team to help you design a drawing of machine to get highest profit with lowest cost and offer you technical support any time.
8. Other demanded spare part or equipment support: Plenty of cooperated professional supplier for spare parts or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
9.Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation .

Application
Packing & Delivery

PACKAGE: we use plywood case for packing the machine to make sure wooden case safe and strong, up to International trade standard. It does not need Fumigation .It's easy for forklift to upload and download .Safety transportation .we will use PE film for packing first before plywood case or pack it according to customers special .

SHIPPING : Usually we suggest customers choose ocean shipping to ship machinery , or air transport for small machine and urgent order . We also supply shipping sevice with our cooperation shipping forwarder to help customers to deliver the machinery in first time .

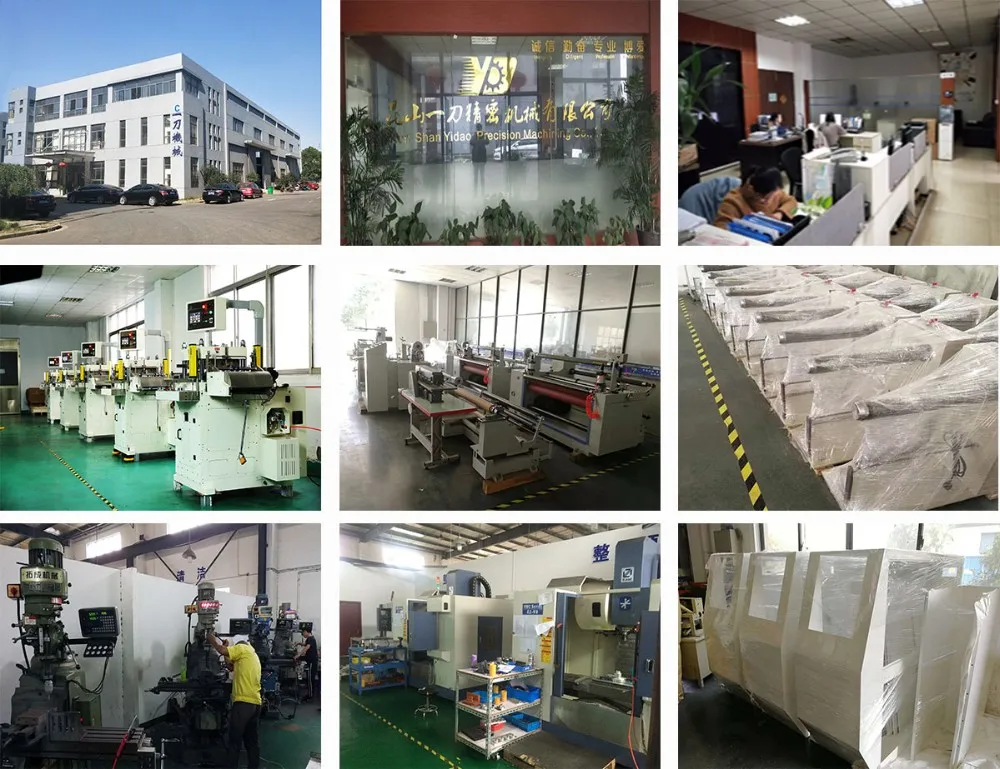

Factory
