Automatic Powder Coating Equipment for Coating Line
- Category: >>>
- Supplier: Hangzhou Color Powder Coating Equipment Co. Ltd.
Share on (60841295713):
Product Overview
Description
Product Description
Automatic Powder Coating Equipment for Coating Line
Conveyor Automatic powder coating spray booth with cyclone and after-filter system two step recovery, fast color change is achieved and realize for 98% powder recovery rate. Manual Oven with trolley to transport the parts.
Booth Type | cyclone powder coating line booth | Material | Stainless steel / plastic |
Operation size | 1200width x 2400 height x 6000 depth | Custom Size | Avaiable |
Automatic Coating Door | two auto coating doors,standard for 8 guns | Manual Coating Door | 2 operator coating doors |
Powder Recovery System | 2cyclones with 18 after-filters recovery | Recovery system quantity | 1set |
Light | 6pcs | Conveyor | Automatic |
Fan motor | 11KW | Powder recovery tank | 1 |
Air comsumption | 9000-12000m³/h | Application | Fast color change and reuse used powders for automatic booth |
Oven Type | Gas manual oven | Trolley | 1set |

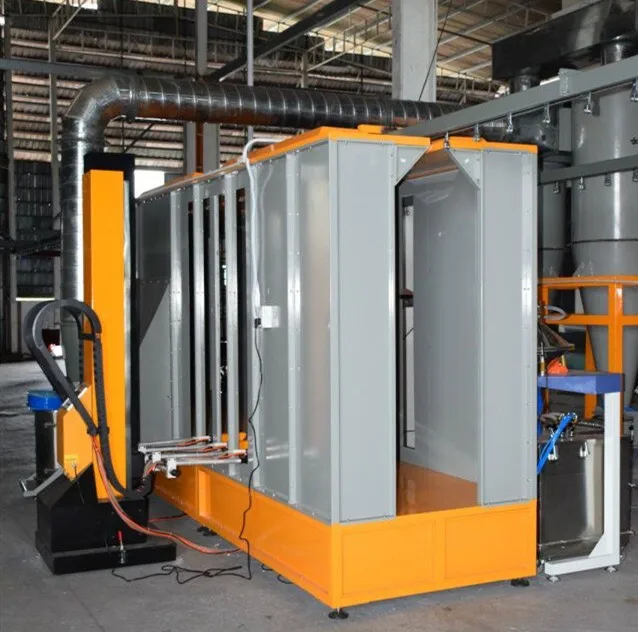

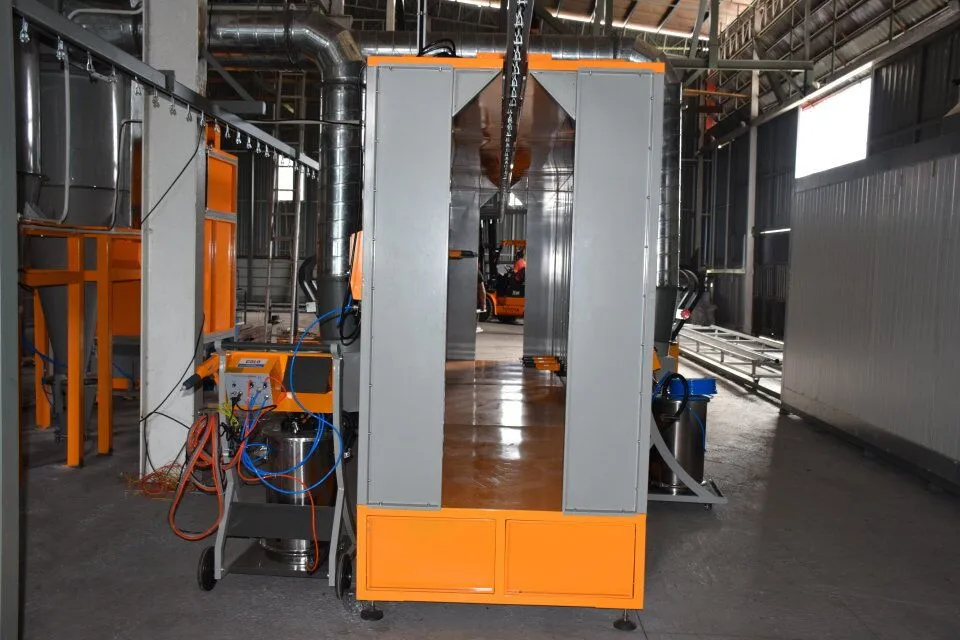

Auomatic Coating Booth
6 meters long, design with two automatic opening doors and two manual opening doors for powder coating ,to achieve high productivity.
Powder Recovery System for Booth
Two Cyclone with Secondary Recovery System.Stable ventilation volume, compact, easy to clean, more than 98% recovery efficiency, it is ideally suited for multi-color spray.
Conveyor System
Supply the conveyor system go with the automatic booth for customers.

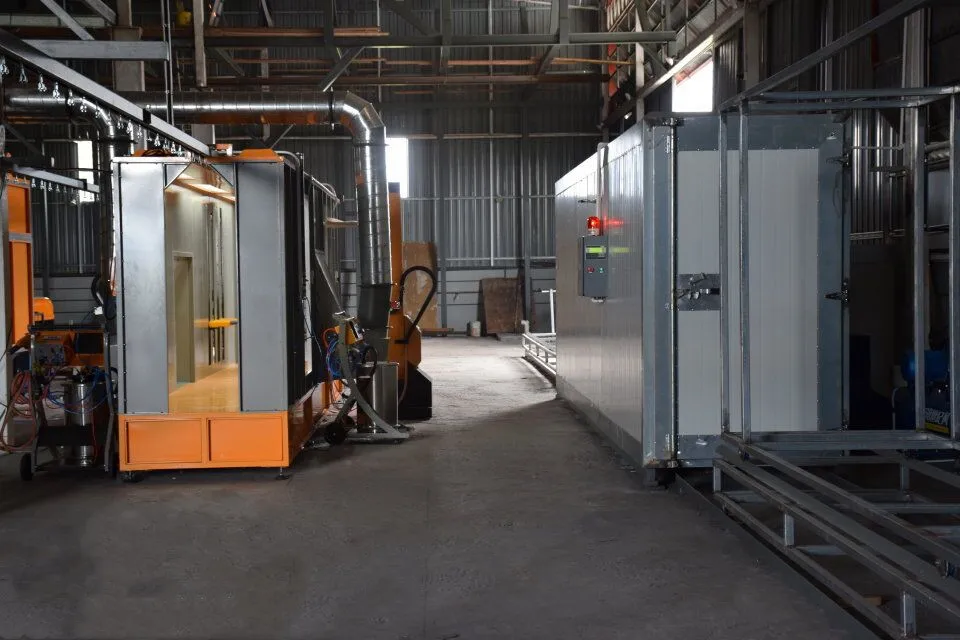

Gas oven with trolley
Manual gas oven with trolley to transport the parts,trolley can be design as request.
Related Products
Reciprocator
CL-2000D,PLC controller,could store 80 coating programes ,easy for diferent coating job.Standard can carry 4 guns,gently gun movenent.
Automatic Coating System
CL-800D hot sale,digital console with one-touch intelligent key to easy spray complex parts.Good electrostatic for 100KV.
Powder Sieve Machine
CL-3000R Sieving machine to recovery and supply the powders for booth.The tank could store 120 pounds powder.

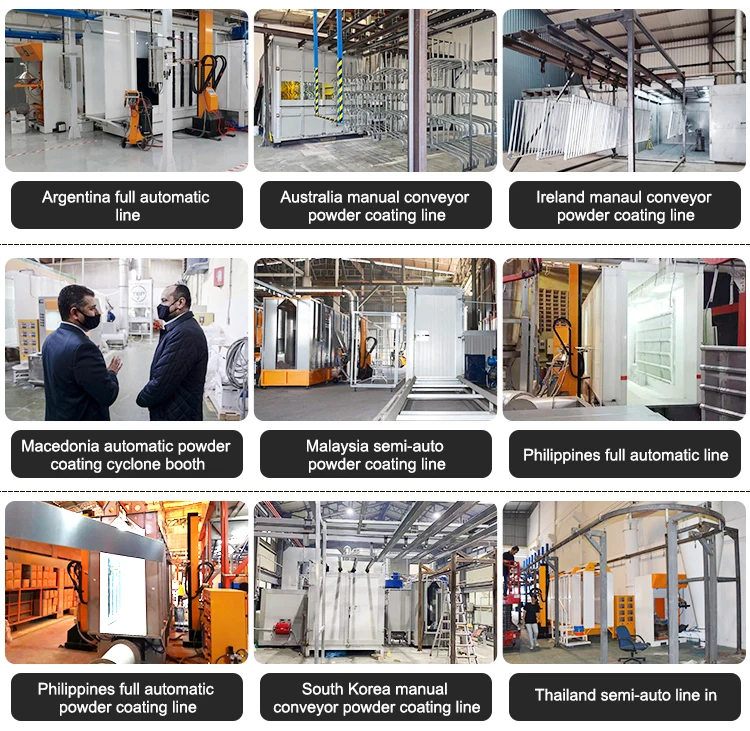

Customer Case
Lead Time & Delivery
Lead Time: Normally about 50 workdays after get the deposit,and then ship.
Payment: By bank transfer usually,50% deposit in advance,the balance before shipment.
Our Service
1. COLO has a prfessional design department,we're able to supply you best solution and design the drawing for your automatic coating systems.
3. Replacement parts available, by sea or by air express which is convenient.
Our Company
COLO is a professional manufacturer and exporter that is concerned with the design, development and production of different kinds of powder coating equipment.
Covering an area of more than 2000 square meter, we have the advance production facilities, CNC punching machine, bending machine, laser cutting machine etc, and good production space that can ensure our productive capacity and efficiency.
We own a development technology team with rich experience and professional sales & service team in the powder coating industrial, that enable us give the best quality powder coatng equipments and service to customer from all over the world.
FAQ
Q: How do I choose a suitable powder coating booth for my workparts?
A: Depends on your maximum product size, required productivity, single color or multi color, We can recommend you COLO standard spray booth or designed as your requests.
Q: What the spray booth filter material & size?
A: 100% polyester. We have three standard sizes of filter elements: 325mm*600mm ; 325mm*900mm and 325*1200mm. Different booth have different size filters.
Q: What is the power capacity of a powder coating booth?
A: The power supply is related to the fan motor. The fan motor is determined by the opening size of the spray booth. That is to say, the power is determined by the size of the spray booth.
Q.What is the voltage of a powder coating booth?
A: We can customize 220V/380V, 3 phase according to customer requirements. And voltage from 100V to 480V can all be made.
Q: Is it necessary to purchase a powder coating booth?
A: First, the booth will absorbs oversprayed powder through the filters, keep your workshop clean. Second the collected powder can be recycled to save cost.
Q: Do I need to assemble the standard powder spray booth?
A: No, it is completely shipped, just need to connect the air tube with your air compressor. And connect the wire with your electricity.
Q: What is the delivery time?
A: Standard powder coating ovens requires 10-15 working days; custom-made curing ovens will tables around 20-35 workdays from the design to the end of the manufacturing process.
Q: How long it will arrive to my country?
A: Shipping time will vary depending on your actual seaport.
A: Depends on your maximum product size, required productivity, single color or multi color, We can recommend you COLO standard spray booth or designed as your requests.
Q: What the spray booth filter material & size?
A: 100% polyester. We have three standard sizes of filter elements: 325mm*600mm ; 325mm*900mm and 325*1200mm. Different booth have different size filters.
Q: What is the power capacity of a powder coating booth?
A: The power supply is related to the fan motor. The fan motor is determined by the opening size of the spray booth. That is to say, the power is determined by the size of the spray booth.
Q.What is the voltage of a powder coating booth?
A: We can customize 220V/380V, 3 phase according to customer requirements. And voltage from 100V to 480V can all be made.
Q: Is it necessary to purchase a powder coating booth?
A: First, the booth will absorbs oversprayed powder through the filters, keep your workshop clean. Second the collected powder can be recycled to save cost.
Q: Do I need to assemble the standard powder spray booth?
A: No, it is completely shipped, just need to connect the air tube with your air compressor. And connect the wire with your electricity.
Q: What is the delivery time?
A: Standard powder coating ovens requires 10-15 working days; custom-made curing ovens will tables around 20-35 workdays from the design to the end of the manufacturing process.
Q: How long it will arrive to my country?
A: Shipping time will vary depending on your actual seaport.
