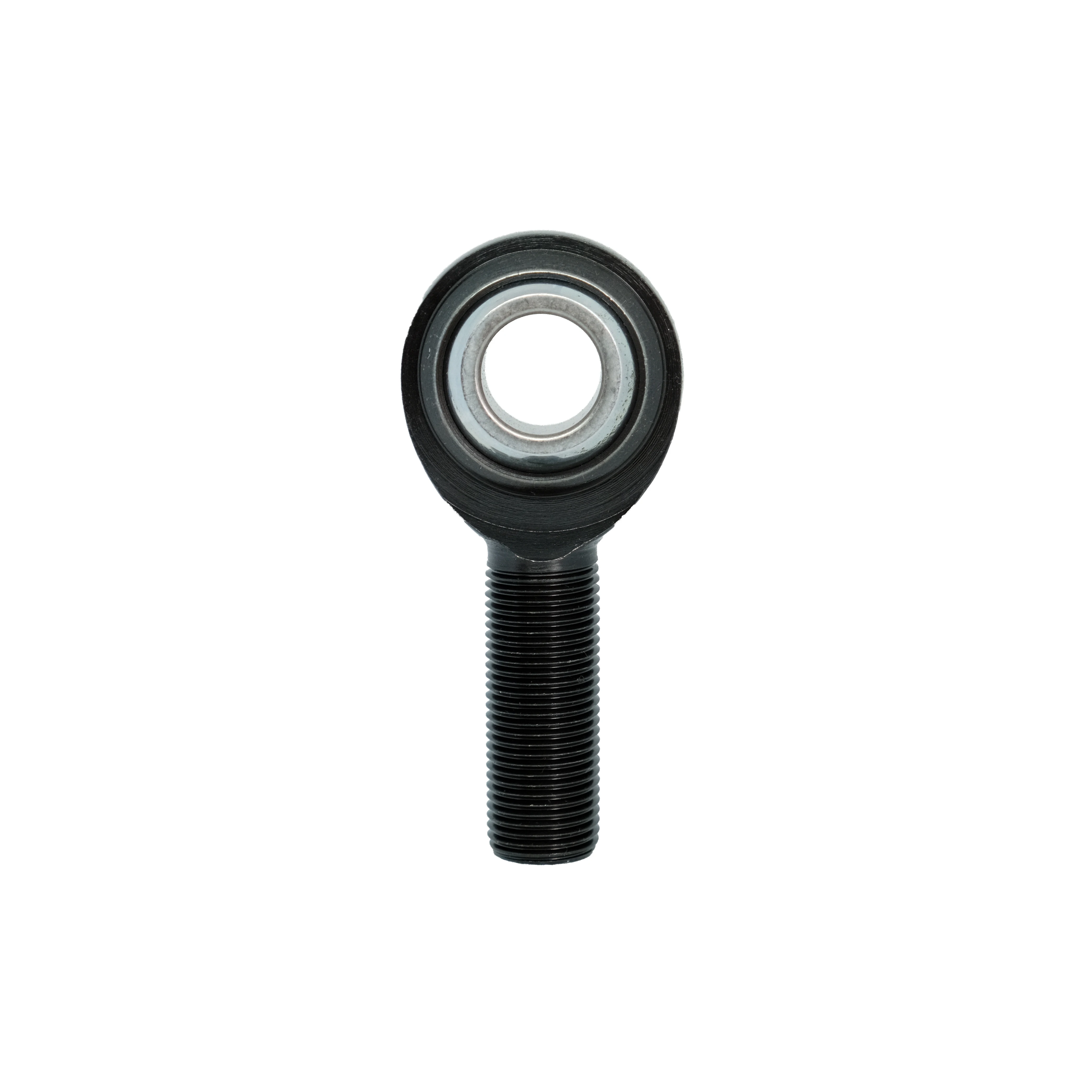

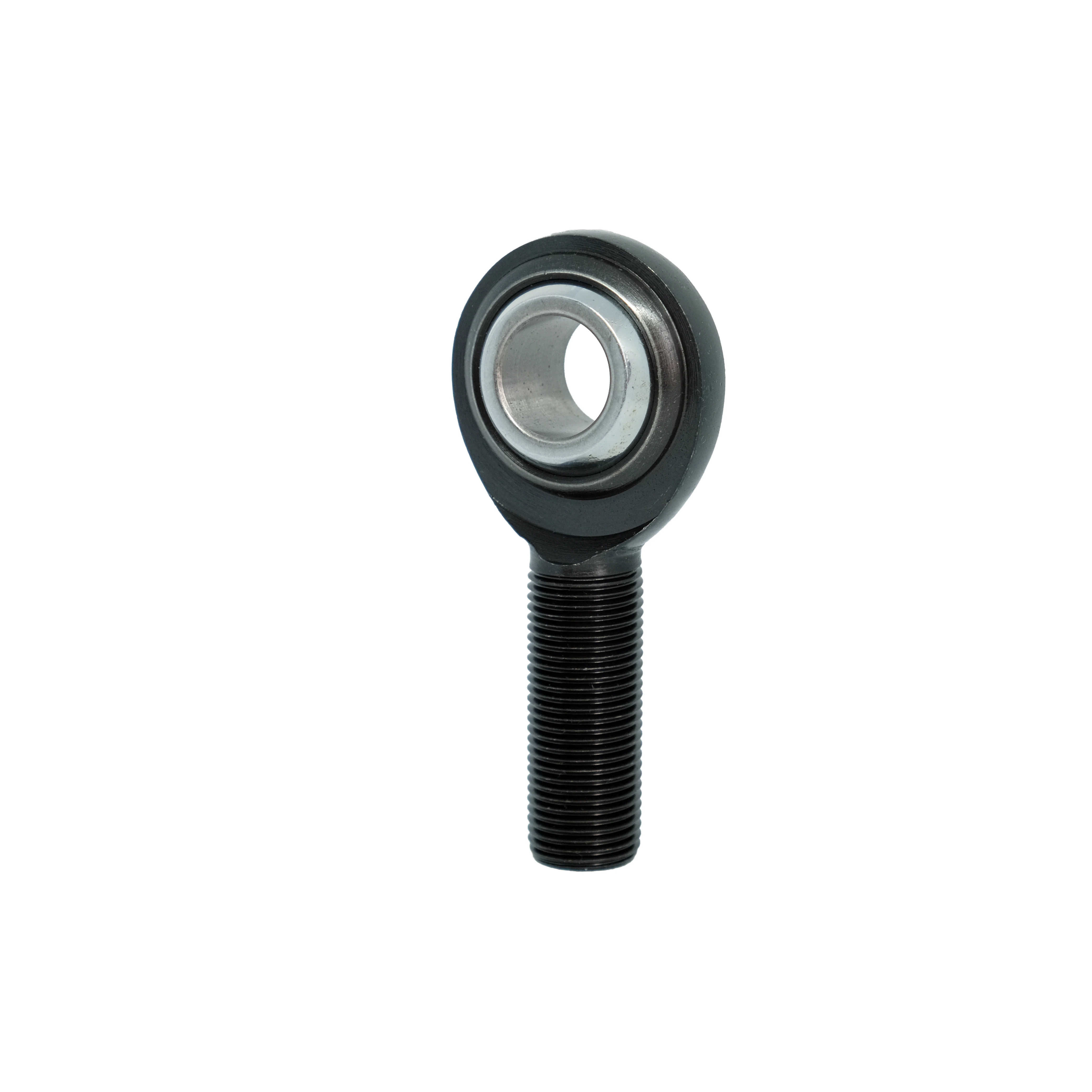

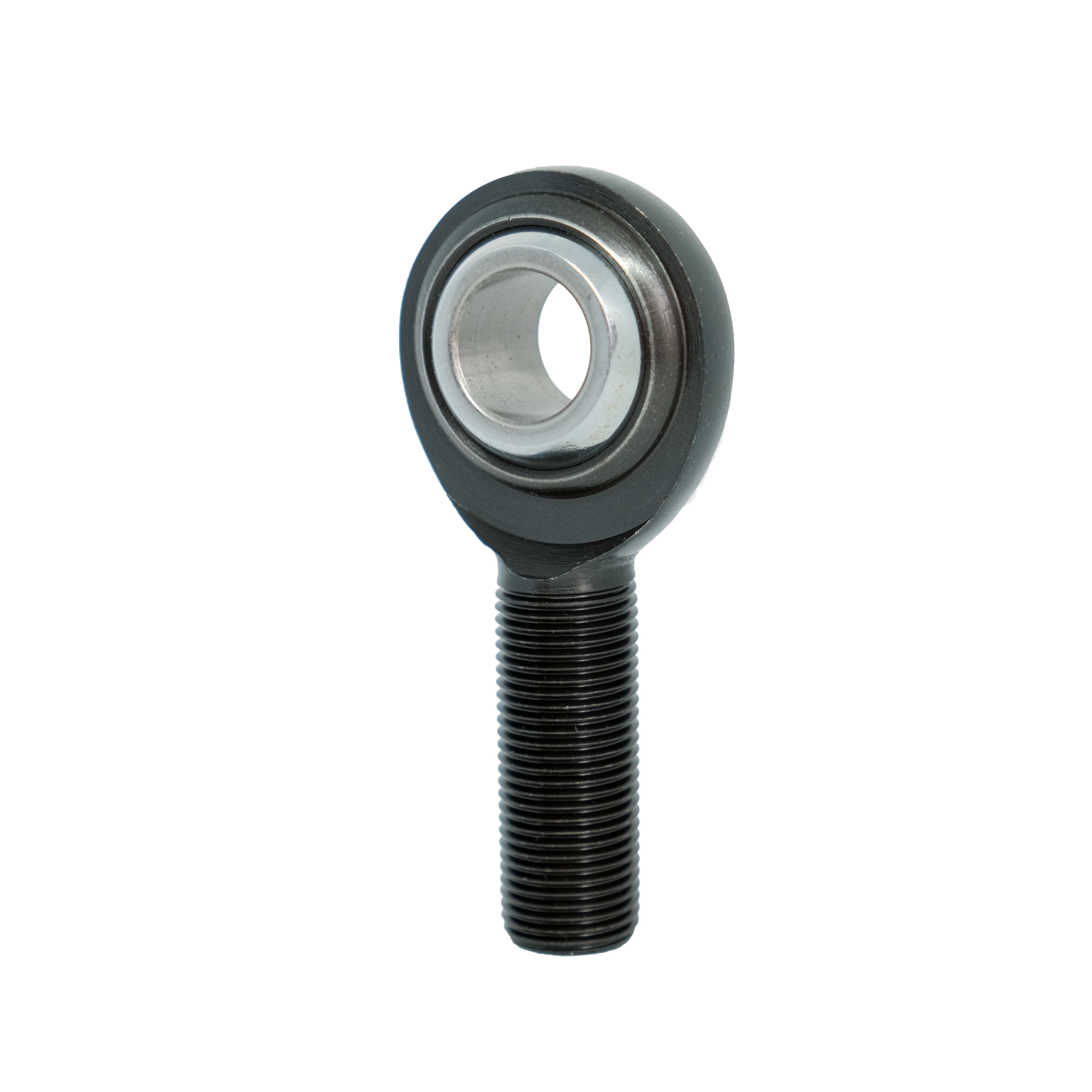

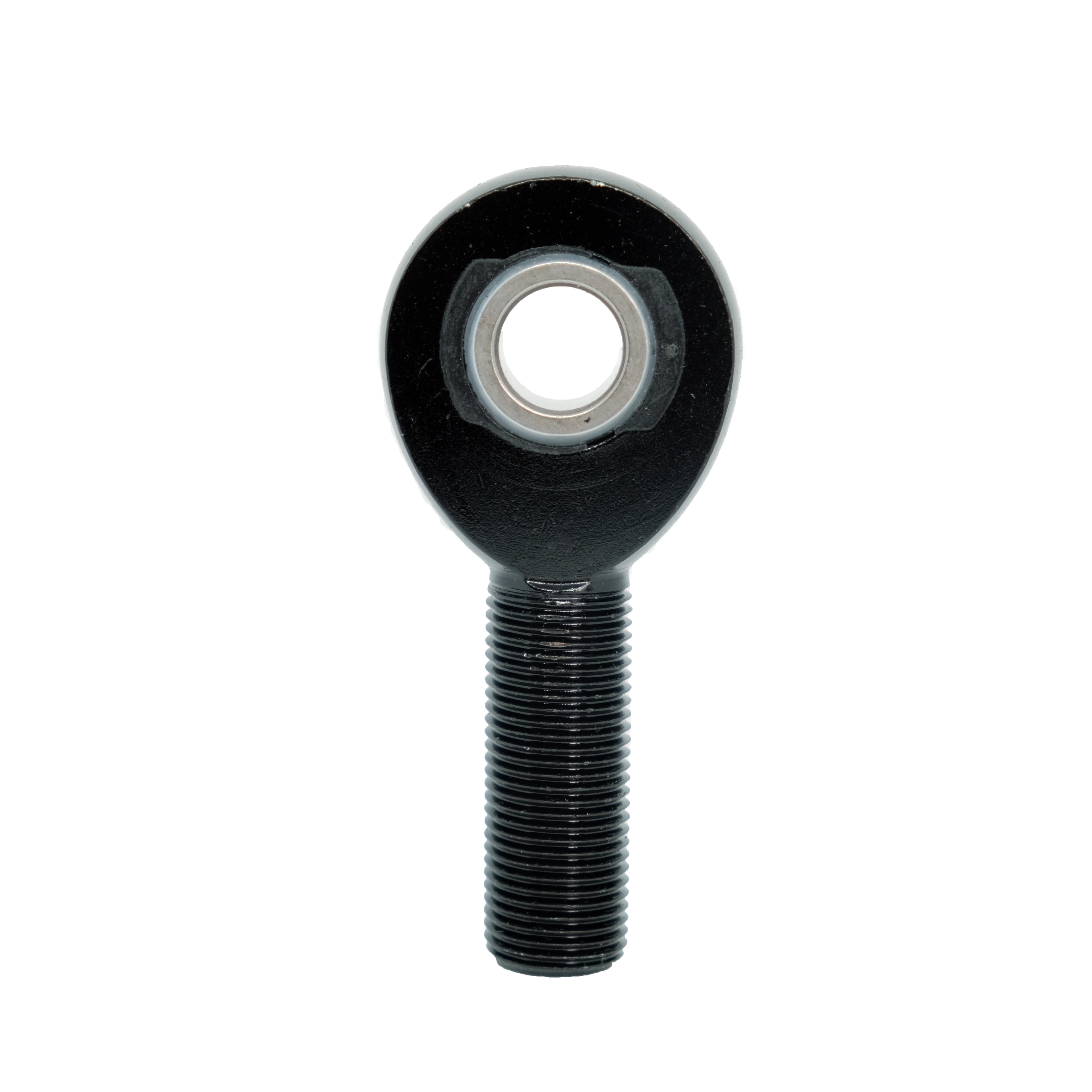

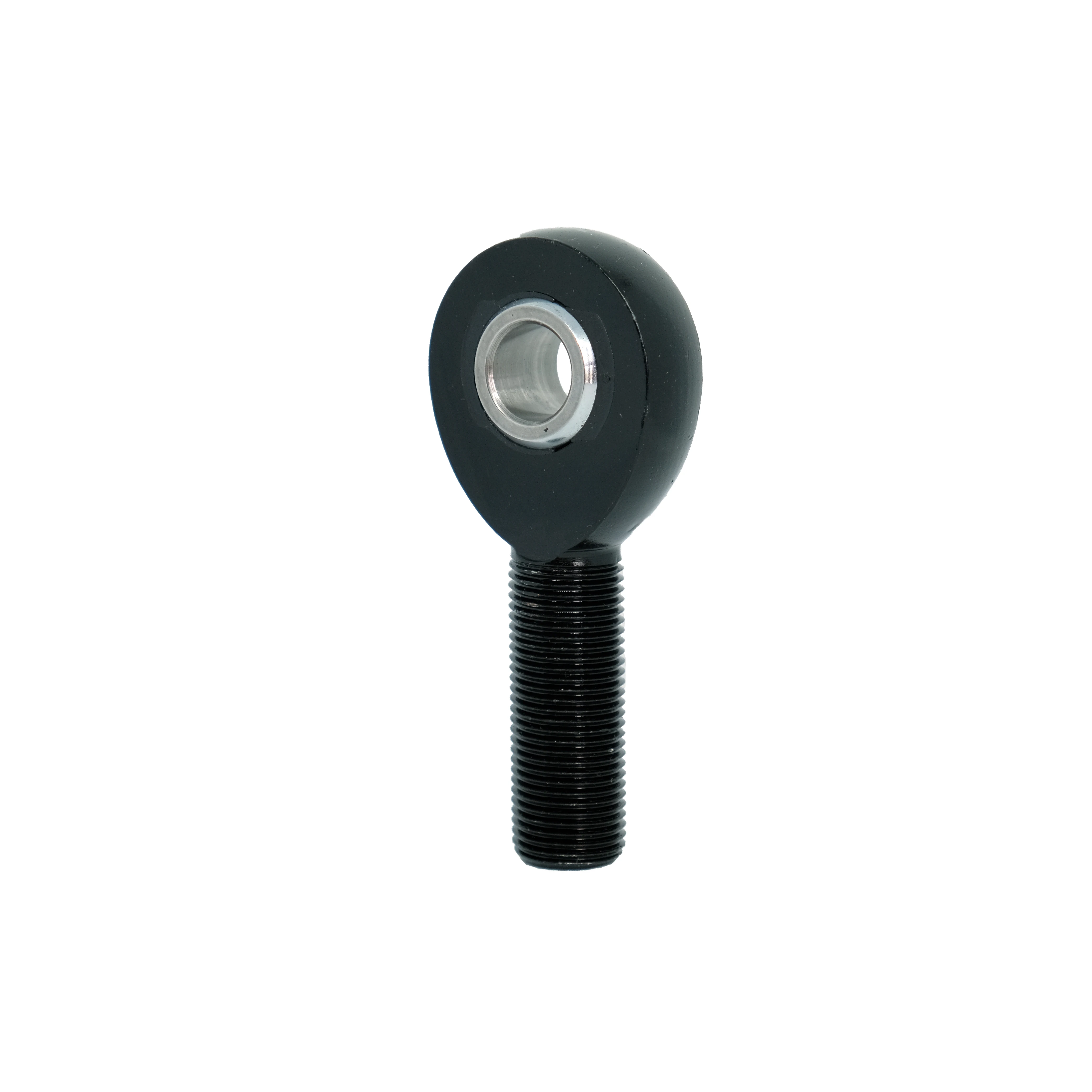

Chromoly Steel Series Precise Male Rod End XM10

Product Overview

Description

Personalized XM Chromoly Steel Series Precise Male Rod End XM10







For the ultimate in performance rod ends, look no further than QA1’s XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out.



BALL · • 52100 Bearing Steel · • Heat Treated · • Hard Chrome Plated · • Precision Ground	RACE · • Nylon/PTFE · • Self-Lubricating · • Self-Sealing
BODY · • Chromoly Steel · • Heat Treated · • Protective Coated for Corrosion Resistance	EXCLUSIVE FEATURES · • Metal to Metal Support for Heavy Shock Loads • Increased Cross-Sectional Thickness for Greater Tensile Strength

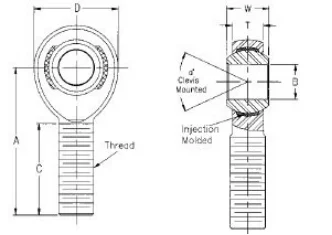

Part Number	Name	Thread Type	B +0.0015 -0.0005	W ±0.005	T ±0.005	A ±0.005	D ±0.010	Ball Dia.Ref.	C +0.062 -0.031	Thread UNF-3A	Misalign Angle a°	Ult. Radial Static Load Lbs.	Approx. Bearing Weight
XML10	XM Endura Series Rod End	Left Hand	0.625	0.75	0.562	2.625	1.5	1.125	1.625	5/8-18	16	17955	0.36
XML10-12	XM Endura Series Rod End	Left Hand	0.625	0.75	0.562	2.875	1.75	1.125	1.75	3/4-16.13	13	31680	0.57
XML12	XM Endura Series Rod End	Left Hand	0.75	0.875	0.687	2.875	1.75	1.312	1.75	3/4-16	14	28081	0.57
XML12-14	XM Endura Series Rod End	Left Hand	0.75	0.875	0.687	3.375	2	1.312	1.875	7/8-14	12	43486	0.88
XML14	XM Endura Series Rod End	Left Hand	0.875	0.875	0.765	3.375	2	1.375	2	7/8-14	7	45051	0.88
XML16	XM Endura Series Rod End	Left Hand	1	1.375	1	4.125	2.75	1.875	2.125	11/4-12	17	76200	2.41
XML16-1	XM Endura Series Rod End	Left Hand	1	1.375	1	4.125	2.75	1.875	2.125	1-14UNS	17	76200	2.13
XML16-2	XM Endura Series Rod End	Left Hand	1	1.375	1	4.125	2.75	1.875	2.125	1-12	17	76200	2.13
XML3	XM Endura Series Rod End	Left Hand	0.19	0.312	0.25	1.25	0.625	0.437	0.75	10-32	13	2851	0.03
XML4	XM Endura Series	Left Hand	0.25	0.375	0.281	1.562	0.75	0.5	1	1/4-28	16	5260	0.04



 Shanghai Yueshang Machine Components Co., Ltd was established in Shanghai on 2012, based on a factory which has manufactured bearings for more than 25 years. The colleagues of R&D department have very long time experience, more than 35 years. Our customers, including domestic and global, all have good and stable cooperative relationships with us because we all focus on one thing, high quality. We are looking forward to have your contact and give you back the best products and services. It’s a win-win situation.1.What's your MOQ?

Re:The MOQ of most of our products is 12 pc.

2.What are your payment terms?

Re:We accept T/T,Western Union,Paypal,Alipay and bank transfer.There are different payment methods in different countries and regions.

3.What's your packing way?

Re:Neutral packing and accept customer's special packaging demand.
