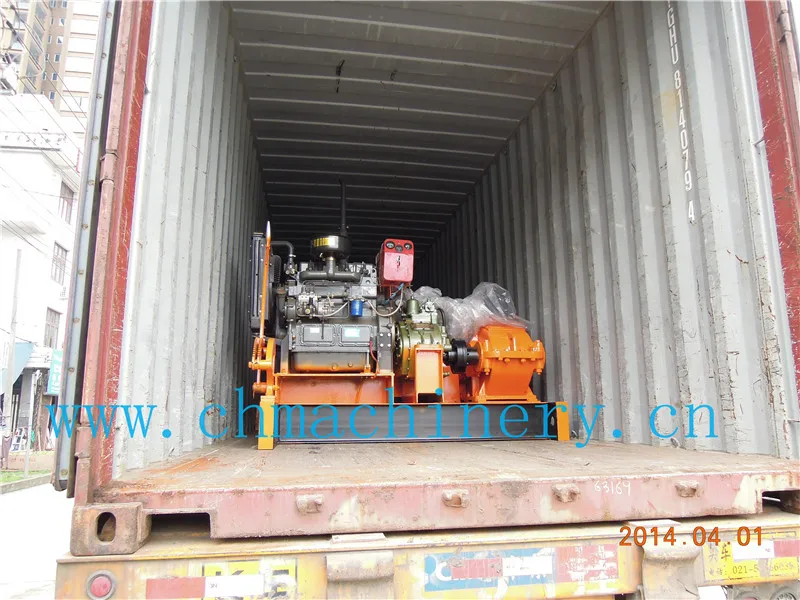

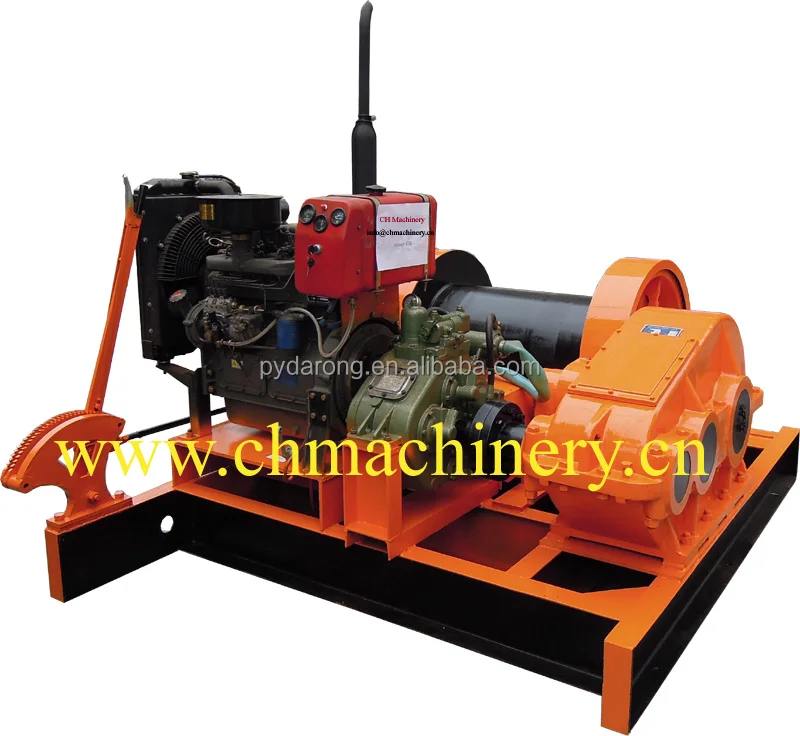

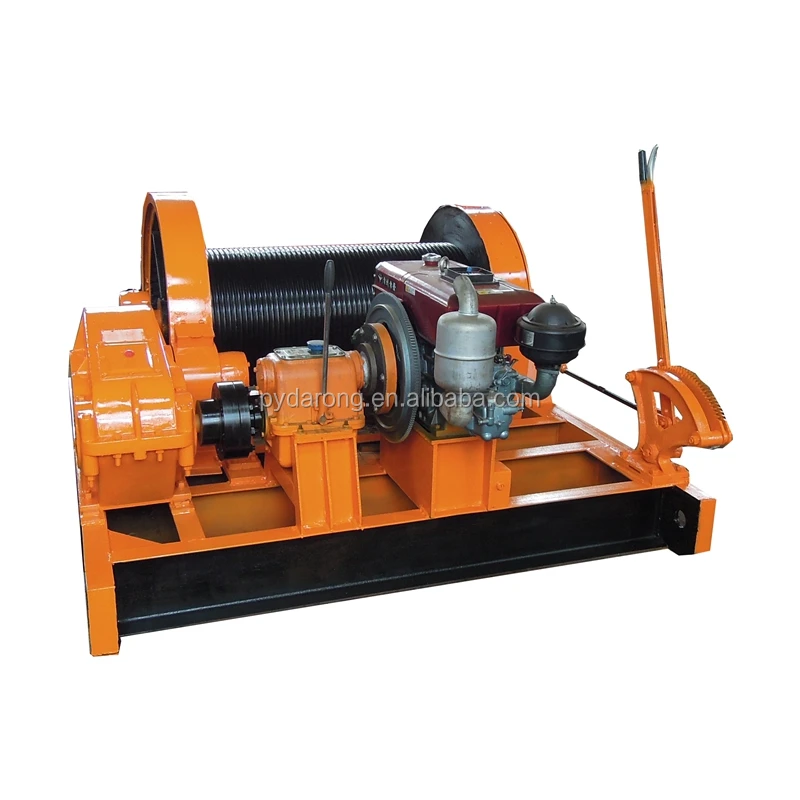

Oil diesel motor power up and down hoist winch

Product Overview

Description



3Ton DIESEL WINCH FOR MINE CONSTRUCTION LIFTING / PULLING.
1. Capacity 3Ton
2. Rope capacity 150m
3. hand brake

4. speed:10m/min

5. can forward and reverse running, lifting 3000kg load up and down.

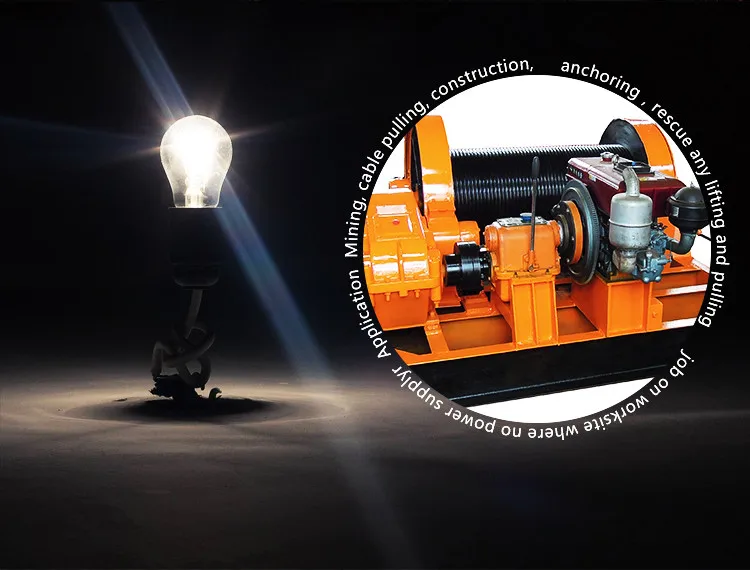

APPLICATION: PULLING, and wind steel wire rope

FORWARD AND REVERSING by GEAR LEVER

Brake: one handle brake

Single SPEED

Key starter with battery



We can supply 1ton to 50ton electric/ diesel power winch

The winches are made by order, please supply the capacity and rope length requirment to us via email.

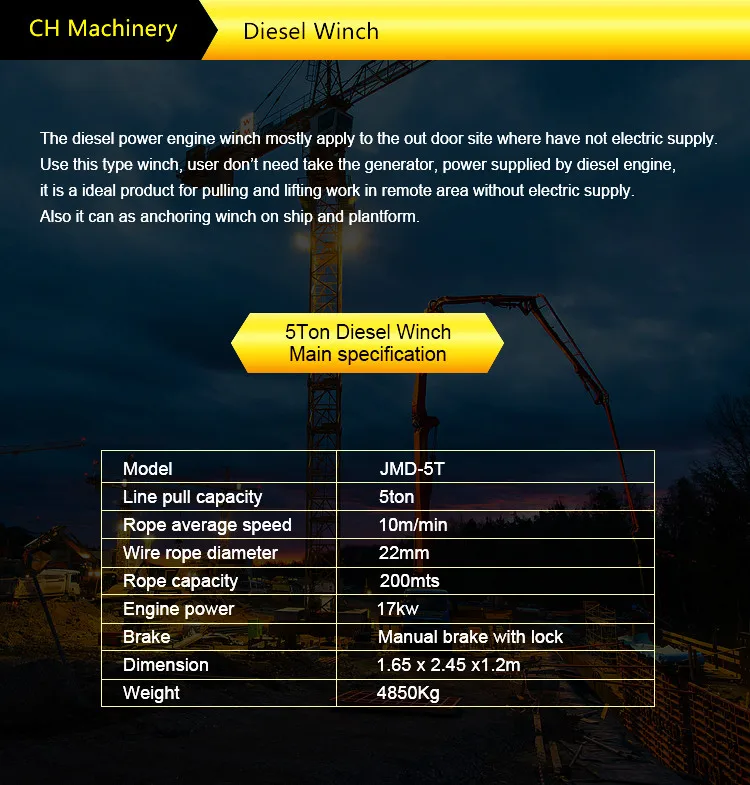

No.	Item	Spec.
1	Winch model	JMD-5T
2	Line pull capacity (S.W.L.)	5 Ton
3	Line rope rated speed	10m/min
4	Diesel engine power	16kw, single cylinder engine, horizontal and four-stroke circle.Speed:2200 r/min
8	Speed reducer	Three stage reduction column helical gears box Marine gearbox with handle for switch way
9	Brake system	One hand brake on drum
