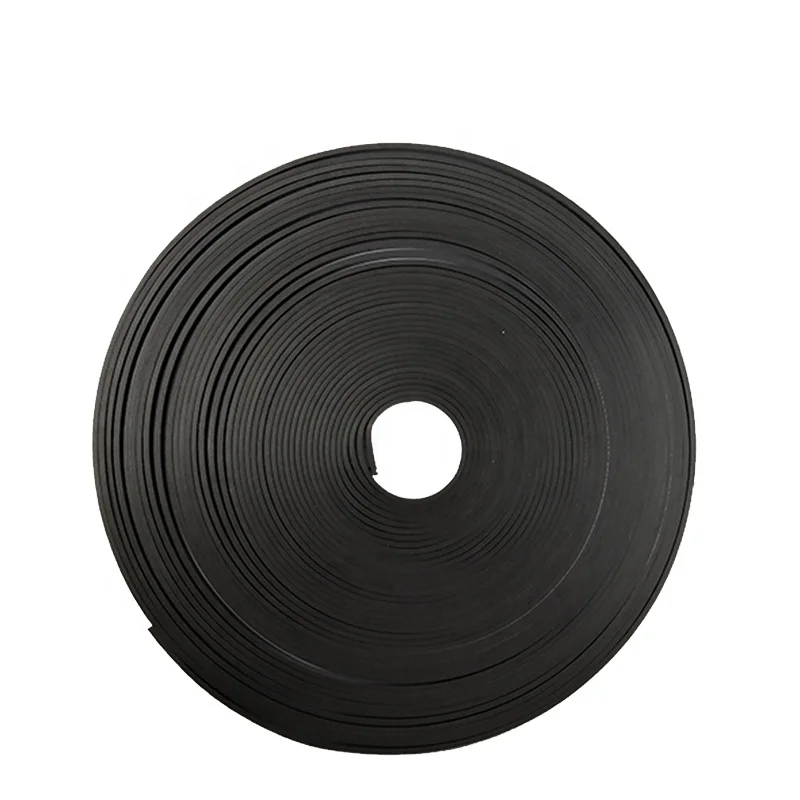

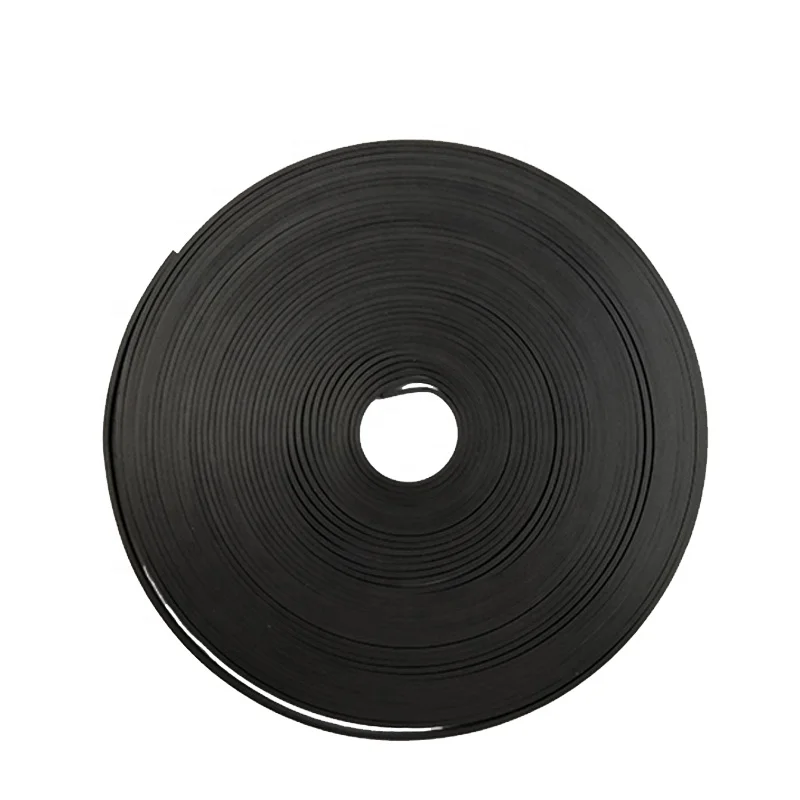

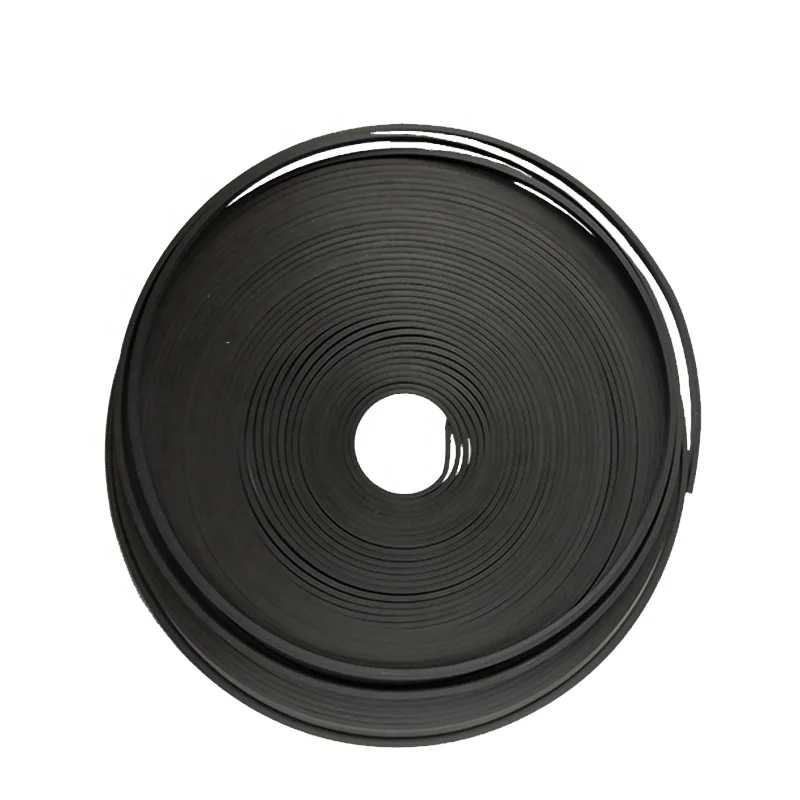

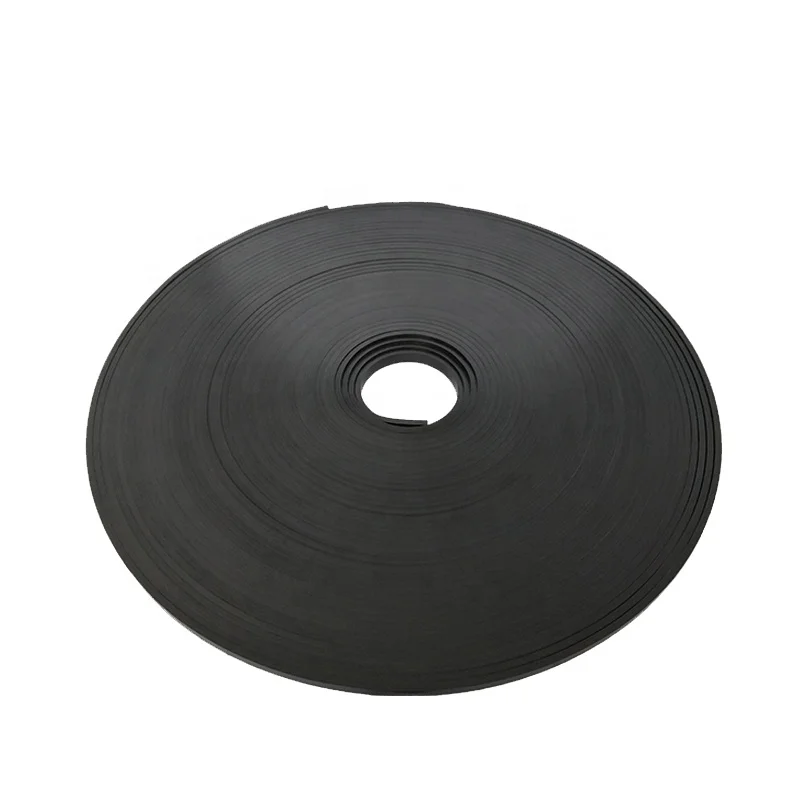

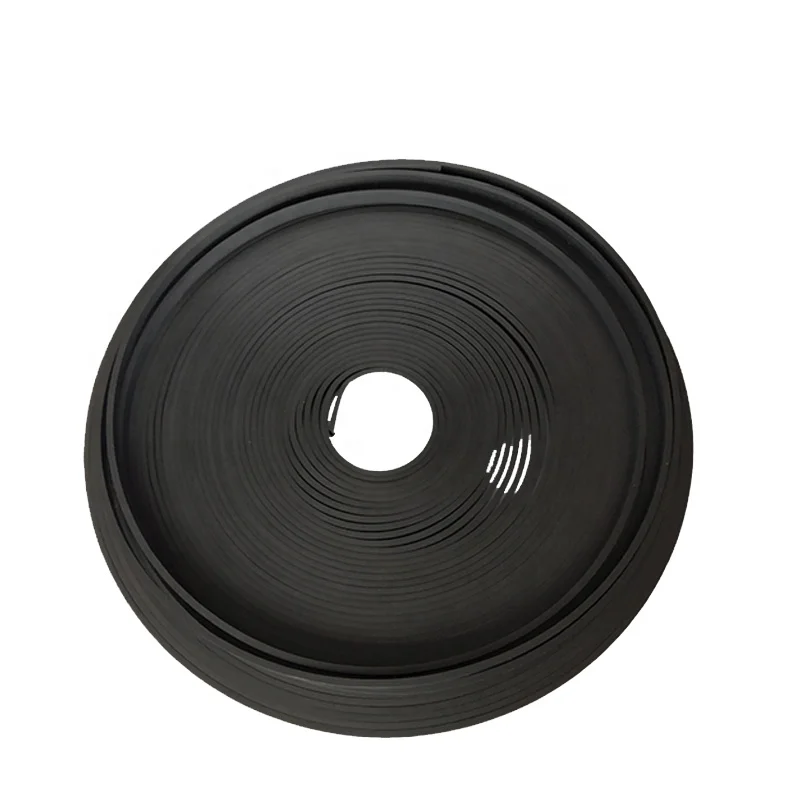

PTFE Strip Seal Guide Tape Filled Carbon 2.5mm Thickness 27m Length
- Category: >>>
- Supplier: Shenyang Zhongye Seals Factory
Share on (60841363885):
Product Overview
Description
Product Description

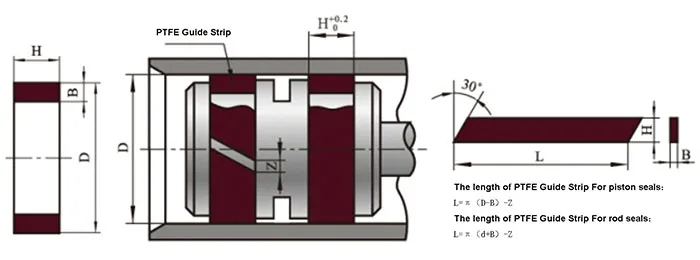

| Purpose | PTFE Guide Strip is an important component in a hydraulic cylinder where it stabilizes and reduces vertical movements of the rod. The arising side loads that the PTFE Guide Strip has to withstand can be significant, but the deformation of the Guide Strip is not permanent. |
| Material | PTFE + Bronze |
| Density | 2.1 - 2.3 g/cm³ |
| Working Temperature | -180 ~ +250℃ |
| Working Pressure | ≤63Mpa |
| Working Medium | Hydraulic Oil,Compressed Air |
| PTFE + Bronze Guide Strip | Phenolic Resin Guide Strip | ||||||||
| Length | 68m | 46m | 34m | 27m | 23m | 16m | 13m | 10m | |
Width*Thickness (mm) | 5*1 | 5*1.5 | 5*2 | 5*2.5 | 5*3 | 6*2 | 25*3 | ||
| 6*1 | 6*1.5 | 6*2 | 6*2.5 | 6*3 | 6*2.5 | 25*4 | |||
| 8*1 | 8*1.5 | 8*2 | 8*2.5 | 8*3 | 8*4 | 10*2 | 30*2.5 | ||
| 10*1 | 10*1.5 | 10*2 | 10*2.5 | 10*3 | 10*4 | 10*5 | 10*2.5 | 30*3 | |
| 12*1 | 12*1.5 | 12*2 | 12*2.5 | 12*3 | 12*4 | 12*5 | 15*2 | 30*4 | |
| 15*1 | 15*1.5 | 15*2 | 15*2.5 | 15*3 | 15*4 | 15*5 | 15*2.5 | 35*3 | |
| 20*1 | 20*1.5 | 20*2 | 20*2.5 | 20*3 | 20*4 | 20*5 | 15*3 | 35*4 | |
| 25*1 | 25*1.5 | 25*2 | 25*2.5 | 25*3 | 25*4 | 25*5 | 20*2 | 40*2.5 | |
| 30*1 | 30*1.5 | 30*2 | 30*2.5 | 30*3 | 30*4 | 30*5 | 20*2.5 | 40*3 | |
| 35*1 | 35*1.5 | 35*2 | 35*2.5 | 35*3 | 35*4 | 35*5 | 20*3 | 40*4 | |
| 40*1 | 40*1.5 | 40*2 | 40*2.5 | 40*3 | 40*4 | 40*5 | 20*4 | ||
| 45*1 | 45*1.5 | 45*2 | 45*2.5 | 45*3 | 45*4 | 45*5 | 25*2 | ||
| 50*1 | 50*1.5 | 50*2 | 50*2.5 | 50*3 | 50*4 | 50*4 | 25*2.5 | ||

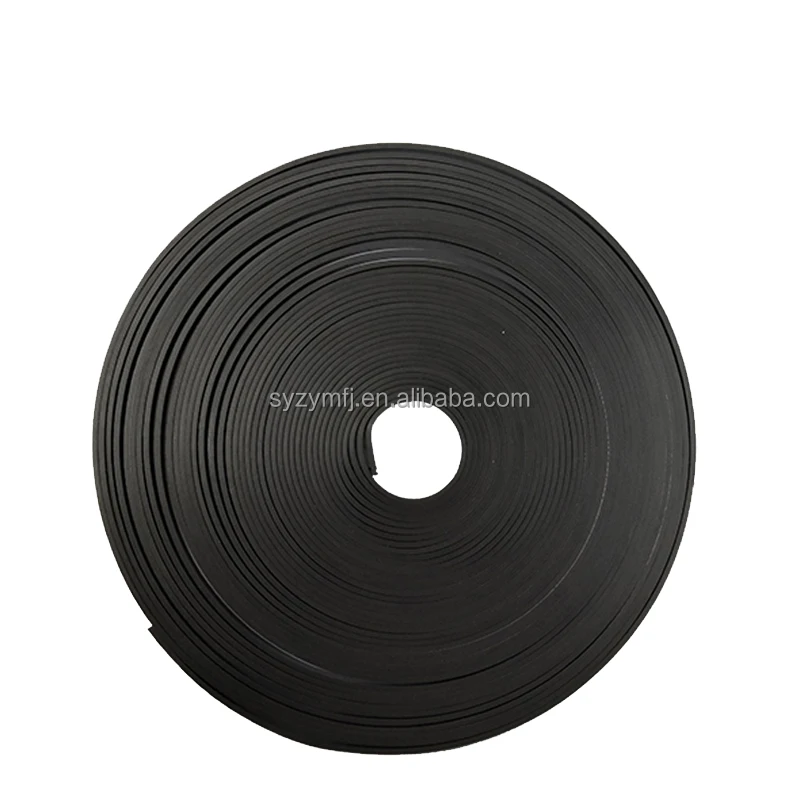

Detailed Images
Company Information

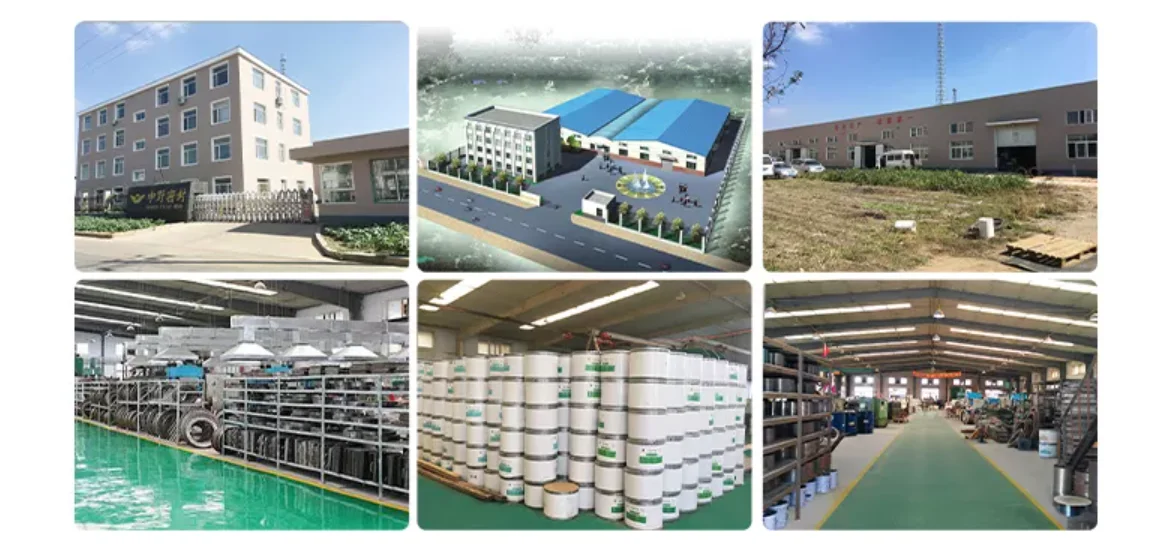

Shenyang ZhongYe Seals Factory is a professional PTFE product and seals product manufacturing enterprise. We are located in Shenyang Sino-German Industrial Park, China.
The area of factory is over 20000 squal meters and the construction area is about 15000 squal meters, mainly producing Hydraulic Seals, PTFE Products, PEEK Products & Nylon Products. We were established in 1999 and pass ISO9001 quality system certification on 2012. We have nearly 23 years of production experience in sealing products and PTFE (Teflon) Products.Our products have been export to more than 20 countries such as UAS, the united of kingdom, Belgium, Brazil,Russia, Indonesia etc.
We had formed unique design style and processing technology its own after many years’ practice. Deeply favorite by the customs because of our high-quality , cheap price products and short supply cycle. ZhongYe sincerely service customs by the idea " Quality First, Favorable price, Quick Service".
- In 1999, the founder of the company began to engage in the production and manufacture of hydraulic seals.
- In 2002, we independently developed the cutting technology of the PTFE guide strip, which improved the production efficiency.
- In 2004, the founder founded a company named "Shenyang Zhongye Seas Factory".
- In 2008, the PTFE workshop is put into use. Start production of PTFE sheet, tube, rod, film, gasket, packing and seal tape.
- In 2012, become a member of China Fluoroplastics Association.
- In 2016, the company has obtained GB / T19001-2008 / ISO9001:2008.
- In 2018, the company introduced intelligent management system.
- In 2022, the construction of the new plant has been completed,The factory area reaches 20000 square meters and the plant area reaches 15000 square meters.
